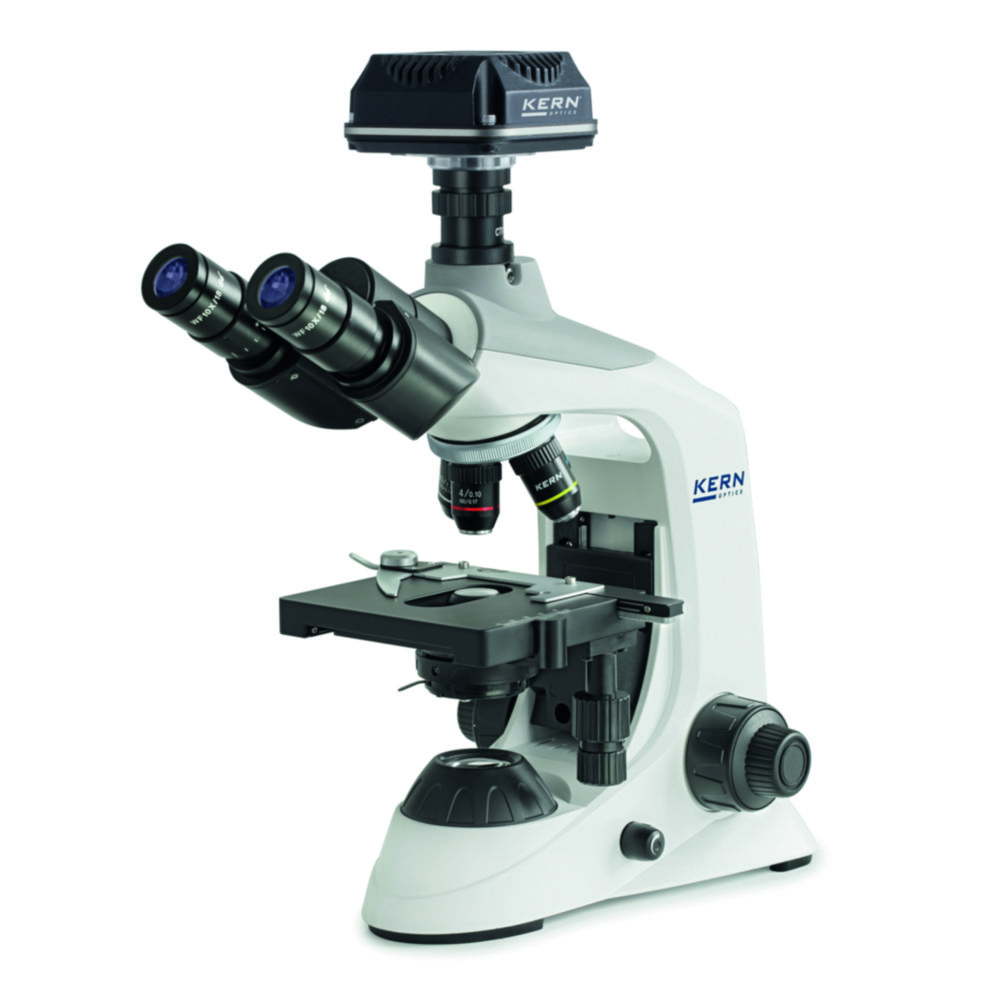

Transmitted light microscope-digital set OBE, with C-mount camera
Content:
1
Product number:
4691071
Product information "Transmitted light microscope-digital set OBE, with C-mount camera"
The set is the comprehensive digital solution for school, training and laboratory.
Scope of supply:
Transmitted light microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction
- Tube 30° inclined, 360° rotatable
- Diopter adjustment at one eyepiece tube
- Coaxial pre-and fine focussing
- ABBE 1,25 N.A. condensor focussed with aperture diaphragm
- Dimmable 3 W LED illumination
Scope of supply:
Transmitted light microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction
| Condenser: | Abbe N.A. 1,25 |
|---|---|
| Depth: | 180 mm |
| Depth stage: | 115 mm |
| Dimensions (WxDxH): | 320 x 180 x 365 mm |
| Height: | 365 mm |
| Inclination angle tube: | 30° |
| Interfaces: | USB 2.0 (6,8 ... 55 FPS) |
| Interpupillary distance: | 48 ... 75 mm |
| Light type: | LED |
| Magnification eyepieces: | HWF 10x/18 mm |
| Magnification objectives: | 4x, 10x, 40x, 100x |
| Manufacturer Article Number: | OBE 134C825 |
| Max. interpupillary distance: | 75 mm |
| Max. voltage: | 230 V |
| Min. interpupillary distance: | 48 mm |
| Plug type: | EU |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Resolution camera: | 5.1 MP |
| Revolving nosepiece: | 4-fold |
| Sensor: | CMOS 1/2,5" |
| Stage (WxD): | 125 x 115 mm |
| Tube: | Trinocular |
| Type: | OBE 134C825 |
| Type of auxiliary energy: | Mains connection |
| Type of illumination (Microscopy): | Transmitted light |
| Weight: | 5.5 kg |
| Width: | 320 mm |
| Width stage: | 125 mm |
Skip product gallery
Accessories

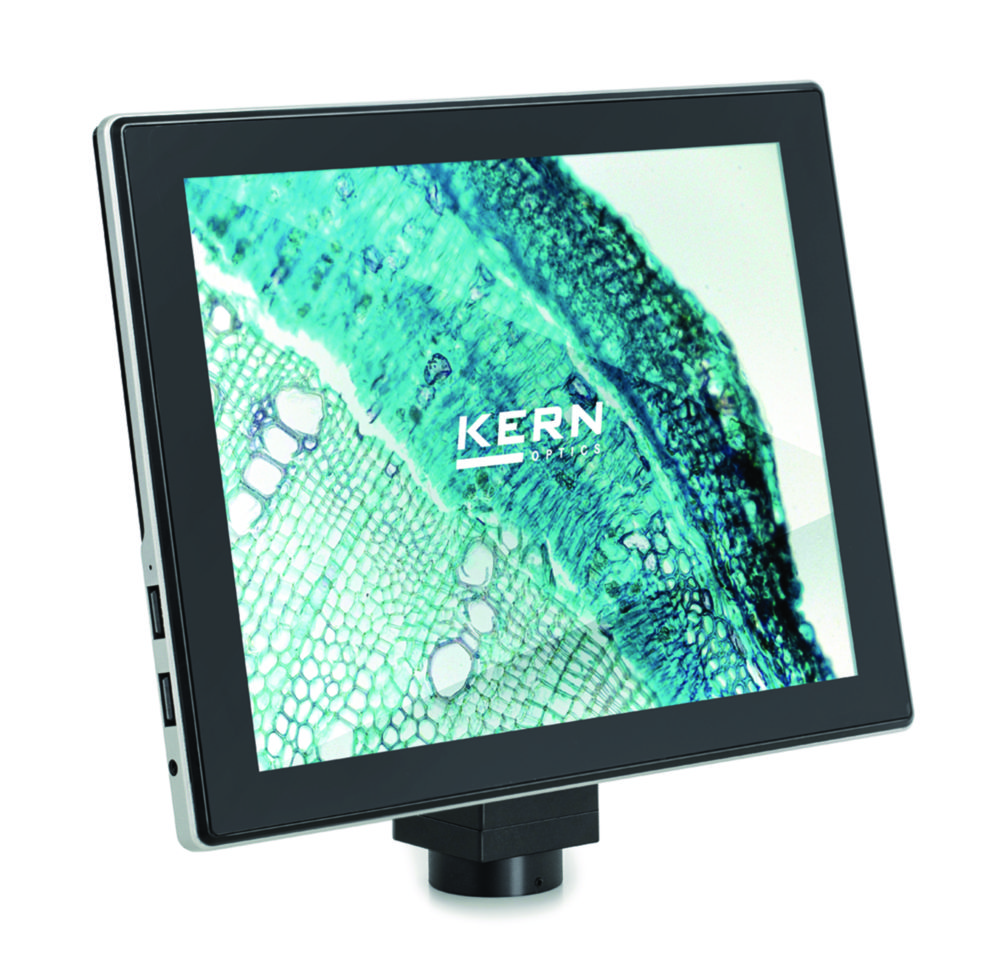

Tablet camera ODC
The Microscope-tablet-camera consists of a large Android tablet in combination with a 5-MP camera, for trinocular microscopes with C-mount adapter.9.7" LCD-TouchscreenIncl. functions for measuring distance, surfaces and angles as well as a manual counting functionAutomatic white balance and contrast adjustmentScope of supply: Tablet camera with pre-installed software, mains adapter

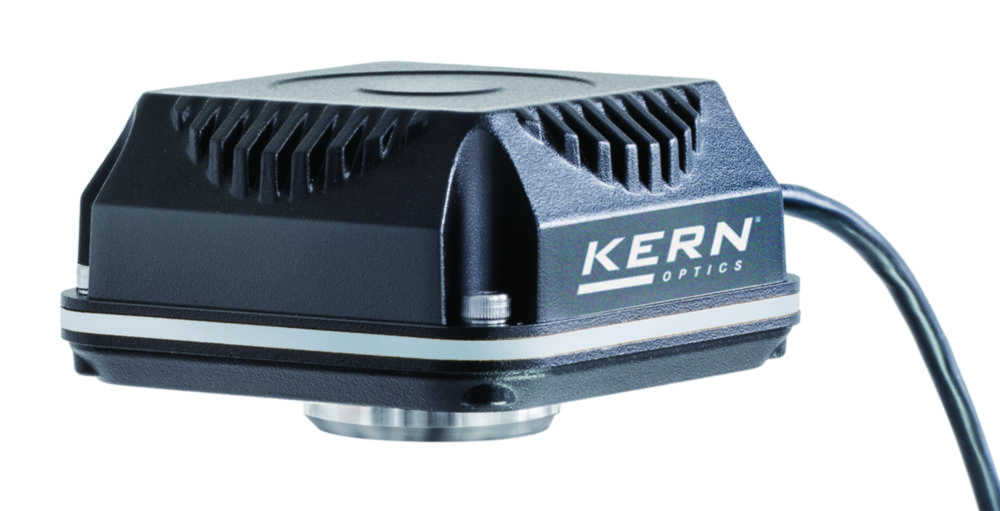

Digital CMOS Microscope Cameras ODC
Specialists in microscopy for measurement, counting, documentation, archiving and image processing.C-Mount USB-camera with CMOS sensorUSB-cable, eyepiece adapter and calibration slide includedKern-Microscope-VIS Software in 6 languages inclusive, for WINDOWS XP and higher
Light Microscopes Educational-Line OBE 12 / 13
The fully equipped all-round compound microscope for school, training and laboratories.Monocular (OBE 121, 131): Tube 30° inclinedBinocular (OBE 122, OBE 132): Tube Butterfly 30° inclined, 360° rotatableTrinocular (OBE 124, 134): Tube Butterfly 30° inclined, 360° rotatableachromatic objective 100x (oil immersion)Widefield Eyepiece: WF 10x/18 mmDiopter adjustment at bino- and trinocular Version available (at one eyepiece tube)Quadruple nosepieceCoaxial pre-and fine focussingAbbe 1,25 condensor focussed with aperture diaphragmDimmable 3 W LED illuminationStorage compartment on the rear sideUSB connection (only as power source)Dust Cover, eyepiece rubber caps and manual instruction includedDifferent colour filters as accessoires available
