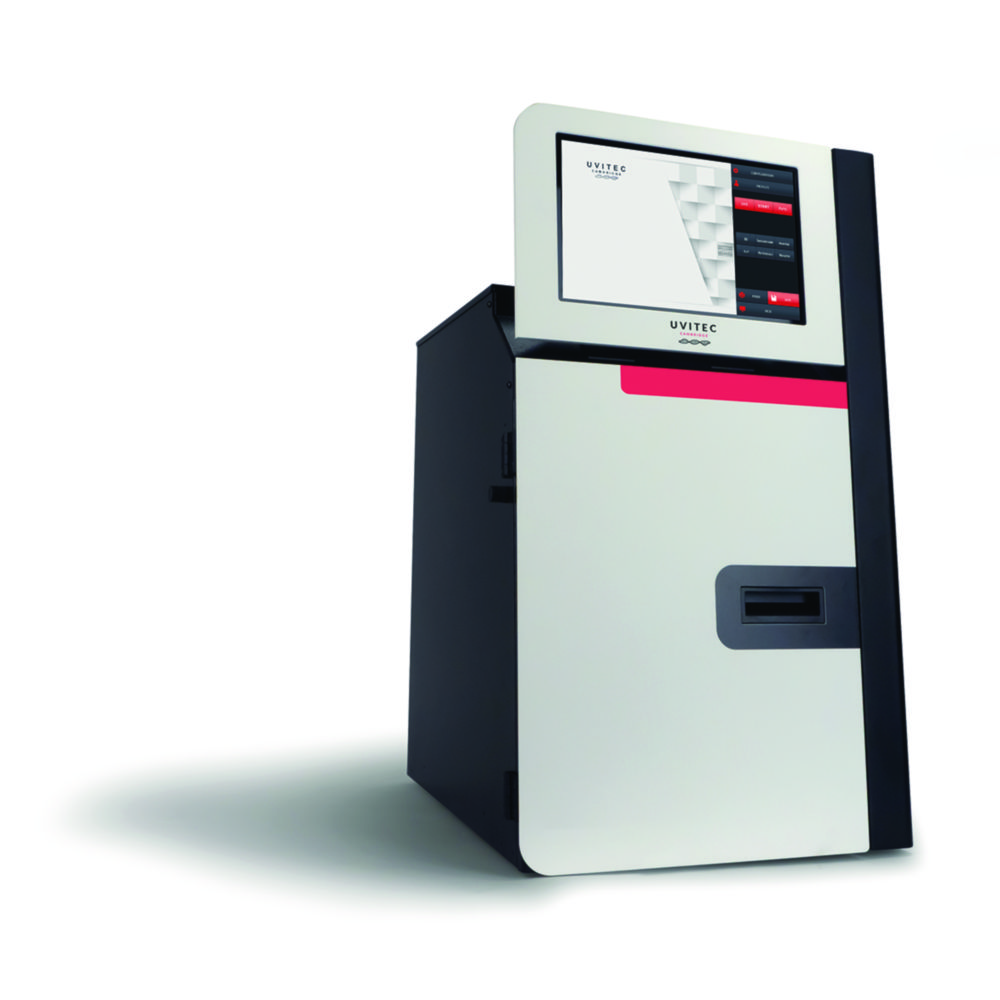

PC-independent gel documentation system with a compact darkroom made of metalLarge, good readable touch display (12.2")High resolution scientific camera with motorized 6x zoom objectiveHigh recoding quality (6 MP, 16 bit)Automated image recordingDarkroom, three position filter wheel, LED incident light, integrated UV-table (20x20 cm) with full pullout and automatic safety shutdownUSB port for data transferFree analysis software
An entry level system for routine fluorescence and gel documentation. Suitable for DNA gels, protein gels, colony counting, colorimetric blots and films. Spacious darkroom for viewing gels up to 25 x 30 cm. Internal lighting comes from a UV transilluminator or a white or blue light LED module. This system can be upgraded to a chemiluminescence imager.High resolution 5 MP camera for good spatial resolutionEffective resolution up to 15.1 MPMotor driven zoom lens and filter wheelIntegral white LED lighting for sample positioning, visible light applications and colorimetric markersPre-defined 1-click protocols for rapid imagingGenepix automatic control softwareUnlimited user saveable protocolsCan be used in a 21 cfr part 11 compliant environmentScope of supply:Darkroom, camera, UV transilluminator, UV emission filter, license free acquisition and analysis software

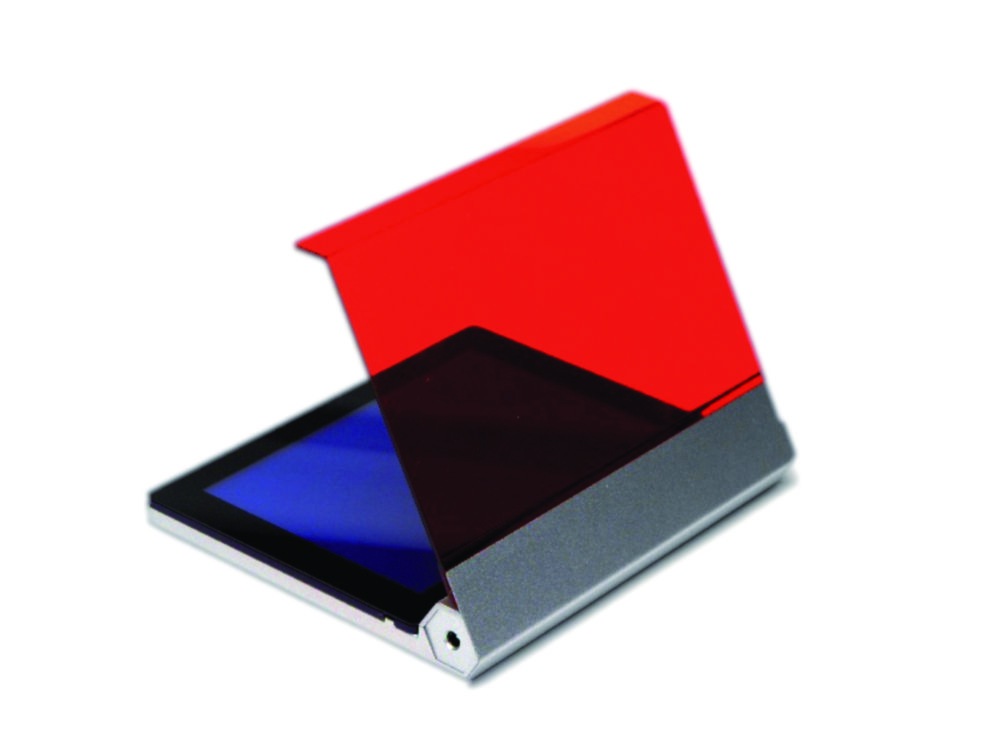

Powerful LED lighting arrays for blue (470 nm) and white (broad wavelength) illumination to image fluorescent and colorimetric gels. Through LED lights no ageing of UV bulbs and because of the inbuilt white LED array a separate white light table is not necessary. Well suited for teaching labs in universities and schools. Compatible with blue light excited safe DNA stains, as well as traditional stains such as ethidium bromide.Magnetic filter compatible with wide range of DNA stains3 level adjustable LED intensityBottom up illumination provides even sample illuminationAutomatic power-off to prevent heat build-upHigh quality aluminium housingWavelength: 470 nm + white lightScope of supply: Transilluminator, orange hinged filter, paper hood

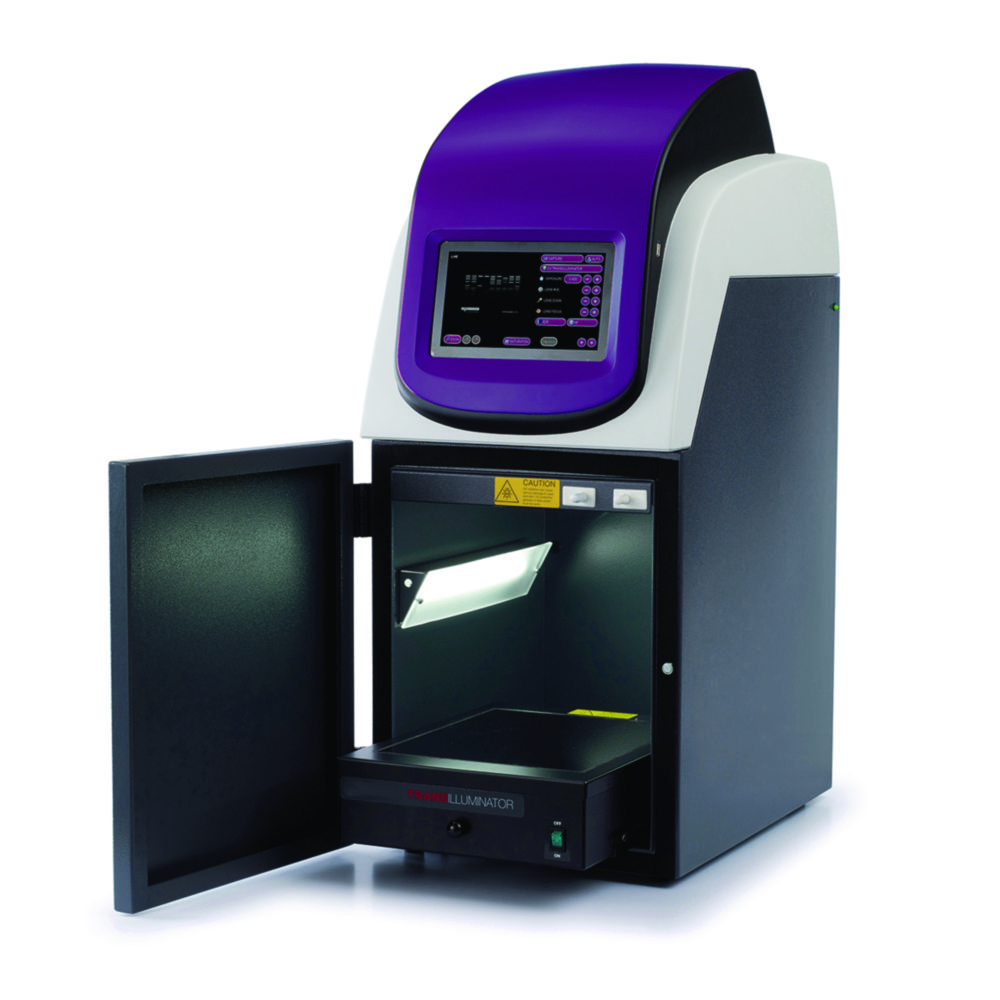

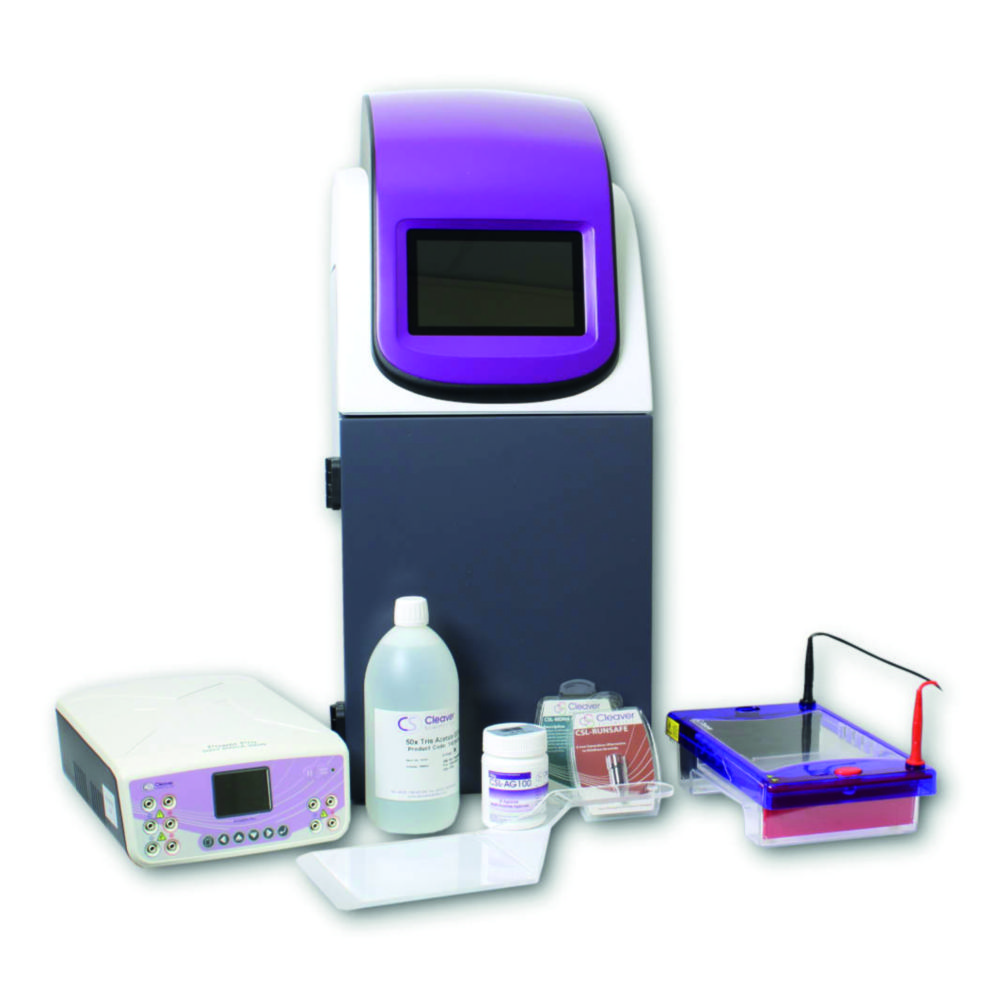

The all-in-one package for agarose gel electrophoresis. It includes everything necessary from gel loading to gel documentation and quantification.Gel documentation system gelONE with built-in touch screen and 5 megapixel camera for clear imaging of closely spaced DNA bands. Acquisition and analysis software is already included licence-freeElectrophoresis tank multiSUB Choice has an optimal size for routine separations. The tank is injection-moulded and each platinum electrode is recessed in a removable cassette to protect it from damagePower supply PowerPro can be operated in constant mode or programmed. Stores preset protocols for each Cleaver Scientific gel tankScope of supply: Gel documentation system gelONE, electrophoresis tank multiSUB Choice Trio, power supply PowerPro 300, UV to blue light converter (21 x 26 cm), UV fluorescent ruler, UV gel scoop, agarose (100 g), DNA ladder (100 bp to 10 Kb), DNA staining reagent runSAFE (50 bp to 20 Kb), TAE running buffer (1 l)

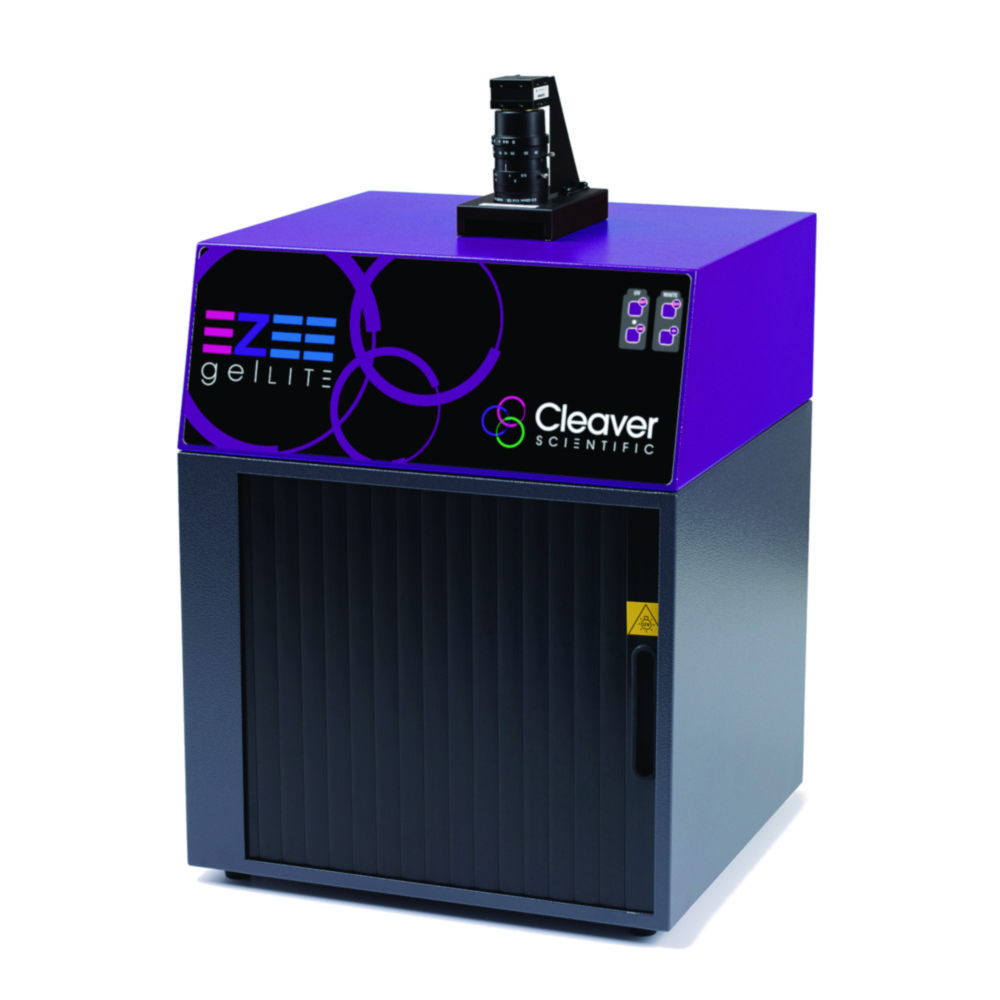

The starter package for working with agarose gels in the laboratory. It includes everything necessary from gel loading to gel documentation and quantification.Gel documentation system gelLITE with pre-focused camera and blue light converter screen. Acquisition and analysis software is already included licence-freeElectrophoresis tank multiSUB Midi is an injection-moulded tank for up to 100 samples and each platinum electrode is recessed in a removable cassette to protect it from damagePower supply PowerPro can be operated in constant mode or programmed. Stores preset protocols for each Cleaver Scientific gel tankScope of supply: Gel documentation system gelLITE, electrophoresis tank multiSUB Midi DUO, power supply PowerPro 300, UV to blue light converter (21 x 26 cm), UV fluorescent ruler, UV gel scoop, agarose (100 g), DNA ladder (100 bp to 10 Kb), DNA staining reagent runSAFE (50 bp to 20 Kb), TAE running buffer (1 l)

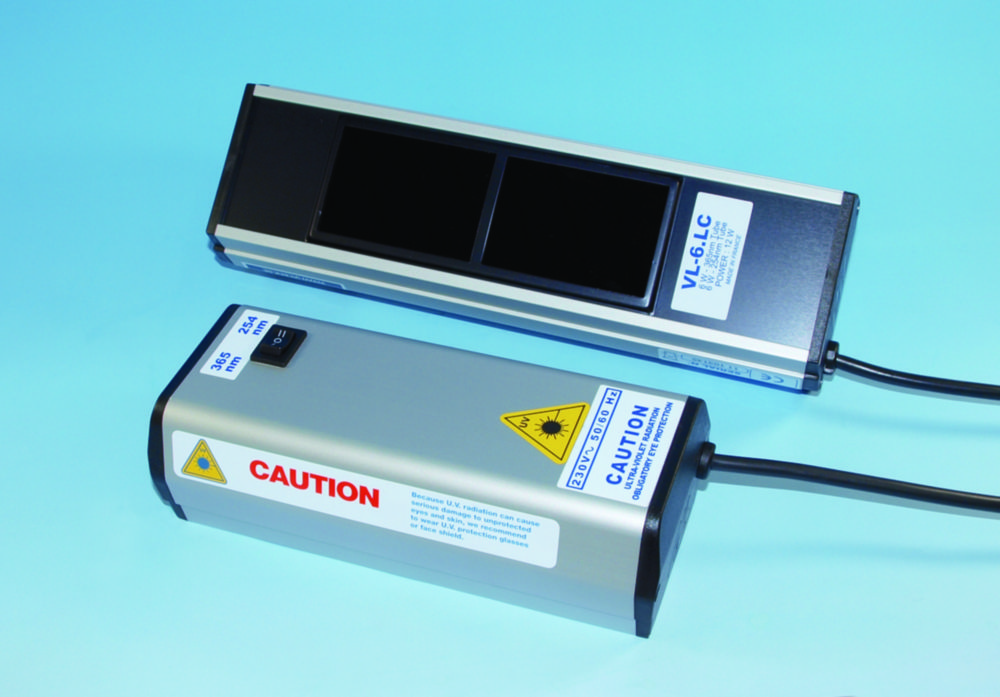

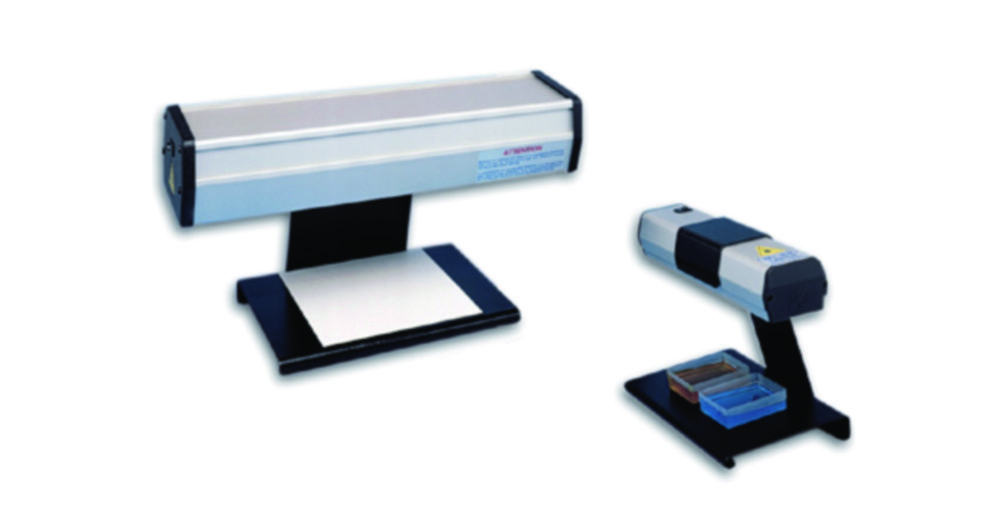

Filtered UV lamps with different wave lengths and power levels for a broad range of applicationsModels with wave length selector suited for multiple applicationsElectronic ballast (ECG), flicker-free, low-maintenanceFurther models on request.Note: please order lamp holder separately.
The Gel Documentation System comes in either a 302 nm or a 365 nm version. The unit comes with a storage location on its top to help maximize bench space and provide a place for accessories. Designed for the documentation of visible protein stains like Coomassie blue or silver stain, for DNA dyed with Ethidium bromide, Safe Dyes, GelGreen® and SYBR™ safe.Region of interest function for optimal exposure in < 30 sec.30,000 operating hours of the transilluminator, no more replacement UV lamps necessary16 bit Tiff files ideal for publicationRuns on a Windows based PC (not included). PC Requirements: Windows 10, Intel® processor, 1.4 GHz processor speed, 2 GB RAM, 16 GB free hard disk space, 2 USB 2.0 or higher ports.
The Gel Documentation System comes in either a 302 nm or a 365 nm version. The unit comes with a storage location on its top to help maximize bench space and provide a place for accessories. Designed for the documentation of visible protein stains like Coomassie blue or silver stain, for DNA dyed with Ethidium bromide, Safe Dyes, GelGreen® and SYBR™ safe.Region of interest function for optimal exposure in < 30 sec.30,000 operating hours of the transilluminator, no more replacement UV lamps necessary16 bit Tiff files ideal for publicationBuilt-on Windows 10 tablet
Recently upgraded with a new 24.1 megapixel digital CMOS camera to guarantee superb resolution, the microDOC is the researcher's choice for a simple ultra-compact gel documentation system that meets constraints in both budget and space within the laboratory. A large 8" TFT screen enables images, including agarose and fluorescent gels, colorimetric gels, autoradiography film and blotting membrane, to be captured clearly and easily. The system is computer-free and supplied with an 8 GB storage card and 58 mm ethidium bromide filter as standard, while an optional SYBR filter is also available. Files are saved onto the storage card in RAW, TIFF-RGB and JPEG formats and may be transferred to computer for analysis with the highly recommended TotalLab™ 1D software.Camera:File Format Design rule for Camera File system, DPOF (version 1.1) compliantFocus-Area Selection AF mode and manual focus are availableHoodMulti-Power Source for camera, Inner light lamp, TFT screenSafety Door Switch Automatically disconnects UV transilluminator, while opening the chamber door during operationWith Video and Audio Input

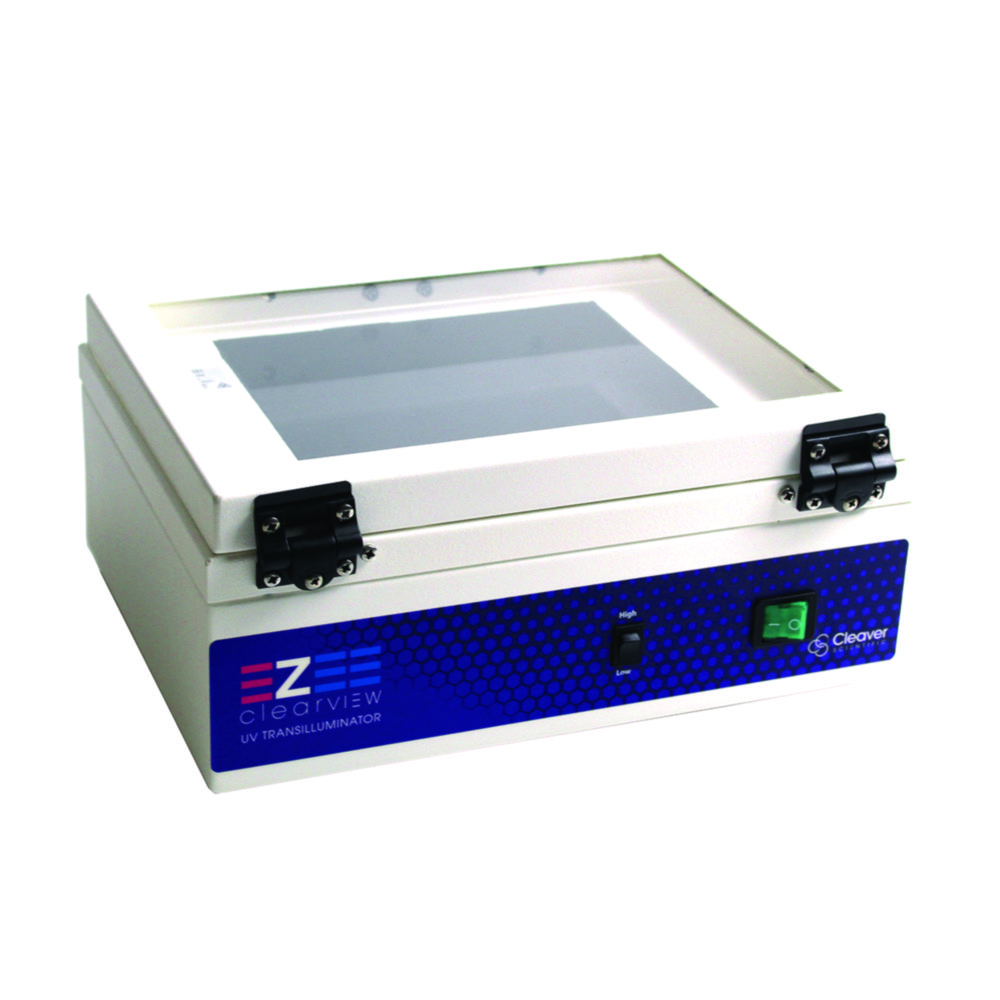

Standard features include a high/low intensity safety switch and an efficient starter that allows each of the six 8W UV tubes to energise quickly without flickering, while special filter glass minimises unwanted background light. All of these features maximise contrast and sensitivity, allowing even the faintest fluorescent gels to be viewed.
The UV sterilization lamps emit UV radiation with a wavelength of 254 nm. Ideal for preventing contamination in research laboratories, food factories, or medical facilities.High UV intensityOndulexR reflector for optimum UV irradiation intensityAluminium housing

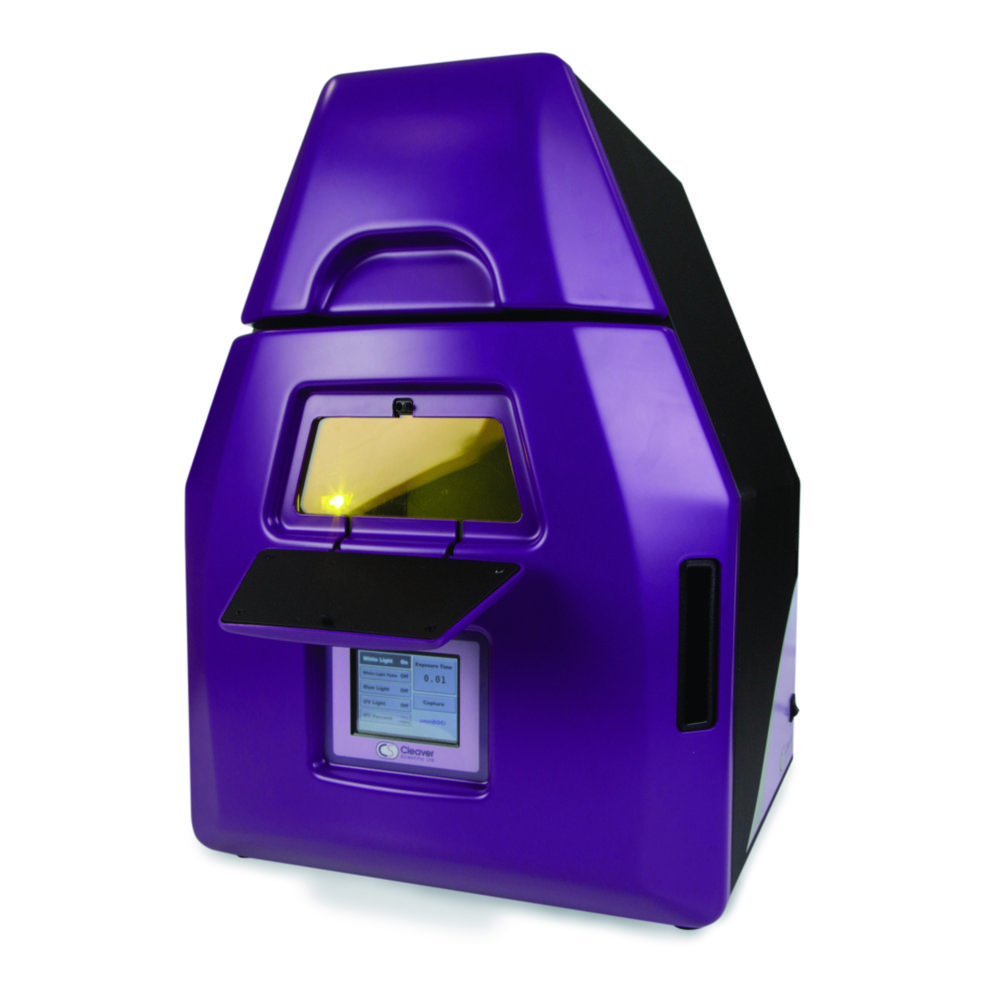

The omniDOC offers high performance gel documentation and analysis at a relatively low cost. A high resolution 5 mega pixel camera with slide-out UV transilluminator, and optional blue epi-illumination module and white light table, makes the omniDOC suitable for imaging most fluorescent and colorimetric gels.Pre-focused 5 mega pixel camera with auto-exposure for almost instantaneous high resolution gel imaging; CMOS sensor for improved light sensitivity5 mm lens, F1.2 aperture size, with manual adjustmentInterchangeable 4 positions filter wheel with 620 nm ethidium bromide filter as standard; 520, 560, 580 nm and neutral density filter options available for runSAFE, SYBR stain and other fluorescence applicationsViewing pane with universal amber filter for gel inspection, which may be covered by a spring-loaded panel during documentationInternal white LED - aids gel positioning and focusingSlide-out 312 nm transilluminator; uses optional plug-in white light table for coomassie, silver-stain and other colorimetric gelsLarge 210 x 260 mm filter areaDark room assembly with corrosion resistant ABS constructionSafety switch prevents accidental UV exposure when opening front door panelScope of supply: omniDOC with 620 nm (EtBr) emission filter, 312 nm UV transilluminator
The omniDOC offers high performance gel documentation and analysis at a relatively low cost. A high resolution 5 mega pixel camera with slide-out UV transilluminator, and optional blue epi-illumination module and white light table, makes the omniDOC suitable for imaging most fluorescent and colorimetric gels.Pre-focused 5 mega pixel camera with auto-exposure for almost instantaneous high resolution gel imaging; CMOS sensor for improved light sensitivity5 mm lens, F1.2 aperture size, with manual adjustmentInterchangeable 4 positions filter wheel with 620 nm ethidium bromide filter as standard; 520, 560, 580 nm and neutral density filter options available for runSAFE, SYBR stain and other fluorescence applicationsViewing pane with universal amber filter for gel inspection, which may be covered by a spring-loaded panel during documentationInternal white LED - aids gel positioning and focusingSlide-out 312 nm transilluminator; uses optional plug-in white light table for coomassie, silver-stain and other colorimetric gelsLarge 210 x 260 mm filter areaDark room assembly with corrosion resistant ABS constructionSafety switch prevents accidental UV exposure when opening front door panelScope of supply: omniDOC with 620 nm (EtBr) emission filter, 312 nm UV transilluminator, blue LED Epi-illumination, 520/560/580 nm and neutral density filters

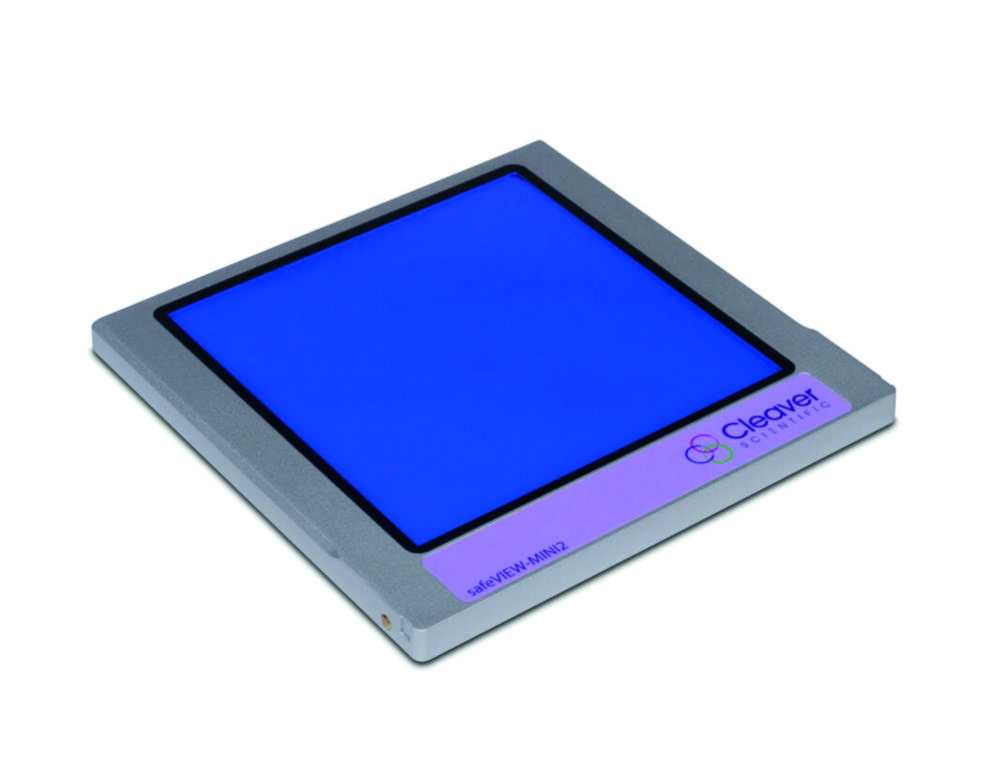

The compact LED transilluminator offers a safe way to view and document fluorescently stained nucleic acid gels. The blue 470 nm LED light source has the advantage of causing no damage to DNA and RNA.Aluminium alloy casingAutomatic shutdown after approx. 6 minutesIncluding filter screen with orange filter (580 nm)Compatible with electrophoresis chambers of the size of multiSUB Mini and Midi gel tanksScope of supply: Transilluminator, filter

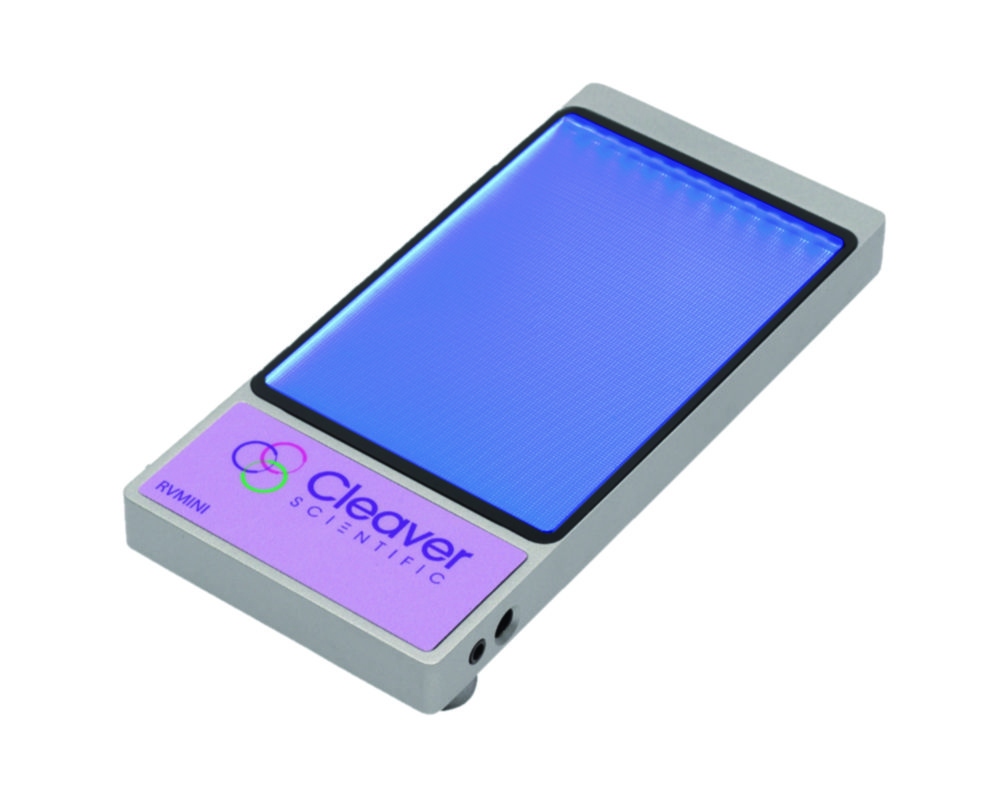

The Mini-Blue light Transilluminator uses harmless blue light to illuminate both traditional Ethidium bromide stained gels as well as safe stains. Slotting under any gel tank, but perfect for our MINI and MIDI sized multiSUB gel tanks. With an orange filter window to visualize DNA in real time within gel tanks, it is perfect for quickly checking PCR fidelity and restriction digest results. The device can also be used as a stand-alone transilluminator with the gel placed directly on the illuminator.High intensity blue LED illuminator allows visualization of a wide range of fluorescent gel stainsCompatible with runSAFE, commercial safe stains and ethidium bromideScope of supply: Transilluminator, filter (orange)
Recently upgraded with a new 24.1 megapixel digital CMOS camera to guarantee superb resolution, the microDOC is the researcher's choice for a simple ultra-compact gel documentation system that meets constraints in both budget and space within the laboratory. A large 8" TFT screen enables images, including agarose and fluorescent gels, colorimetric gels, autoradiography film and blotting membrane, to be captured clearly and easily. The system is computer-free and supplied with an 8 GB storage card and 58 mm ethidium bromide filter as standard, while an optional SYBR filter is also available. Files are saved onto the storage card in RAW, TIFF-RGB and JPEG formats and may be transferred to computer for analysis with the highly recommended TotalLab™ 1D software.Camera:File Format Design rule for Camera File system, DPOF (version 1.1) compliantFocus-Area Selection AF mode and manual focus are availableHoodMulti-Power Source for camera, Inner light lamp, TFT screenSafety Door Switch Automatically disconnects UV transilluminator, while opening the chamber door during operationWith Video and Audio Input
The omniDOC offers high performance gel documentation and analysis at a relatively low cost. A high resolution 5 mega pixel camera with slide-out UV transilluminator, and optional blue epi-illumination module and white light table, makes the omniDOC suitable for imaging most fluorescent and colorimetric gels.Pre-focused 5 mega pixel camera with auto-exposure for almost instantaneous high resolution gel imaging; CMOS sensor for improved light sensitivity5 mm lens, F1.2 aperture size, with manual adjustmentInterchangeable 4 positions filter wheel with 620 nm ethidium bromide filter as standard; 520, 560, 580 nm and neutral density filter options available for runSAFE, SYBR stain and other fluorescence applicationsViewing pane with universal amber filter for gel inspection, which may be covered by a spring-loaded panel during documentationInternal white LED - aids gel positioning and focusingSlide-out 312 nm transilluminator; uses optional plug-in white light table for coomassie, silver-stain and other colorimetric gelsLarge 210 x 260 mm filter areaDark room assembly with corrosion resistant ABS constructionSafety switch prevents accidental UV exposure when opening front door panelScope of supply: omniDOC with 620 nm (EtBr) emission filter, 312 nm UV transilluminator, blue LED Epi-illumination, 520/560/580 nm and neutral density filters, white light table

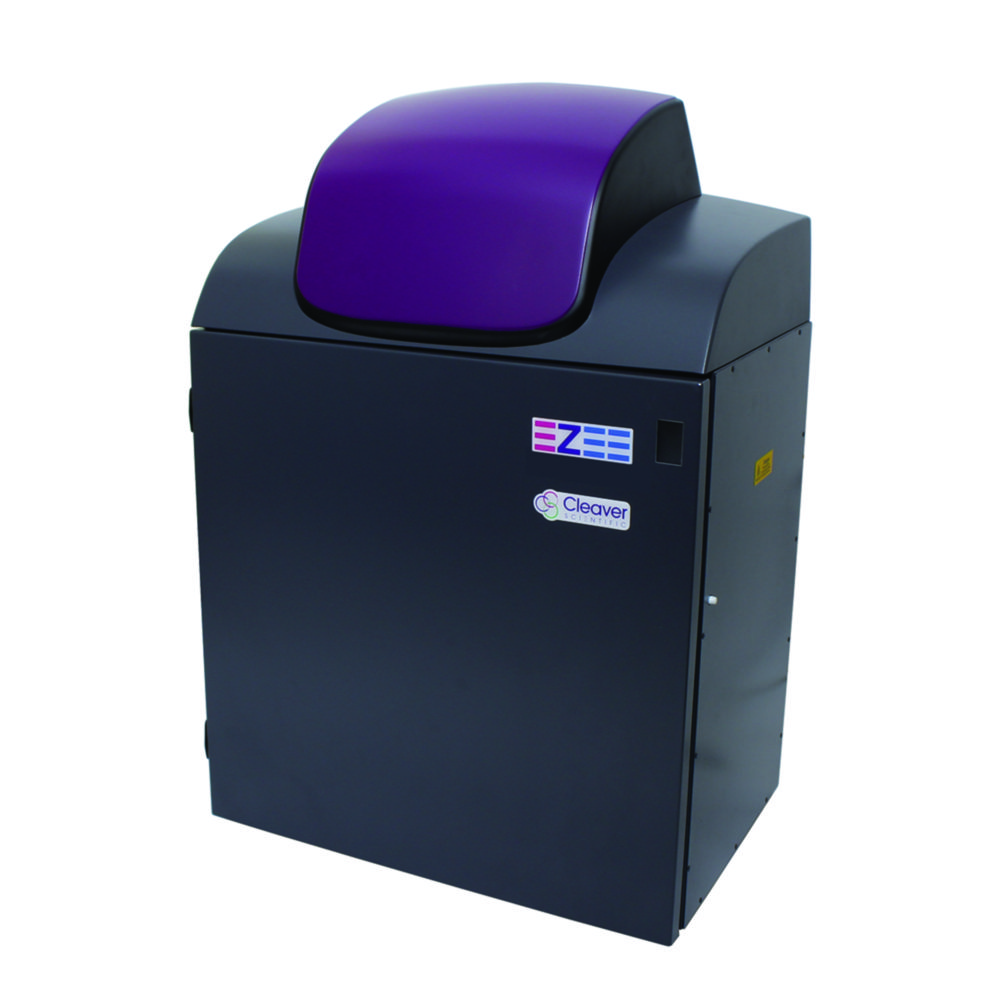

Compact gel documentation system for agarose gels and stained protein gels. Suitable for fluorescent and stained agarose gels, spot and colony counting, Coomassie stained protein gels, GFP plant imaging, molecular weight analysis of DNA agarose gels and protein gels as well as autoradiography imaging. A 302 nm UV transilluminator enables imaging of large format agarose gels or stained protein gels up to 20 x 20 cm. A 5-megapixel camera gives low light sensitivity for clear resolution of closely spaced DNA bands and ensures low levels of fluorescence are detected. With intuitive genePIX acquisition software for an efficient workflow.High-resolution 5 megapixel camera with 16 bit image depth and 65536 grey levelsManually controlled camera zoom and focusImage of all commercially available DNA and protein stainsGenepix software for acquisition and analysisUSB connection to PCScope of supply:Darkroom, camera, UV transilluminator, UV emission filter, license free acquisition and analysis software
The microDOC BASIC is a simple low-cost system comprising a lift-off dark room hood and 24.1 megapixel digital camera, through which the gel is viewed directly.
Recently upgraded with a new 24.1 megapixel digital CMOS camera to guarantee superb resolution, the microDOC is the researcher's choice for a simple ultra-compact gel documentation system that meets constraints in both budget and space within the laboratory. A large 8" TFT screen enables images, including agarose and fluorescent gels, colorimetric gels, autoradiography film and blotting membrane, to be captured clearly and easily. The system is computer-free and supplied with an 8 GB storage card and 58 mm ethidium bromide filter as standard, while an optional SYBR filter is also available. Files are saved onto the storage card in RAW, TIFF-RGB and JPEG formats and may be transferred to computer for analysis with the highly recommended TotalLab™ 1D software.Camera:File Format Design rule for Camera File system, DPOF (version 1.1) compliantFocus-Area Selection AF mode and manual focus are availableHoodMulti-Power Source for camera, Inner light lamp, TFT screenSafety Door Switch Automatically disconnects UV transilluminator, while opening the chamber door during operationWith Video and Audio InputTotalLab™ 1D software: is supplied only as part of a complete package. Its main functions include: lane creation, background subtraction, band detection, profile deconvolution, and molecular size, pI and quantity calibration. More sophisticated standalone software options are available for 1D applications that require band matching, array, colony counting and image ToolBox functionalities.
Recently upgraded with a new 24.1 megapixel digital CMOS camera to guarantee superb resolution, the microDOC is the researcher's choice for a simple ultra-compact gel documentation system that meets constraints in both budget and space within the laboratory. A large 8" TFT screen enables images, including agarose and fluorescent gels, colorimetric gels, autoradiography film and blotting membrane, to be captured clearly and easily. The system is computer-free and supplied with an 8 GB storage card and 58 mm ethidium bromide filter as standard, while an optional SYBR filter is also available. Files are saved onto the storage card in RAW, TIFF-RGB and JPEG formats and may be transferred to computer for analysis with the highly recommended TotalLab™ 1D software.Camera:File Format Design rule for Camera File system, DPOF (version 1.1) compliantFocus-Area Selection AF mode and manual focus are availableHoodMulti-Power Source for camera, Inner light lamp, TFT screenSafety Door Switch Automatically disconnects UV transilluminator, while opening the chamber door during operationWith Video and Audio InputTotalLab™ 1D software: is supplied only as part of a complete package. Its main functions include: lane creation, background subtraction, band detection, profile deconvolution, and molecular size, pI and quantity calibration. More sophisticated standalone software options are available for 1D applications that require band matching, array, colony counting and image ToolBox functionalities.
The microDOC BASIC is a simple low-cost system comprising a lift-off dark room hood and 24.1 megapixel digital camera, through which the gel is viewed directly.TotalLab™ 1D software: is supplied only as part of a complete package. Its main functions include: lane creation, background subtraction, band detection, profile deconvolution, and molecular size, pI and quantity calibration. More sophisticated standalone software options are available for 1D applications that require band matching, array, colony counting and image ToolBox functionalities.
Portable gel documentation system for use with the real-time gel electrophoresis system runVIEW. RunDOC consists of a darkroom hood and a digital camera for capturing images of nucleic acid gels stained with EtBr, SYBR, and runSAFE. The hood is placed directly over the gel tank on the runVIEW base unit.

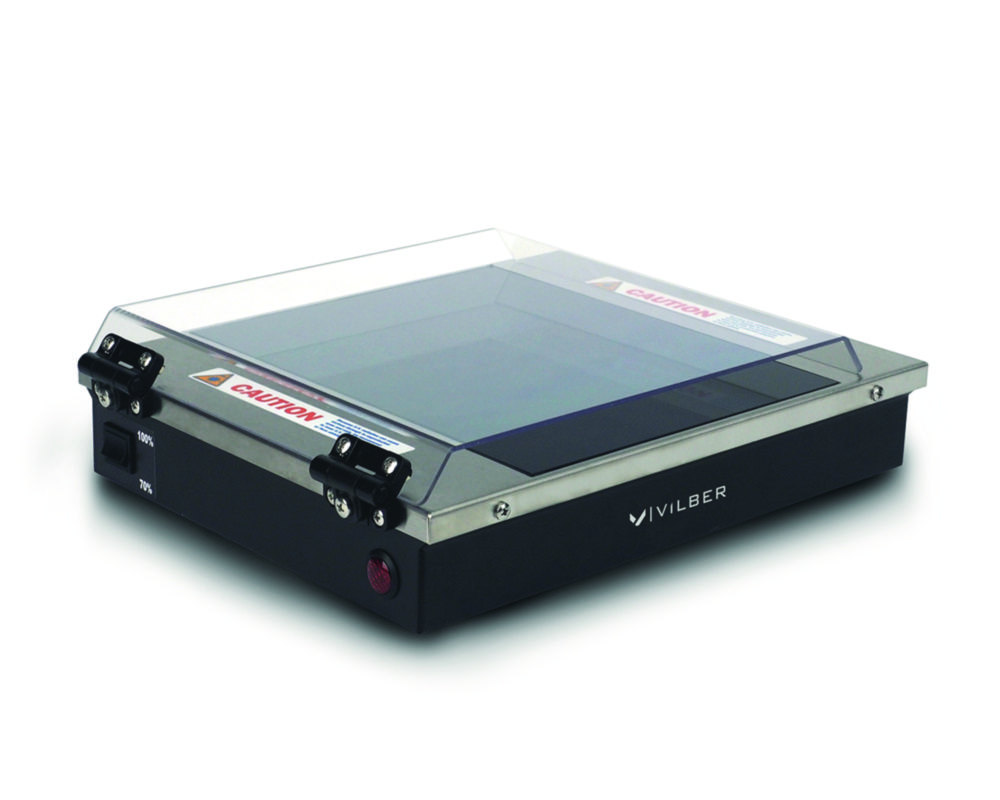

Compact designMetal housing, with stainless steel filter frame and "long life" filterModern technology, highest quality manufactureSingle or dual wavelength models availableBECXF models have intensity selector (Hi/Lo)

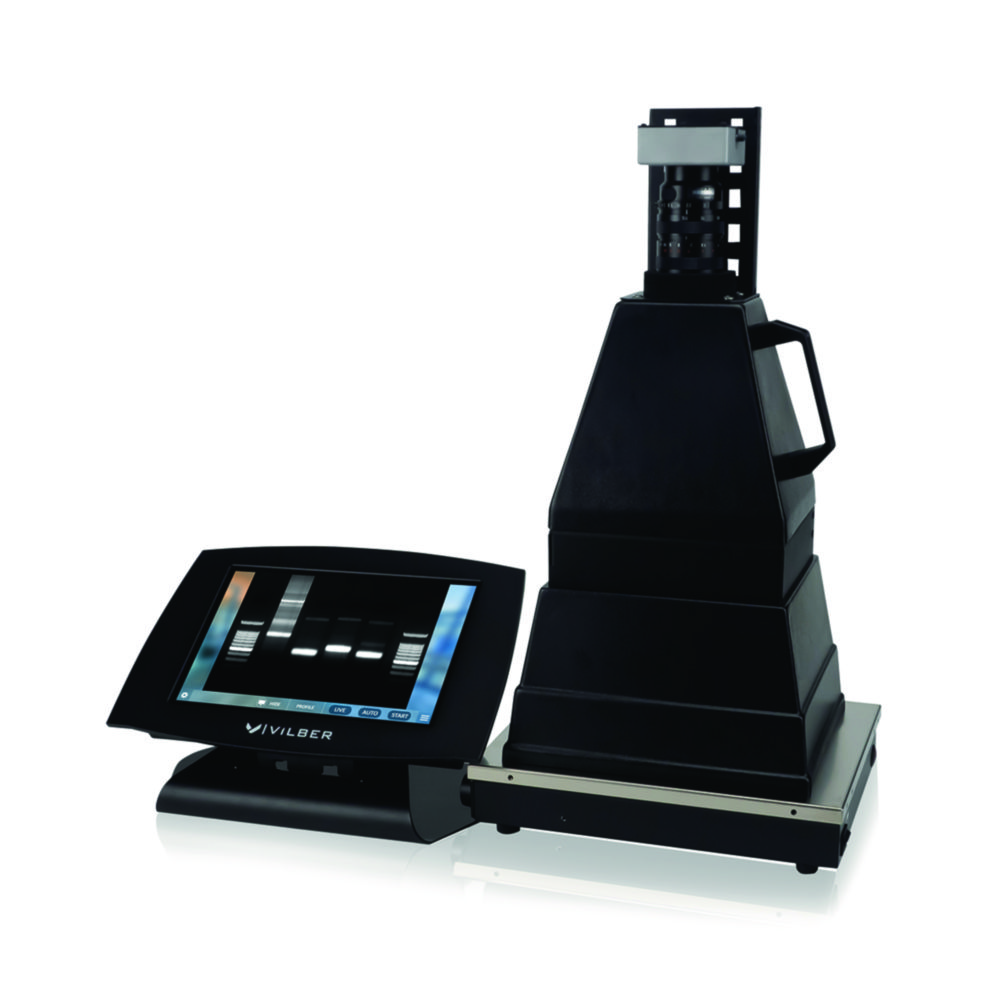

Doc-Print CX3 is a stand-alone system with a small footprint that doesn't need a computer. The free VisionCapt software guarantees full GLP compliance. Molecular weight calculation, band quantification, colony counting, distance calculation, text annotations and image enhancement are included.Field of view: 24 x 18 cmScientific grade camera - Made in Germany3 megapixel resolution (extandable to 20 megapixels)Auto-exposure16-bit - 65 536 grey levelsPassive coolingUSB 3 connectionLarge 12.6" touchscreen interface displaySelf-understandable user interfacePrint or save on an external drive via the USB portConnection of a thermal printer possibleAll models include the following standard components: Imaging unit with touch display and software, camera, zoom objective, UV/Vis F-590 Filter and dark hood.
Doc-Print CX3 is a stand-alone system with a small footprint that doesn't need a computer. The free VisionCapt software guarantees full GLP compliance. Molecular weight calculation, band quantification, colony counting, distance calculation, text annotations and image enhancement are included.Field of view: 24 x 18 cmScientific grade camera - Made in Germany3 megapixel resolution (extandable to 20 megapixels)Auto-exposure16-bit - 65 536 grey levelsPassive coolingUSB 3 connectionLarge 12.6" touchscreen interface displaySelf-understandable user interfacePrint or save on an external drive via the USB portConnection of a thermal printer possibleAll models include the following standard components: Imaging unit with touch display and software, camera, zoom objective, UV/Vis F-590 Filter and dark hood.
Doc-Print CX3 is a stand-alone system with a small footprint that doesn't need a computer. The free VisionCapt software guarantees full GLP compliance. Molecular weight calculation, band quantification, colony counting, distance calculation, text annotations and image enhancement are included.Field of view: 24 x 18 cmScientific grade camera - Made in Germany3 megapixel resolution (extandable to 20 megapixels)Auto-exposure16-bit - 65 536 grey levelsPassive coolingUSB 3 connectionLarge 12.6" touchscreen interface displaySelf-understandable user interfacePrint or save on an external drive via the USB portConnection of a thermal printer possibleAll models include the following standard components: Imaging unit with touch display and software, camera, zoom objective, UV/Vis F-590 Filter and dark hood.
Doc-Print CX3 is a stand-alone system with a small footprint that doesn't need a computer. The free VisionCapt software guarantees full GLP compliance. Molecular weight calculation, band quantification, colony counting, distance calculation, text annotations and image enhancement are included.Field of view: 24 x 18 cmScientific grade camera - Made in Germany3 megapixel resolution (extandable to 20 megapixels)Auto-exposure16-bit - 65 536 grey levelsPassive coolingUSB 3 connectionLarge 12.6" touchscreen interface displaySelf-understandable user interfacePrint or save on an external drive via the USB portConnection of a thermal printer possibleAll models include the following standard components: Imaging unit with touch display and software, camera, zoom objective, UV/Vis F-590 Filter and dark hood.
