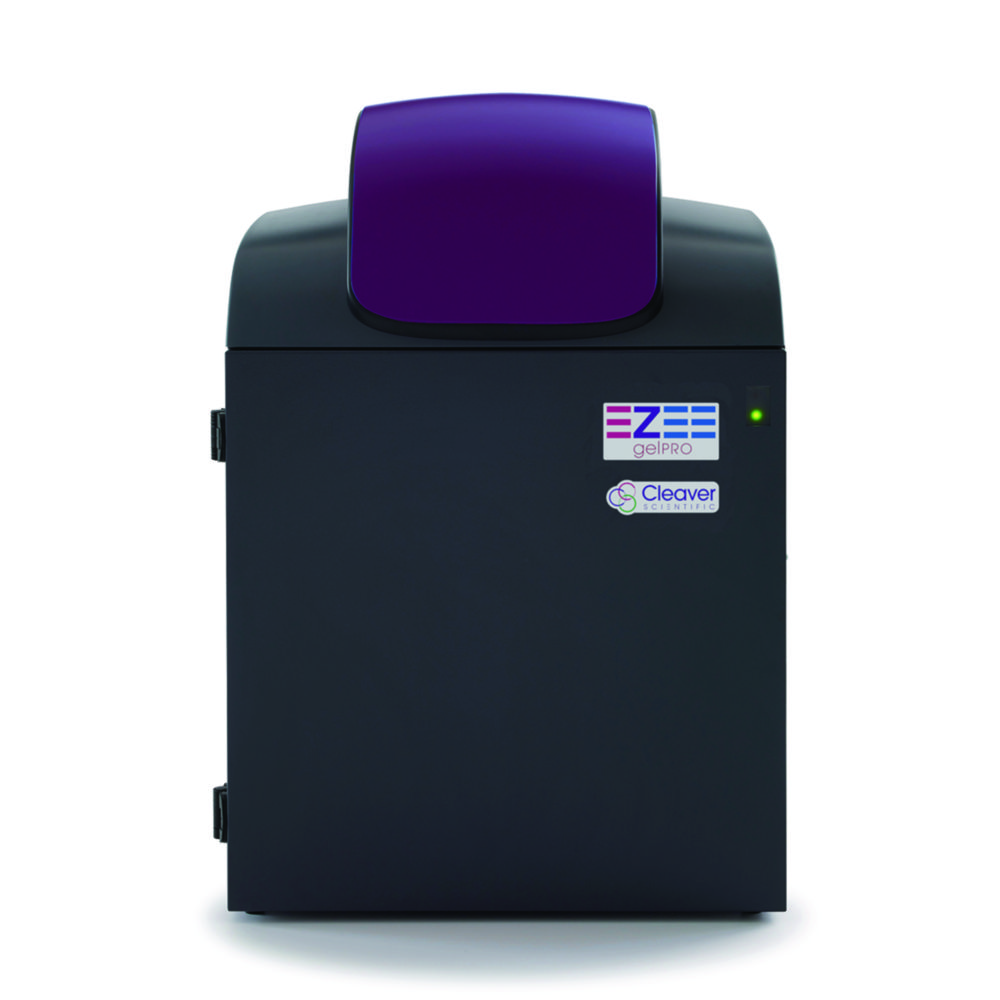

Gel documentation system gelPRO-302E
Content:
1
Product number:
4670737
Product information "Gel documentation system gelPRO-302E"
An entry level system for routine fluorescence and gel documentation. Suitable for DNA gels, protein gels, colony counting, colorimetric blots and films. Spacious darkroom for viewing gels up to 25 x 30 cm. Internal lighting comes from a UV transilluminator or a white or blue light LED module. This system can be upgraded to a chemiluminescence imager.
Scope of supply:
Darkroom, camera, UV transilluminator, UV emission filter, license free acquisition and analysis software
- High resolution 5 MP camera for good spatial resolution
- Effective resolution up to 15.1 MP
- Motor driven zoom lens and filter wheel
- Integral white LED lighting for sample positioning, visible light applications and colorimetric markers
- Pre-defined 1-click protocols for rapid imaging
- Genepix automatic control software
- Unlimited user saveable protocols
- Can be used in a 21 cfr part 11 compliant environment
Scope of supply:
Darkroom, camera, UV transilluminator, UV emission filter, license free acquisition and analysis software
| Specifications | |
| Resolution: | 5 megapixels |
| Effective resolution: | 15.1 megapixels |
| Lens: | Zoom, f1.2 with lens feedback |
| Sensor bit-depth: | 12/16 bit |
| Greyscales: | 65536 |
| Dynamic range: | 4.8 |
| Transilluminator wavelength: | 302 nm |
| Transilluminator size: | 250 x 300 mm |
| Dimensions (W x D x H): | 570 x 450 x 840 mm |
| Weight: | 37 kg |
| Power supply: | 230 V/50 Hz |
| Manufacturer Article Number: | GELPRO-302E |
|---|---|
| Type: | gelPRO-302E |
