All probes with 2 m connecting cable and plug.

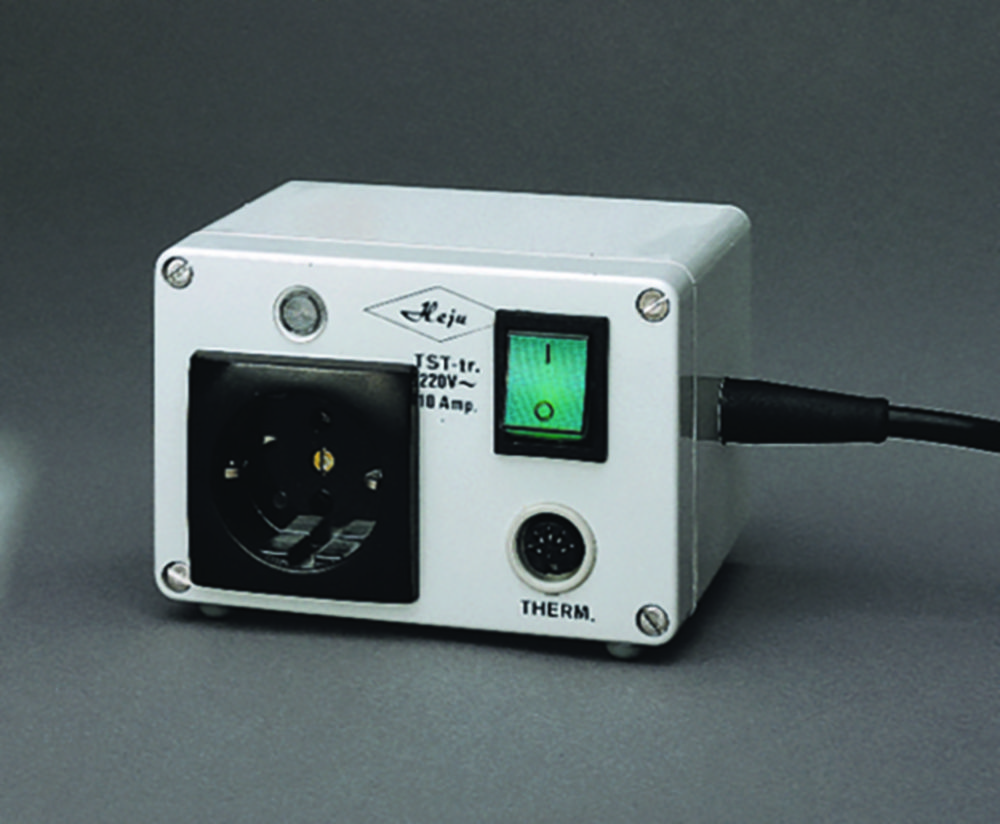

With Schuko power output socket and discrete control circuit. Plastic housing insulated to VDE. Automatic on/off switch. Will not function unless a contact thermometer is plugged in. Switch status display. Switching capacity 220 V / 10 A.TST tr-ET for electronical contact thermometers.

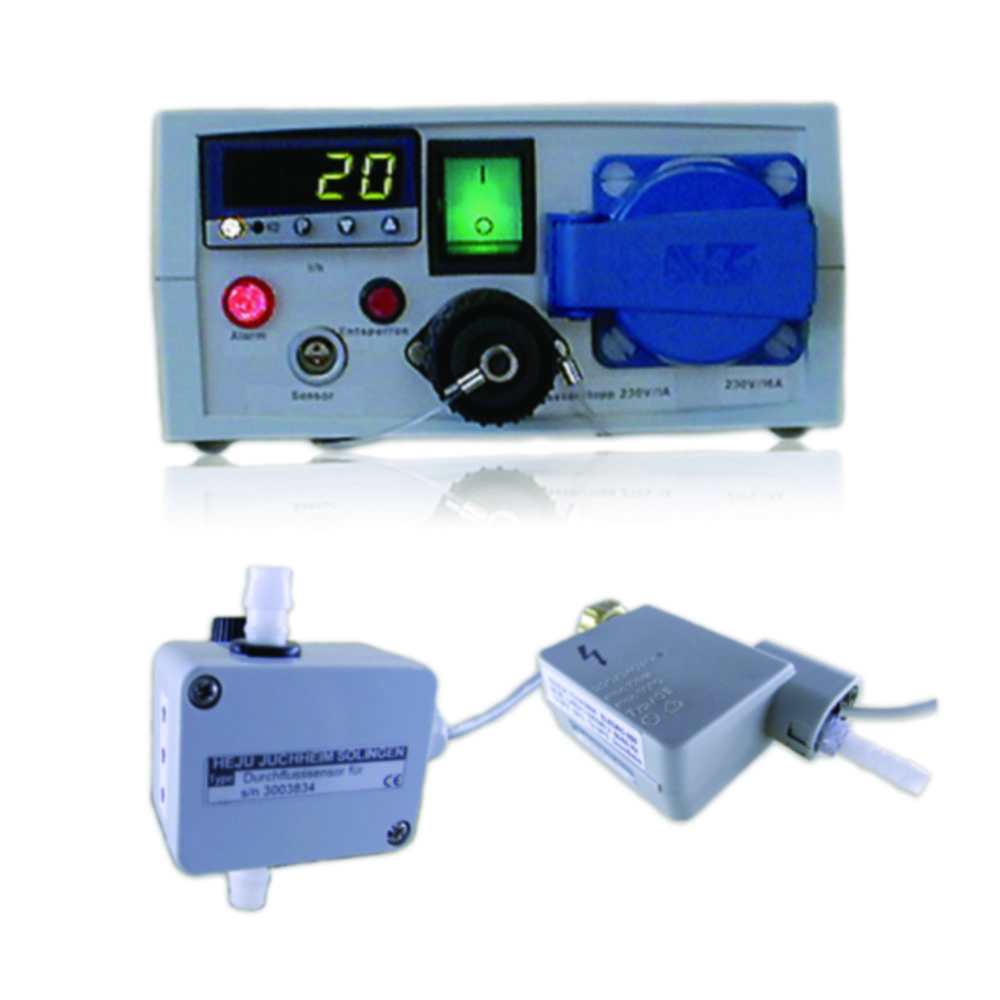

The device is used for moitoring cooling water circuits. Because of the high braking capacity thermostats and cryostats are also connectable. A reliable water flow sensor.Adjustment: min. 10 l/h up to max. 250 l/hBreaking capacity: 16 A/230 V for consumer load, 1 A/230 V for magnetic valve

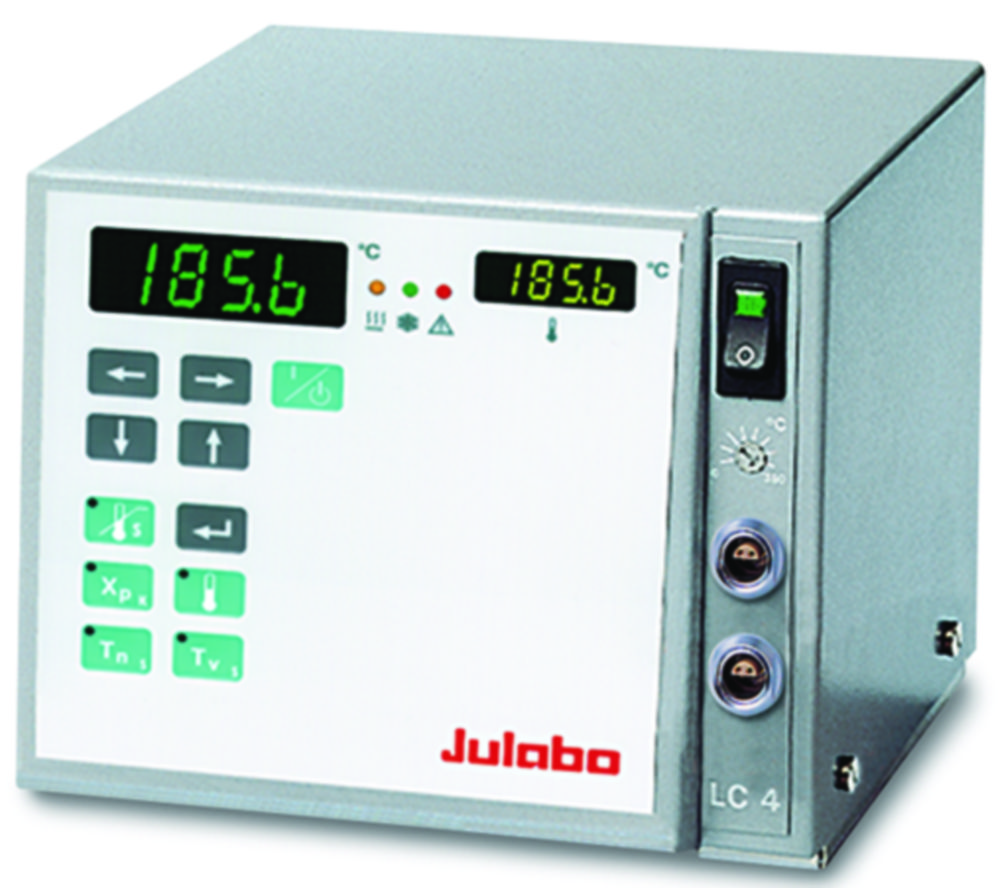

For monitoring and control of electronic heating equipment, such as heating mantles, heating baths, heating mats, water baths, oil baths etc. Fitted with state of the art control electronics.Multi-Display: separate (LED) temperature displays for set and actual values, and for high and low temperature warning and safety functionsSplashproof, membrane keypad which is easy to useDisplay resolution 0.1 °CAdjustable control parametersPID controlConnections for control and safety sensorsMax. switching capacity: 2 kW
For monitoring and control of electronic heating equipment, such as heating mantles, heating baths, heating mats, water baths, oil baths etc. Fitted with state of the art control electronics.Multi-Display: separate (LED) temperature displays for set and actual values, and for high and low temperature warning and safety functionsSplashproof, membrane keypad which is easy to useDisplay resolution 0.1 °CAdjustable control parametersICC = Intelligent Cascade Control; adjustable classic PID controlAdditional LCD function display for user-friendly operationIntegral programmer (6 profiles with 60 segments)Connections for 2 control and 1 safety sensorsMax. switching capacity: 3 kW
All probes with 2 m connecting cable and plug.

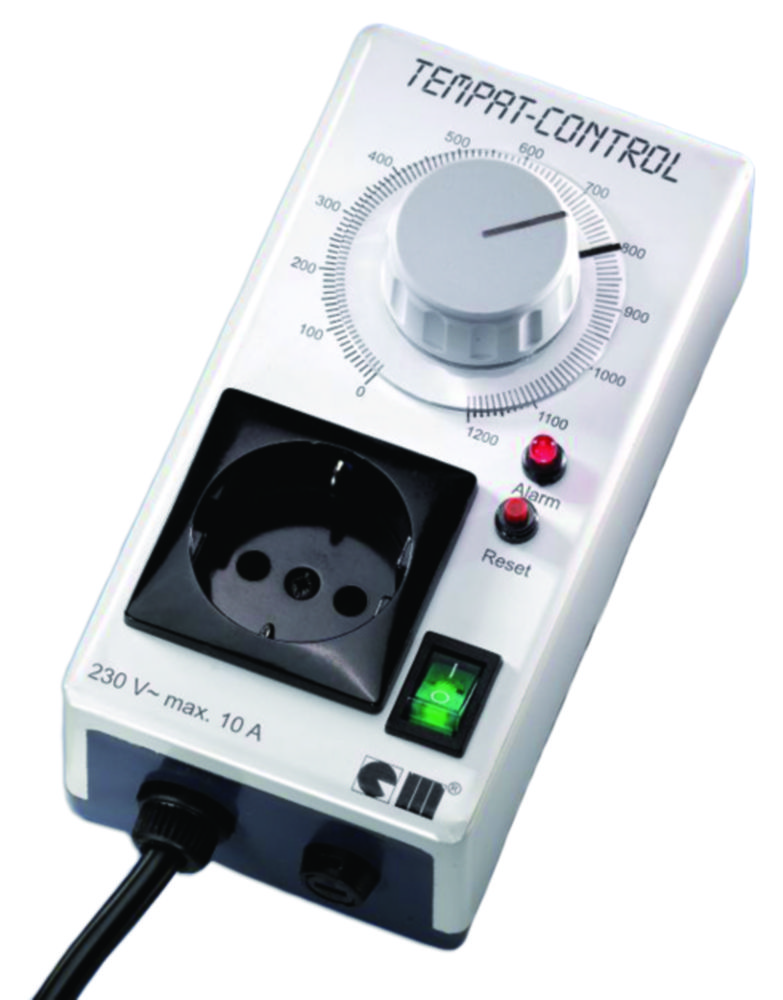

Safety temperature switch for monitoring temperature-based routines of all kinds. Ideal for monitoring simple temperature controllers. The TEMPAT® Control device switches off when the limit temperature is obtained; a beep is heard. When the temperature drops below limit, the limit contact does not switch on automatically; it must be reset by the user.

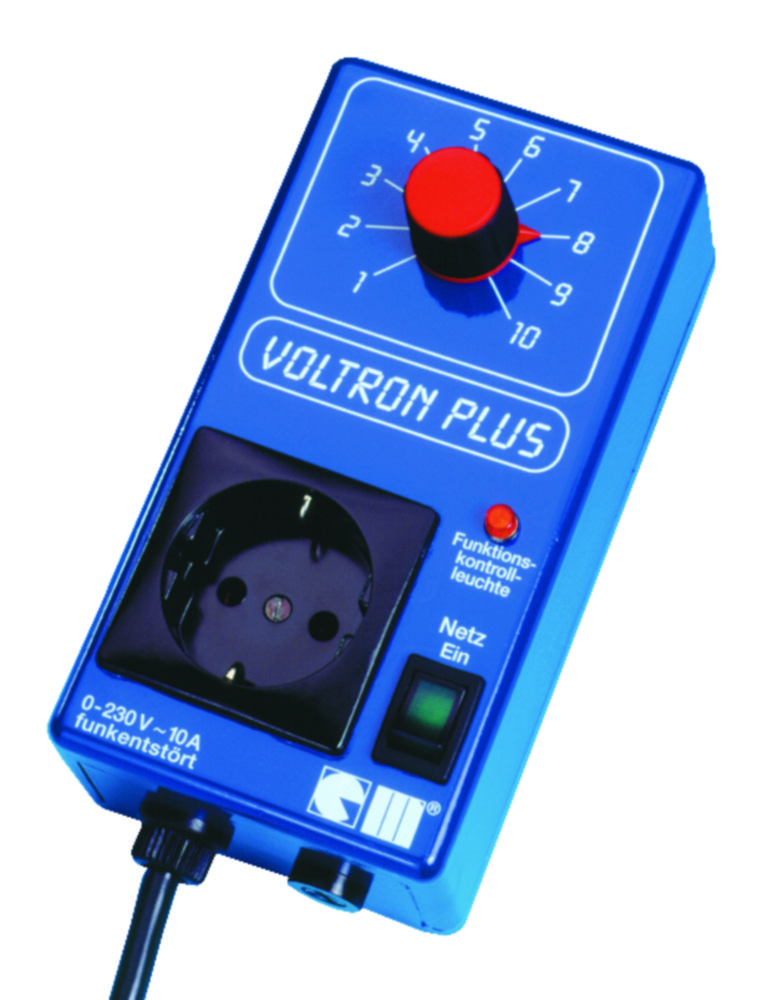

Alternating current controller for variable and no-loss control of resistive and inductive power devices with the following additional features:On/off luminous rocker switch, dipole switching, 10 A (4)Regulating range: 0 to 235 V a.c.IC controlled, hysteresis freeQuiet runningAnti-interference grade NFast-blow fuseProtected fuse holderPower-on indicator lamp

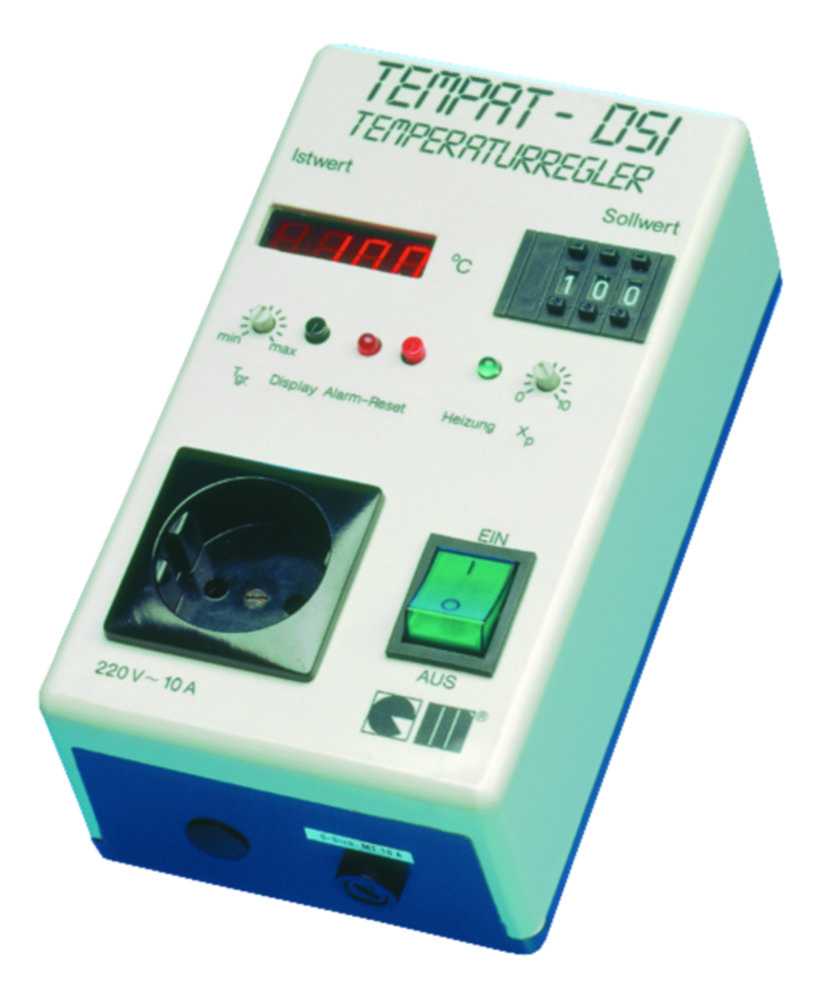

Safety temperature controllers for regulating the temperature of heating coils, hotplates, ovens, infrared radiators and water baths with 7mm high LED display. A coding switch is provided for entering set points. For optimum safety: Irreversible safety contact breaker with secondary sensor input and dipole switch-off in the event of overtemperature or sensor malfunction. Visual and audible alarms. Critical temperature values are set using potentiometer and controlled via the display.Appropriate temperature sensor please order separately.For each operating two sensors per thermostat is required. Please order separately.

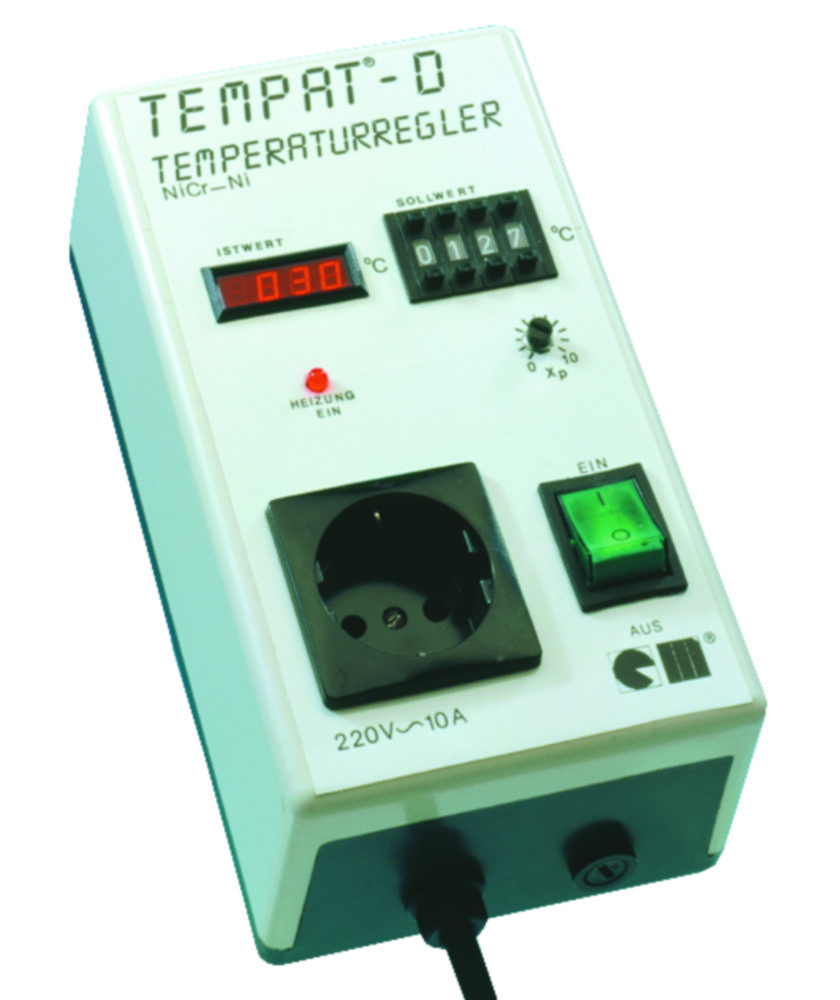

For controlling temperature of heating coils, hotplates, ovens, infrared radiators and water baths. TEMPAT®-D has a 10 mm high, LED display which can even be seen in dark rooms and allows monitoring of actual temperature at any time. Set point can be entered via a 3 or 4 figure coding switch with 1 °C resolution. Built-in sensor breakdown fuse, switching interval display and Xp trimmer to adjust variable gain amplification between 0 and 10 K. Sensor connection is via a plug-in socket. Switching capacity: 2300 W, 10 A.Appropriate temperature sensor please order separately.If no temperature sensor is ordered, a loose plug is supplied.

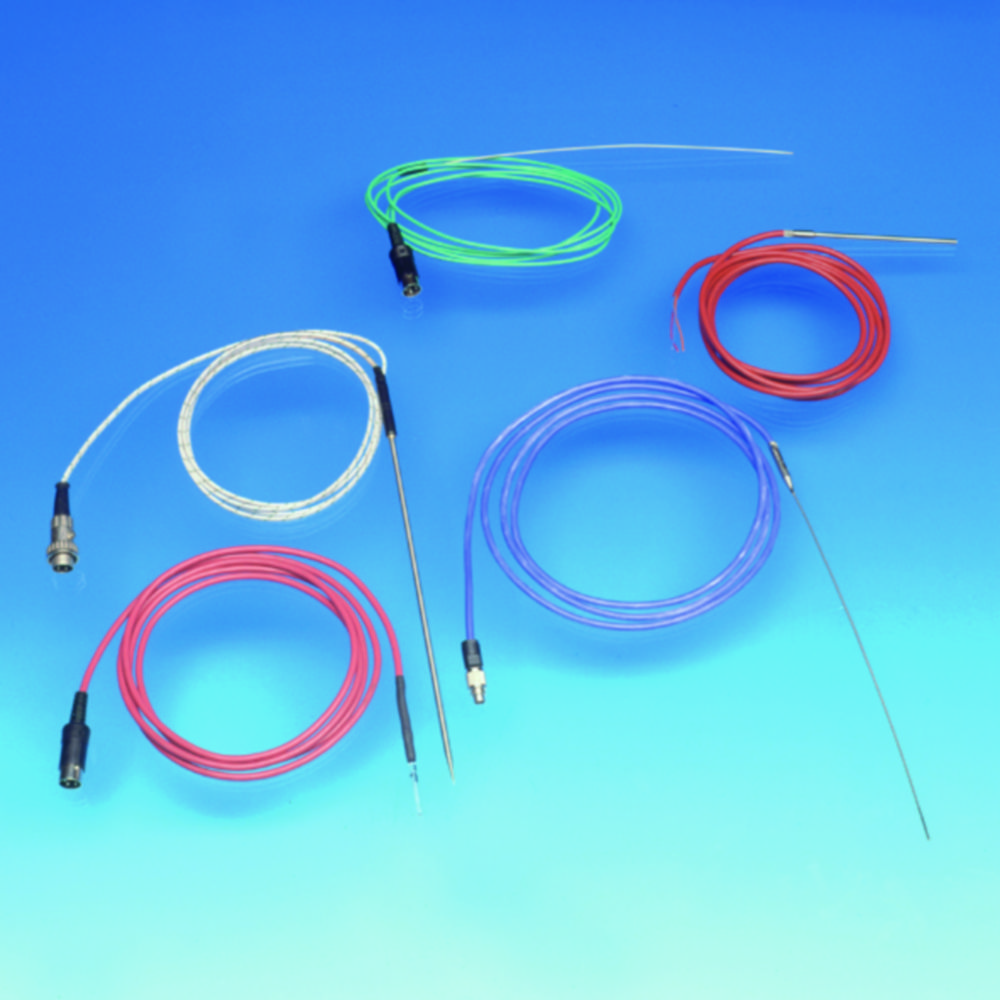

All probes with 2 m connecting cable and plug. Mantle of austenitic stainless steel.
All probes with 2 m connecting cable and plug. Mantle of austenitic stainless steel.
