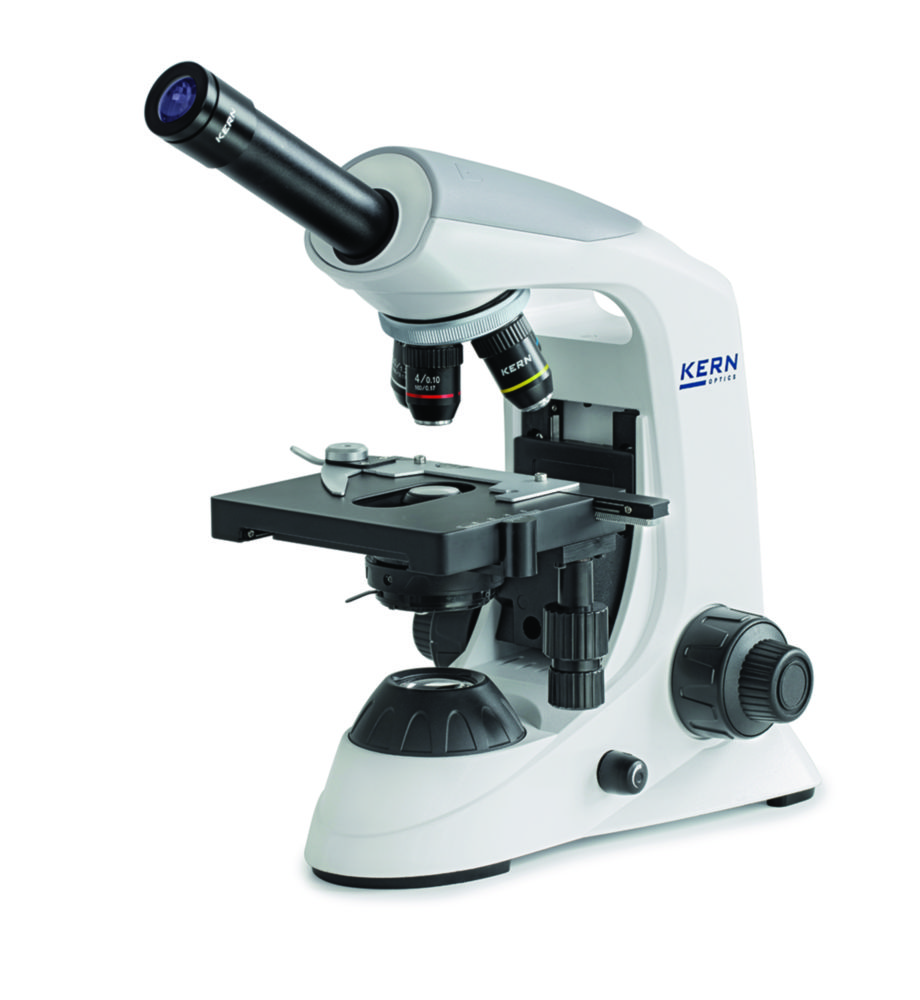

Light Microscopes Educational-Line OBE 12 / 13
Content:
1
Product number:
4670982
Product information "Light Microscopes Educational-Line OBE 12 / 13"
The fully equipped all-round compound microscope for school, training and laboratories.
- Monocular (OBE 121, 131): Tube 30° inclined
- Binocular (OBE 122, OBE 132): Tube Butterfly 30° inclined, 360° rotatable
- Trinocular (OBE 124, 134): Tube Butterfly 30° inclined, 360° rotatable
- achromatic objective 100x (oil immersion)
- Widefield Eyepiece: WF 10x/18 mm
- Diopter adjustment at bino- and trinocular Version available (at one eyepiece tube)
- Quadruple nosepiece
- Coaxial pre-and fine focussing
- Abbe 1,25 condensor focussed with aperture diaphragm
- Dimmable 3 W LED illumination
- Storage compartment on the rear side
- USB connection (only as power source)
- Dust Cover, eyepiece rubber caps and manual instruction included
- Different colour filters as accessoires available
| Condenser: | Abbe 1,25 |
|---|---|
| Depth: | 150 mm |
| Dimensions (WxDxH): | 360 x 150 x 320 mm |
| Height: | 320 mm |
| Inclination angle tube: | 30° |
| Light type: | LED |
| Magnification objectives: | 4x, 10x, 40x, 100x |
| Manufacturer Article Number: | OBE 131 |
| Max. voltage: | 230 V |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Revolving nosepiece: | 4-fold |
| Tube: | Monocular |
| Type: | OBE 131 |
| Type of auxiliary energy: | Mains connection |
| Type of illumination (Microscopy): | Transmitted light |
| Weight: | 4.6 kg |
| Width: | 360 mm |
