Accessories for Light Microscopes Educational-Line OBE and Lab-Line OBL
Further eyepieces, phase contrast units and filters available on request. Complete fluorescence units for OBL series available on request.

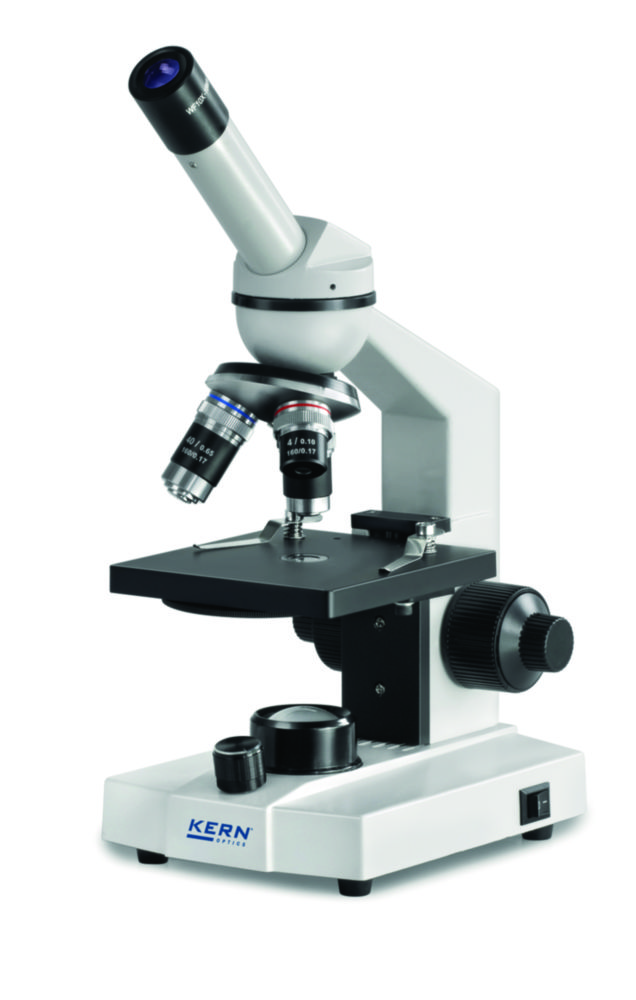

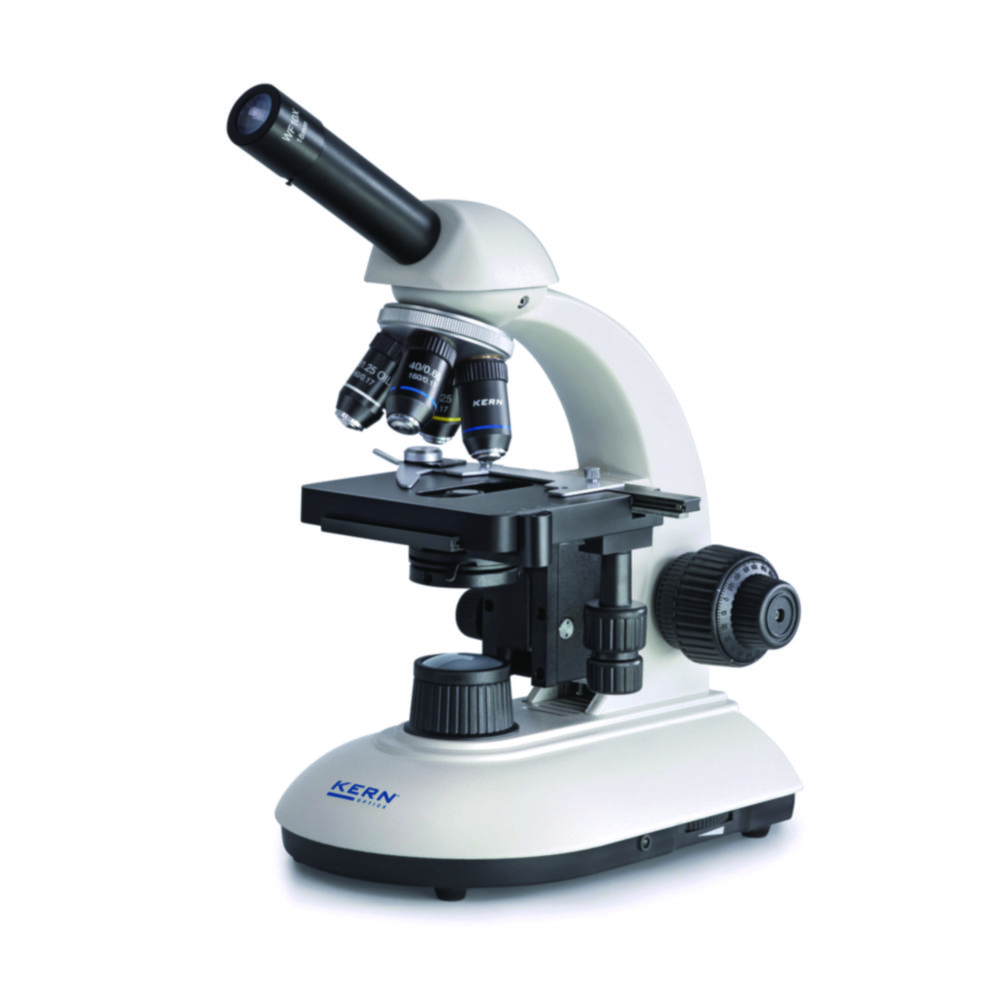

Light Microscopes Educational-Line OBE
The fully equipped all-round compound microscope for school, training and laboratories.Monocular (OBE 111), Binocular (OBE 112)Tube 30° inclined , 360° rotatableWidefield Eyepiece: WF 10x/18 mmDiopter adjustment at bino- and trinocular Version available (at one eyepiece tube)Quadruple nosepiece (forward inclined)Achromatic objective 4x, 10x, 40x, 100x (oil immersion)Coaxial pre-and fine focussingAbbe 1,25 N.A. Condensor focussed with aperture diaphragmDimmable 3 W LED IlluminationDust Cover, eyepiece rubber caps and manual instruction includedDifferent colour filters as accessoires available

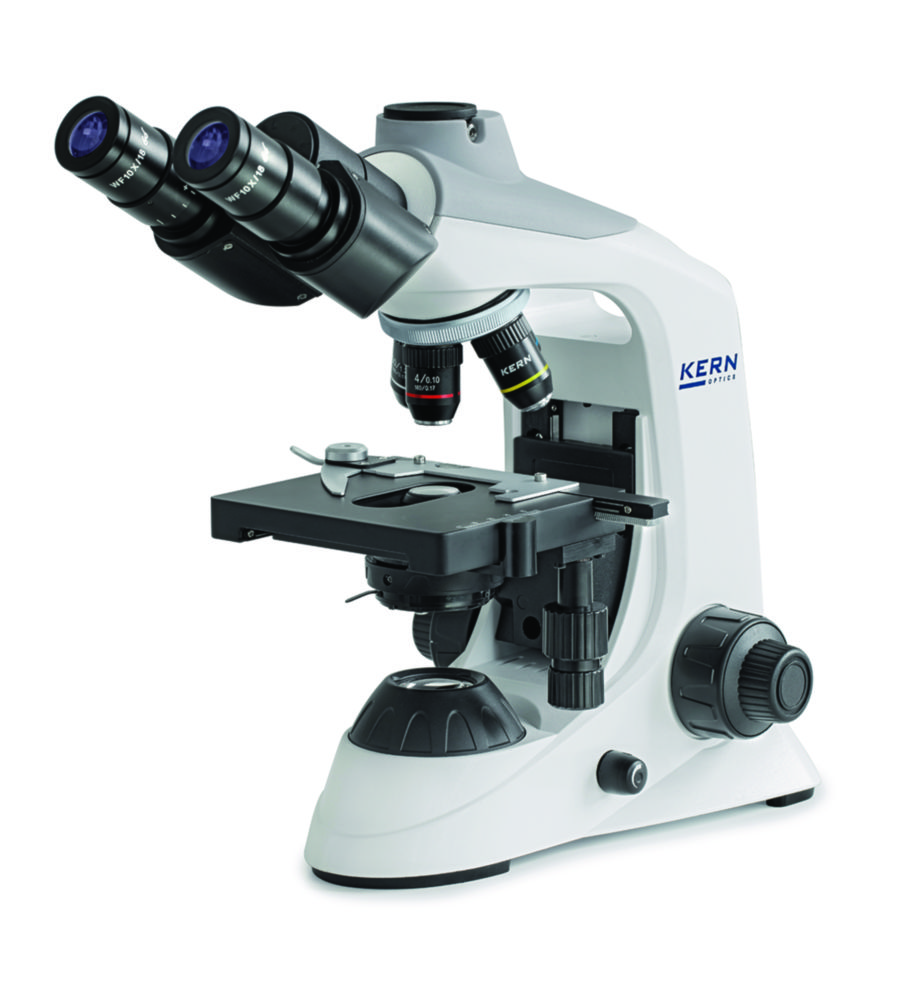

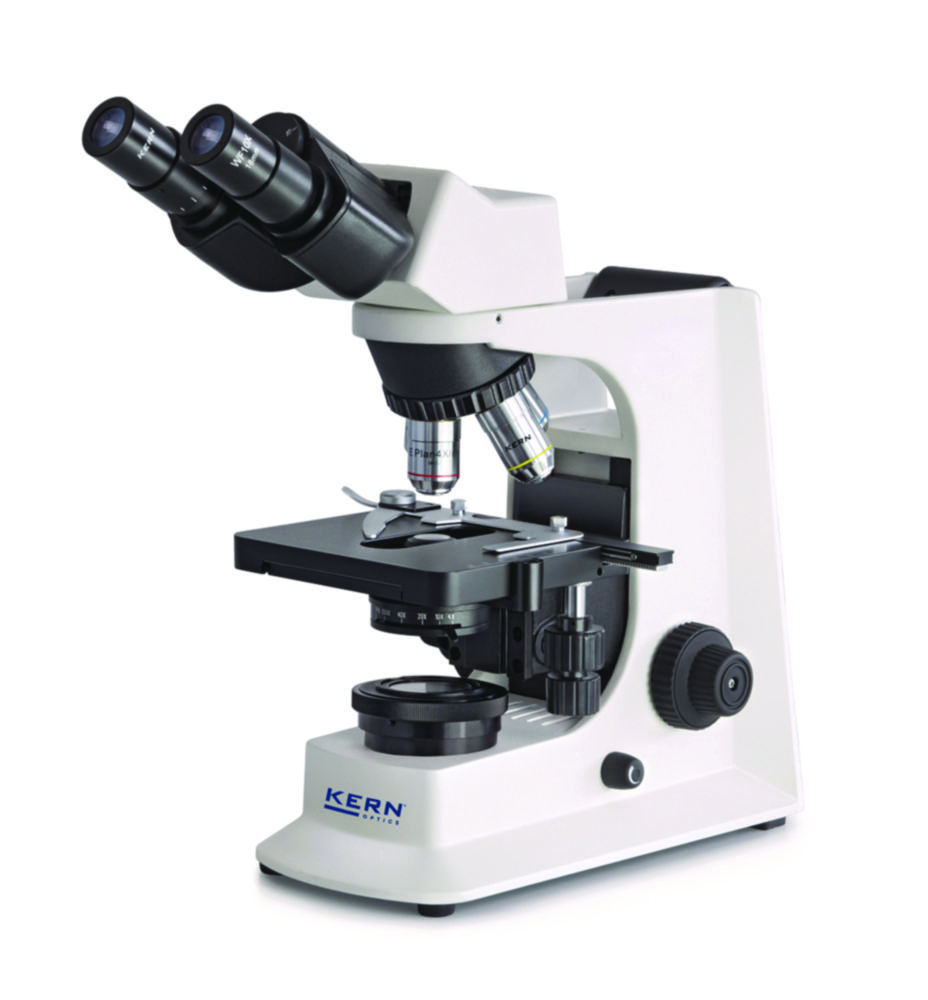

Light Microscopes Lab-Line OBL 12/13
The flexible laboratory assistant with infinity optical system and fixed, pre-centred Koehler illumination.Tube 30° inclined, 360° rotatableDiopter adjustment one-sidedCoaxial pre-and fine focussingABBE 1,25 N.A. condensor with aperture diaphragm, focusable and pre-centered koehler illuminationLightfield diaphragm20 W Halogen or 3 W LED illuminationScope of supply:Light microscope, dust cover, eye cups, manual instruction

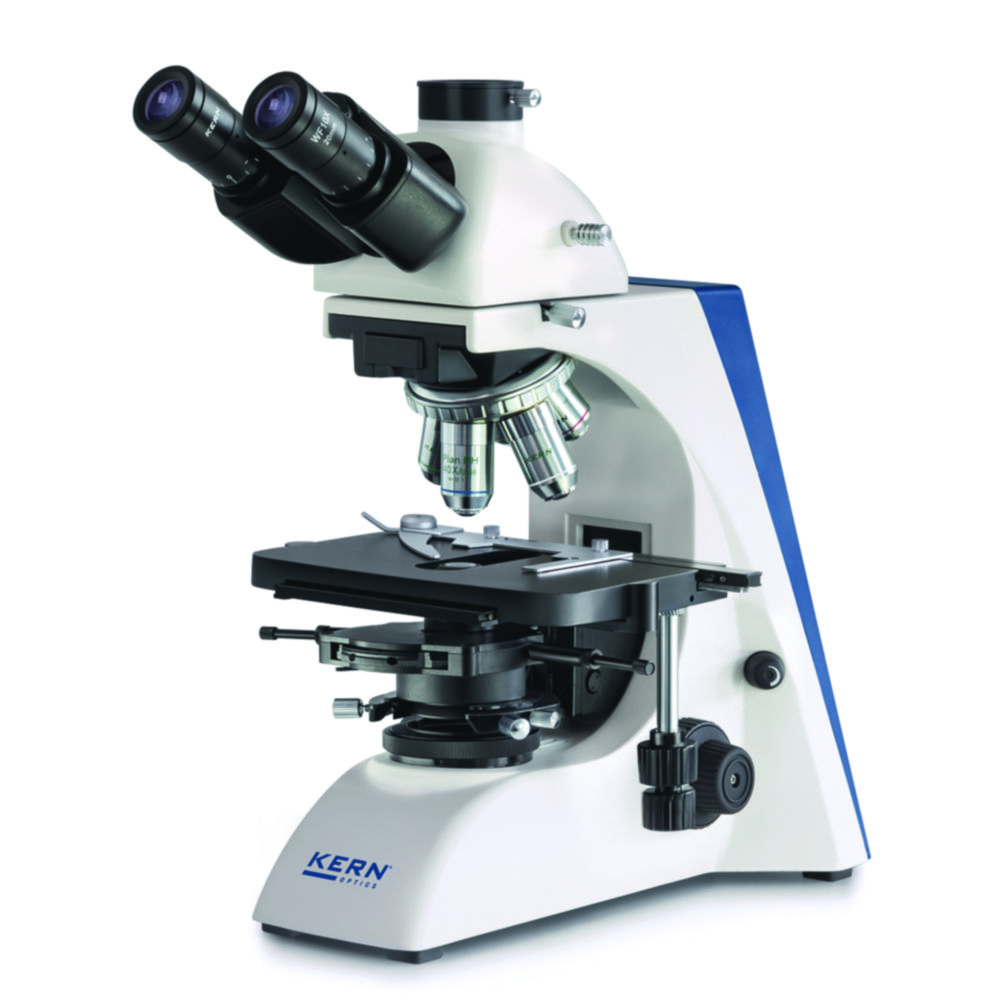

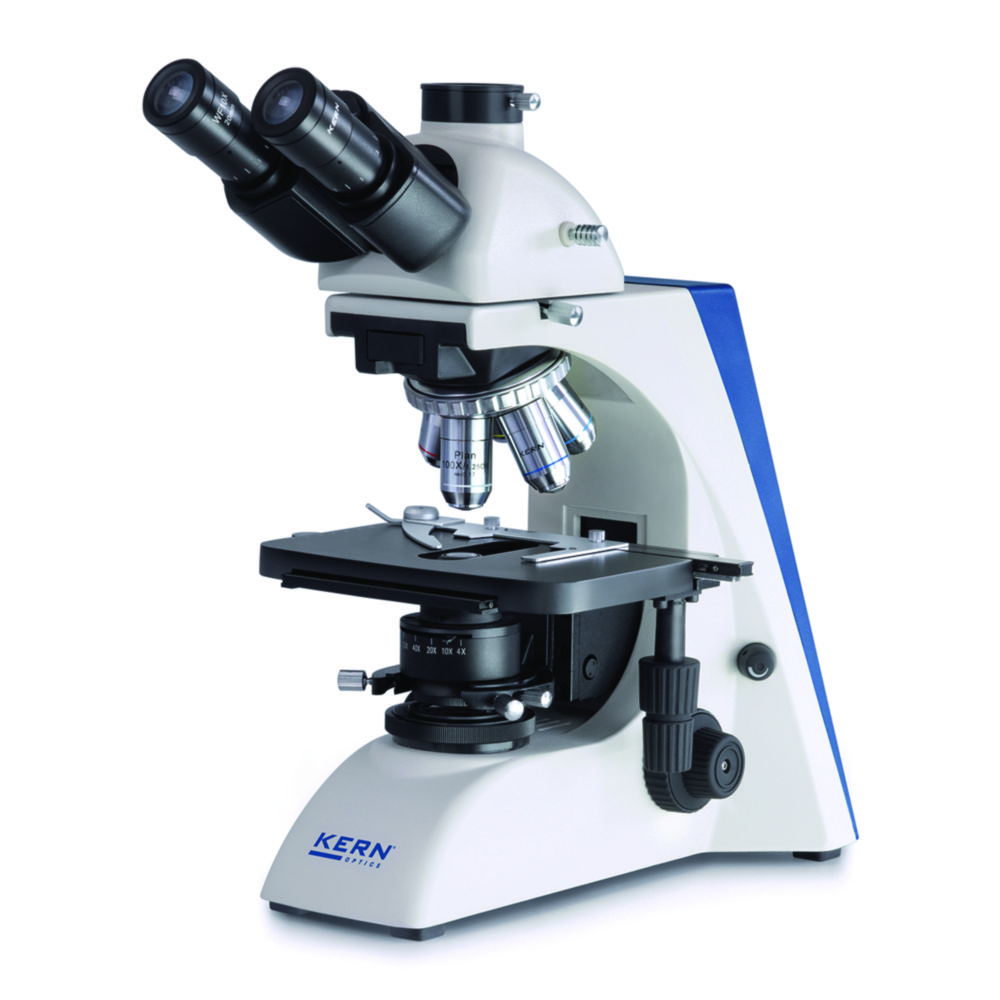

Light microscopes Professional Line OBN 13
This series has a professional Koehler illumination unit with an adjustable field diaphragm, with infinity optical system. A variety of modular systems, such as a swing-out condenser, various eyepieces, objectives, color filters, phase contrast units, a dark field condenser, a simple polarising unit, butterfly tube, through to complete fluorescence units are optionally available. A C-mount adapter is required to connect a camera (optional).Tube 30° inclined, 360° rotatableDiopter adjustment: both-sidedObjective quality: Infinity PlanCoaxial pre-and fine focussingCentering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmOBN 132: Halogen illumination 20 W, including blue color filterOBN 135: LED illumination 3 WScope of supply: microscope, centring eyepiece, dust cover, eyepiece rubber caps, manual instruction

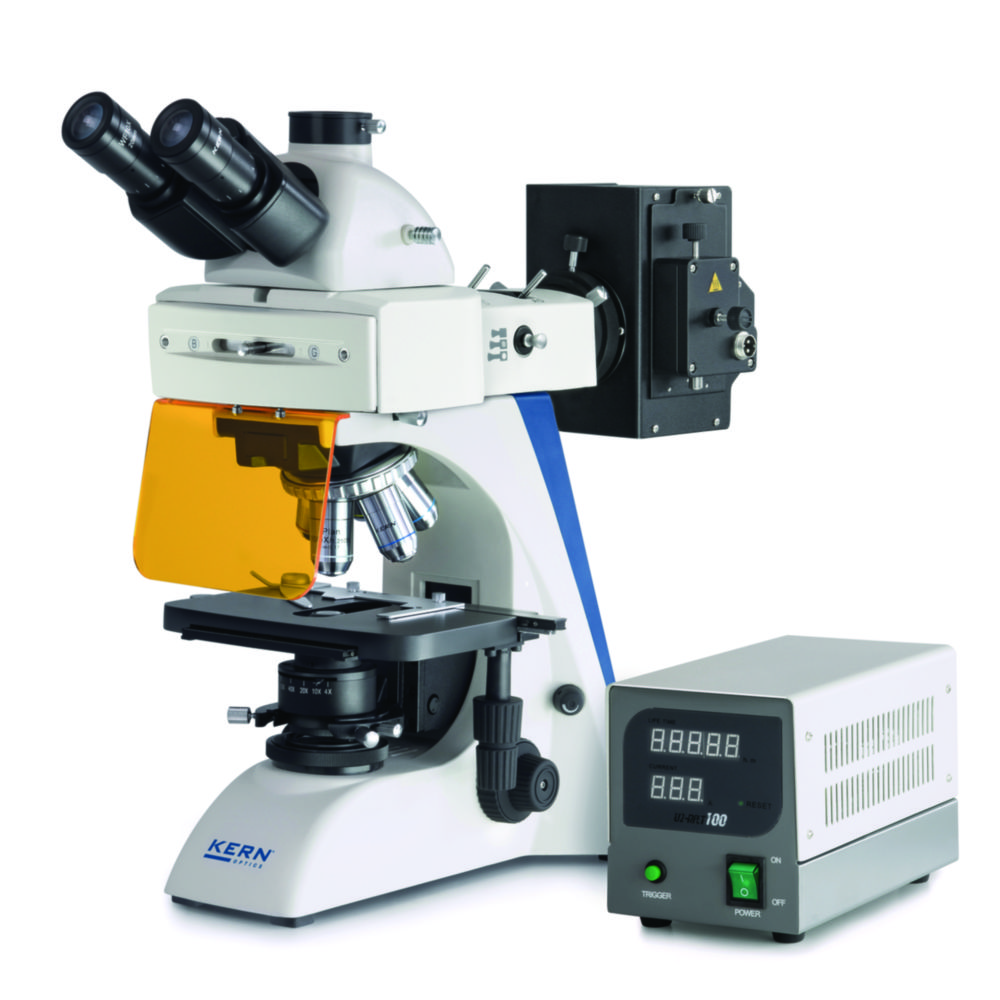

Fluorescence microscopes Professional Line OBN 14
This series has a professional Koehler illumination unit with an adjustable field diaphragm, with infinity optical system. A variety of modular systems, such as a swing-out condenser, various eyepieces, objectives, color filters, phase contrast units, a dark field condenser, a simple polarising unit, butterfly tube, through to complete fluorescence units are optionally available. A C-mount adapter is required to connect a camera (optional).Tube 30° inclined, 360° rotatableDiopter adjustment: both-sidedObjective quality: Infinity PlanCoaxial pre-and fine focussingFor translucent, thin, low-contrast, challenging samples (e.g. immunofluorescence, FISH, DAPI staining, etc.)Centering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmIncl. centering objective for fluorescence adjustmentOBN 141:3W LED transmitted illumination unit and 3W LED epi-fluorescence incident illumination unitWith B/G fluorescence filter with changeover sliderOBN 147 / OBN 148:20 W halogen transmitted illumination unit and 100 W epi-fluorescent incident illumination unit6-position filter wheel with B/G or B/G/UV/V fluorescence filterScope of supply: microscope, centring objective, dust Cover, eyepiece rubber caps, manual instruction
Phase contrast microscopes professional line OBN 15
This series has a professional Koehler illumination unit with an adjustable field diaphragm, with infinity optical system. A variety of modular systems, such as a swing-out condenser, various eyepieces, objectives, color filters, phase contrast units, a dark field condenser, a simple polarising unit, butterfly tube, through to complete fluorescence units are optionally available. A C-mount adapter is required to connect a camera (optional).Tube 30° inclined, 360° rotatableDiopter adjustment: both-sidedObjective quality: Infinity PlanCoaxial pre-and fine focussingCentre and height adjustable PH universal rotary condenser, aperture diaphragm and field diaphragmCoaxial coarse and fine focusingOBN 158: Halogen lighting 20 WOBN 159: LED lighting 3 WScope of supply: Phase contrast microscope, centring eyepiece, protective dust cover, eye cups, user manual

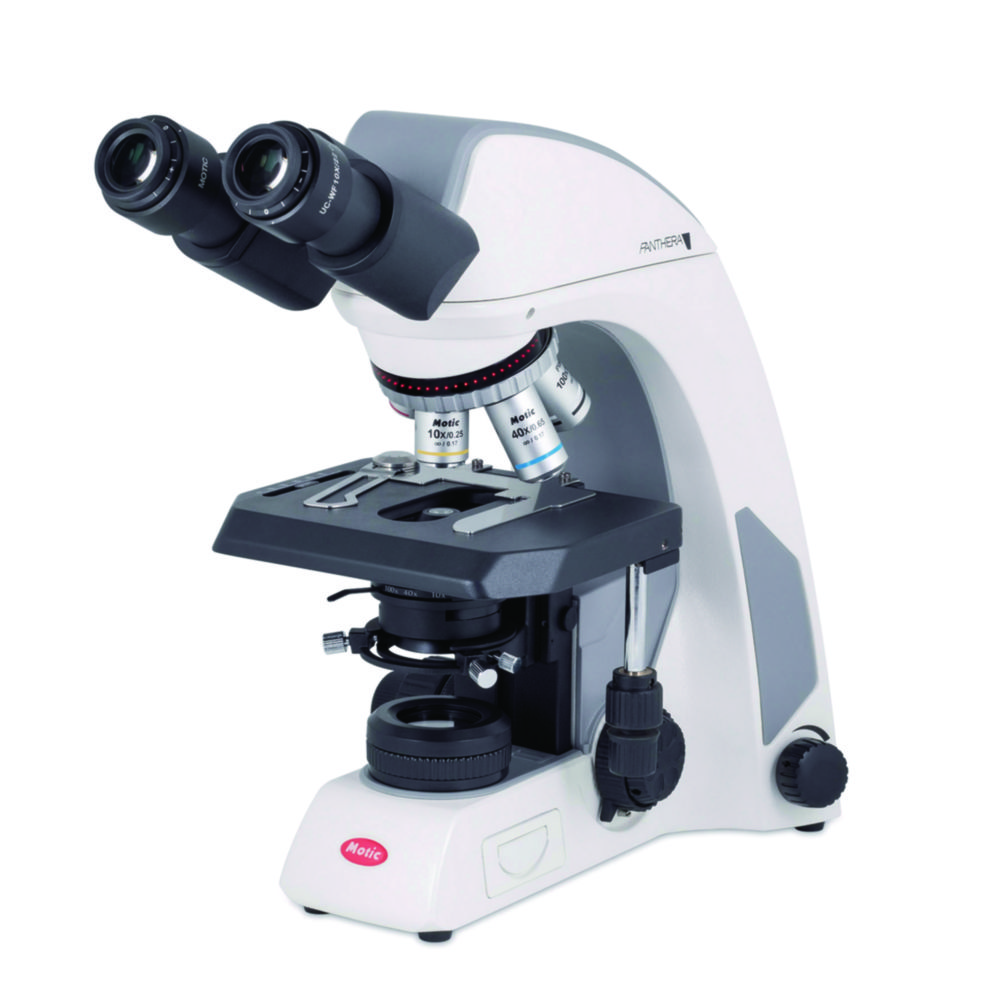

Light microscope Panthera DL
Upright light microscopes for education, research and diagnostics. Due to high quality optics and digital features especially suited for professional users.Tube type Siedentopf, swivelingWidefield oculars for spectacle wearers with diopter adjustment on both ocularsCCIS® Plan achromatic objectives UC PLReversed coded nosepieceFocusable Abbe condenser with iris diaphragm and slotIllumination acc. to Köhler, with interchangeable illuminatorWith Motic LightTracer: LED light intensity, light memory, sleep mode (auto on-off), mode indicatorCoaxial coarse and fine focusing system with tension adjustmentCompact, built-in mechanical stageIntegrated power supply with sleep modeAdditional equipment depending on the model with common contrast methods such as phase contrast, darkfield, single polarization or LED fluorescence (single-channel) possible.Digitale microscope with integrated Wi-Fi camera for wireless image transfer to tablet or smartphone via the MotiConnect app or integration into a network via Ethernet.Ethernet and Wi-FiLive image in FullHDSaved image with 4 MPScope of supply: Microscope, software Motic Images Plus 3.0 for Windows, OSX and Linux, MotiConnect App for iOS and Android, rubber eyecups, blue filter, LED and halogen modul, immersion oil (5 ml), allen key, dust cover, power cord
Light Microscopes Educational-Line OBT
The fully equipped all-round compound microscope for school, training and laboratories.Monocular and BinocularWidefield Eyepiece: WF 10x/18 mmDiopter adjustment one-sided (for binocular models)Coarse and fine focussing on both sidesOBT 101: simple 0.65 condenser lens with adjustable aperture diaphragm, triple nosepieceOBT 102 - 106: Abbe 1,25 condensor focussed with aperture diaphragm, quadruple nosepieceDimmable 1 W LED illuminationDust Cover and manual instruction includedOptionally available are various color filters, as well as eyepieces with pointer needle or 0.1 mm scale

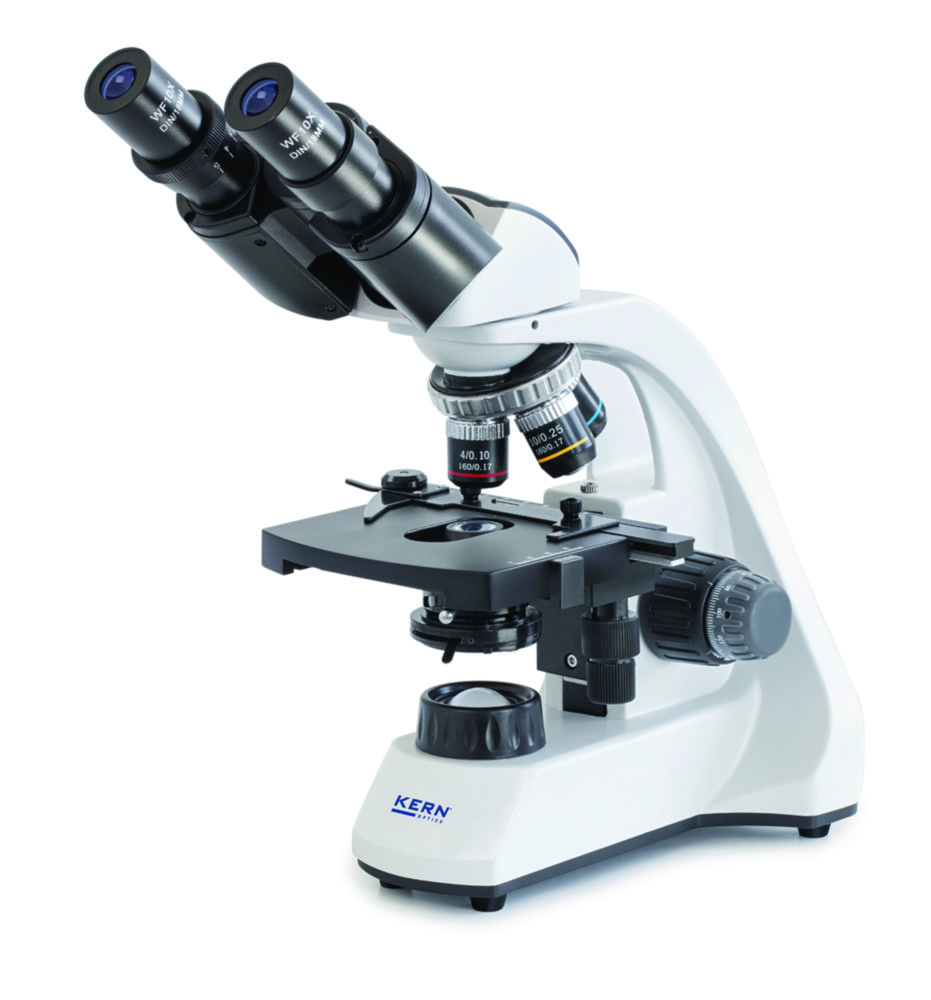

Light Microscopes Educational-Line OBE 12 / 13
The fully equipped all-round compound microscope for school, training and laboratories.Monocular (OBE 121, 131): Tube 30° inclinedBinocular (OBE 122, OBE 132): Tube Butterfly 30° inclined, 360° rotatableTrinocular (OBE 124, 134): Tube Butterfly 30° inclined, 360° rotatableachromatic objective 100x (oil immersion)Widefield Eyepiece: WF 10x/18 mmDiopter adjustment at bino- and trinocular Version available (at one eyepiece tube)Quadruple nosepieceCoaxial pre-and fine focussingAbbe 1,25 condensor focussed with aperture diaphragmDimmable 3 W LED illuminationStorage compartment on the rear sideUSB connection (only as power source)Dust Cover, eyepiece rubber caps and manual instruction includedDifferent colour filters as accessoires available

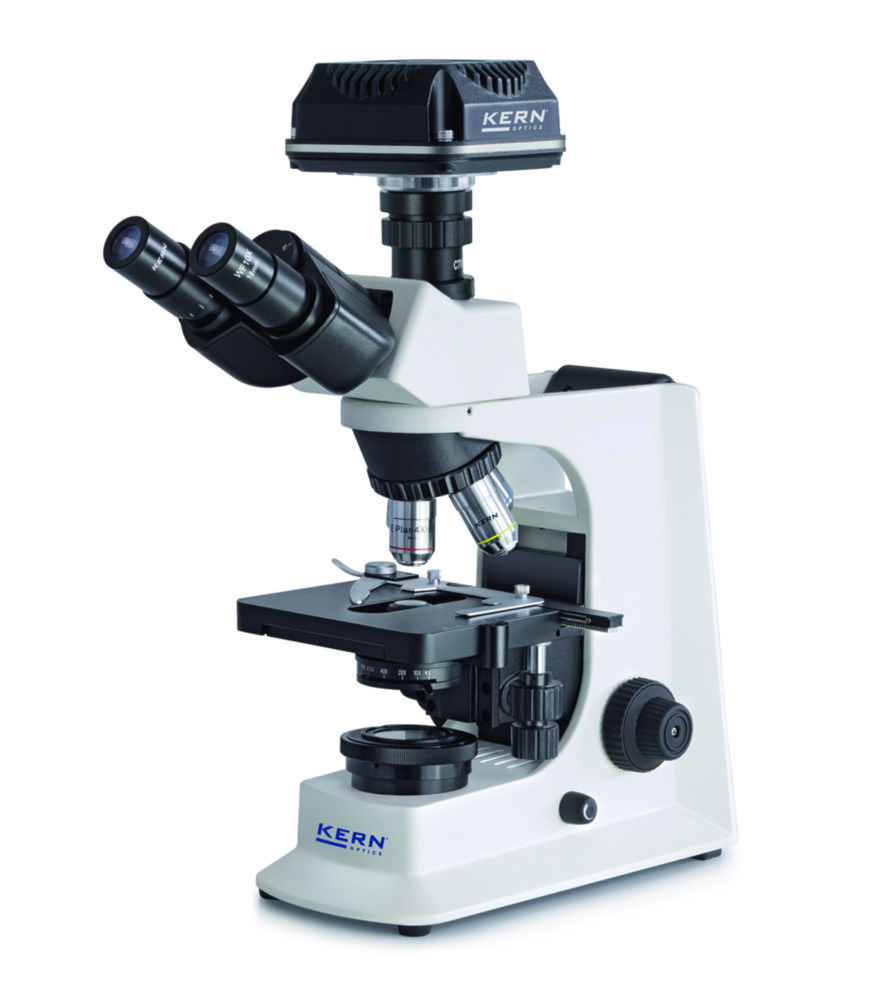

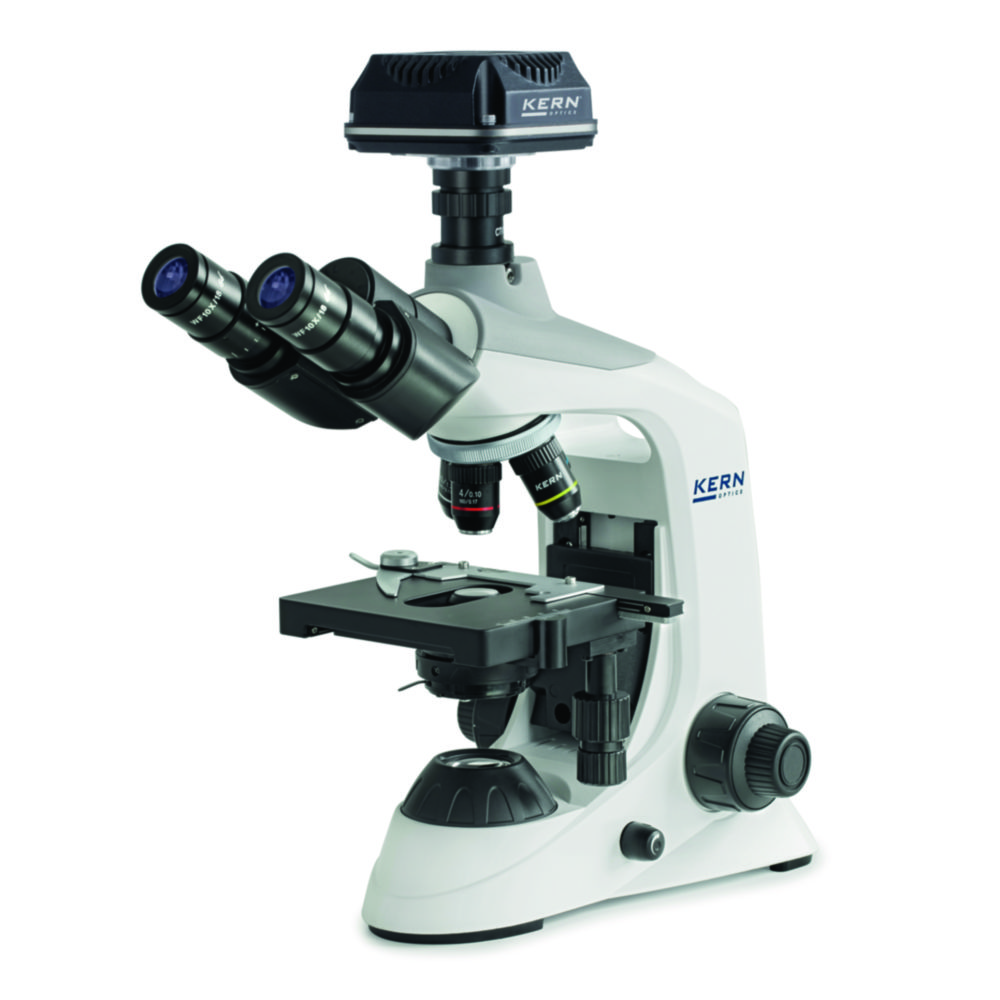

Light Microscopes Lab-Line OBL sets, with C-mount camera
The sets are the complete digital solution for live investigations.Tube 30° inclined, 360° rotatableDiopter adjustment one-sidedCoaxial pre-and fine focussingABBE 1,25 N.A. condensor with aperture diaphragm, focusable and pre-centered koehler illuminationLightfield diaphragm3 W LED illuminationScope of supply:Light microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction

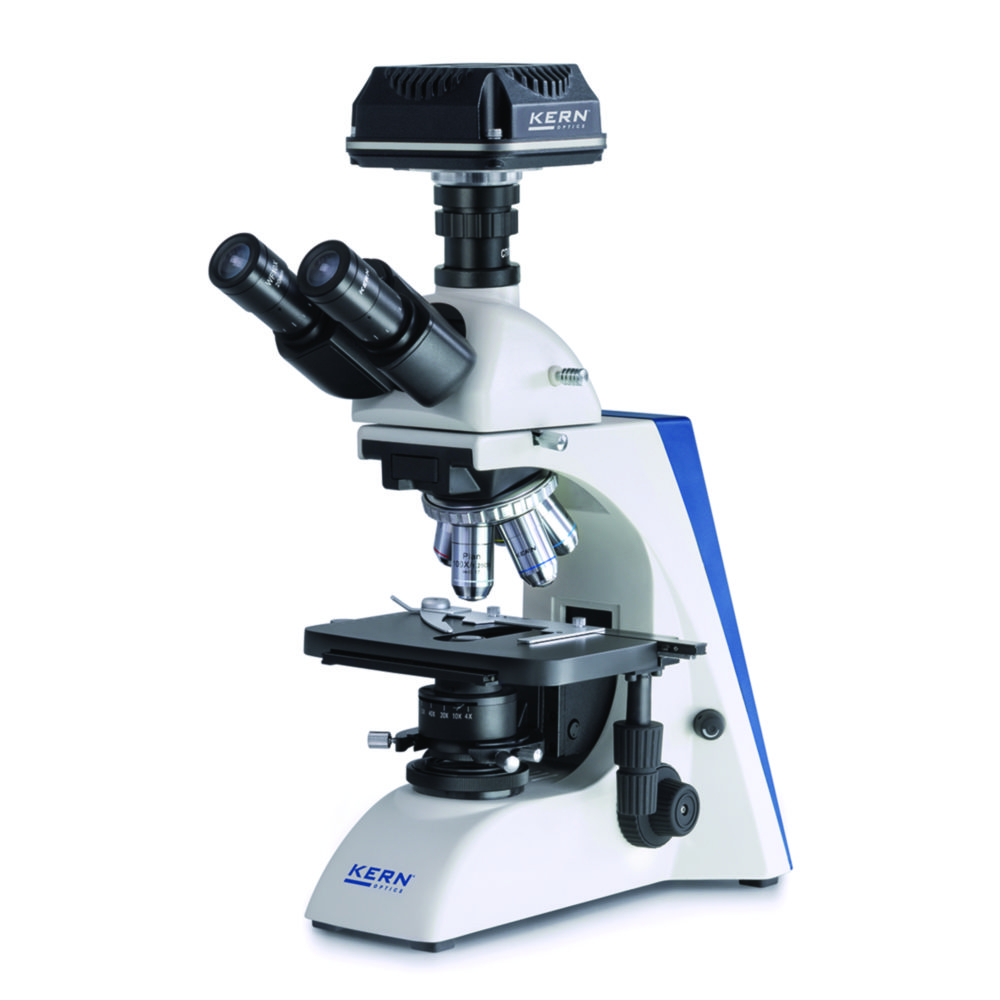

Light microscopes Professional Line OBN 13 sets, with C-mount camera
The sets are the complete digital solution for live investigations, including appropriate C-mount adapter. Objectives 4x, 10x, 20x, 40x, 100xCentering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmOBN 132: 20W halogen illumination (transmitted light), blue colour filterOBN 135: 3W-LED illumination (transmitted light)

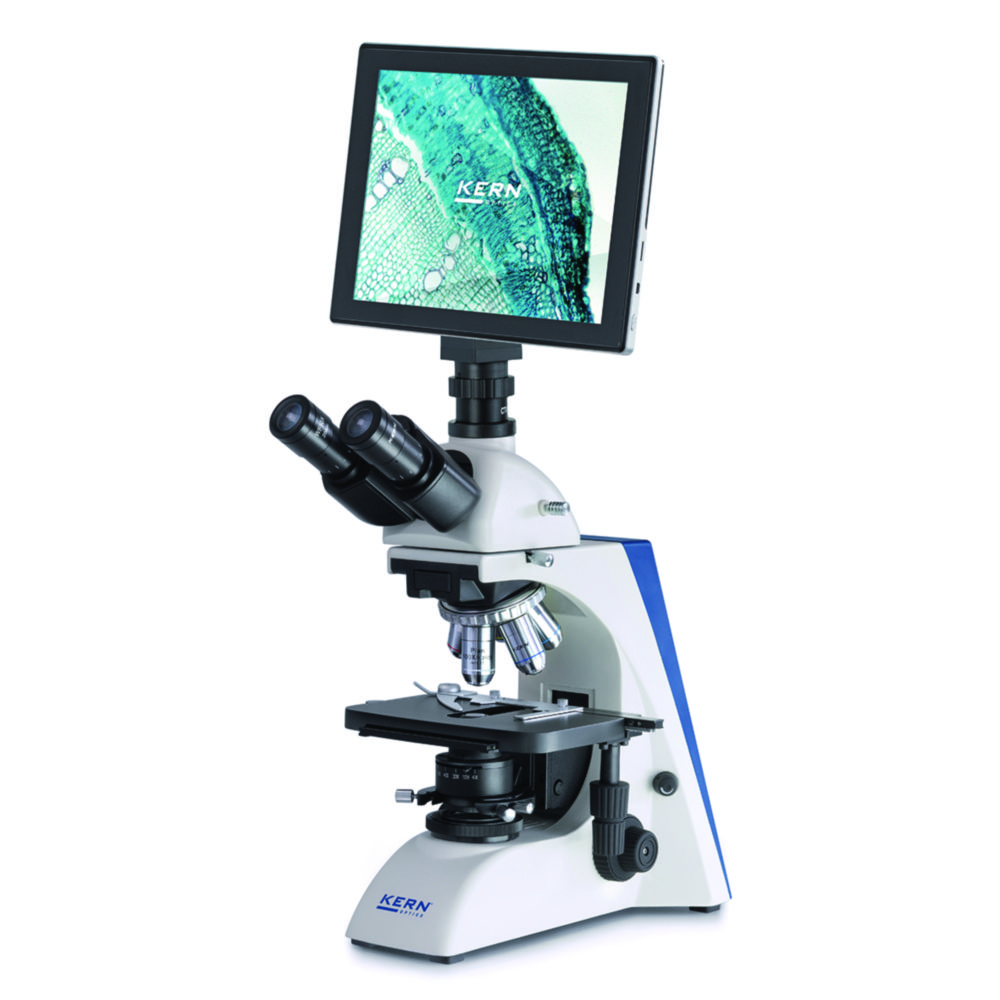

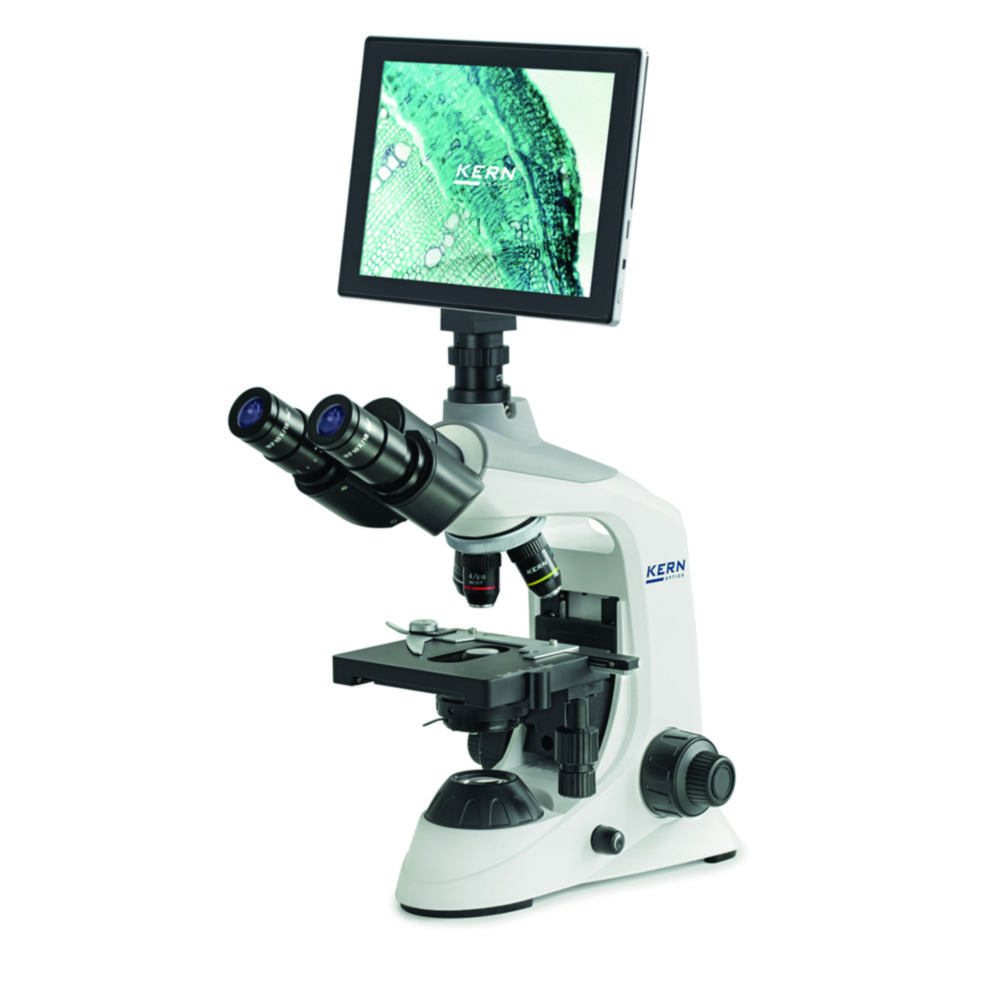

Light microscopes Professional Line OBN 13 sets, with tablet camera
The sets are the complete digital solution for live investigations. The adapted 5 MP tablet-camera has been specially developed for simple, convenient and direct investigation of the sample on the screen.Objectives 4x, 10x, 20x, 40x, 100xCentering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmOBN 132: 20W halogen illumination (transmitted light), blue colour filterOBN 135: 3W-LED illumination (transmitted light)
Light Microscopes Educational-Line Basic OBS
The school microscope for the first steps in microscopy and for use in biology lessons.Tube 360° rotatableDiopter adjustment on both sides for binocular models3 achromatic objective 4x, 10x, 40x included (60x and 100x optionally as accessoires)Coaxial pre-and fine focussingSimple condenser N.A. 0.65 or ABBE 1,25 N.A. condensor focussed with aperture diaphragmDimmable 0,5 W LED illumination (rechargeable)Battery operation possible (OBS 101-106)Scope of supply:Light microscope, dust cover, manual instructions, mains adapter

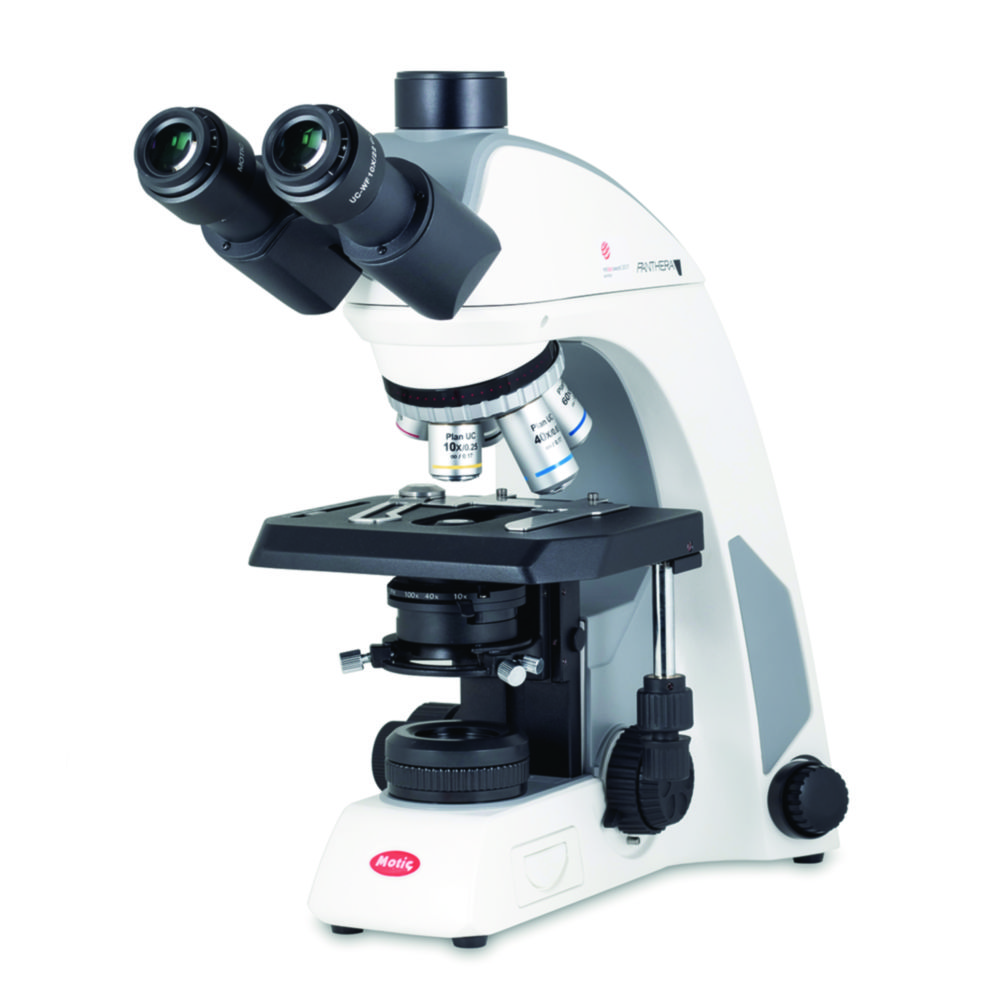

Light microscopes Panthera C2
Upright light microscopes for education, research and diagnostics. Due to high quality optics and digital features especially suited for professional users.Tube type Siedentopf, swivelingWidefield oculars for spectacle wearers with diopter adjustment on both ocularsCCIS® Plan achromatic objectives UC PLReversed coded nosepieceFocusable Abbe condenser with iris diaphragm and slotIllumination acc. to Köhler, with interchangeable illuminatorWith Motic LightTracer: LED light intensity, light memory, sleep mode (auto on-off), mode indicatorCoaxial coarse and fine focusing system with tension adjustmentCompact, built-in mechanical stageIntegrated power supply with sleep modeAdditional equipment depending on the model with common contrast methods such as phase contrast, darkfield, single polarization or LED fluorescence (single-channel) possible.With USB 2.0 port for external camera power supply.Scope of supply: Microscope, rubber eyecups, blue filter, LED and halogen modul, immersion oil (5 ml), allen key, dust cover, power cord

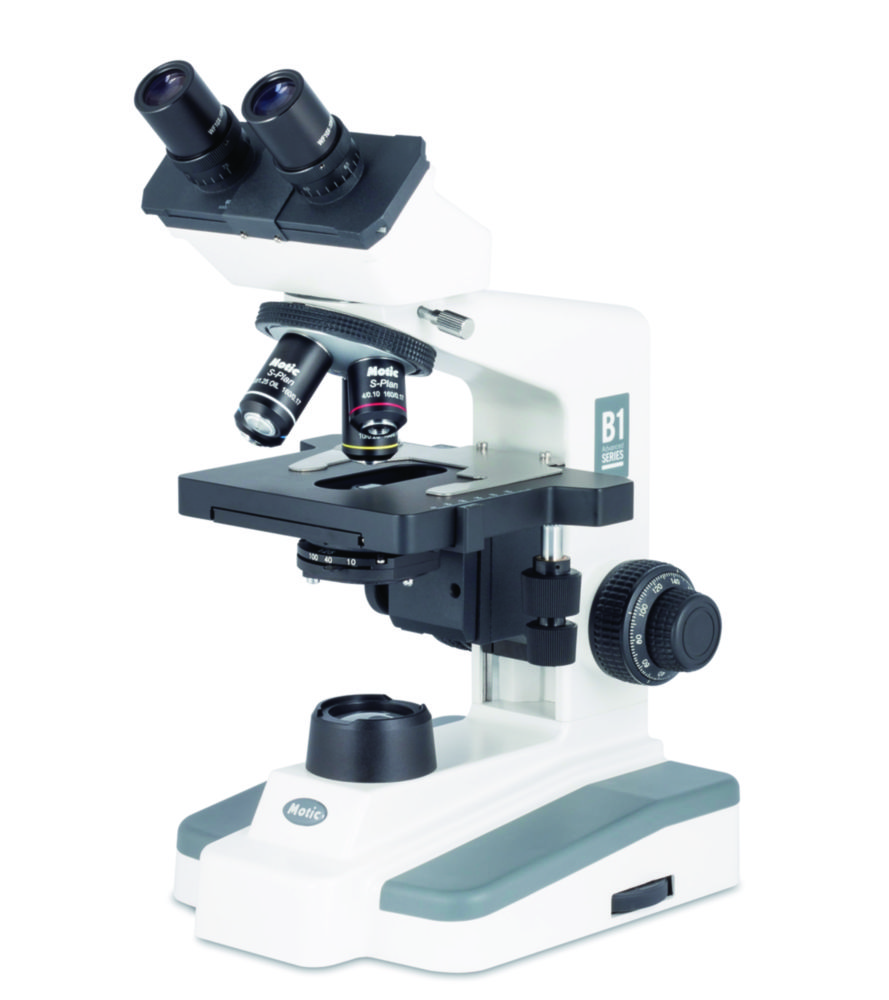

Microscopes B1 Elite
The B1 Elite series covers a wide range of the daily work for schools and laboratories.Monocular head 45°, binocular head 45°, trinocular head 30°, 360° rotatingWidefield eyepieces WF 10X/18mmQuadruple revolving nosepieceSemi-Plan objectives SP 4X, 10X, 40X SDiopter adjustment on both eyepiece socketsCoaxial coarse and fine focusing system with tension adjustmentBuilt-in low position coaxial rackless mechanical stageFocusable 1.25 N.A. Abbe condenser with iris diaphragmLED illumination 3 W with intensity controlScope of supply:Microscope, dust cover

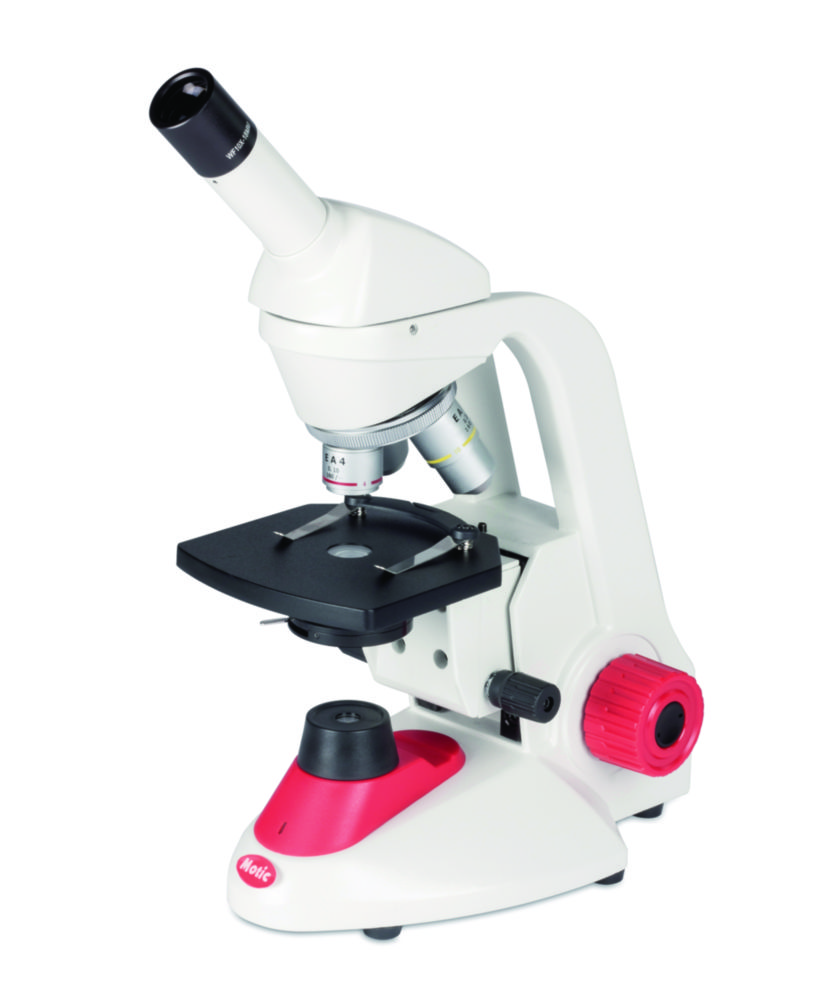

Educational microscopes, RED 120
For applications in schools, universities and laboratories.Depending on the model, 1 or 2 widefield eyepieces WF10X/18 mmWith pointerAchromatic objectives EA 4X, 10X, 40XLED illumination 3.5 V, 70 mW with intensity controlPower supply with charger or rechargeable batteriesMonocular head 45°, 360° rotatingReversed quadruple revolving nosepieceSeparate coarse and fine focusing systemBuilt-in low position coaxial mechanical stage1.25 N.A. Abbe condenser with iris diaphragmScope of supply:Microscope, dust cover, charger, rechargeable batteries
Educational microscopes, RED 130
For applications in schools, universities and laboratories.Depending on the model, 1 or 2 widefield eyepieces WF10X/18 mmWith pointerAchromatic objectives EA 4X, 10X, 40XLED illumination 3.5 V, 70 mW with intensity controlPower supply with charger or rechargeable batteriesMonocular head 45°, 360° rotatingReversed quadruple revolving nosepieceCoaxial coarse and fine focusing systemBuilt-in low position coaxial mechanical stage1.25 N.A. Abbe condenser with iris diaphragm Scope of supply:Microscope, dust cover, charger, batteries
Educational microscopes, RED 131
For applications in schools, universities and laboratories.Depending on the model, 1 or 2 widefield eyepieces WF10X/18 mmWith pointerAchromatic objectives EA 4X, 10X, 40XLED illumination 3.5 V, 70 mW with intensity controlPower supply with charger or rechargeable batteriesAdditional vertical co-observer tubeMonocular head 45°, 360° rotatingReversed quadruple revolving nosepieceCoaxial coarse and fine focusing systemBuilt-in low position coaxial mechanical stage1.25 N.A. Abbe condenser with iris diaphragmScope of supply:Microscope, dust cover, charger, rechargeable batteries

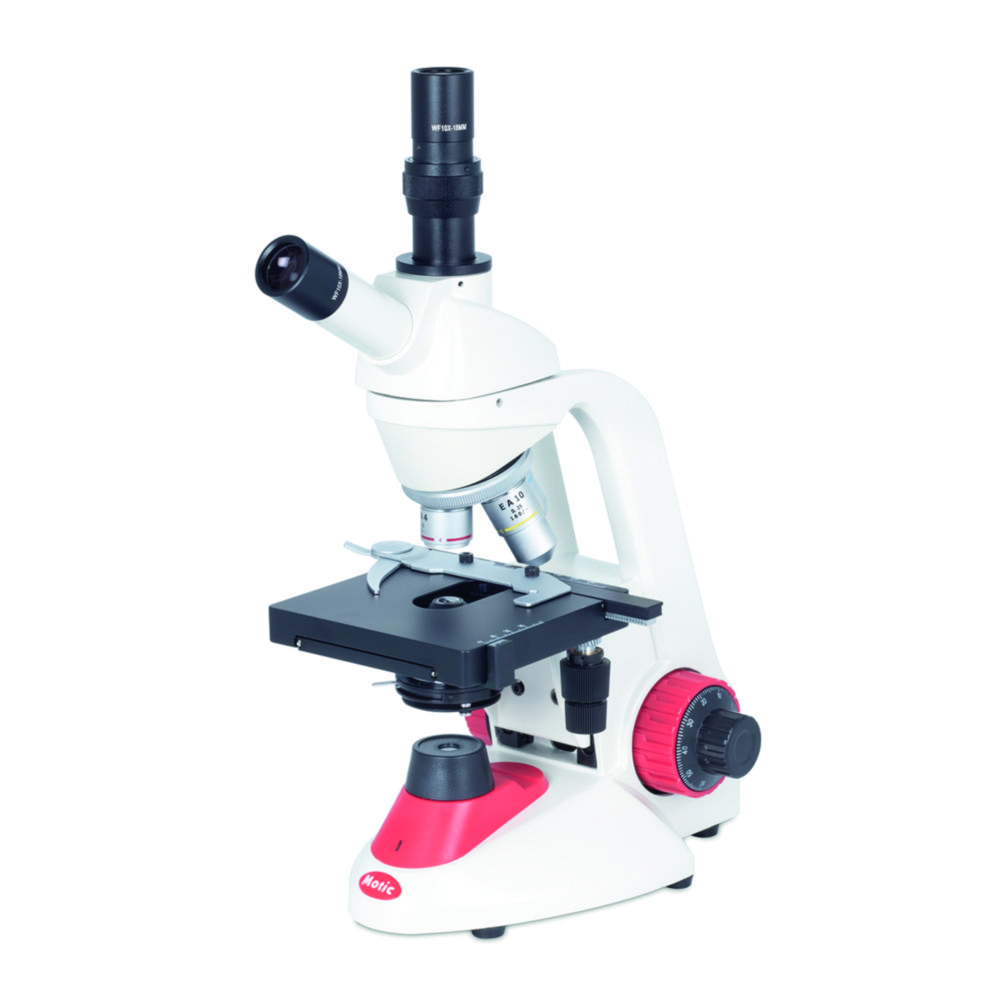

Educational microscopes, RED 132
For applications in schools, universities and laboratories.Depending on the model, 1 or 2 widefield eyepieces WF10X/18 mmWith pointerAchromatic objectives EA 4X, 10X, 40XLED illumination 3.5 V, 70 mW with intensity controlPower supply with charger or rechargeable batteriesBinocular head 30°, Siedentopf type, 360° rotatingReversed quadruple revolving nosepieceCoaxial coarse and fine focusing systemBuilt-in low position coaxial mechanical stage1.25 N.A. Abbe condenser with iris diaphragmScope of supply:Microscope, dust cover, charger, rechargeable batteries
Digital Microscope RED-50X Plus
Digital WiFi microscope. Stream your microscope image live on any device that works with Android and iOS and move freely through the lab or the classroom to show and share your image.Monocular tube with externally used photo tube CMOS 1/3"Resolution: 4MP (2560 x 1440 Pixel)WiFi transmission: 1280 x 1024 pixels (Full HD)Widefield eyepiece WF10X/18 mmReversed triple revolving nosepieceAchromatic objectives 4X, 10X, 40X SCoarse focusing systemRound Gliding stage with "one-touch" sample clipsBuilt-in condenser lens N.A. 0.65LED illumination 3.5 V, 70 mW with intensity controlPower supply 100-240 V, VDE plug (CE)Operation system: Software Motic Images 3.1 for Windows, OSX and Linux, MotiConnect App for OSX, Android and iOS.Scope of supply: Microscope, dust cover, calibration slide, C-Mount adapter 0.5X
Transmitted light microscope-digital set OBE, with C-mount camera
The set is the comprehensive digital solution for school, training and laboratory.Tube 30° inclined, 360° rotatableDiopter adjustment at one eyepiece tubeCoaxial pre-and fine focussingABBE 1,25 N.A. condensor focussed with aperture diaphragmDimmable 3 W LED illuminationScope of supply:Transmitted light microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction
Transmitted light microscope-digital sets OBE, with tablet camera
The set is the comprehensive digital solution for school, training and laboratory.Tube 30° inclined, 360° rotatableDiopter adjustment at one eyepiece tubeCoaxial pre-and fine focussingABBE 1,25 N.A. condensor focussed with aperture diaphragmDimmable 3 W LED illuminationScope of supply:Transmitted light microscope, camera, dust cover, eye cups, manual instruction

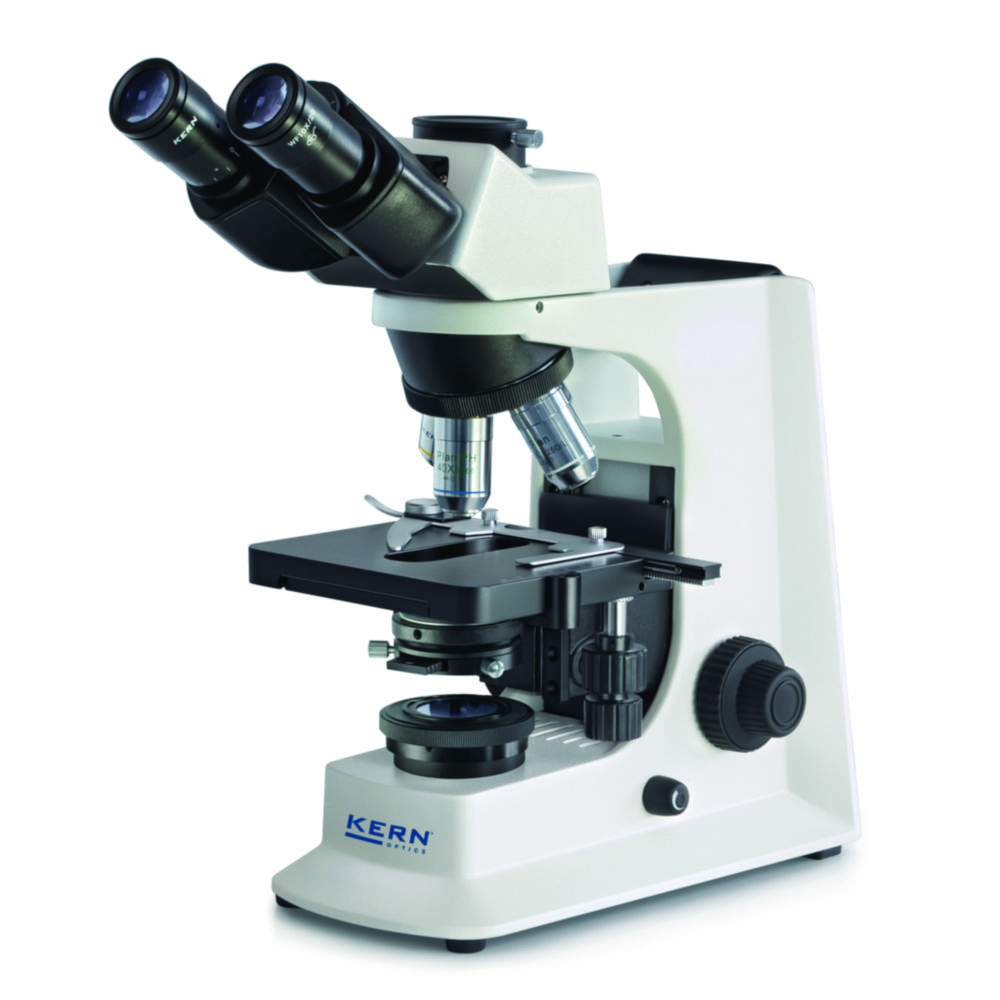

Phase contrast microscopes OBL 14/15
For extremely translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue) with phase contrast.Infinity optical systemTube 30° inclined, 360° rotatableDiopter adjustment at one eyepiece tubeCoaxial pre-and fine focussingAbbe N.A. 1,25 precentered, for bright field and phase contrastLightfield diaphragm20 W halogen or 3 W LED illuminationScope of supply: Microscope, protective dust cover, eye cups, user instructions

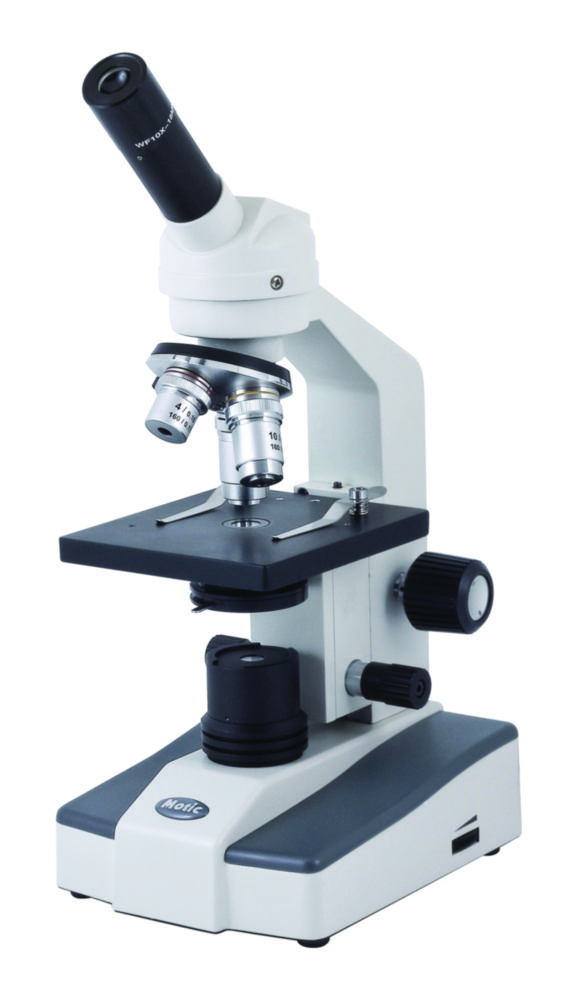

Educational Microscopes, F11 Series
Monocular head, 45º inclined, 360º rotatingWidefield eyepiece WF10X/18mmQuadruple revolving nosepieceAchromatic objectives DIN 4X, 10X, 40X SSeperate coarse and fine focusing system with tension adjustmentPlain stage with sample clips0.65 N.A. condenser built in on stage with iris diaphragm (F1110)Focusable 1.25 N.A. Abbe condenser with iris diaphragm (F1115)LED illumination 20mA, 3.5V, 70mW with intensity controlPower supply 220V (CE)Dust cover

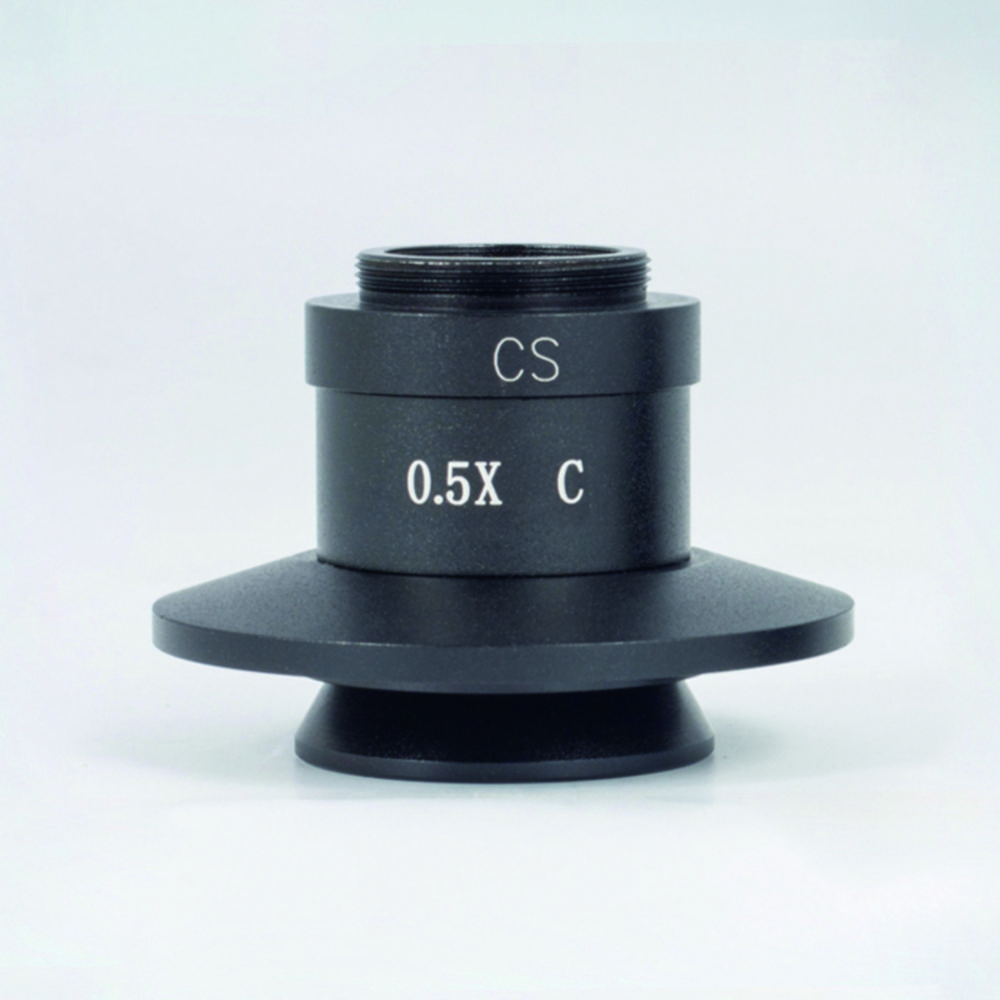

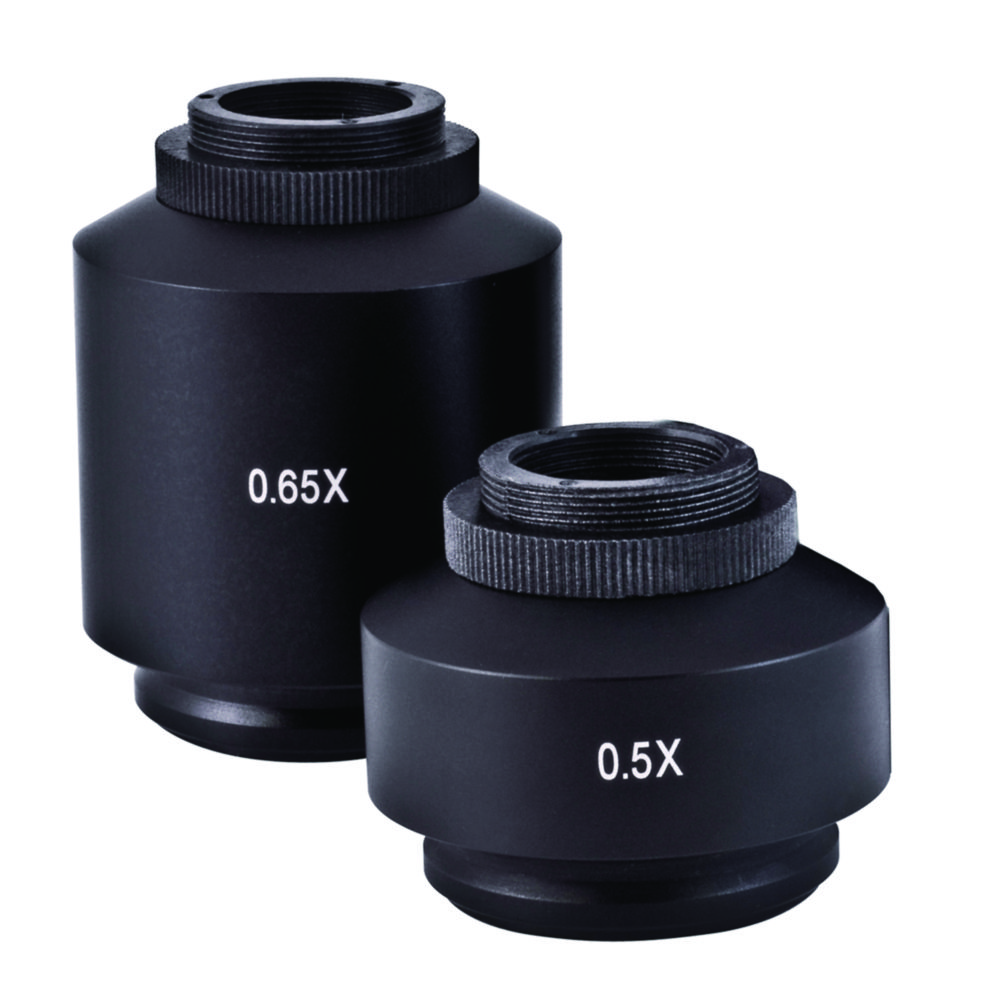

C-Mount camera adapter to BA, AE, SMZ-161 & SMZ-171 series
Suitable for microscopes from year of manufacture 2016.

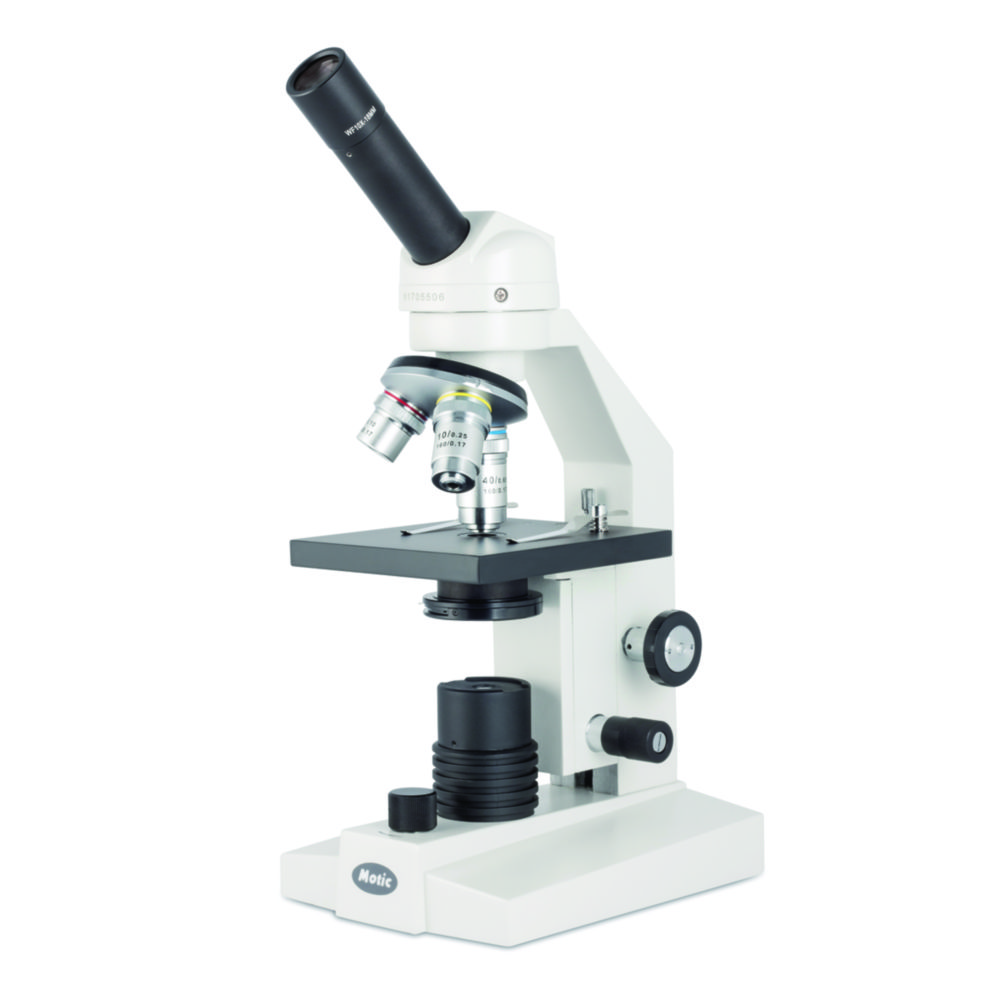

Educational Microscopes SFC 100
Transmitted light microscope with glass optics.45° Inclined Monocular head for comfortable viewing while seated, rotates 360°Widefield eyepiece 10X/18mm with built-in pointerRevolving triple nosepiece with positive click-stops for precise magnification changesDIN Achromatic objectives parfocal and parcentric 4X/0.1, 10X/0.25 and 40X/0.65 with springTungsten lighting (220 V/ 20 W)Led lighting (3.5 V/ 70 mW, rechargeable batteries, 50 h runtime)Separate coarse and fine focusing adjustment with upper-limit stop to prevent damage to slides and objectivesLarge 120mmx110mm stage with locked-on, spring stage clipsSpecial built-in 0.65NA condenser with iris diaphragm and filter holder

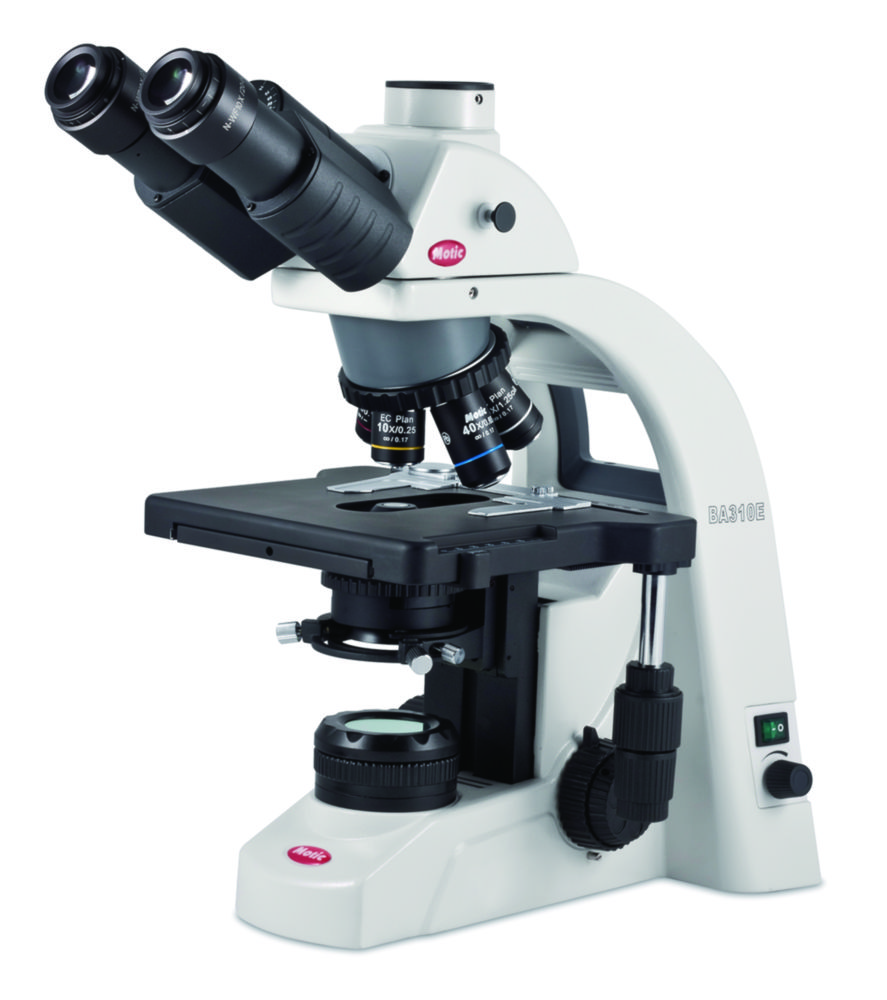

Advanced Upright Microscope for Life Science and Laboratories, BA310E
The BA310E is specially designed for the requirements of daily routine in universities, clinics and laboratories.Infinity Optics [CCIS®]Observation Tube Siedentopf Type, Binocular - / Phototube 30°, F.N. 20Interpupillary Distance 48-75 mmEyepieces High-Eyepoint N-WF 10x/20 mm with dioptre adjustment on both eyepieces and rubber eyecupsReversed quintuple revolving nosepieceObjectives CCIS EC Plan 4x, 10x, 40x-S, 100x-S-OilBuilt in low position coaxial, rackless mechanical stage (right hand control)Focusable Abbe condenser N.A. 0.90/1.25 with iris diaphragm and slotKoehler illumination 3 W LED with intensity controlUniversal power supply 100-240 VScope of supply: Immersion oil (5 ml), power cord, Allen hexagonal key, thumb crew, vinyl dust cover6 V/30 W HAL illumination available on optionOptional, available: Phase-contrast 10x/20x/40x/100x for slider or Turret-condensor, DF 10x-40x for slider or Turret-condensor, Polarization

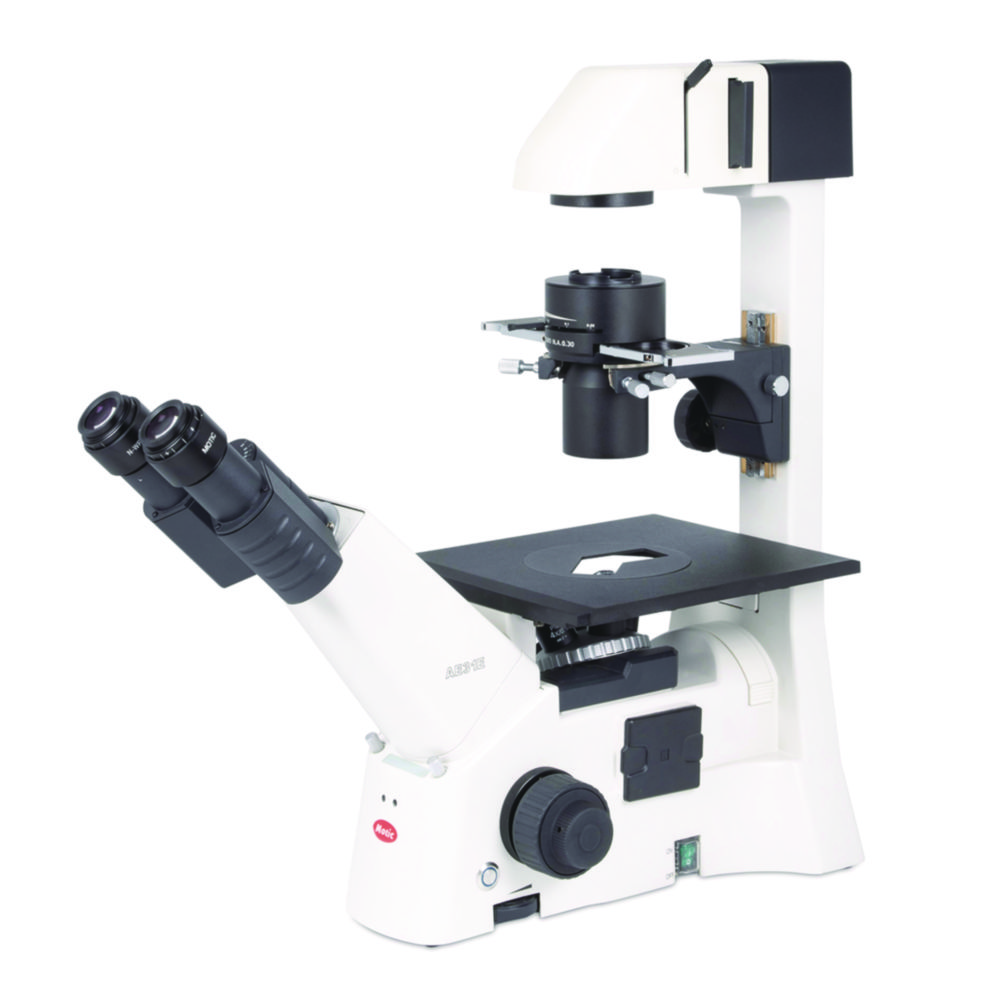

Inverted Microscope for advanced applications series AE31E, Binocular
Professional inverted research microscope for a wide range of applications.Observation Tube Siedentopf TypeWide-field eyepieces, incl. eyecupsDiopter adjustment on both eyepiecesSide facing nosepieceObjectives CCIS® Plan achromat 4x, Ph10x, LWD Ph20x, LWD Ph40xPlain stage, with metal & glass stage insertsCondensor with phase slider (Ph1, BF)Illumination: Externally mounted lamp house, Koehler 6 V/30 W Quartz halogen with intensity control, automatic light switch-offScope of supply: microscope, Ø 45 mm blue, green interference and ground glass filters, centering telescope, power cord, Allen hexagonal key, vinyl dust cover

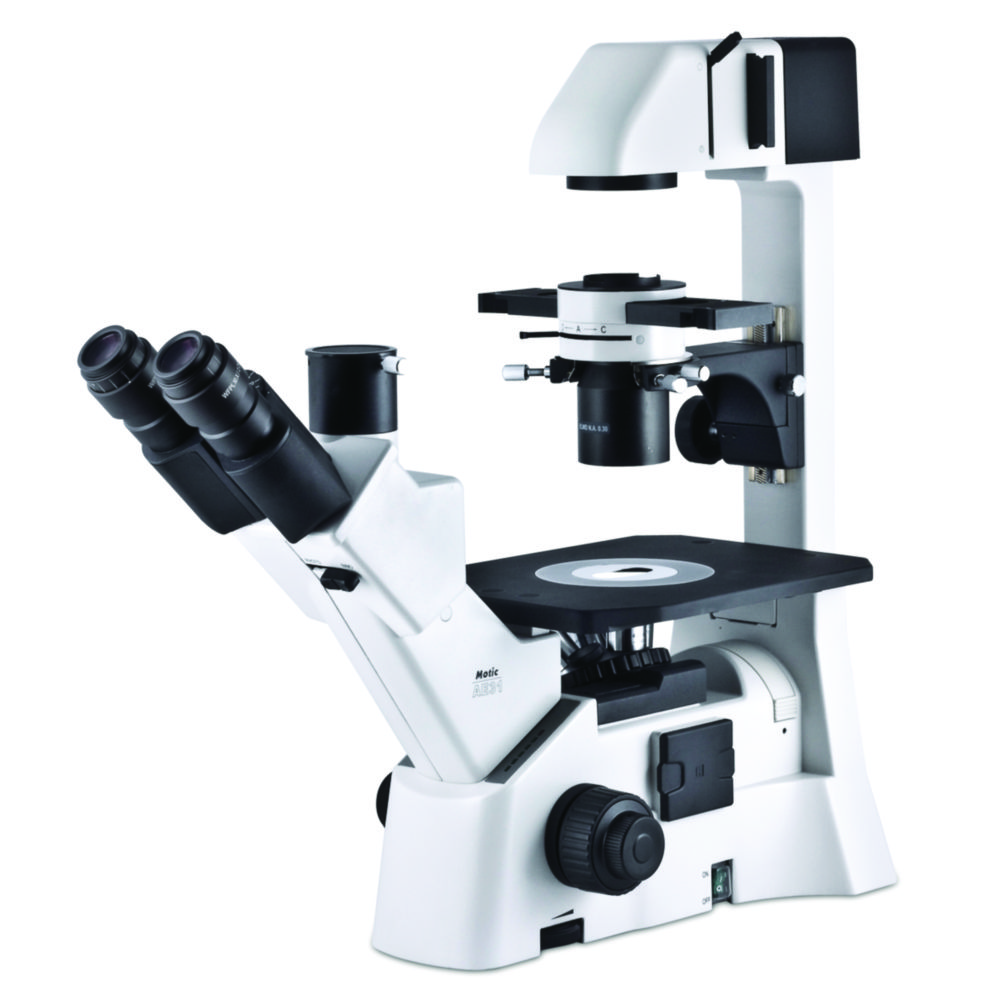

Inverted Microscope for advanced applications series AE31E, Trinocular
Professional inverted research microscope for a wide range of applications.Observation Tube Siedentopf TypeWide-field eyepieces, incl. eyecupsDiopter adjustment on both eyepiecesSide facing nosepieceObjectives CCIS® Plan achromat 4x, Ph10x, LWD Ph20x, LWD Ph40xPlain stage, with metal & glass stage insertsCondensor with phase slider (Ph1, BF)Illumination: Externally mounted lamp house, Koehler 6 V/30 W Quartz halogen with intensity control, automatic light switch-offScope of supply: microscope, Ø 45 mm blue, green interference and ground glass filters, centering telescope, power cord, Allen hexagonal key, vinyl dust cover

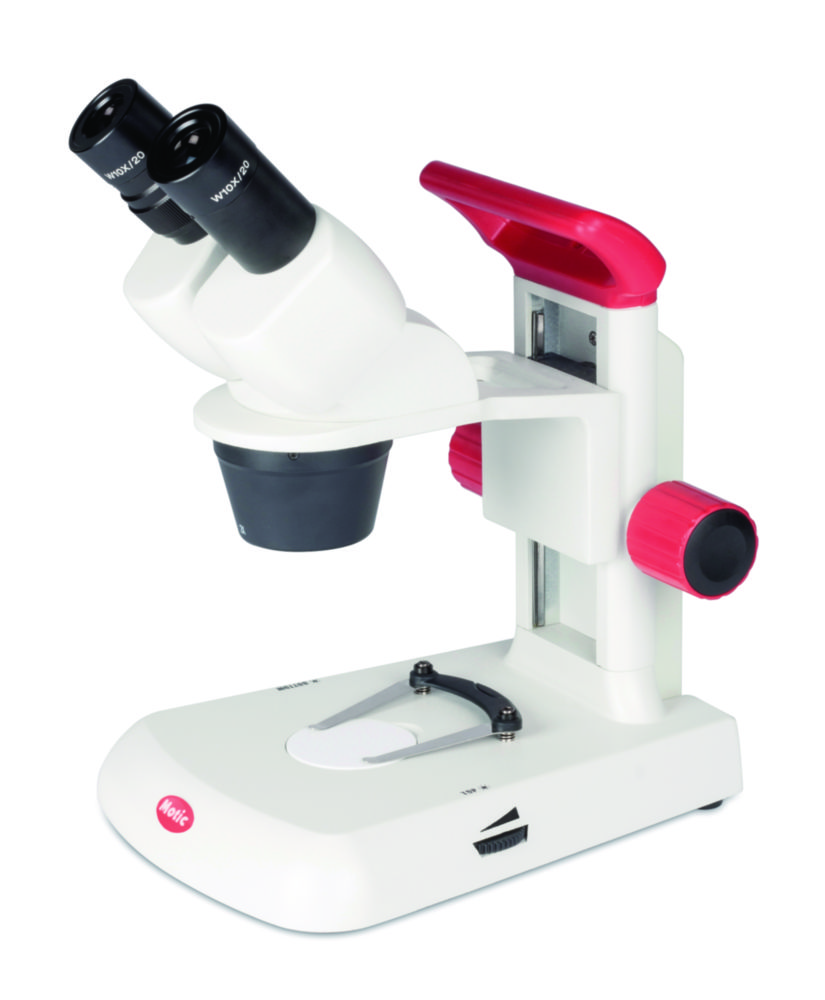

Educational Stereomicroscopes, RED 30S
With independent LED illumination. Innovative and user-friendly. Motics "One-touch" sample clip helps to fix the specimen easily. Fixed arm type stand with large integrated carrying handle for a stable stand and easy transportation.With magnification changer (2x, 4x)Binocular head, 45° inclinedWidefield eyepieces WF10X/20 mmObjective turret magnification changer (2X, 4X)Coarse focusing system with tension adjustmentBase with fixed arm and carrying handleIncident and transmitted rechargeable LED illumination with independent intensity controlPower supply 100-240 V (CE), charger and batteries includedBlack/white and frosted stage plates, "one-touch" sample clips and dust cover10 years warranty

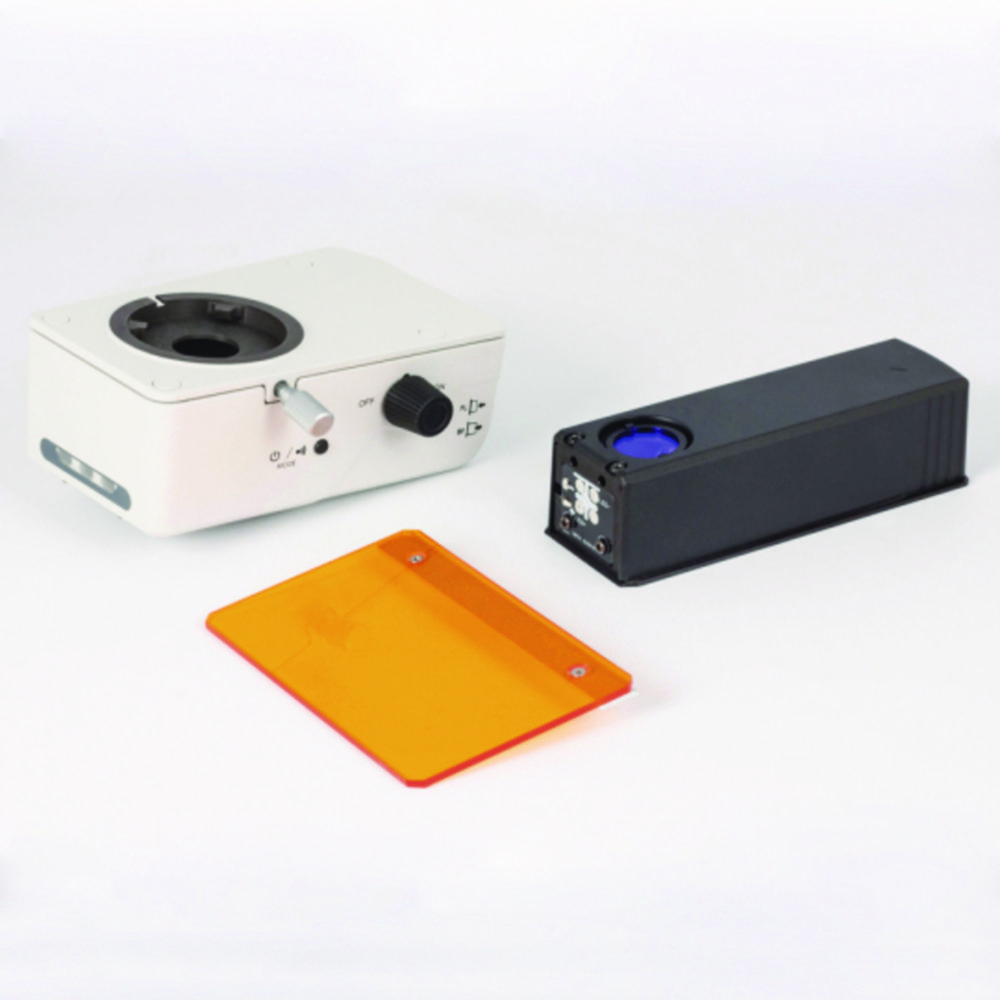

Modules EpiLED for Basic Biological Microscope BA210E
Three LED modules for safe handling of fluorescence applications in school and education environmentsThe new EpiLED S modules, to be combined with the basic upright microscope BA210Elite, for the first time allow an easy, trouble-free and economic access to fluorescence microscopy. From now on it is possible to implement the fluorescence method even in environments relevant to security, e.g. schools. Now is the time not only to demonstrate "fluorescence" by a teacher, but also to allow students to work on their own. Complete modules as well as separate inserts are available.The following complete modules respectively, inserts are available:Epi-LED S Auramin 0 combination: 455nm LED; filter EX: 480SP, D 505LP, B 520LPEpi-LED S FITC combination: 470nm LED; EX: 480SP, D 505LP, B 520LPEpi-LED S TRITC combination: 530nm LED; EX: 532-33, D 575LP, B 590LPThe scope of delivery contains:A condenser slider to minimize reflections from the condenser front lens of BA210ESpecial rubber eyecups to reject stray light from the sideA power supply with exchangeable plugs (UL,VDE,UK), Allen key, dust cover

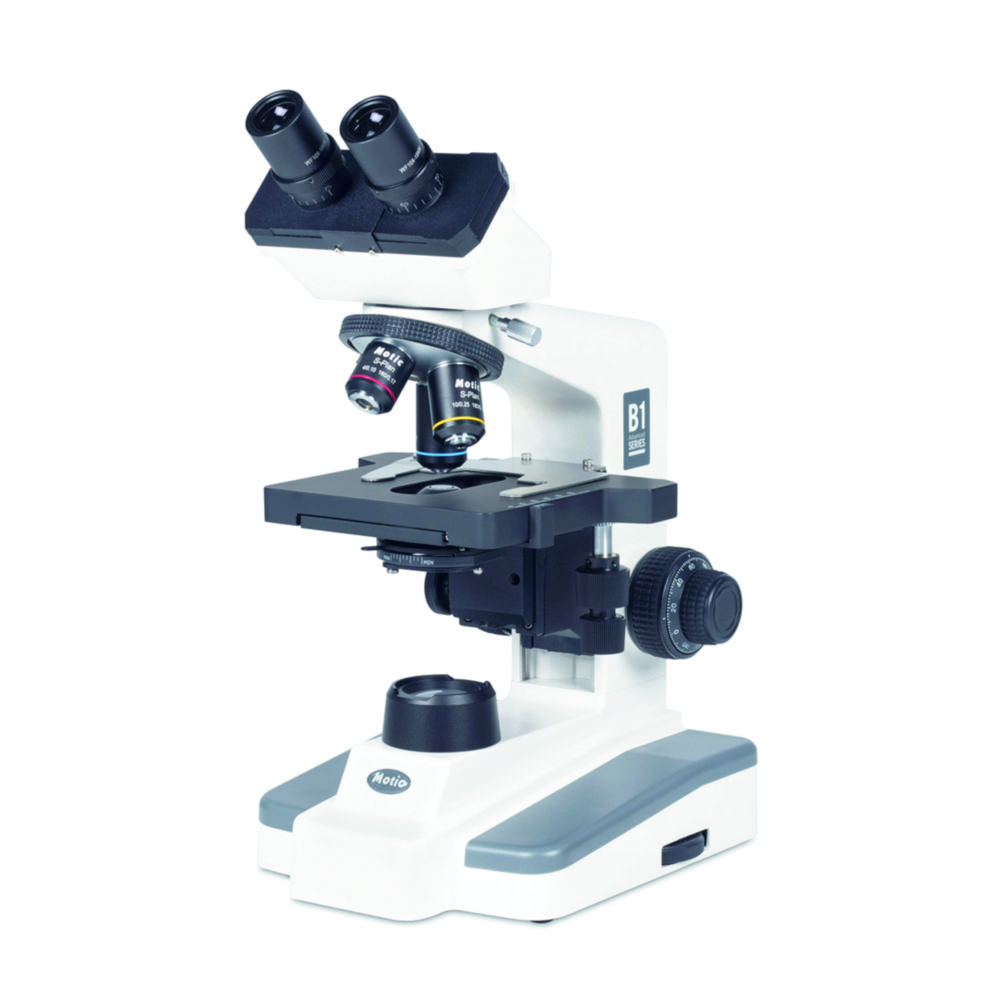

Binocular Microscopes for Schools/Laboratories B1-220E-SP
Established Quality with a new design. The B1 series covers a wide range of the daily work for Laboratory and University use. The Elite Series with improved optics and mechanics enables efficient work for many years. Observation Tube Binocular 45° / Phototube 30°, 360° rotatingWidefield eyepieces WF10X/18 mm Quadruple revolving nosepieceSemi-Plan objectives SP 4X, 10X, 40X S, 100X S-Oil Coaxial coarse and fine focusing system with tension adjustment Built-in low position coaxial rackless mechanical stage Focusable 1.25 N.A. Abbe condenser with iris diaphragm LED illumination 3 W with intensity controlPower supply 100-240 VDust cover and immersion oil

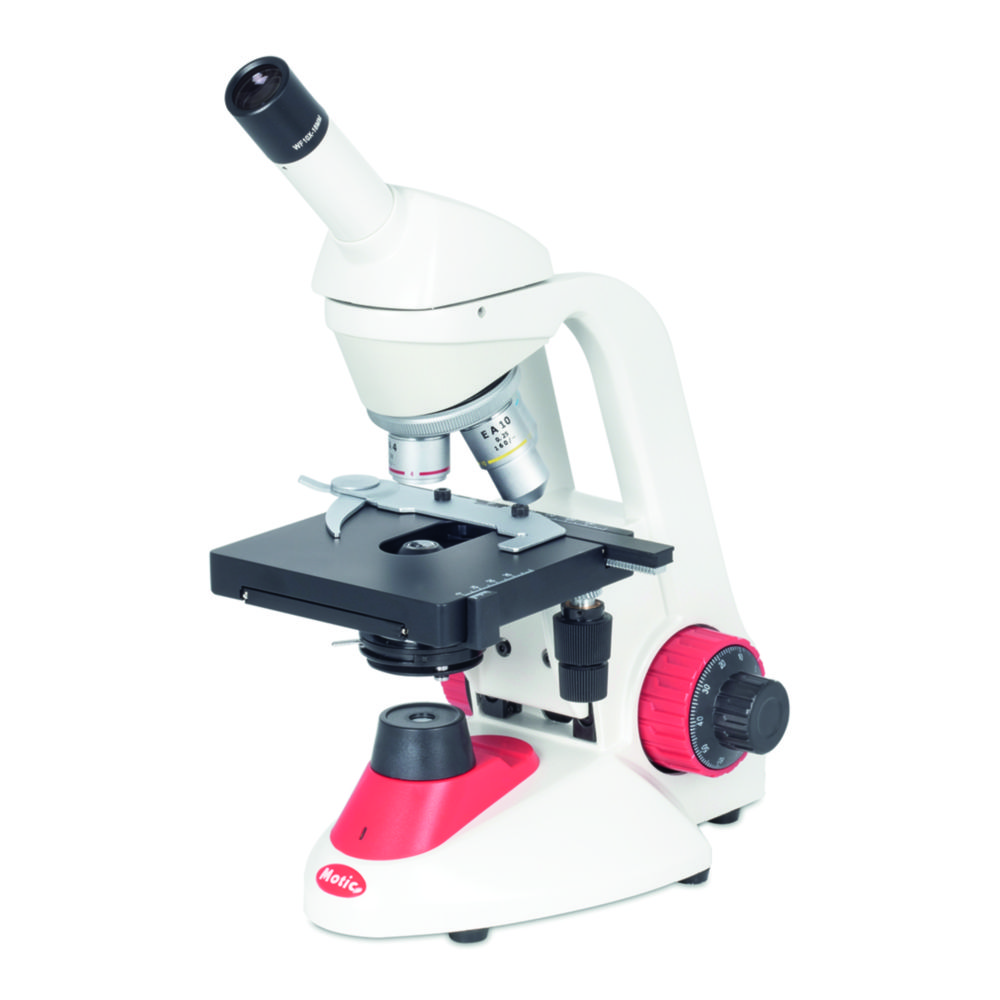

Educational microscopes, RED 100
Monocular head 45°, 360° rotatingReversed triple revolving nosepieceSeparate coarse and fine focusing systemGliding stage with one-touch sample clips0.65 N.A. condenser with iris diaphragmScope of supply:Microscope, dust cover, charger, rechargeable batteries

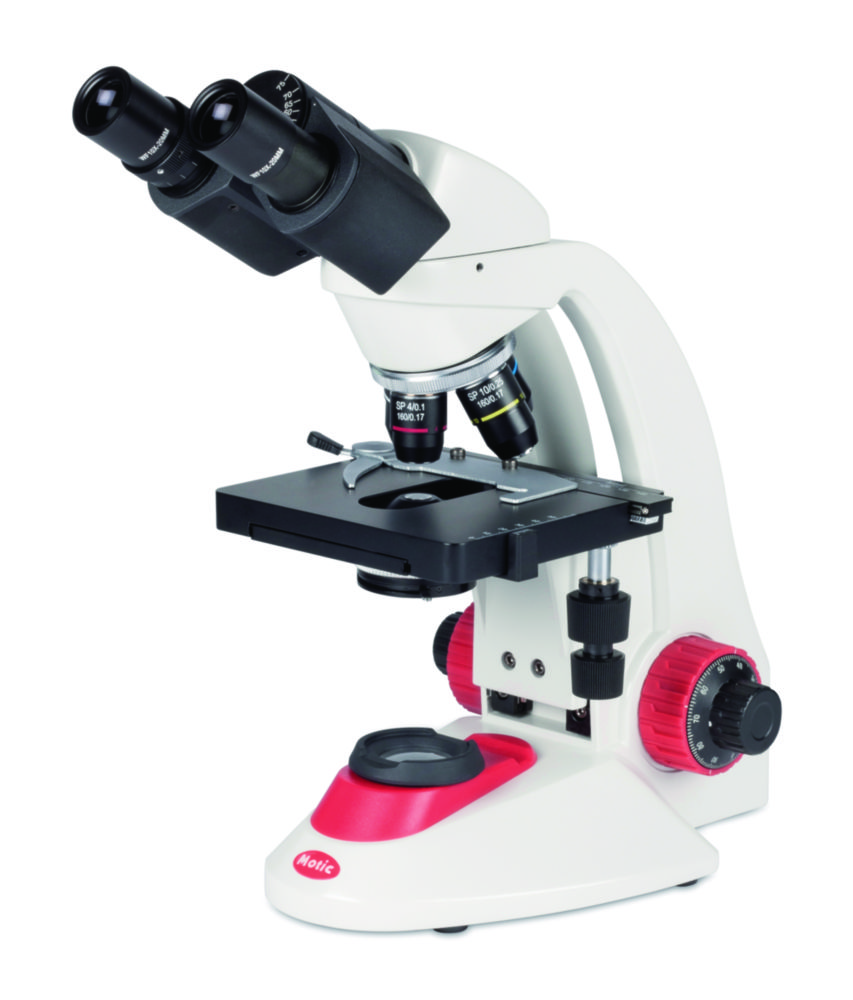

Laboratory Microscope RED 220
Designed for advanced biology students, teachers, doctors and lab technicians.Binocular head Siedentopf type, 30° inclined, 360° rotatingWidefield eyepieces WF10X/20 mmReversed quadruple revolving nosepieceAchromatic Semi-Plan objectives SP 4X, 10X, 40X S, 100X S OilCoaxial coarse and fine focusing system with tension adjustmentBuilt-in low position coaxial mechanical stageFocusable Abbe condenser N.A. 1.25 with iris diaphragmLED illumination 3 W with intensity controlPower supply 100-240 V (CE)Dust cover, immersion oil (5 ml) and cord hangerMonocular-/Trinocular equipment available

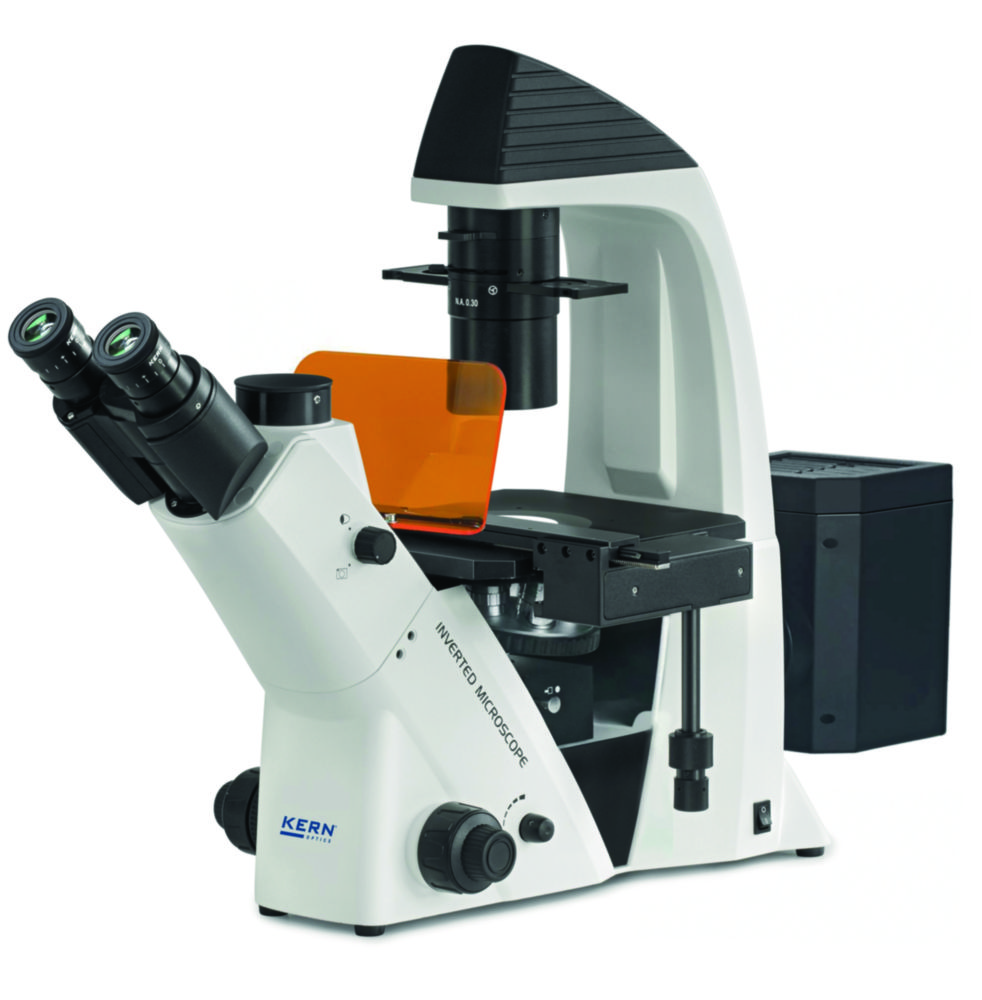

Inverted microscope Lab Line OCM
This design, with its large working distance of 72 mm, is particularly suitable for viewing samples in culture vessels (flasks, petri dishes, microtiter plates) and for translucent, thin, low-contrast, challenging samples (immunofluorescence, FISH, DAPI staining etc.).TrinocularTube 45° inclinedEyepiece: HWF 10x/22 mmObjectives: LWD 10x, 20x, 40x, LWD 20xPHDiopter adjustment: both-sidedQuintuple nosepieceObjective quality: Infinity PlanMechanical stage, including specimen holder (Ø 118 mm)Abbe N.A. 0.3 condenser with aperture diaphragmOCM 161: 30 W halogen illuminationOCM 165: 30 W halogen illumination and 100 W Epi fluorescence illumination unitIncluding blue and green colour filterDust Cover and manual instruction included
