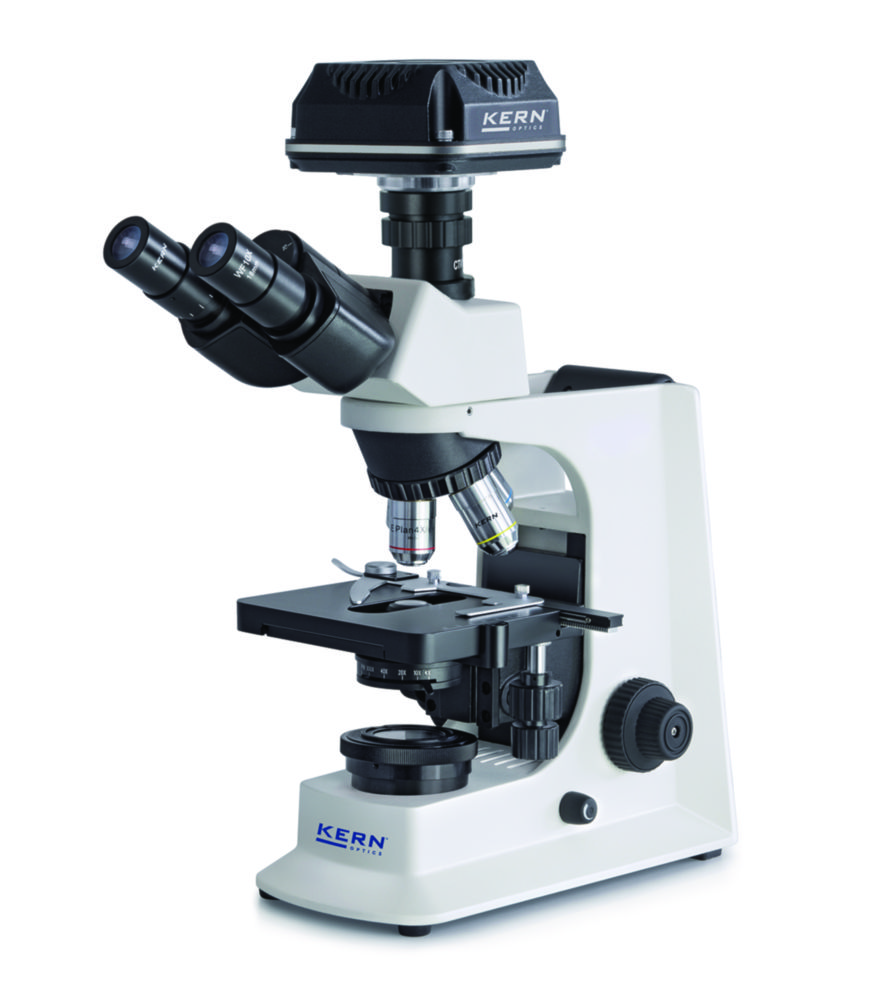

Light Microscopes Lab-Line OBL sets, with C-mount camera
Content:
1
Product number:
4670985
Product information "Light Microscopes Lab-Line OBL sets, with C-mount camera"
The sets are the complete digital solution for live investigations.
Scope of supply:
Light microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction
- Tube 30° inclined, 360° rotatable
- Diopter adjustment one-sided
- Coaxial pre-and fine focussing
- ABBE 1,25 N.A. condensor with aperture diaphragm, focusable and pre-centered koehler illumination
- Lightfield diaphragm
- 3 W LED illumination
Scope of supply:
Light microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction
| Condenser: | Abbe N.A. 1,25 |
|---|---|
| Depth: | 200 mm |
| Depth stage: | 130 mm |
| Dimensions (WxDxH): | 395 x 200 x 380 mm |
| Height: | 380 mm |
| Inclination angle tube: | 30° |
| Interfaces: | USB 3.0 |
| Interpupillary distance: | 50 ... 75 mm |
| Magnification eyepieces: | HWF 10×/ 20 mm |
| Magnification objectives: | 4×/10×/40×/100× |
| Manufacturer Article Number: | OBL 137C832 |
| Max. interpupillary distance: | 75 mm |
| Max. voltage: | 230 V |
| Min. interpupillary distance: | 50 mm |
| Plug type: | EU |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Resolution camera: | 5 MP |
| Sensor: | CMOS 1/2,5" |
| Stage (WxD): | 145 x 130 mm |
| Type: | OBL 137C832 |
| Type of auxiliary energy: | Mains connection |
| Type of illumination (Microscopy): | Transmitted light |
| Weight: | 7.7 kg |
| Width: | 395 mm |
| Width stage: | 145 mm |
