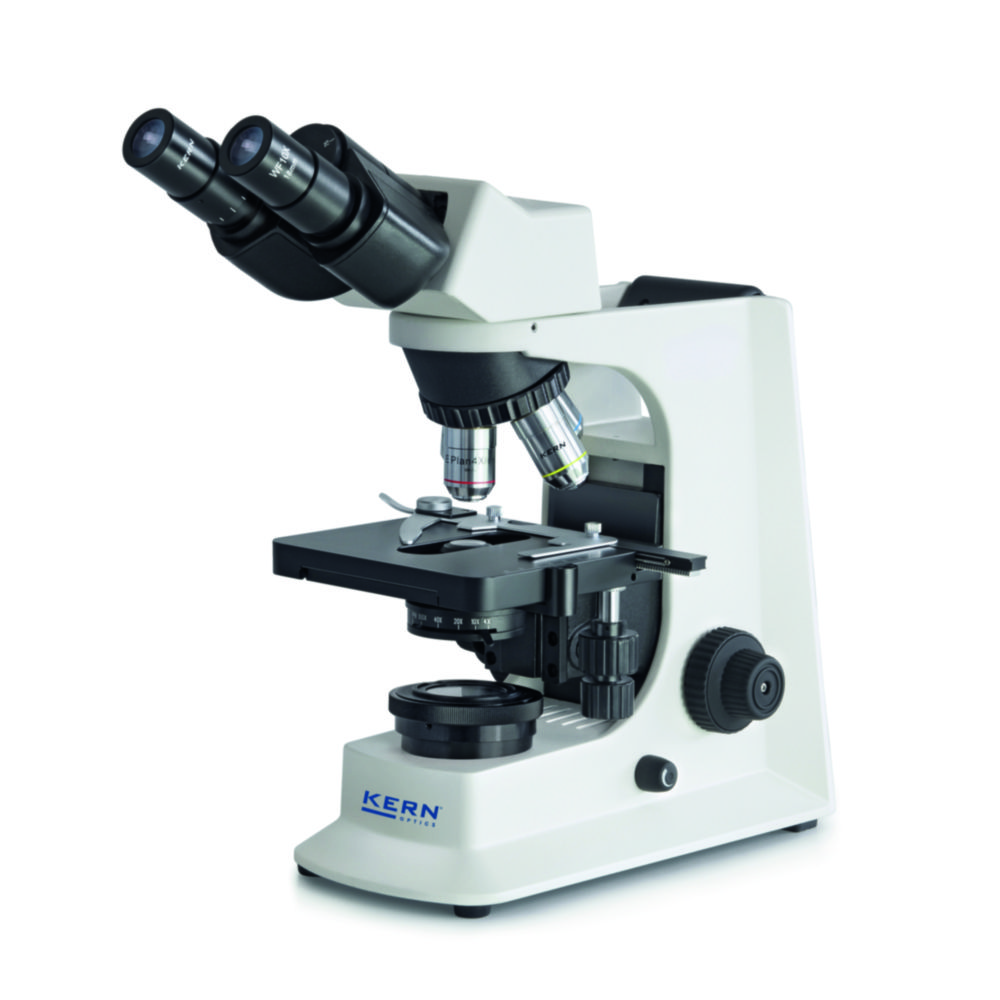

Phase contrast microscopes OBL 14/15
Product information "Phase contrast microscopes OBL 14/15"
For extremely translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue) with phase contrast.
Scope of supply: Microscope, protective dust cover, eye cups, user instructions
- Infinity optical system
- Tube 30° inclined, 360° rotatable
- Diopter adjustment at one eyepiece tube
- Coaxial pre-and fine focussing
- Abbe N.A. 1,25 precentered, for bright field and phase contrast
- Lightfield diaphragm
- 20 W halogen or 3 W LED illumination
Scope of supply: Microscope, protective dust cover, eye cups, user instructions
| Condenser: | Abbe N.A. 1,25 |
|---|---|
| Depth: | 200 mm |
| Depth stage: | 130 mm |
| Dimensions (WxDxH): | 395 x 200 x 380 mm |
| Height: | 380 mm |
| Inclination angle tube: | 30° |
| Interpupillary distance: | 50 ... 75 mm |
| Light type: | LED |
| Magnification eyepieces: | HWF 10×/20 mm |
| Magnification objectives: | 4x, PH10x, PH40x, 100x |
| Manufacturer Article Number: | OBL 146 |
| Max. interpupillary distance: | 75 mm |
| Max. voltage: | 230 V |
| Min. interpupillary distance: | 50 mm |
| Plug type: | EU |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Revolving nosepiece: | 4-fold |
| Stage (WxD): | 145 x 130 mm |
| Tube: | Binocular |
| Type: | OBL 146 |
| Type of auxiliary energy: | Mains connection |
| Type of illumination (Microscopy): | Transmitted light |
| Weight: | 6.7 kg |
| Width: | 395 mm |
| Width stage: | 145 mm |
