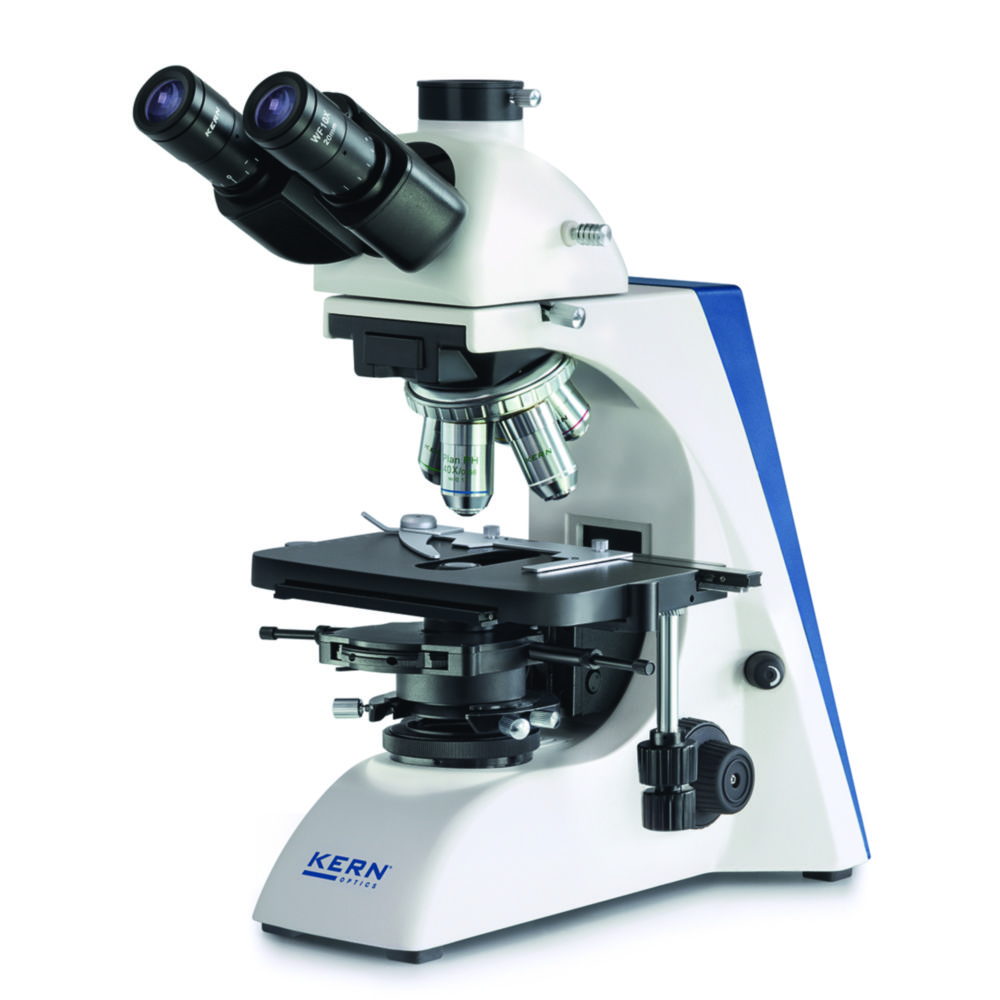

Phase contrast microscopes professional line OBN 15
Product information "Phase contrast microscopes professional line OBN 15"
This series has a professional Koehler illumination unit with an adjustable field diaphragm, with infinity optical system. A variety of modular systems, such as a swing-out condenser, various eyepieces, objectives, color filters, phase contrast units, a dark field condenser, a simple polarising unit, butterfly tube, through to complete fluorescence units are optionally available. A C-mount adapter is required to connect a camera (optional).
Scope of supply: Phase contrast microscope, centring eyepiece, protective dust cover, eye cups, user manual
- Tube 30° inclined, 360° rotatable
- Diopter adjustment: both-sided
- Objective quality: Infinity Plan
- Coaxial pre-and fine focussing
- Centre and height adjustable PH universal rotary condenser, aperture diaphragm and field diaphragm
- Coaxial coarse and fine focusing
- OBN 158: Halogen lighting 20 W
- OBN 159: LED lighting 3 W
Scope of supply: Phase contrast microscope, centring eyepiece, protective dust cover, eye cups, user manual
| Depth: | 200 mm |
|---|---|
| Dimensions (WxDxH): | 390 x 200 x 400 mm |
| Height: | 400 mm |
| Inclination angle tube: | 30° |
| Light type: | Halogen |
| Magnification eyepieces: | HWF 10x/20 mm |
| Magnification objectives: | 4x, PH10x, PH20x, PH40x, PH100x |
| Manufacturer Article Number: | OBN 158 |
| Revolving nosepiece: | 5-fold |
| Tube: | Trinocular |
| Type: | OBN 158 |
| Type of auxiliary energy: | Mains connection |
| Type of illumination (Microscopy): | Transmitted light |
| Weight: | 9 kg |
| Width: | 390 mm |
