Multiparameter meter MultiLine® 3620 IDS Set G
Product information "Multiparameter meter MultiLine® 3620 IDS Set G"
| Hazardous Substance Data | |
| GHS symbols |  |
| Signal word according to GHS | Danger |
| H-Phrases | H360FD |
| P-Phrases | P280, P308+P313, P405 |
| SDS Weblink | Link |
| Depth: | 180 mm |
|---|---|
| Dimensions (WxDxH): | 80 x 180 x 55 mm |
| GHS Symbols: | GHS08 |
| H-Phrases: | H360FD |
| Height: | 55 mm |
| IP code: | IP 67 |
| Interfaces: | USB-A, Mini USB-B |
| Manufacturer Article Number: | 2FD56G |
| Max. voltage: | 240 V |
| Min. voltage: | 100 V |
| P-Phrases: | P280, P308+P313, P405 |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| SDS Weblink: | https://sw.llg.de/search?search=6283708 |
| Signal word according to GHS: | Danger |
| Type: | Multi 3620 Set G |
| Type of auxiliary energy: | Mains connection/rechargeable battery |
| UNSPSC: | 41115600 |
| Width: | 80 mm |
| Safety Data Sheet |                  |
Accessories

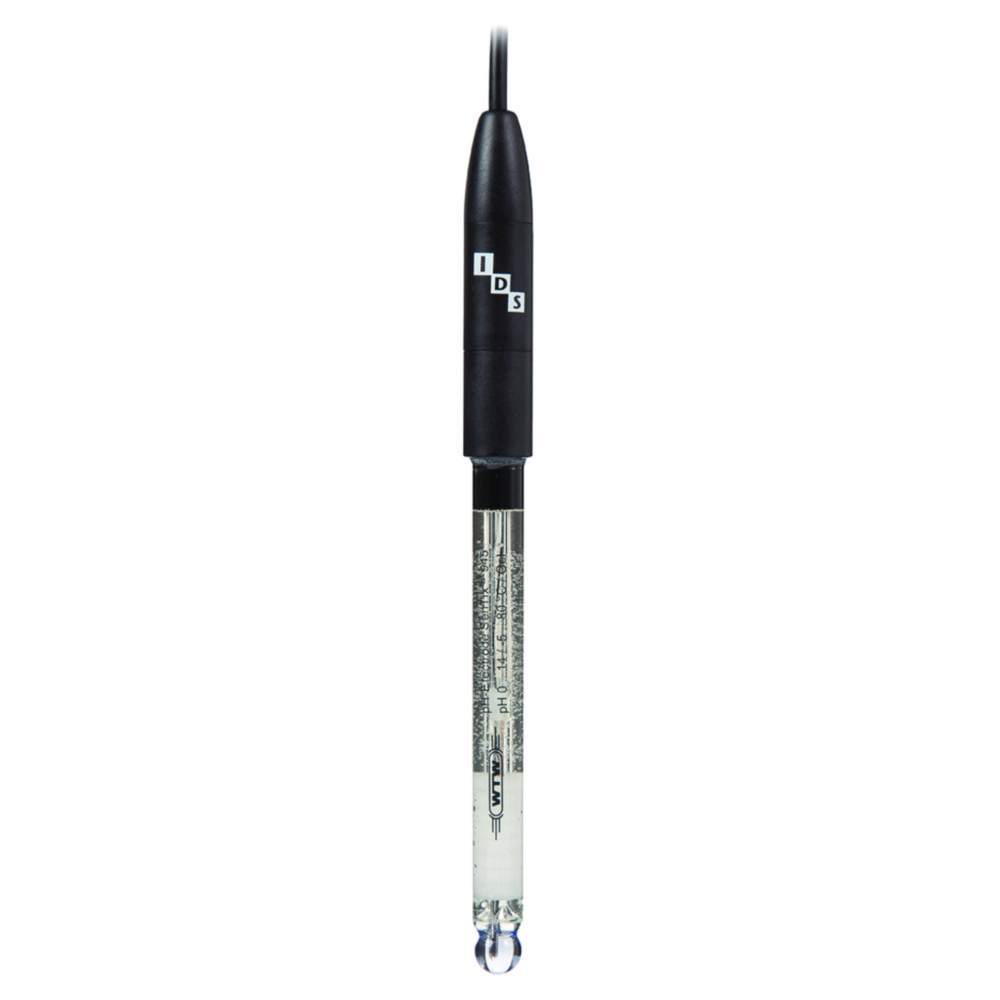

Low maintanance pH electrode with glass shaft and gel electrolyte, with built-in temperature sensor NTC 30 kOhm.

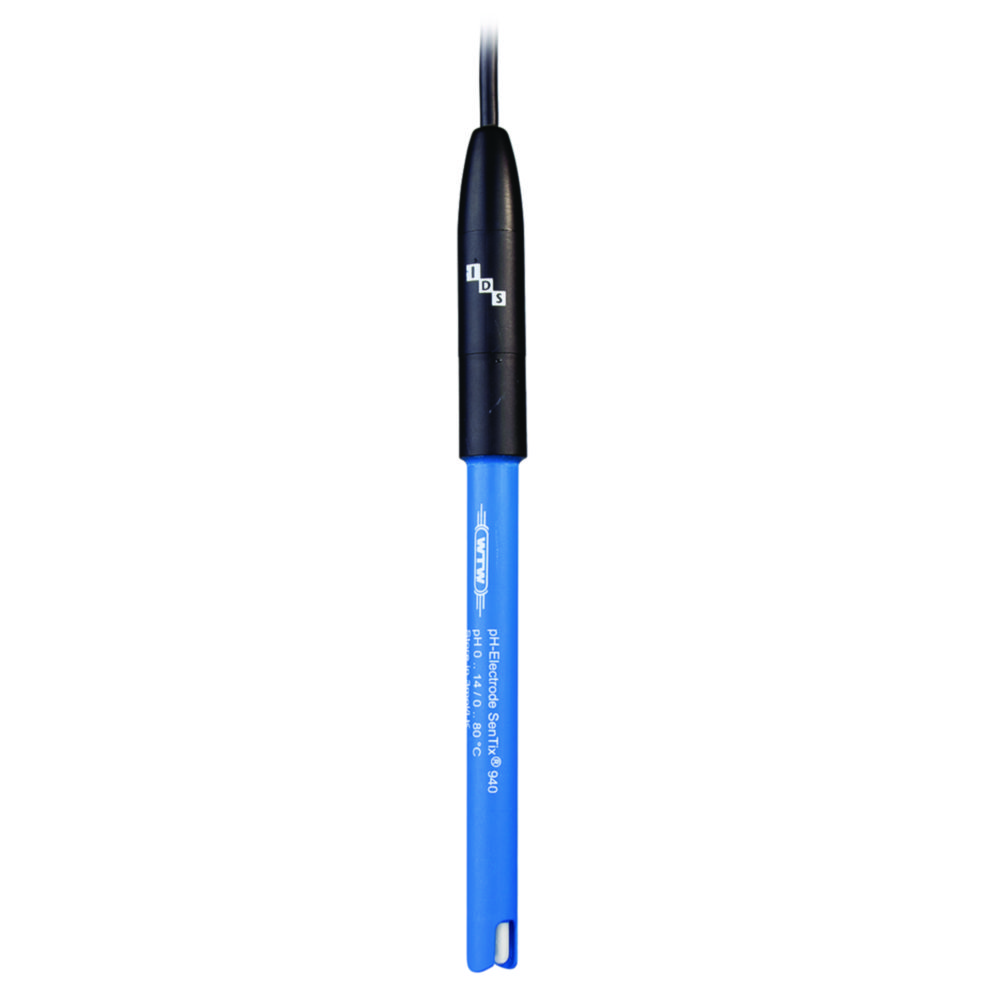

Low maintanance pH electrodes with plastic shaft and gel electrolyte, with built-in temperature sensor NTC 30 kOhm. With waterproof digital connector, cable length 1.5 m, SenTix® 940-3 with 3 m cable.

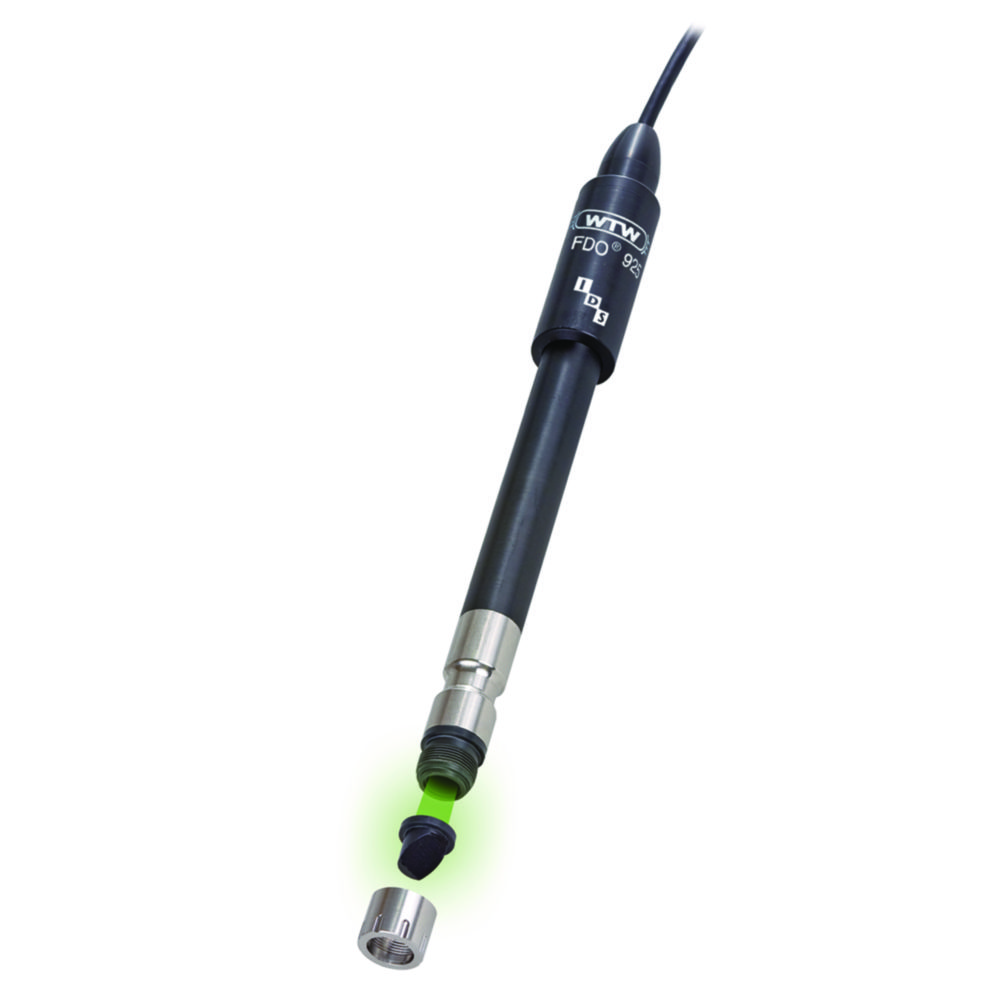

Optical IDS D.O. sensor for portable MultiLine® IDS and InoLab® Multi IDS benchtop meters. Measures the dissolved oxygen according DIN ISO 17289:2014-12. For applications in the lab and in process, outdoor and waste water treatment plants. Low maintenance (t99 < 60 s). No oxygen consumption, with inclined membrane for avoiding air bubbles. Factory calibrated membrane with smart chip. Built-in NTC 30 kOhm temperature sensor.
Other customers also bought
Professional digital multiparameter meters for mobile measurement, wireless preparation, data logger manually or automatically (timed). Easy to clean with a soft brush under water jet. The Multi 3620 IDS with two universal measurement channels is suitable for all WTW IDS pH, ORP, dissolved oxygen sensors, conductivity cells and turbidity sensors, whether connected to cable or wireless. Documentation of meter and sensor data. User control over MultiLab® users. With USB-A and Mini USB-B interface and colour display.Scope of supply: Single meter in a carrying case with Quick Start Guide, CD-ROM and batteries, driver software for USB, cable, power supply
