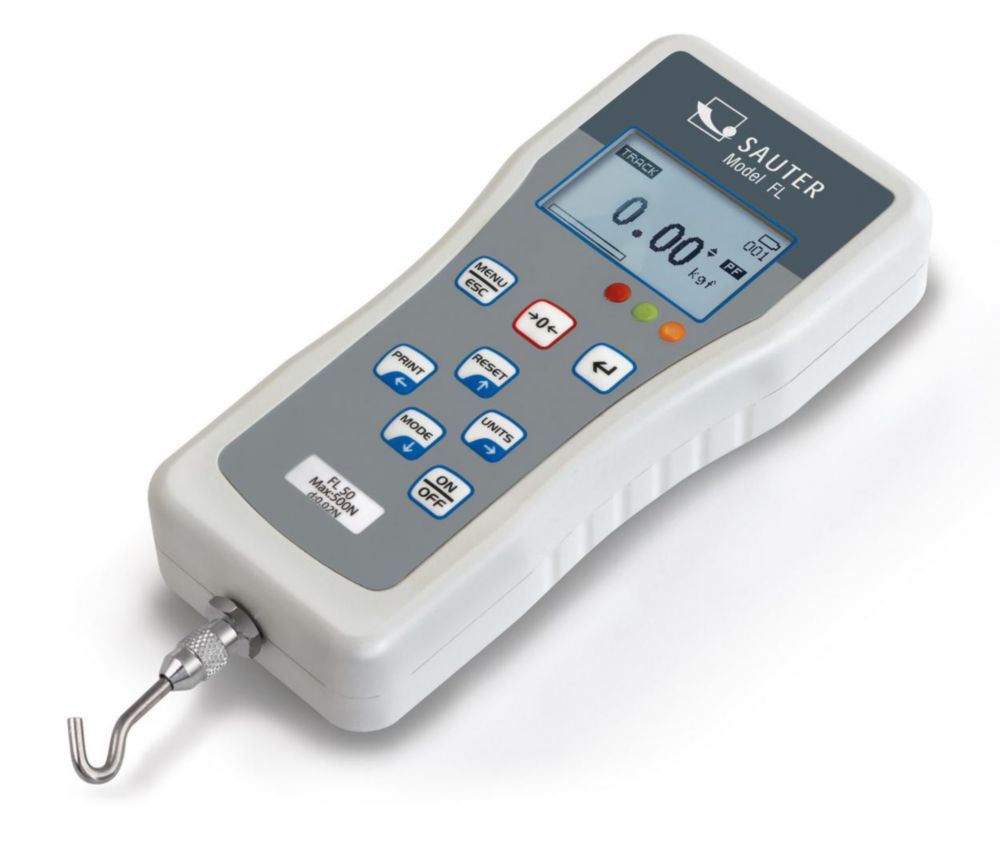

Digital force gauge FL-S
Content:
1
Product number:
4676250
Product information "Digital force gauge FL-S"
Universal digital force gauges with integrated measuring cell.
Scope of supply: Digital force gauge, hard carrying case, 3 standard attachments (FL 2K: with external measuring cell, tension loops and pressure plates, without standard attachments)
- Turnable display with backlight
- Can be mounted on all SAUTER test stands
- Metal housing
- Selectable measuring units: N, kN, kg, oz, lb
- Real time or Peak Hold Mode to observe transcients or capture peaks
- Capacity display: A bar lights up to show how much of the measuring range is still available
- Measuring with tolerance range (limit-setting function):Upper and lower limiting can be programmed, in pull and push direction. The process is supported by an acoustic and visual signal
- Internal memory for up to 500 measurements
- Continuous analogue output: Linear voltage signal in relation to the load (-2 up to +2 V)
Scope of supply: Digital force gauge, hard carrying case, 3 standard attachments (FL 2K: with external measuring cell, tension loops and pressure plates, without standard attachments)
| Display: | Digital |
|---|---|
| Manufacturer Article Number: | FL 1K |
| Material housing: | Metal |
| Max. measured value: | 1000 N |
| Measured range: | 1,000 N |
| Readability: | 0.5 N |
| Type: | FL 1K |
