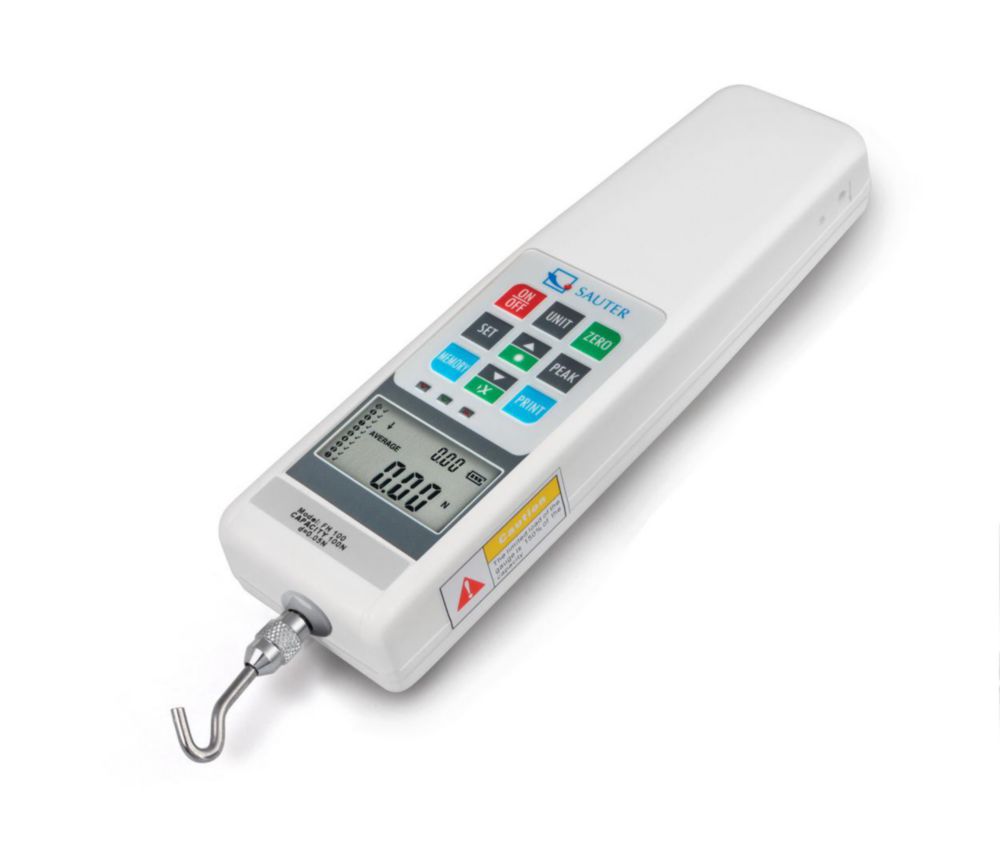

Digital force gauge FH-S
Content:
1
Product number:
6270963
Product information "Digital force gauge FH-S"
Universal digital force gauges for tension and compression tests with integrated measuring cell.
Scope of supply: Force gauge, carrying case
- Turnable display with backlight
- Digital force gauge with internal sensor
- Data interface RS-232
- Selectable measuring units: N, lb, kg
- Peak-Hold function to capture peaks (measurement result will be "frozen" for a short time) or Track function mode for a continuous measurement indication (period of time approx. 10 s)
- Function to set limits, programming of Max./ Min., in pull and push direction, with output of acoustic and optical signal. Ideal mode for efficient and accurate testing of standard parts
- Auto-Power-Off
- Internal memory for up to 10 measurements
- Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n
- Can be mounted on all SAUTER test stands
Scope of supply: Force gauge, carrying case
| Depth: | 36 mm |
|---|---|
| Dimensions (WxDxH): | 66 x 36 x 230 mm |
| Display: | Digital |
| Height: | 230 mm |
| Manufacturer Article Number: | FH 100 |
| Max. measured value: | 100 N |
| Measured range: | 100 N |
| Plug type: | EU |
| Readability: | 0,05 N |
| Type of auxiliary energy: | Rechargeable battery |
| Weight: | 0.64 kg |
| Width: | 66 mm |
