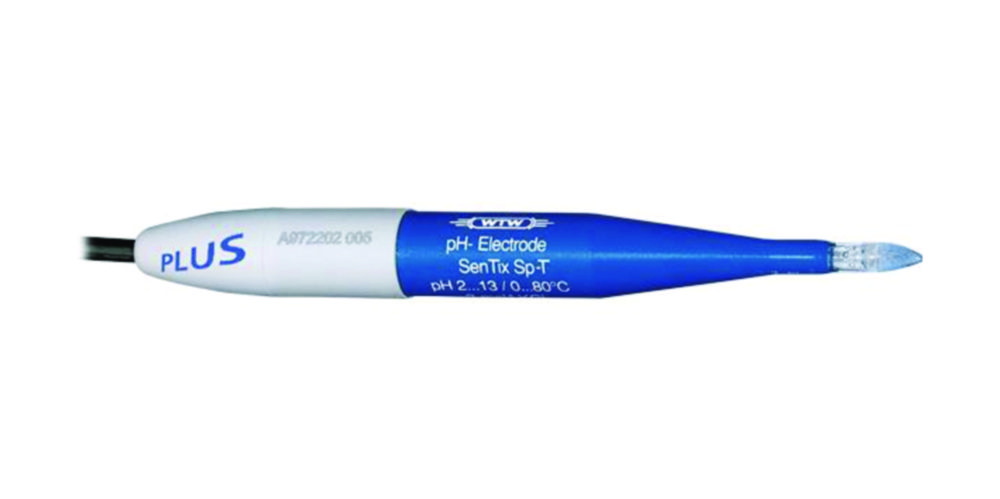

pH electrodes, SenTix® SP, not refillable
Product information "pH electrodes, SenTix® SP, not refillable"
pH electrodes with plastic shaft and liquide electrolyte. SenTix® SP with plug head (AS/DIN or AS/BNC cable combination please order separately). For penetration measurements.
- Shaft length: 65/25 mm
- Shaft Ø: 15/5 mm
| Cable length: | 1 m |
|---|---|
| Connection plug: | DIN + 4 mm banana |
| Diaphragm: | Hole |
| Electrolyte: | Polymer |
| Manufacturer Article Number: | 103733 |
| Material shaft: | Plastic |
| Max. pH value: | 13 |
| Max. temperature: | 80 °C |
| Min. pH value: | 2 |
| Min. temperature: | 0 °C |
| Shape membrane: | Spear |
| Temperature: | 0 ... 80 °C |
| Temperature sensor: | NTC 30 kOhm |
| Type: | SenTix® Sp-T |
| pH range: | 2 ... 13 |
Skip product gallery
Accessories
Accessories for combination electrodes
€0.00*
Connection cable for pH electrodes with plug head connection to plugs as indicated.
Skip product gallery
Other customers also bought

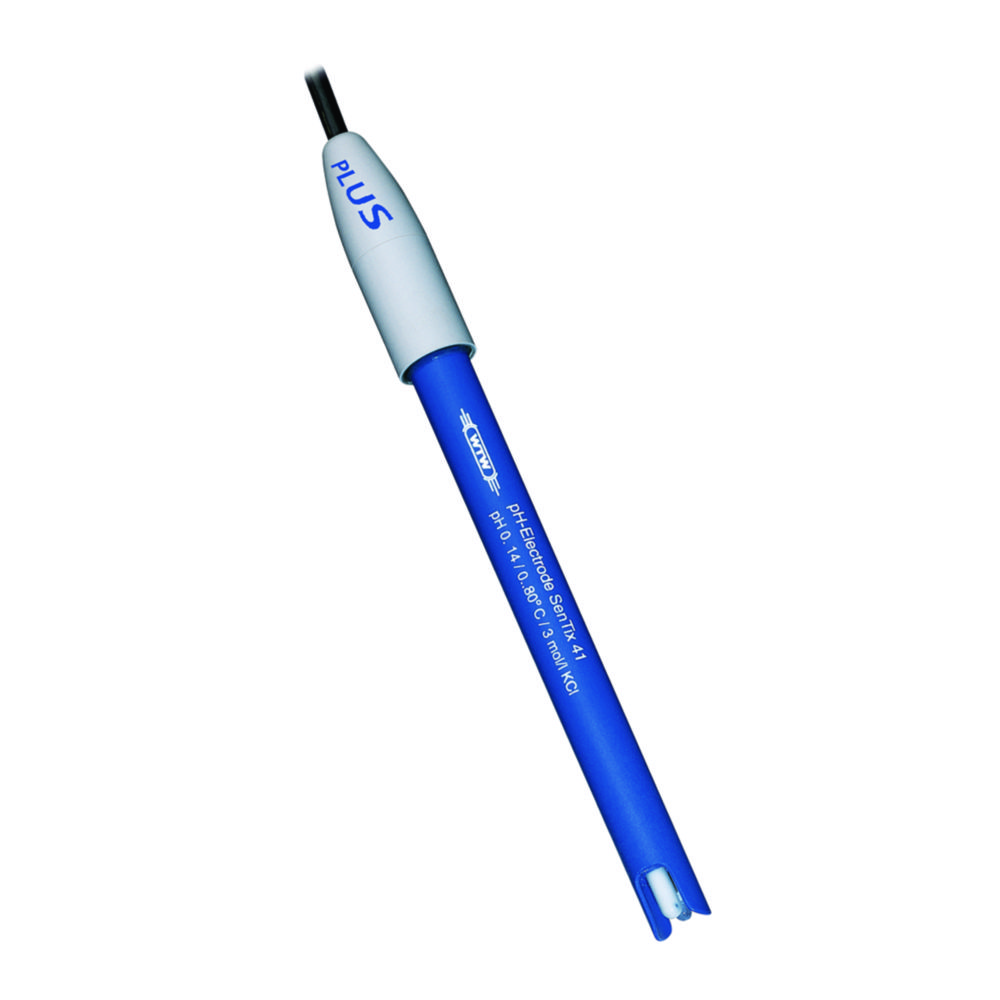

pH combination electrode, gel electrolyte, SenTix®
