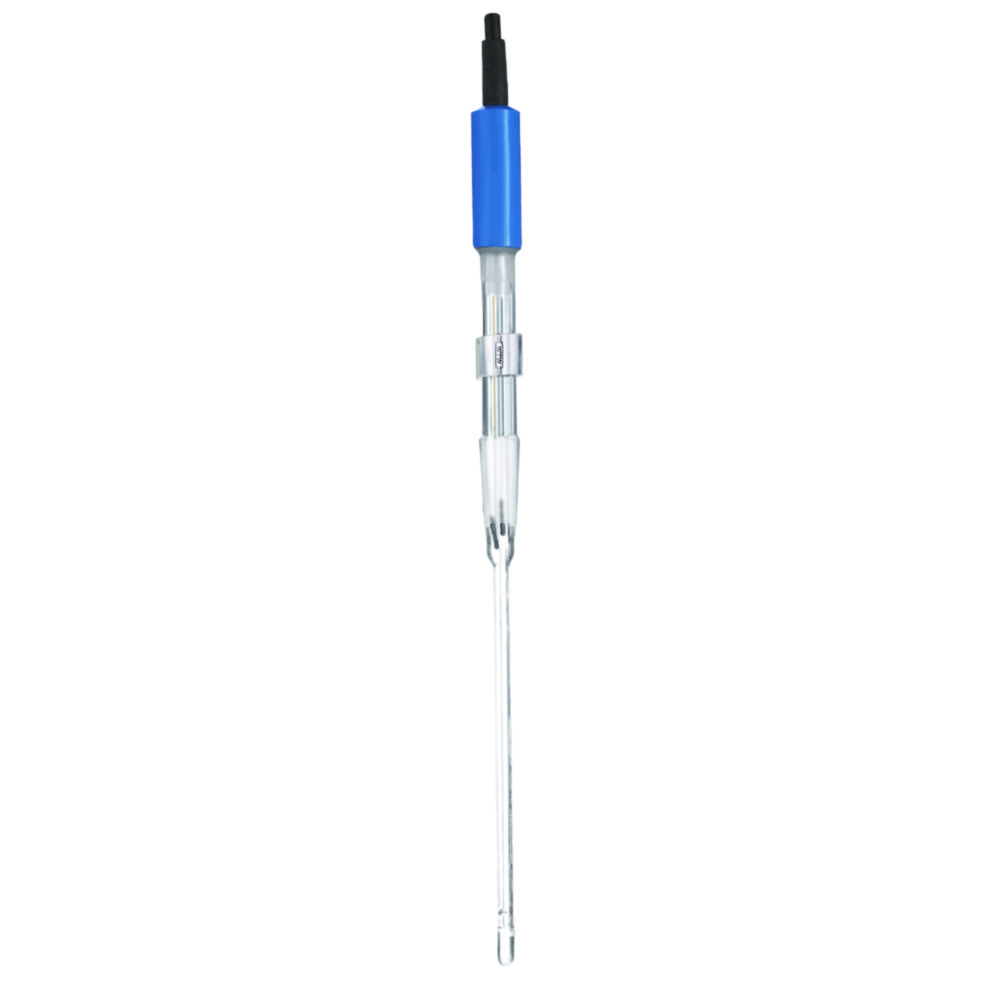

pH electrodes, SenTix® Mic-D / Mic-B, refillable
Product information "pH electrodes, SenTix® Mic-D / Mic-B, refillable"
| Cable length: | 1 m |
|---|---|
| Connection plug: | BNC |
| Diaphragm: | Platinum |
| Electrolyte: | KCl 3 mol/l |
| Manufacturer Article Number: | 103661 |
| Material shaft: | Glass |
| Max. pH value: | 14 |
| Max. temperature: | 100 °C |
| Min. pH value: | 0 |
| Min. temperature: | -5 °C |
| Shaft length: | 96 mm |
| Shaft Ø: | 3 mm |
| Shape membrane: | Cylinder |
| Temperature: | -5 ... 100 °C |
| Temperature sensor: | Without |
| Type: | SenTix﹤sup﹥®﹤/sup﹥ Mic-B |
| UNSPSC: | 41-11-56-04 |
| pH range: | 0 ... 14 |
