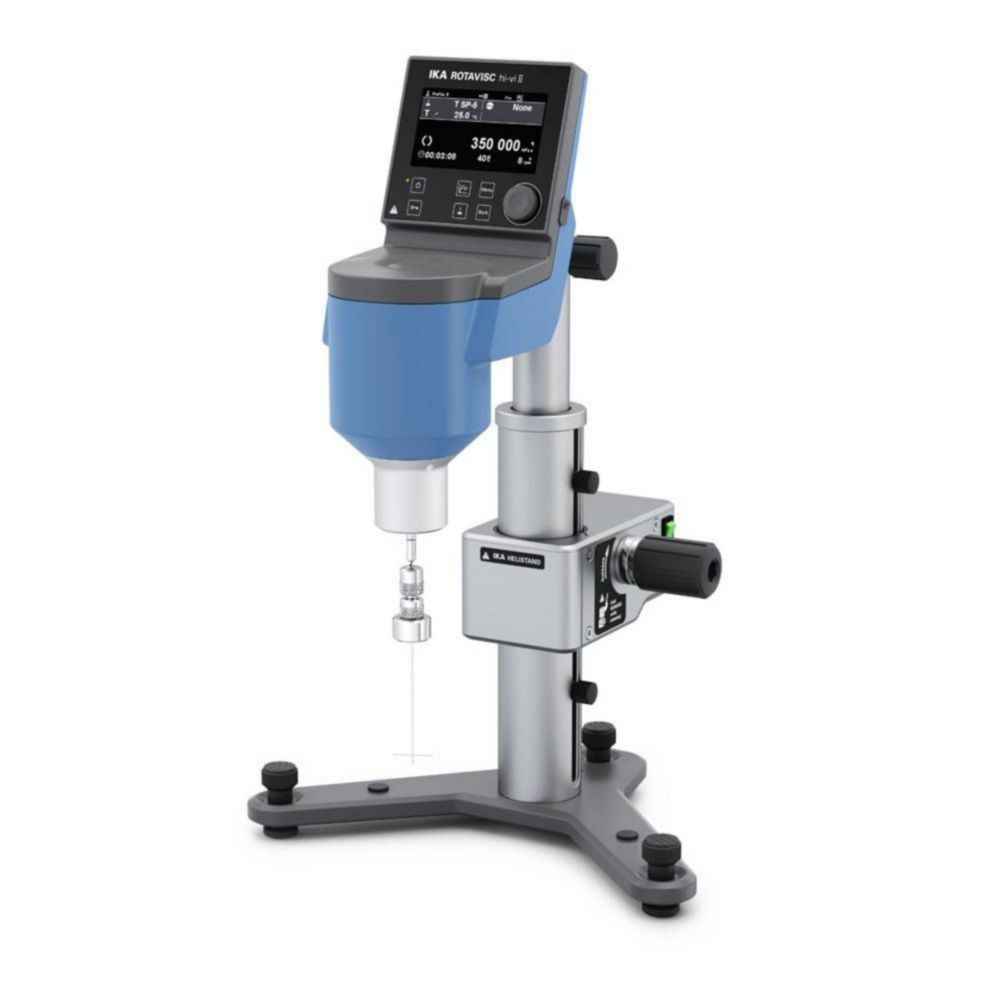

Viscometers ROTAVISC HELI Complete
Content:
1
Product number:
4697063
Product information "Viscometers ROTAVISC HELI Complete"
For simple or demanding viscosity measurement of low-viscosity liquids in all areas of application, ranging from the laboratory to quality control. The motorized HELISTAND moves the mounted viscometer and its rotating body slowly and uniformly up and down in the sample.
Scope of supply: Viscometers, stand HELISTAND, spindles SP set-2 and T-SP-SET, temperature sensor PT 100.8, protective bracket
- Highest measurement accuracy
- Stepless speed adjustment
- 4.3" TFT display
- Digital level
- Simple ramp function
- With connection for ext. PT100 sensor
| Depth: | 372 mm |
|---|---|
| Dimensions (WxDxH): | 351 x 372 x 629 mm |
| Height: | 629 mm |
| IP code: | IP 40 |
| Interfaces: | RS 232, USB |
| Manufacturer Article Number: | 0010013766 |
| Max. Viscosity: | 320000000 mPa·s |
| Max. speed: | 200 1/min |
| Max. torque: | 5.7496 mNm |
| Max. voltage: | 240 V |
| Min. speed: | 0.01 1/min |
| Min. viscosity: | 800 mPa·s |
| Min. voltage: | 100 V |
| Plug type: | UK |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Reproducibility: | 0,2 % |
| Speed: | 0.01 ... 200 1/min |
| Torque: | 5.7496 mNm |
| Type: | ROTAVISC hi-vi II HELI Complete |
| Type of auxiliary energy: | Mains connection |
| Viscosity: | 800 ... 320,000,000 mPa·s |
| Weight: | 7.1 kg |
| Width: | 351 mm |
Skip product gallery
Accessories
High-temperate system ROTATEMP
For use with IKA ROTAVISC viscometers. It enables precise temperature control when measuring difficult-to-measure, highly viscous media such as asphalt, bitumen, wax, polymers, candy mass or hot-melt adhesives.Fast and reliable heating to 300 °C in just 16 minutes (when using a silicone oil)Heating oven and control unit are combined in one device with a small footprintCompatible with the optional labworldsoft® 6 Visc viscometer software
Cooling/heating bath circulator CBC visc lite
Designed for combination with the IKA ROTAVISC viscometers and covers a wide temperature range.A second beaker (600 ml) can be pre-tempered during the measurementOptimised water flow management in the insulated bath for fast and precise temperature control.Equipped with environmentally friendly natural refrigerant R290External pump connection for heating standard vessels according to DIN for absolute viscosity definition with ELVAS spindles or double-walled beakersEasy to maintain thanks to easily removable and therefore easy-to-clean air filters
Adapter and spindle sets for Viscometers ROTAVISC
DIN S-1: DIN adapter set.O DIN S-1: The open DIN spindle set measures viscosities according to DIN 53019 and can be used with customer-specific vessels. The set includes a single-wall-open-jacket to quickly dive into the sample liquid as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate and shear stress is included.ELVAS-1: The extremely low viscosity adapter spindle set ELVAS-1 includes a double jacket to quickly heat up or cool down the sample as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate and shear stress. This 16 ml spindle is commonly used with the ROTAVISC lo-vi and allows measurements from 1 mPas (water temperature at 20 °C). The spindle without the water jacket can also be used in customer-specific vessels.VAN-1: The vane spindle set allows the viscosity measurement of suspensions. Four vane spindles are included in the delivery.T-SP-Set: Set with 6 T spindlesSAS-1: Spiral adapter to measure the viscosity of very sticky and other viscous samples. Additionally, it is possible to analyse the fluid behavior of different shear rates.SP set-1: Standard spindle set, inculdes 4 spindles (SP1, SP2, SP3, SP4).SP set-2: Standard spindle set, inculdes 6 spindles (SP7, SP8, SP9, SP10, SP 11, SP12)
