Vibrating shaker, VXR basic Vibrax®
Content:
1
Product number:
6202467
Product information "Vibrating shaker, VXR basic Vibrax®"
Optoelectronically controlled small shaker with a very wide speed range.
Please order the required shaker attachment separately.
Optional accessories: Attachements: VX 1, VX 2, VX 2E, VX 7, VX 8, VX 11, VX 11.1, VX11.2, VX 11.3, VX 11.4
- Suitable for continuous operation
- New design and improved drive system
- Circular shaking motions
- Slow speeds are well maintained
- Attachments are interchangeable
Please order the required shaker attachment separately.
Optional accessories: Attachements: VX 1, VX 2, VX 2E, VX 7, VX 8, VX 11, VX 11.1, VX11.2, VX 11.3, VX 11.4
| Depth: | 247 mm |
|---|---|
| Dimensions (WxDxH): | 157 x 247 x 130 mm |
| Height: | 130 mm |
| IP code: | IP 21 |
| Manufacturer Article Number: | 0002819002 |
| Max. loading capacity: | 2 kg |
| Max. permitted ambient temperature: | 40 °C |
| Max. relative humidity rate: | 80 % |
| Max. speed: | 2200 1/min |
| Max. voltage: | 230 V |
| Min. permitted ambient temperature: | 5 °C |
| Min. voltage: | 220 V |
| Permitted ambient temperature: | 5 ... 40 °C |
| Plug type: | UK |
| Power supply: | 220 ... 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 45 W |
| Shaking stroke: | 4 mm |
| Speed: | 2,200 1/min |
| Type: | VXR basic |
| Type of movement: | Orbital |
| UNSPSC: | 41-10-38-13 |
| Weight: | 6.1 kg |
| Width: | 157 mm |
| With continuous operation: | Yes |
| With timer: | No |
| With touch operation: | No |
Skip product gallery
Other customers also bought
Orbital shaker KS 130 control
Small, quiet running, low-friction shaker with effective orbital movement and a maximum loading of 2 kg.Electronic speed control and timer adjustmentDigital display for speed, timer function, and operating modesElectronic timer: 0 to 9 h 59 min or continuous mode (∞)All functions can be controlled and documented using labworldsoft® softwareSpecial variant with rotation reversal available on requestLarge selection of attachments for various vessel shapes and sizesInterface RS 232/analogueAttachments are not included - Please order appropriate attachment separately.Integral stop positioning function (automated sample removal by robot possible)
Orbital shaker, KS 130 basic
Small, quiet running, low-friction shaker with effective orbital movement and a maximum loading of 2 kg.Electronic speed control and timer adjustmentLED scale bar speed and time displayLarge selection of attachments for different container types and sizesTimer 5 to 50 min/continuousAttachments not included - Please order separately.
Orbital shaker KS 260 basic
Compact, low-level, platform shaker with highly effective, orbital motion, maximum capacity 7.5 kg. Large selection of attachments enable use with a wide variety of vessel shapes and sizes. Electronic speed control and timer adjustment.Attachments are not included - Please order separately.Timer: 5 to 50 min or continuous operation
Orbital shaker KS 501 digital
Low-profile laboratory shaker with large platform and 15 kg load capacity. With continuously adjustable speed range: 0 to 300 rpm, digital display and timer. Continuous operation is guaranteed even under extreme loads. Requires accessory attachments for operation (these are not supplied)Ideally suited for vessel sizes over 250 ml, e.g. round bottom flasks, erlenmeyer flasks, culture flasks, bottles etc. Developed for biological and microbiological growth tests and for production of stock solutions.Timer 0 to 56 minInterface RS 232
Skip product gallery
Accessories
Vibrating shaker, VXR basic Vibrax®, accessory attachments

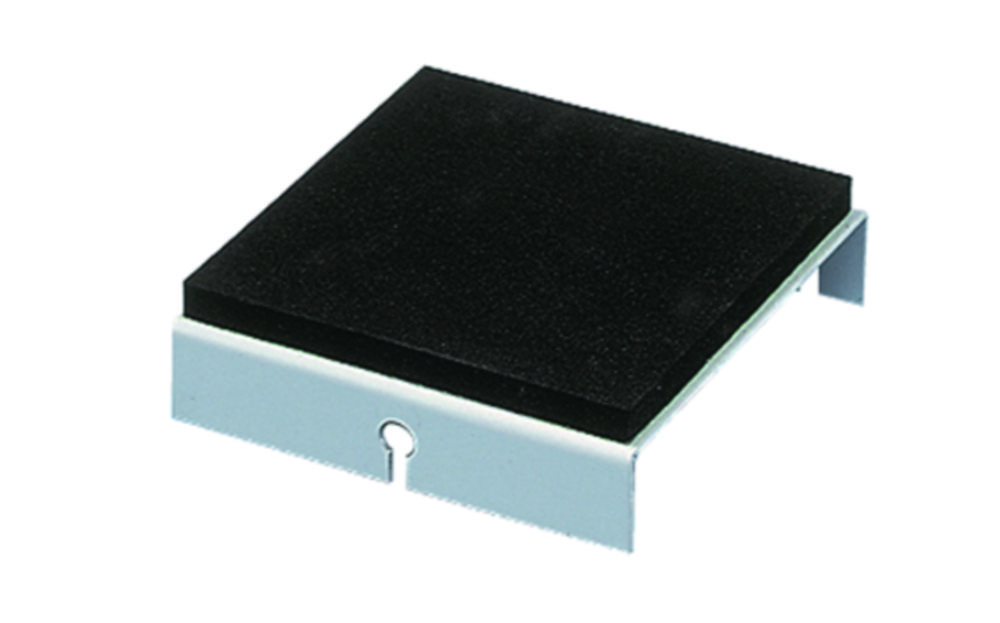

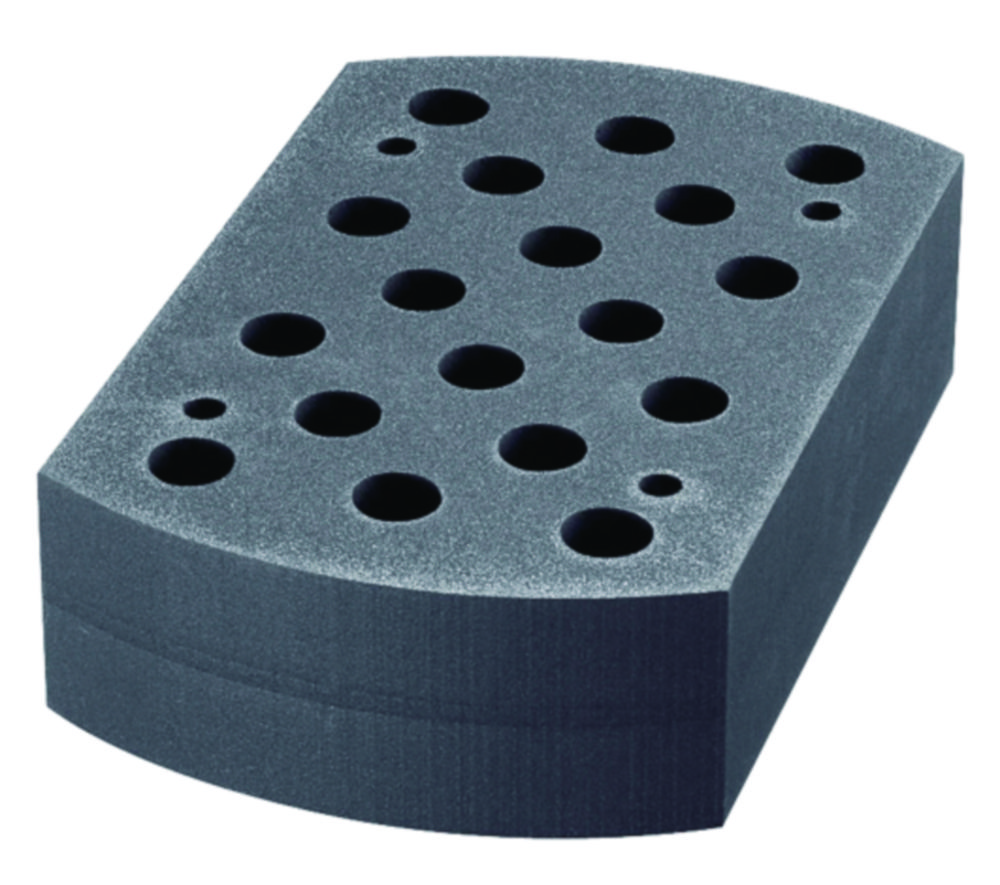

VX 1 one-hand attachment: For shaking single vessels 1 ml to 250 mlVX 2 test tube attachment: For up to 36 test tubes or centrifugal tubes with a diam. of 16 mmVX 2E.n "Eppendorf" attachment: For shaking of max. 64 "Eppendorf" tubes (1.5 ml)VX 7 Dish attachment: For mixing of culture bottles, Petri dishes, etc.VX 8 Universal attachment: For rapid and secure clamping, e.g. 2 Erlenmeyer flasks up to 500 ml
