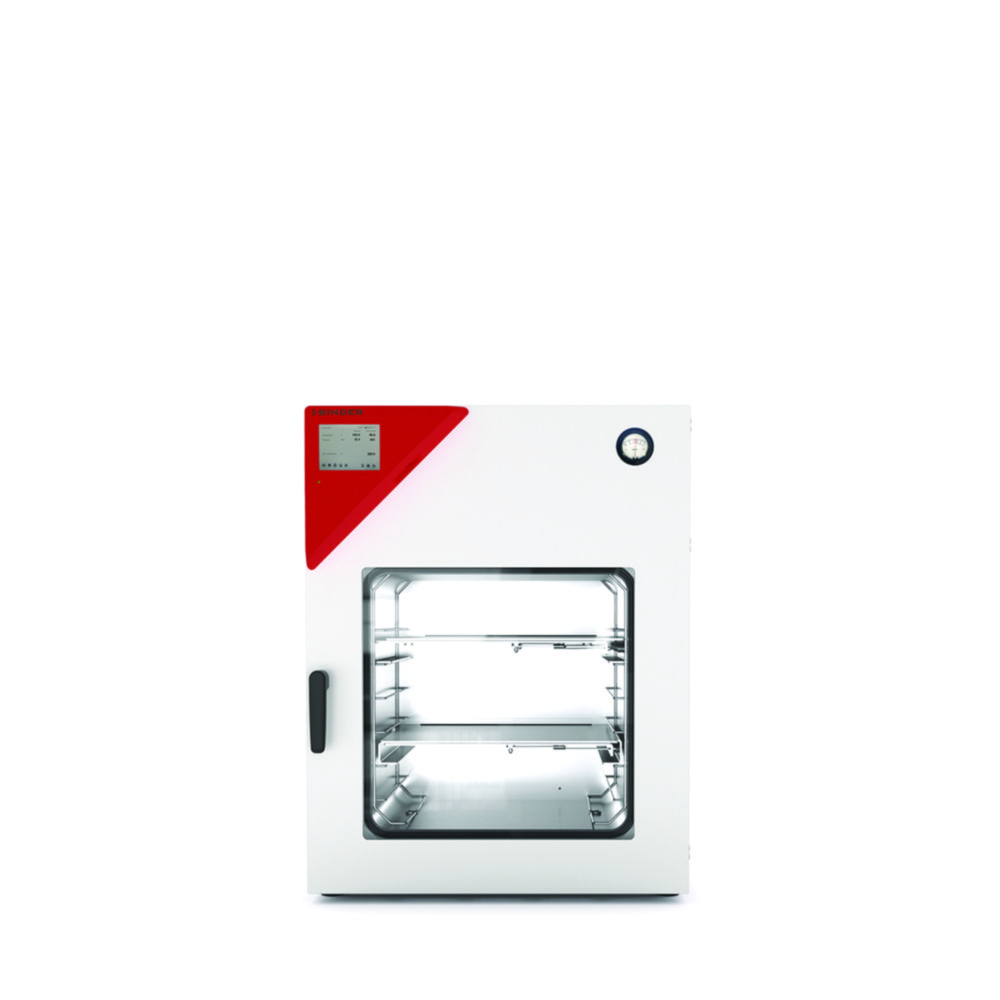

Vacuum drying ovens VDL series
Content:
1
Product number:
4705646
Product information "Vacuum drying ovens VDL series"
For gentle, fast drying without residues, incrustations or oxidation.
- Direct heat transfer through large thermal conducting plates
- Program-controlled drying monitoring with automatic ventilation at end of process
- Internal data logger, measured values can be read out in open format via USB
- Inert gas connection
- Shatterproof, spring-mounted safety glass panel
- Large viewing window
- Aluminum expansion racks, can be custom-positioned
- Ethernet interface
- For flammable solvents
- ATEX conformity for units: EX II 2/3/- G IIB T3 Gb/Gc/- X
- Intuitive touchscreen controller with graphical pressure and temperature display
- Pressure control device for heating activated from <100 mbar
| Depth int.: | 460 mm |
|---|---|
| Ext. depth: | 581 mm |
| Ext. height: | 942 mm |
| Ext. width: | 743 mm |
| External dimensions (WxDxH): | 743 x 581 x 942 mm |
| Height int.: | 506 mm |
| Int. width: | 506 mm |
| Internal dimensions (WxDxH): | 506 x 460 x 506 mm |
| Manufacturer Article Number: | 9630-0015 |
| Material inserts: | Aluminium |
| Max. no. of inserts: | 6 |
| Max. temperature: | 110 °C |
| Max. voltage: | 120 V |
| Min. temperature: | +9 °C |
| Min. voltage: | 100 V |
| Nominal capacity: | 119 l |
| Power supply: | 100 ... 120 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1.6 kW |
| Temperature: | RT+9 ... 110 °C |
| Temperature addition: | RT |
| Temperature stability: | ±0,1 K (100 °C) |
| Type: | VDL 115 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104510 |
| Weight: | 158 kg |
