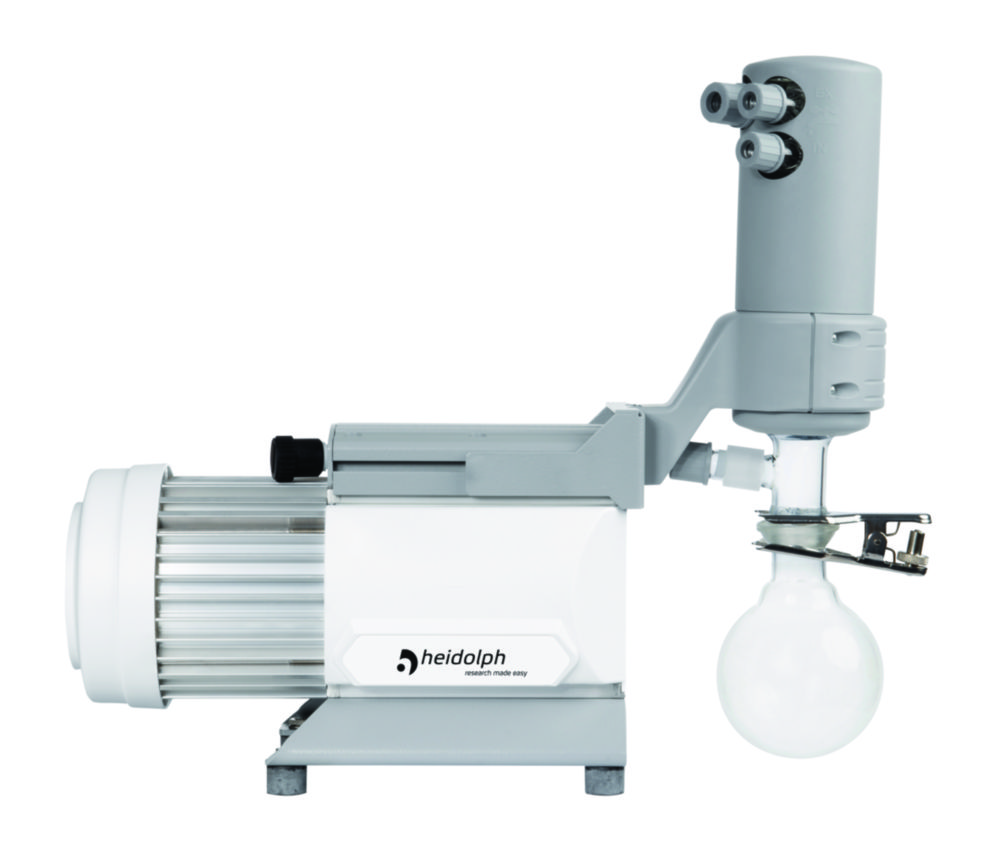

Vacuum Pumps Rotavac Vario Tec
Content:
1
Product number:
9812478
Product information "Vacuum Pumps Rotavac Vario Tec"
Suitable for Rotary evaporators Hei-VAP series. Controllable vacuum pumps for digital regulation of the vacuum via operation panel or directly at the unit.
- High distillation rates and reduced process time by 30 %.
- Solvent recovery up to 99 %.
- Pump stops automatically as soon as the set vacuum is reached and reliably holds the vacuum constant
- Increased diaphragm performance life due to periods of non-operation
- Low energy consumption
- Significant noise and vibration reduction
- The pumps can be combined with a condenser
- 2-stage diaphragm pump
- Recommended for solvents with low or medium boiling points
| Depth: | 236 mm |
|---|---|
| Dimensions (WxDxH): | 156 x 236 x 196 mm |
| Flow rate: | 1 m³/h |
| Height: | 196 mm |
| Manufacturer Article Number: | 591-00171-00 |
| No. of stages: | 2 |
| Rated capacity: | 160 W |
| Type: | Rotavac Vario Tec |
| Type of auxiliary energy: | Mains connection |
| Ultimate vacuum: | 12 mbar |
| Weight: | 4.3 kg |
| Width: | 156 mm |
