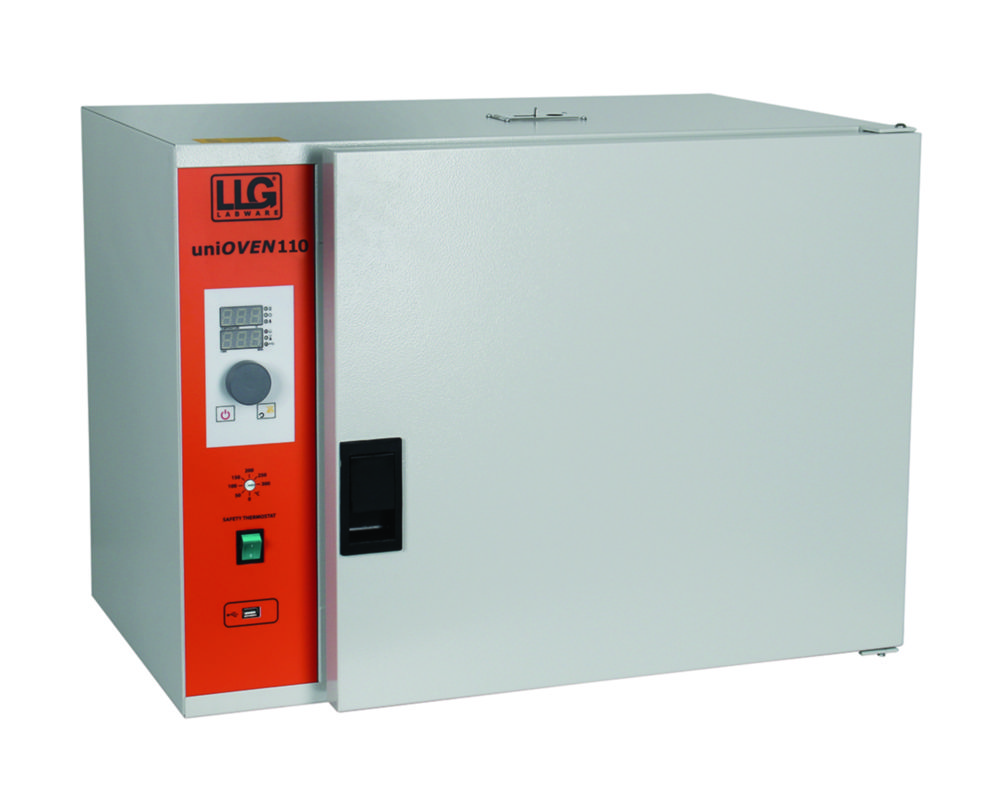

Universal drying oven LLG-uniOVEN 42 and LLG-uniOVEN 110
Content:
1
Product number:
6263675
Product information "Universal drying oven LLG-uniOVEN 42 and LLG-uniOVEN 110"
Microprocessor controlled universal drying oven with forced convection including two shelves. Each shelf of the uniOVEN 42 and uniOVEN 110 has a load capacity of 20 kg, the total load capacity of each unit is 50 kg. The maximum number of shelves is 7 for uniOVEN 42 and 10 for uniOVEN 110 with a distance of 40 mm between shelves.
Scope of supply: LLG-uniOVEN incl. 2 shelves
- Quick and intuitive operation
- Microprocessor control with integrated auto-diagnostic system
- Forced convection with fan
- Digital display for time and temperature
- Timer: 1 minute to 99.9 h and continuous
- Delayed start timer: 1 minute to 99.9 h
- Outlet for vapour exhaustion
- Acoustical and visible information for end of program
- Acoustical and optical alarm at temperature differences
- Interior made of stainless steel
- Adjustable over temperature protection at 300 °C
- Temperature accuracy: ±1 °C (at 70 °C)
- Temperature uniformity: ±2 °C (at 70 °C)
Scope of supply: LLG-uniOVEN incl. 2 shelves
| Depth int.: | 445 mm |
|---|---|
| Ext. depth: | 665 mm |
| Ext. height: | 680 mm |
| Ext. width: | 790 mm |
| External dimensions (WxDxH): | 790 x 665 x 680 mm |
| Height int.: | 500 mm |
| Int. width: | 500 mm |
| Internal dimensions (WxDxH): | 500 x 445 x 500 mm |
| Manufacturer Article Number: | 6263675 |
| Material interior: | Stainless steel |
| Max. no. of inserts: | 10 |
| Max. temperature: | 250 °C |
| Max. voltage: | 230 V |
| Min. temperature: | 50 °C |
| Nominal capacity: | 110 l |
| Plug type: | EU |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1550 W |
| Temperature: | 50 ... 250 °C |
| Type: | LLG-uniOVEN 110 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104510 |
| Warranty: | 3 years |
| Weight: | 66 kg |
| With timer: | Yes |
