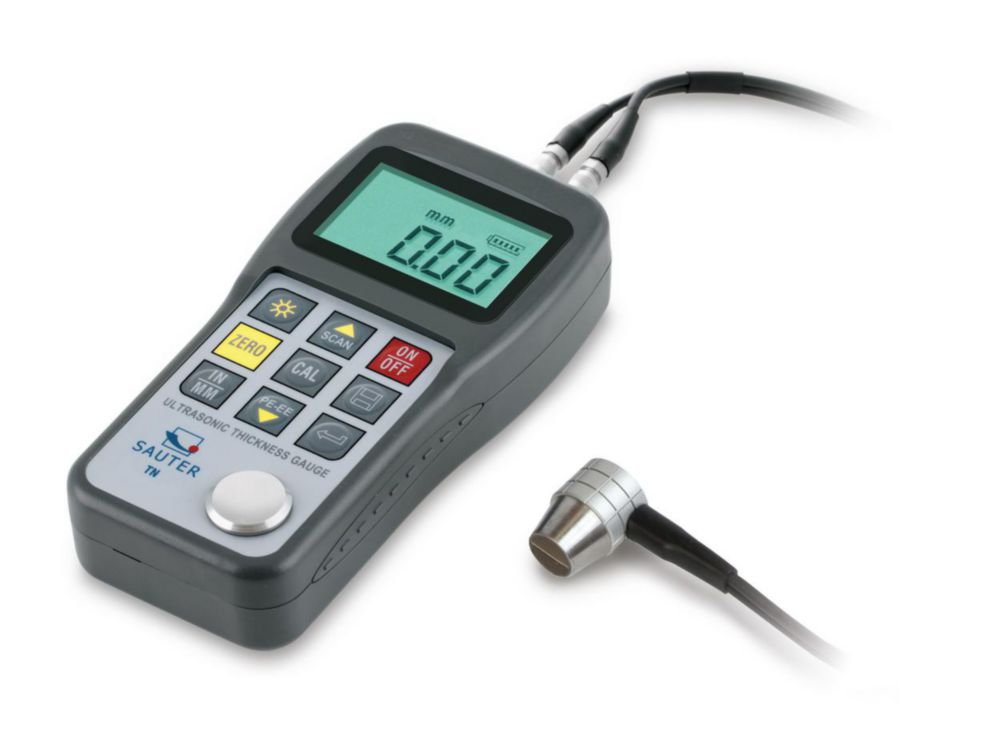

Ultrasonic thickness gauge TN-US
Content:
1
Product number:
6270972
Product information "Ultrasonic thickness gauge TN-US"
- Scan mode (10 measurements per sec.) or single point measuring mode
- Internal memory for up to 20 files (with up to 100 values per file)
- Selectable measuring units: mm, inch
- Battery operation
- USB data interfaces as standard (for models with readout 0.01 mm)
Scope of supply:
Ultrasonic thickness gauge, external sensor, carrying case
| Battery/rechargeable battery: | 2 x 1.5 V, AA |
|---|---|
| Depth: | 74 mm |
| Designation ANSI: | AA |
| Dimensions (WxDxH): | 150 x 74 x 32 mm |
| Height: | 32 mm |
| Manufacturer Article Number: | TN 80-0.1US |
| Max. measured value: | 80 mm |
| Max. voltage battery/rechargeable battery: | 1.5 V |
| Measured range: | 0.75 ... 80 mm |
| Min. measured value: | 0.75 mm |
| No. of batteries/rechargeable batteries: | 2 |
| Resolution: | 0.1 mm |
| Tolerance: | 0,5 % |
| Type of auxiliary energy: | Battery |
| Weight: | 250 g |
| Width: | 150 mm |
