Ultrasonic bath DT 1028 F SONOREX DIGITEC, 9.5 litres, incl. TICKOPUR R 33 1280 W, without heating, 115V
Product information "Ultrasonic bath DT 1028 F SONOREX DIGITEC, 9.5 litres, incl. TICKOPUR R 33 1280 W, without heating, 115V"
| Depth int.: | 240 mm |
|---|---|
| Display: | Analogue |
| Ext. depth: | 325 mm |
| Ext. height: | 205 mm |
| Ext. width: | 535 mm |
| External dimensions (WxDxH): | 535 x 325 x 205 mm |
| GHS: | GHS05 |
| Height int.: | 65 mm |
| IP code: | IP 32 |
| Int. width: | 500 mm |
| Internal dimensions (WxDxH): | 500 x 240 x 65 mm |
| Manufacturer Article Number: | 13243-1 |
| Max. temperature: | 40 °C |
| Max. voltage: | 115 V |
| Min. temperature: | 5 °C |
| Nominal capacity: | 9.5 l |
| Operation: | Membrane keyboard |
| Plug type: | US |
| Power supply: | 115 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Signal word according to GHS: | Danger |
| Temperature: | 5 ... 40 °C |
| Type: | DT 1028 F |
| Type of auxiliary energy: | Mains connection |
| Type of display: | Without display |
| UNSPSC: | 41102929 |
| Ultrasonic frequency: | 35 kHz |
| Ultrasonic power: | 320 W |
| Warranty: | 2 years |
| Weight: | 14 kg |
| With stopcock: | Yes |
Other customers also bought
Flat ultrasonic baths with fast degassing and for sample preparation.Sample preparation in laboratory flasksFast degassing of samples at the push of the buttonHomogenisingSame power density in all ultrasonic bathsReproducibility of results in the different bath sizesUniform sonication of samples irrespective of size and arrangement of the flasksSpring clamps EK or flask holders ZF are necessary to fix the laboratory flasks.Scope of supply: Ultrasonic bath, flask holder GL 510 F, 1 l TICKOPUR R 33
Accessories

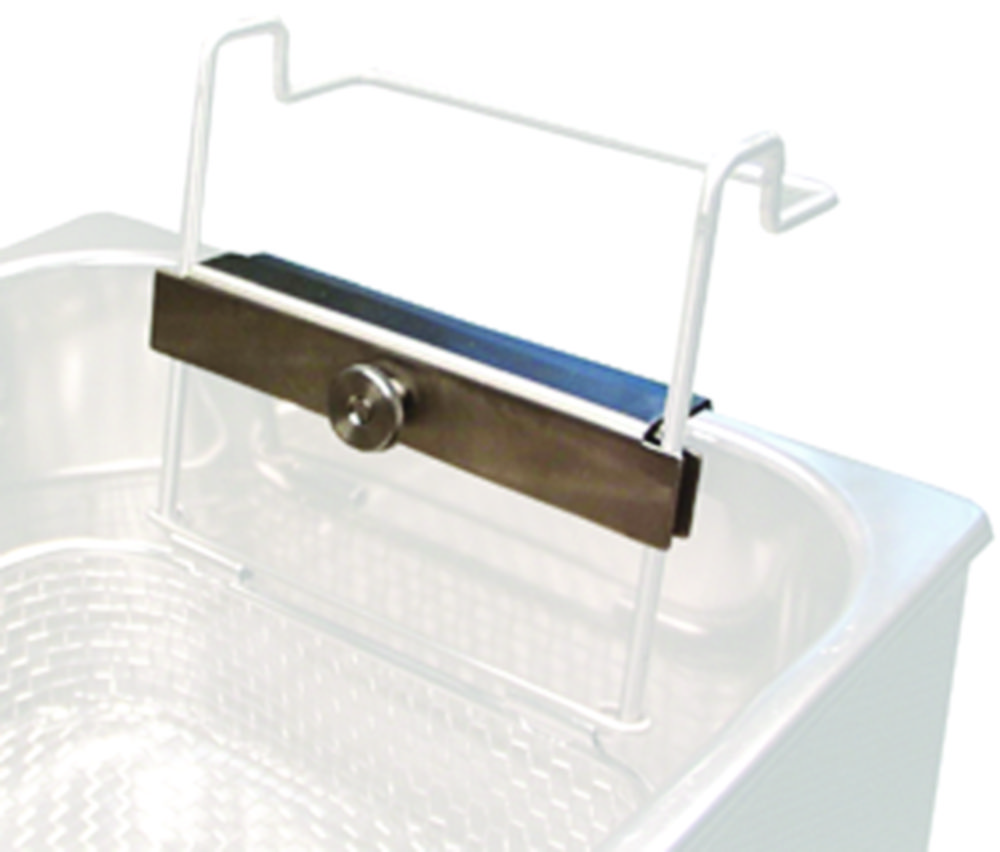

The immersion depth of the baskets can be continuously adjusted using the handle adjuster prevents laboratory flasks from floating, tipping over or becoming flooded. Quick and easy attachment to insert baskets or utensil holders (except GH 1).1 pair.
Stainless steel. Suitable for insert baskets and instrument holders with mesh size up to 12.5mm x 12.5mm and for glass holder GL for DT...F. Essential for the attachment of laboratory flasks.
Stainless steel, adjustable.Optimal ultrasonic wave transmission. Items to be cleaned should not be placed on the bottom of the tank.

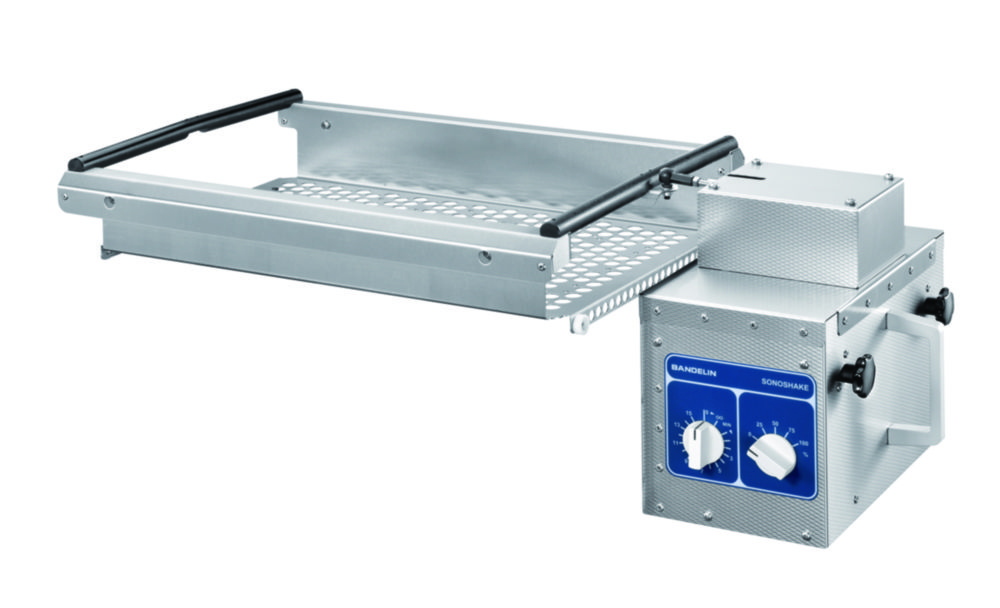

Analogue setting of time and shaking frequencyReciprocating motion: settings in 4 steps possible of up to 200/minTimer: 1 to 15 min, or continuousConstant amplitude of 20mm independent of loadingRack easy to remove - easy mounting of the laboratory clamps EK 10-250 (separately to order)Footprint approx. 410mm x 280mm (L x W)Holds 36 x 10ml, 36 x 25ml, 18 × 50ml, 12 x 100ml or 10 x 250ml flasksAn existing SONOREX DIGITEC DT1028 F ultrasonic bath can easily be retrofitted with the shaker attachment SA 1028.
Stainless steel.Optimal ultrasonic wave transmission. Items to be cleaned should not be placed on the bottom of the tank.
Set

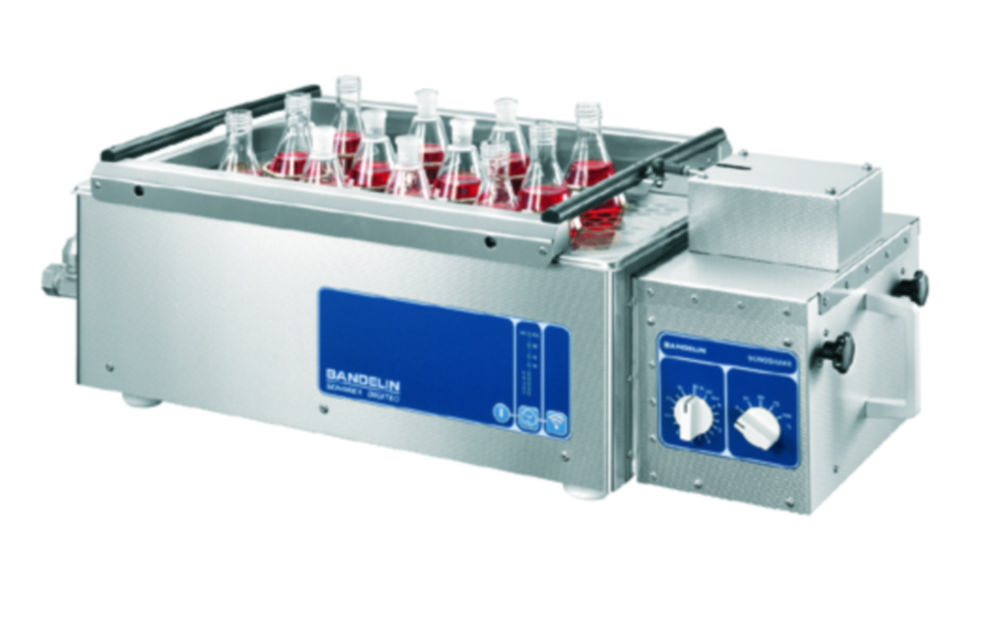

Consisting of:Ultrasonic bath Sonorex Digitec DT 1028 FEspecially for sonification of samples in laboratory flasks and for rapid degassing (DEGAS)Low-profile, ultrasonic bath with stainless steel tank, inner dimensions 500mm x 300mm x 65mm (L x W x D)Housing made of stainless steel, protected against spray, 535mm x 325mm x 205mm (L x W x H)Outlet: G½ ball valveTimer: 1, 2, 3, 4, 5, 10, 15, 30 min, or continuousUltrasonic peak power 1280WUltrasonic nominal power 320WWorking frequency 35kHz, SweepTec®Current consumption 1.4AShaking device SA 1028Analogue setting of time (1 to 15 min, or continuous) and shaking frequencyReciprocating motion: settings in 4 steps possible of up to 200/minConstant amplitude of 20mm independent of loadingRack easy to remove - easy mounting of the laboratory clamps EK 10-250 (separately to order)Footprint approx. 410mm x 280mm (L x W)Holds 36 x 10ml, 36 x 25ml, 18 × 50ml, 12 x 100ml or 10 x 250ml flasksBench space required for Sonoshake approx. 850mm x 360mm (L x W)An existing SONOREX DIGITEC DT 1028 F ultrasonic bath can easily be retrofitted with the shaker attachment SA 1028.
