Ultrapure water purification systems Barnstead™ GenPure™, ASTM I
Content:
1
Product number:
9535890
Product information "Ultrapure water purification systems Barnstead™ GenPure™, ASTM I"
All Barnstead GenPure systems meet the requirements of the international standards ASTM type I, ISO 3696 type 1, ASTM D1193 and CLSI- CLRW. A variety of innovative expansion options, such as UV-lamp with wavelenghts 185/254 nm and UV-intensity monitoring, a backwashable ultrafilter, real time TOC monitoring, a remote dispenser xCAD (operating radius 80 cm) or a flexible (operating radius 60 cm) dispenser on the unit (GenPure Pro), ensure optimal supply for all analytical and life science applications. All GenPure systems are supplied with: Feed water pressure reducer, wall-mounting, ultrapure water cartridge, end filter, options - all available under one order number
Product features:
UF=with ultra filtration, UV=with UV photo oxidation 185/254nm, UV-TOC=with UV photo oxidation 185/254nm and TOC display, UV-TOC/UF=with UV photo oxidation 185/254nm, TOC display and ultra filtration
*depending on feed water quality
Product features:
- Pre-cleaned feed water (e.g. reverse osmosis, destillation, demineralised water) is treated by a filtration cartridge and optional UV / UF units to produce ultrapure water
- Compact laboratory system for optional mounting on the laboratory bench, on the wall or with the optional dispensing unit xCAD under the laboratory bench
- Simple and economical change of consumables due to easily accessible service hood and cartrige with quick release fasteners and AquaStopp
- Integrated feed water monitoring with indiviually adjustable limit value ensures the purity grade of the product water and durability of the filter sets
- Swivel-mounted display/keyboard unit for setting and querying all operating and performance parameters (e.g. limit values for ultrapure water quality)
- USP-compliant conductivity measurement with auto-calibration
- Pre-settable dosing in the range from 0.01 to 65 l
- Accurate real-time TOC measurement at the sample point for continuous monitoring of the organic water constituents meets USP requirements
- Permanent UV-intensity monitoring and display in %, as well as UV operating hours counter with individual adjustable limit values
| Ultrapure water specifications ASTM Type I | |
| Flow rate, max.: Operating pressure: Temperature: Conductivity: Resistance at 25°C: | Up to 2L/min 2 to 6bar 2°C to 35°C 0.055µS/cm 18.2MΩxcm |
| TOC value in ppb (Models with UV): | 1 - 5 |
| TOC value in ppb (Models without UV): | 10 |
| Endotoxins* in EU/ml (Models with UF): RNase* in ng/ml (Models with UF): DNase* in pg/µl (Models with UF): | 0.001 0.01 4 |
| Bacterial content : Particles 0.2µm/mL: | 1cfu/ml 1 |
| Dimensions (W x D x H): Dimensions xCAD (W x D x H): | 372 x 330 x 615mm 260 x 530 x 725mm |
| Feedwater connector: Drainwater connector: | ¾'' o.d. ¼'' |
| Power Consumption: | 0.1 kW |
| Power supply: | 90-240V/50-60Hz |
UF=with ultra filtration, UV=with UV photo oxidation 185/254nm, UV-TOC=with UV photo oxidation 185/254nm and TOC display, UV-TOC/UF=with UV photo oxidation 185/254nm, TOC display and ultra filtration
*depending on feed water quality
| Description: | Trace analysis, HPLC, ICP-MS, IC |
|---|---|
| Manufacturer Article Number: | 50131952 |
| Type: | GenPure Pro UV |
Skip product gallery
Other customers also bought
Pure and ultrapure water system Barnstead™ LabTower™ EDI, ASTM I and II
The direct route from tap water to pure water (> 1 MOhm) and ultrapure water (18.2 MOhm).Laboratory water supply for a requirement of up to 200 litres/day. The Thermo Scientific Barnstead LabTower EDI is a modular ultrapure water system specially developed for the functional and economical production of pure and ultrapure water. By combining various treatment technologies such as pre-treatment, reverse osmosis, electrodeionisation, ultrapure water module and UV lamp, the LabTower EDI produces ultrapure water that exceeds even the highest quality standards such as ASTM I, CAP, ISO 3696, CLSI and aqua purificata. A state-of-the-art microprocessor control system, the 100 litre pure water tank with residual emptying, a pressure pump and tank recirculation are already included as standard. Mounted on castors, the compact and stylish LabTower EDI is the ideal pure and ultrapure water supply for any laboratory. All LabTower EDI systems are supplied for immediate use with: Ultrapure water cartridge, RO membrane, RO pre-treatment filter (5 µm filter and water hardness stabiliser), EDI module, UV lamp, 0.2 µm final filter and pressure reducer.High-performance reverse osmosis module combined with an EDI module and an ultrapure water cartridgeType 1 ultrapure water withdrawal via the dispenser with final filter directly on the systemType 2 pure water can be drawn from the integrated 100-litre tank and is ideal for laboratory equipment such as autoclaves or dishwashersThe tank is equipped with a tank volume display in per cent, a conical bottom drain for 100% residual emptying and a quality recirculation via UV lamp to ensure the tank water quality. Optional expansion options such as a sterile overflow, sterile aeration + CO2 adsorber, UV immersion tube system with 254 nm protect against decontamination and bacterial growthIndividual adjustment of the volume stored in the tank via the control unitLaboratory-grade monitoring and documentation is made possible not only by our high-precision, temperature-compensated conductivity monitoring in accordance with USP 30 (645) with exact temperature display, but also by a potential-free contact and an RS-232 interface with connection option for an external data printer - validation and qualification documents are optionally availableChoice of two systems with a capacity of 15 or 30 litres per hourOptional manual dispenser with 3 m flexible circulation line for remote dispensing of water. Kit includes a 0.2 µm final filter
Ultrapure water purification system Barnstead™ MicroPure™, ASTM I
The Thermo Scientific Barnstead MicroPure system provides ultrapure water (18.2 MO, 0.055 µS/cm) ASTM type I, for typical demand up to 15 l/day. All MicroPure systems meet the requirements of the international standards ASTM (type I), ISO 3696 (type 1), ASTM D1193 and CLSI-CLRW. A variety of innovative expansion options, such as UV-lamp with wavelenghts 185/254 nm and a backwashable ultrafilter with a flow rate up to 0.6 l/min, ensure optimal supply for all analytical and life science applications.MicroPure systems are supplied for immediate use with: pressure reducer, end filter, ultrapure water cartridgeProduct features:Pre-cleaned feed water (e.g. reverse osmosis, destillation, demineralised water) is treated by a filtration cartridge and optional UV / UF units to produce ultrapure waterCompact laboratory system for optional mounting on the laboratory bench or on the wallSimple and economical change of consumables due to easily accessible service hood and cartrige with quick release fasteners and AquaStoppSwivel-mounted display/keypad unit for setting and querying all operating and performance parameters such as limit values for ultrapure water qualityMicroPure ST systems supplied with integrated 6 l tank for mobile use in the laboratory. Feed water supply with pre-cleaned water is provied by this tankSpecificationsFlow rate, max.:
Operating pressure:
Temperature:
Conductivity:1L/min
2 to 6 bar
+2 °C to +35 °C
0.055 µS/cmResistance at 25°C:18.2 MΩxcmTOC value (models with UV):
TOC value (models without UV):1 to 5 ppb
10 ppbBacterial content:
Particles 0.2 µm/mL:1cfu/ml
1Endotoxins (Models with UF):0.001EU/mlPower consumption:0.06 kWPower supply:90-240 V, 50/60 Hz, automatic voltage regulation to 24 VDimensions (W x D x H):
Dimensions models with reservoir (W x D x H):305 x 300 x 545 mm
305 x 400 x 545 mmWith UF = ultrafiltration, UV = UV photo-oxidation 185/254nm, UF / UV = Ultra Filtration and UV photo-oxidation 185/254 nm
Pure water purification system Barnstead™ Pacific™ RO
The Thermo Scientific Barnstead Pacific RO water purification systems are modularly designed laboratory reverse osmosis system for the production of 20L to 200L pure water from tap water. Applications include routine laboratory work: lab glassware rinsing, supplying autoclaves, water baths and incubators, preparing an diluting buffers and reagents. A 30L, 60L, or 100L polyethylene reservoir is required to store and dispense the permeate water.Product features:Space-saving design allows system to sit on the laboratory bench or be mounted on the wall. Simple system upgrade accommodates future pure water capacity requirements.Reliable operation: Microprocessor control offers automatic operation with continual monitoring of all important parameters. Required filling level of the reservoir can be customized. Automatic return to operating mode ensures recirculation during periods of standstill.Easy-to-operate clear display: Resistivity/conductivity clearly displayed on large back-lit control panel that tilts for optimum viewing. Status of current operating mode clearly indicates "production", "stand-by", "cleaning" modes. Reservoir fill-level shown as %.Integrated feed water monitoring: Good quality feed water is a prerequisite for high purity water and extends cartridge service life.GLP-compliant documentation: Real-time clock records system errors and faults. Ongoing data storage collects four weeks information displayed in clear text. Operating system is code-protected to prevent unauthorized changes to system settings. RS-232 interface with adjustable sender interval allows for customized timing of data transmission of measured values and faults to a PC or data printer. Cell constant of 0.16cm-1 ensures precise conductivity measurements.Pacific RO pretreatment: Two 10in. (25.4cm) cartridge filter housings with a 5µm prefilter and activated carbon to prevent entry of particles >5µm and high concentrations of free chlorine includes hardness stabilizer cartridge which binds calcium and prevents its precipitation.Worry-free pure water storage: Reservoir are constructed of pigment-free polyethylene. Conical bottom allows for easy cleaning, disinfecting and complete emptying.Optional hand dispenser with flexible circulating line for dispensing water in a distance of up to 3 m. The kit contains a 0,2 µm end filter.Pure water specificationsOperating pressure:2 to 6barRemoval bacteria and particles:99%Removal anorganic components:98%SpecificationsPower supply:90-240 V/50 Hz, rubber connector 1.8mDimensions (W x D x H):372 x 330 x 603mmFeedwater connector:Tubing 1.5m with 8mm o.d. and R¾'' inner threadWastewater connector:¼'' or 8mm o.d., tubing 2m, pressureless drainPower consumption:0.1kW
Pure and Ultrapure water purification system Barnstead™ Smart2Pure™, ASTM I and II
The Thermo Scientific Barnstead Smart2Pure system is a compact system which converts tap water into ASTM type I and II water. The Smart2Pure models 3 and 6 are featured with an built-in 6 l tank to store the type II water. The Smart2Pure 12 offers the choice between a 30 l or 60 l tank depending on storage requirements. A variety of innovative expansion options, such as UV-lamp with wavelenghts 185/254 nm and a backwashable ultrafilter with a flow rate up to 0.6 l/min, ensure optimal supply for all analytical and life science applications. A swiveling display and the easy filter change make the Smart2Pure the perfect laboratory water unit for the small demand.Product features:Easy and economical change of consumables due to separately exchangeable high-tech reprocessing cartrigesGuaranteed pure water quality: Recirculation pump and sterile ventilation filter protect from contamination and ensure a tank water quality from 10 up to 15 MW x cmAdditional pressure outlet on the ultrapure water tank for supplying downstream devices (e.g. autoclaves, analyser) or connection of a flexible dispenserThe scope of supply includes all necessary materials for the first-time operation (for Smart2Pure12 a storage tank must be supplemented)Optional hand dispenser with 3 m flexible circulation line for remote dispensing of the water. The kit contains a 0.2 µm end filterUltrapure water specifications ASTM Type IFlow rate:
Flow rate UF-models:1.0 l/min
0.6 l/minConductivity:0.055 µS/cmResistance at 25°C:18.2 MΩxcmTOC value:
TOC values UV-models:10 ppb
1 to 5ppbEndotoxins UF-models:
Bacterial content:
Particles 0.2µM/ml:0.005 EU/ml
1cfu/ml
1Pure water specifications ASTM Type IIPermeate flow rate at 15°C:
Smart2Pure 3:
Smart2Pure 6:
Smart2Pure 12:
3 l/h
6 l/h
12 l/hPermeate conductivity:0.067 to 0.1µS/cmPermeate resistance at 25°C:15 to 10 MΩxcmSpecificationsPower supply:90-240 V, 50/60 HzDimensions (W x D x H):305 x 400 x 545 mmFeedwater connector:¾ inchDrain connection:¼ inchWith UF = ultrafiltration, UV = UV photo-oxidation 185/254nm, UF / UV = Ultra Filtration and UV photo-oxidation 185/254 nm
Pure water purification systems Barnstead™ Pacific™ TII
The Thermo Scientific Pacific Barnstead TII system provides ultrapure water (1 - 10 MOhm) ASTM type II for typical demand up to 200 l/day. By combining different treatment technologies such as pretreatment, reverse osmosis, ion exchangers, adsorption and optional UV lamp, the Pacific TII produces pure water (ASTM type II) that meets the highest quality standards such as ASTM II, CAP, ISO 3696, CLSI and Bi distillate. Pacific TII is suitable for table or wall mounting. Three tank sizes 30 l, 60 l, or 100 l are available to match the range of permeate capacities of 7, 12 and 20 l/h. Upgrading the system and thus increasing the capacity for a growing pure water demand is possible at any time. Ideal for supplying ultrapure water systems, clinical analysers, reagent/dilution preparation and general chemical analysis.Product features:Feed water (e.g. tap water) is pre-cleaned by reverse osmosis membrane. Via the pure water cartridge and optional UV unit the type II water ist temporarily stored in the storage tank. The optional recirculation of the water via the integrated pump ensures constant optimal water qualityFlexible and compact laboratory system for optional mounting on the laboratory bench or with the integrated mounting bracket on the wallSimple and economical change of consumables due to separately exchangeable high-tech cartridgesIn the 4-line display numerous operating parameters, such as limit values, flushing cycles tank volume display in % can be easily set and queriedThe code-protected operating system as well as a high-precision conductivity monitoring in acc. with USP enable documentation acc. with GLP requirementsAdditional pressure booster system on the ultrapure water tank for supplying downstream devices (e.g. autoclaves, dishwasher, analyser)The scope of supply includes all necessary materials for immediate use: Integrated wall bracket, RO membrane, pure water cartridge, pressure reducer and UV lamp (for Pacific TII UV)Optional hand dispenser with flexible circulating line for dispensing water in a distance of up to 3 m. The kit contains a 0.2 µm end filter.Pure water specificationsOperating pressure:2 to 6barTemperature:+2°C to +35°CPermeate conductivity:0.067 to 0.1µS/cm (at 30ppm CO2 in feeding water)Permeate resistance at 25°C:15 to 10MΩ.cmRemoval bacteria, Pyrogens:99%TOC value:30ppbInterface:RS 232SpecificationsPower supply:90-240V/50-60HzDimensions (W x D x H):372 x 330 x 613mmFeedwater connector:Tubing 1.5m with 8mm o.d. and R¾'' inner threadWastewater connector:¼'' or 8mm o.d., tubing 2m, pressureless drainPower Consumption:0.08kW

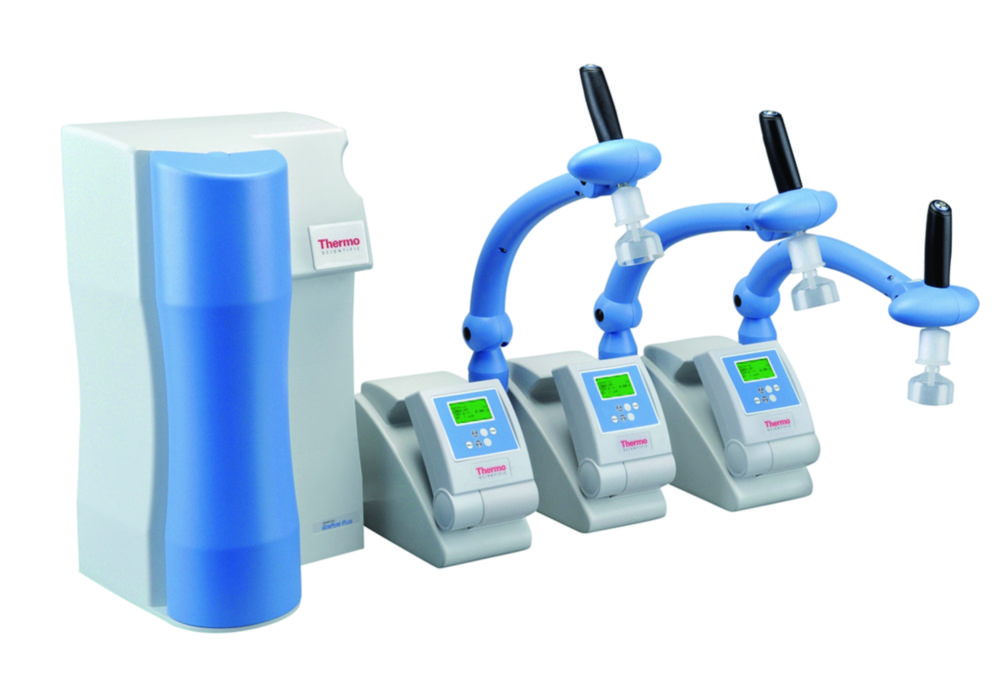

Ultrapure water purification systems Barnstead™ GenPure xCAD Plus with stand-alone remote dispensers
