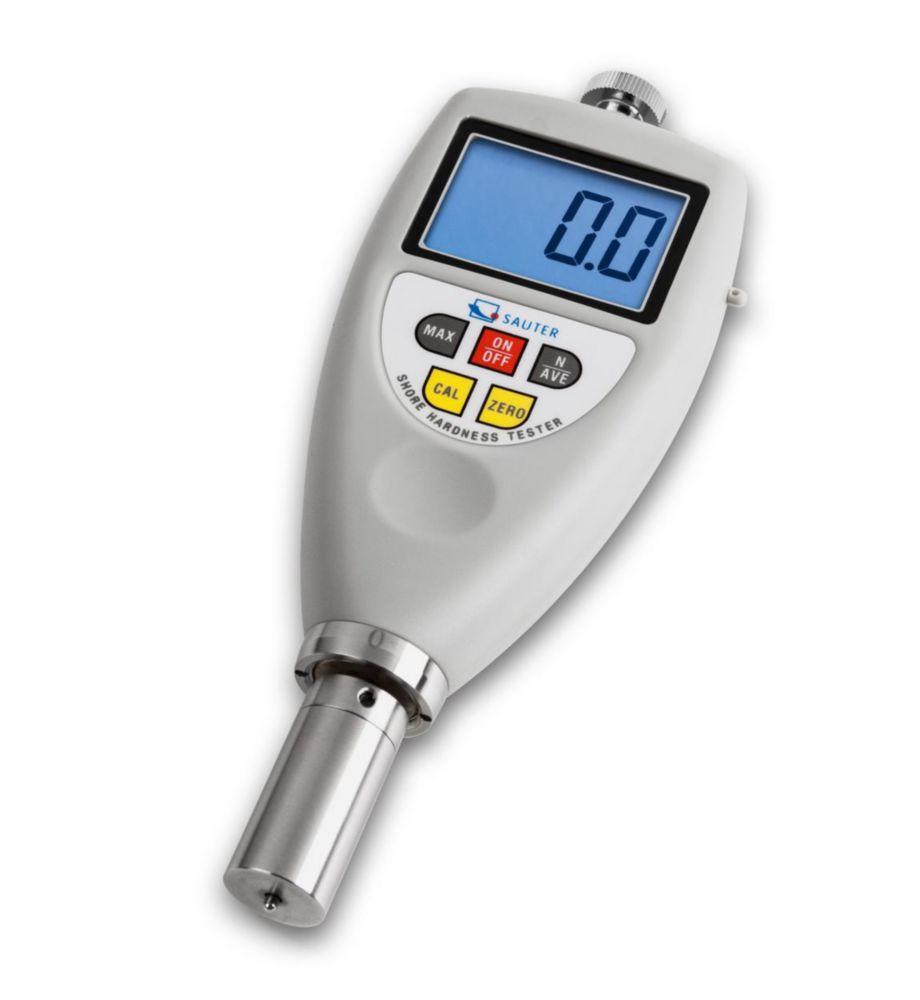

Shore hardness testers, digital, HD
Product information "Shore hardness testers, digital, HD"
Compact handheld durometer for plastics with digital display.
Shore A: rubber, elastomers, neoprene, silicone, vinyl, soft plastics, felt, leather and similar materials
Shore 0: foams, sponges
Shore D: plastics, synthetic resin, Resopal®, epoxides, Plexiglas® etc.
- Measurement of penetration depth (Shore)
- Material thickness of the sample, min. 6 mm
- Particularly recommended for internal comparison measurement. Standard calibrations e.g. to DIN 48-4 are not possible because of very narrow standard tolerances
- Can be attached to the test stands TI-ACL (for Shore A and Shore 0) and TI-DL (for Shore D)
- Large display with backlight
- Selectable: AUTO-OFF function or continuous operation, charge indicator
- Delivered in a hard carrying case
Shore A: rubber, elastomers, neoprene, silicone, vinyl, soft plastics, felt, leather and similar materials
Shore 0: foams, sponges
Shore D: plastics, synthetic resin, Resopal®, epoxides, Plexiglas® etc.
| Depth: | 65 mm |
|---|---|
| Dimensions (WxDxH): | 162 x 65 x 38 mm |
| Display: | Digital |
| Height: | 38 mm |
| Manufacturer Article Number: | HDA 100-1 |
| Material housing: | Plastic |
| Max. measured value: | 100 HA |
| Measured range: | 100 HA |
| Readability: | 1,0 HA |
| Shore hardness: | A |
| Tolerance: | 1 % |
| Type: | HDA 100-1. |
| Type of auxiliary energy: | Battery |
| Weight: | 173 g |
| Width: | 162 mm |
