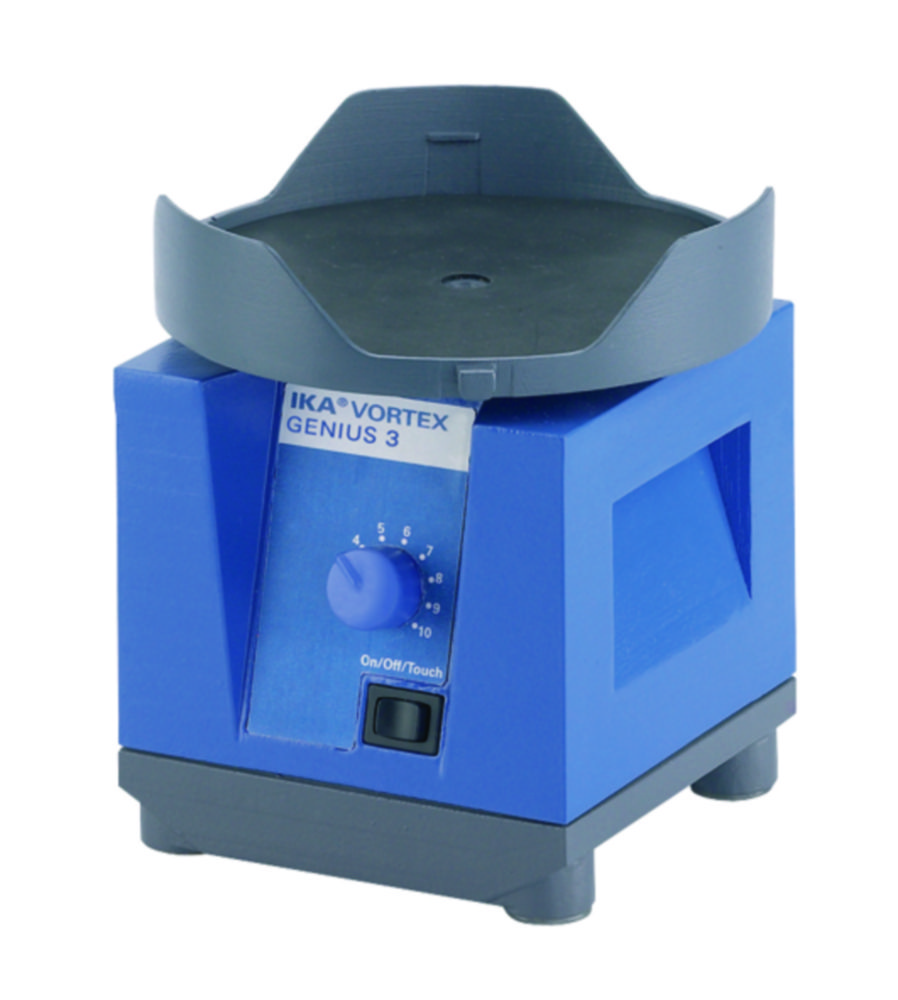

Shaker Vortex 3
Product information "Shaker Vortex 3"
Vortex shaker suitable for intermittent operation (touch function), activated by pressing shaker attachment, or for continuous operation.
Supplied with standard attachment.
- Wide speed range, infinitely adjustable
- Versatile, due to 3 accessory interchangeable attachments and 7 inserts (e.g. Eppendorf tubes, microtitre plates, 250ml Erlenmeyer flasks etc.), please order separately
- Attachments securely click onto shaker in any position
- Strap clamp (VG3.36) ensures easy holding of round/Erlenmeyer flasks
- Sturdy, die cast zinc casing
- Stable at high speeds due to special feet (silicone base with ultra-high vibration damping)
- Eccentric drive with ball bearings
- Self-ventilated motor allows continuous operation with minimal warm-up of the housing
Supplied with standard attachment.
| Depth: | 149 mm |
|---|---|
| Dimensions (WxDxH): | 127 x 149 x 136 mm |
| Height: | 136 mm |
| IP code: | IP 21 |
| Manufacturer Article Number: | 0003340002 |
| Max. permitted ambient temperature: | 40 °C |
| Max. relative humidity rate: | 80 % |
| Max. speed: | 2500 1/min |
| Max. voltage: | 230 V |
| Min. permitted ambient temperature: | 5 °C |
| Min. speed: | 500 1/min |
| Min. voltage: | 200 V |
| Permitted ambient temperature: | 5 ... 40 °C |
| Plug type: | UK |
| Power supply: | 200 ... 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 60 W |
| Shaking stroke: | 4 mm |
| Speed: | 500 ... 2,500 1/min |
| Type: | VORTEX 3 |
| Type of movement: | Orbital |
| Weight: | 4.5 kg |
| Width: | 127 mm |
| With continuous operation: | Yes |
| With timer: | No |
| With touch operation: | Yes |
