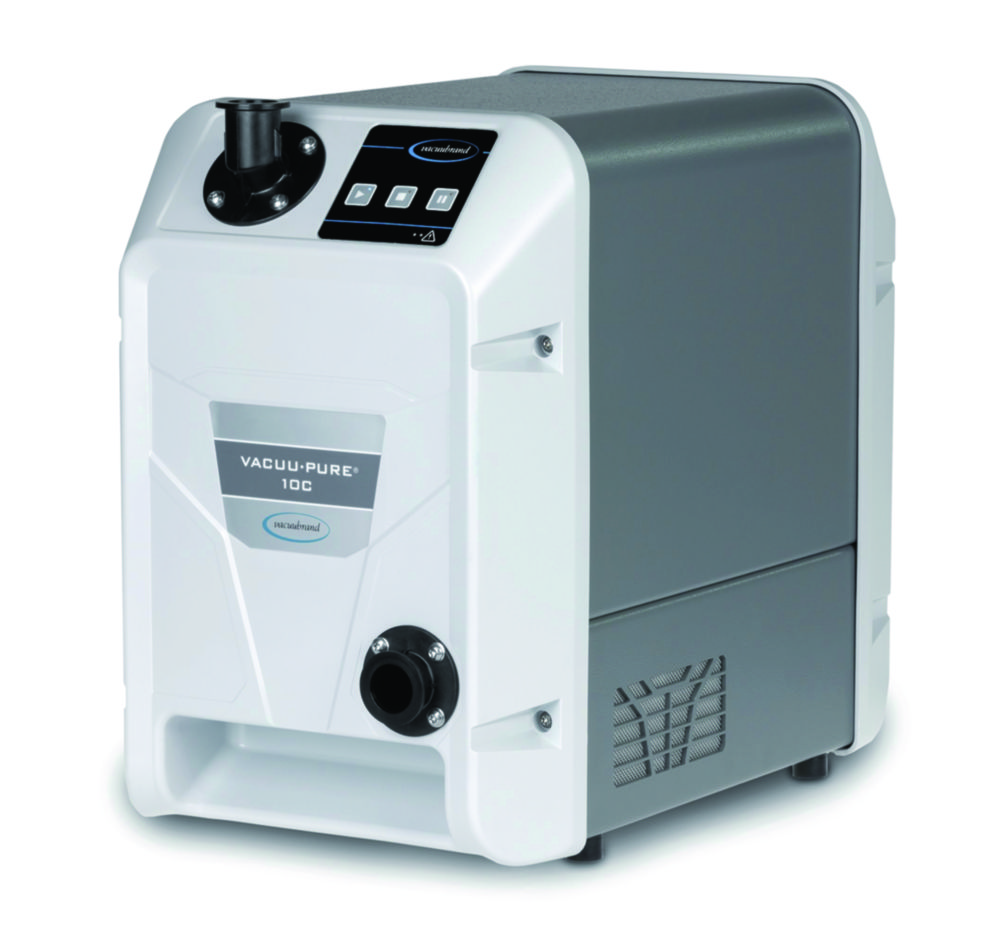

Screw pumps VACUU·PURE® 10C
Product information "Screw pumps VACUU·PURE® 10C"
Powerful vacuum pumps for dry and hydrocarbon-free operation. Due to their unique operating principle, they generate ultra-pure vacuum as well as contamination-free exhaust air and work abrasion-free. They have been specially developed for processes down to the 10-3 mbar range, but can also be used without any problems at working pressures above 1 mbar.
The chemical-resistant version VACUU·PURE® 10C is protected against corrosion due to chemically resistant polymers on all wetted parts. A thick-walled PEEK encapsulation protects the spindles and stator inside the pumping chamber, providing high chemical resistance. An integrated sealing gas supply prevents the bearings from chemical attack. Due to the design-related high condensate compatibility, no gas ballast is required, even with high vapor loads.
- For ultra-clean processes and pure products
- 100% oil-free due to cantilevered spindles
- Abrasion-free due to contact-free operating principle
- No wear parts
- Quick drying after high condensate load
- Suitable for continuous operation
- With air cooling
- Rotatable inlet
- With Modbus RTU interface
| Connection pressure side: | KF DN 25 |
|---|---|
| Connection suction side: | KF DN 25 |
| Depth: | 507 mm |
| Dimensions (WxDxH): | 269 x 507 x 413 mm |
| Flow rate: | 150 |
| Height: | 413 mm |
| IP code: | IP 20 |
| Manufacturer Article Number: | 20751000 |
| Max. voltage: | 230 V |
| Noise level: | 55 db(A) |
| Plug type: | EU |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Type: | VACUU·PURE® 10C |
| Type of auxiliary energy: | Mains connection |
| Ultimate vacuum: | 0.005 mbar |
| Weight: | 21.1 kg |
| Width: | 269 mm |
