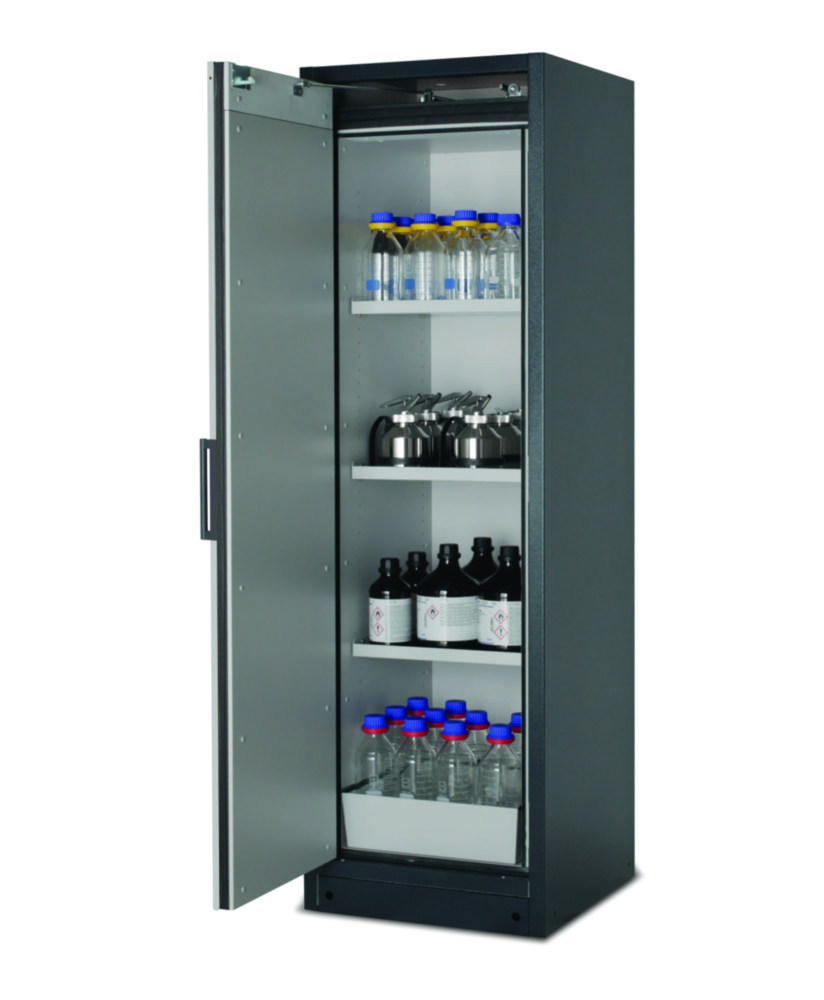

Safety storage cabinets Q-CLASSIC-90
Content:
1
Product number:
6265138
Product information "Safety storage cabinets Q-CLASSIC-90"
- Safe and approved storage of hazardous materials in workrooms
- Type proofed according to DIN EN 14470-1, fire resistance 90 minutes
- GS approved
- Body made of sheet steel plastic laminated, structure finish
- Colour: Body anthracite grey (RAL 7016) doors light grey (RAL 7035), door colour pure white (RAL 9010) available on request
- Convenient handling with comfort, doors stop in any position, self-closing in the event of a fire
- Doors lockable with cylinder lock (suitable for master-key system) and locking state indicator (red/green)
- Integrated transport base, optional base cover
- Integrated adjusting aids to compensate for uneven floor
- Exhaust air connection (DN 75) on top of the cabinet
Height adjustable shelves (32 mm increments), load capacity 75 kg (evenly distributed load), bottom collecting sump with perforated insert as a first storage level. Capacity of the bottom collecting sump: 33 litre (cabinet width 1193 mm), 22 litre (cabinet width 599 mm)
Scope of delivery: Safety storage cabinet model Q90.195.120 or Q90.195.060 incl. interior equipment with 3 shelves, bottom collecting sump and perforated insert
Option:
- Recirculating air filter system with exhaust air monitoring (Cat. No. 9.840 650)
- Ventilation system with exhaust air monitoring (Cat. No. 6.238 986)
- Ventilation system without exhaust air monitoring (Cat. No. 9.840 616)
Many further cabinet versions available.
| Specifications | |
| Outer dimensions (W x D x H) Q90.195.120: Q90.195.060: | 1193 x 615 x 1953mm 599 x 615 x 1953mm |
| Inner dimensions (W x D x H) Q90.195.120: Q90.195.060: | 1050 x 522 x 1647mm 450 x 522 x 1647mm |
| Shelf dimensions (W x D x H) Q90.195.120: Q90.195.060: | 1040 x 432 x 30mm 440 x 435 x 30mm |
| Weight Q90.195.120: Q90.195.060: | 434kg 265kg |
| Description: | Safety storage cabinet Q90.195.120 |
|---|---|
| Manufacturer Article Number: | 30001-041-30003 |
