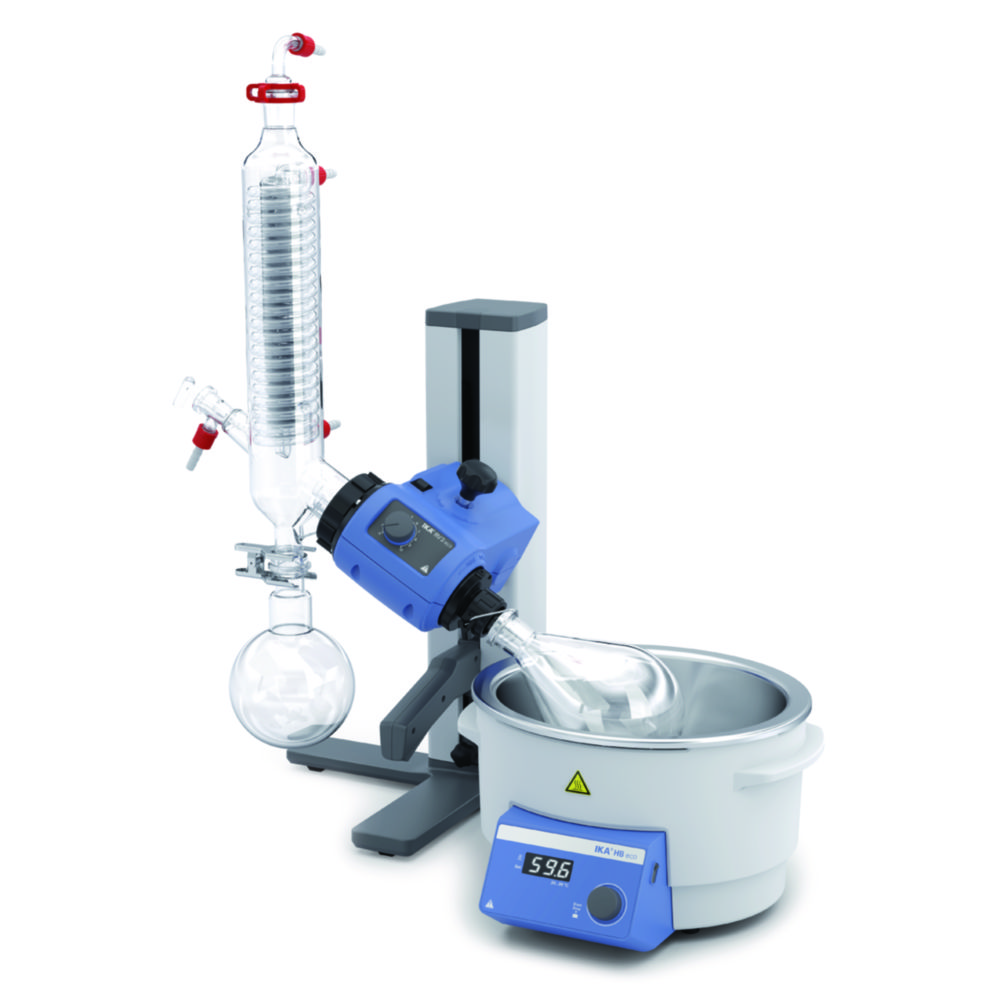

Rotary evaporator RV 3 V-C
Content:
1
Product number:
4661996
Product information "Rotary evaporator RV 3 V-C"
The RV 3 is the ideal entry-level model of the IKA rotary evaporator portfolio.
Scope of supply: Rotary evaporator RV 3 V-C, heating bath HB eco, vertical coated glassware RV 10.10
- 4 l water heating bath with digital temperature display and carrying handles
- Mechanical lift end-point safety stop
- Locking mechanism: red indicator shows unlocked position of the vapor tube
- Manual lift for precise positioning of the glassware, single-handed, suitable for left and right-handed operators
- Adjustable immersion angle
- Stepless speed setting with dial control and speed display
- Flask clamping mechanism with integrated push-off function for easy exchange of evaporation flasks
| Condenser: | Vertical |
|---|---|
| Cooling surface: | 1600 cm² |
| Depth: | 330 mm |
| Dimensions (WxDxH): | 440 x 330 x 530 mm |
| Glassware: | Coated |
| Height: | 530 mm |
| IP code: | IP 20 |
| Lift: | Manual |
| Lifting path: | 150 mm |
| Manufacturer Article Number: | 0010003328 |
| Max. speed: | 300 1/min |
| Max. temperature: | 99 °C |
| Max. voltage: | 240 V |
| Max. volume bath: | 4 l |
| Min. speed: | 20 1/min |
| Min. voltage: | 100 V |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Speed: | 20 ... 300 1/min |
| Temperature: | RT ... 99 °C |
| Temperature addition: | RT |
| Type: | RV 3 V-C |
| Type of auxiliary energy: | Mains connection |
| Weight: | 22.31 kg |
| Width: | 440 mm |
