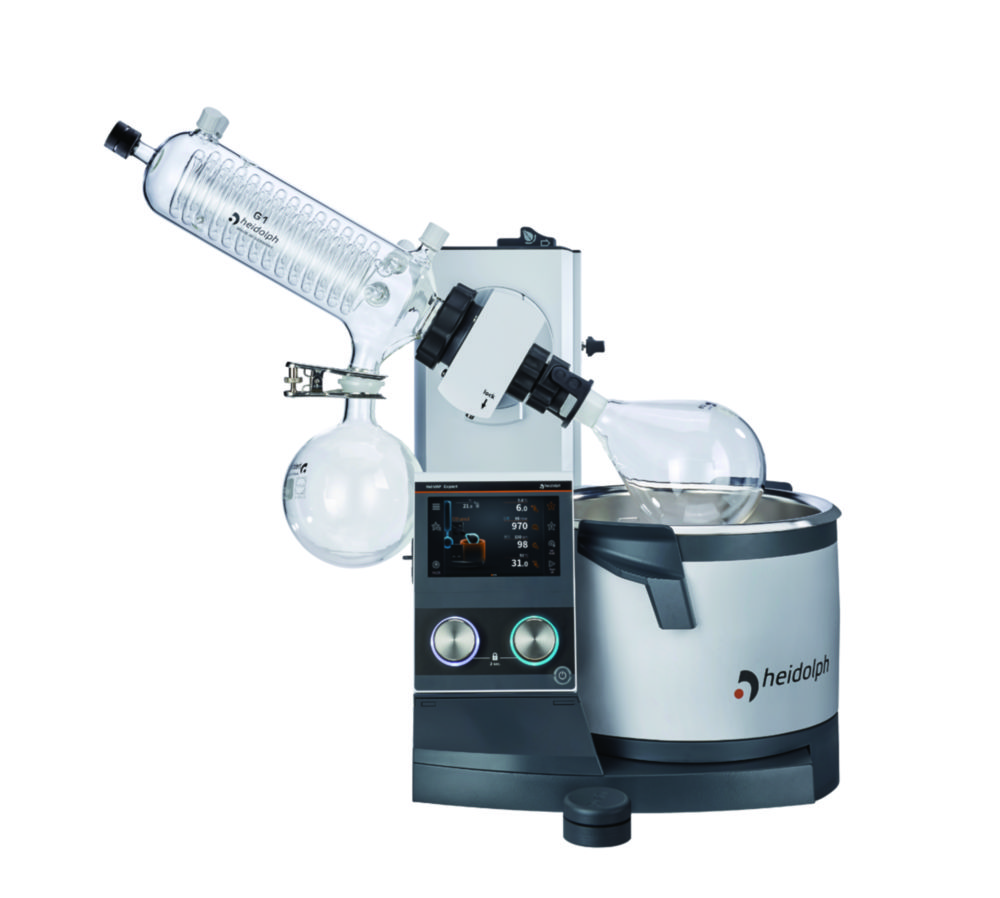

Rotary Evaporators Hei-VAP Expert Control, with hand lift, angled condenser
Content:
1
Product number:
4668998
Product information "Rotary Evaporators Hei-VAP Expert Control, with hand lift, angled condenser"
This devices are central control units for regulation of all process parameter: vacuum, cooling temperature, rotation and heating bath temperature.
Scope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask, Control-Box. Supplied condensor as indicated.
This devices are central control units for regulation of all process parameter: vacuum, cooling temperature, rotation and heating bath temperature.
Scope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask, Control-Box. Supplied condensor as indicated.
- Available as hand or motor lift
- 5'' touch display for controlling the entire system including the vacuum and the cooling temperature
- For precise monitoring, the pictogram on the-display also symbolizes active functions
- Separate knobs for quick access: the right one for direct vacuum control, the left one for the rotation
- Setting of values either via the touch display or the separate quick access knobs
- Direct access to two favorites on the start screen
- Expandable solvent library: user defined favorites can be transfered to other devices using a USB stick
- User defined evaporation processes (ramps) can be defined and saved
- Automatic evaporation with the Dynamic AUTOaccurate Program (DAA)
- USB and Micro SD interfaces
Scope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask, Control-Box. Supplied condensor as indicated.
- Available as hand or motor lift
- 5'' touch display for controlling the entire system including the vacuum and the cooling temperature
- For precise monitoring, the pictogram on the-display also symbolizes active functions
- Separate knobs for quick access: the right one for direct vacuum control, the left one for the rotation
- Setting of values either via the touch display or the separate quick access knobs
- Direct access to two favorites on the start screen
- Expandable solvent library: user defined favorites can be transfered to other devices using a USB stick
- User defined evaporation processes (ramps) can be defined and saved
- Automatic evaporation with the Dynamic AUTOaccurate Program (DAA)
- USB and Micro SD interfaces
Scope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask, Control-Box. Supplied condensor as indicated.
| Condenser: | Diagonal |
|---|---|
| Cooling surface: | 1400 cm² |
| Glassware: | Coated |
| Lift: | Manual |
| Manufacturer Article Number: | 573-02110-00 |
| Max. speed: | 280 1/min |
| Max. temperature: | 210 °C |
| Max. voltage: | 230 V |
| Max. volume bath: | 4.5 l |
| Min. speed: | 10 1/min |
| Plug type: | EU |
| Power supply: | 230 V |
| Speed: | 10 ... 280 1/min |
| Temperature: | RT ... 210 °C |
| Temperature addition: | RT |
| Type: | G1B |
| Type of auxiliary energy: | Mains connection |
