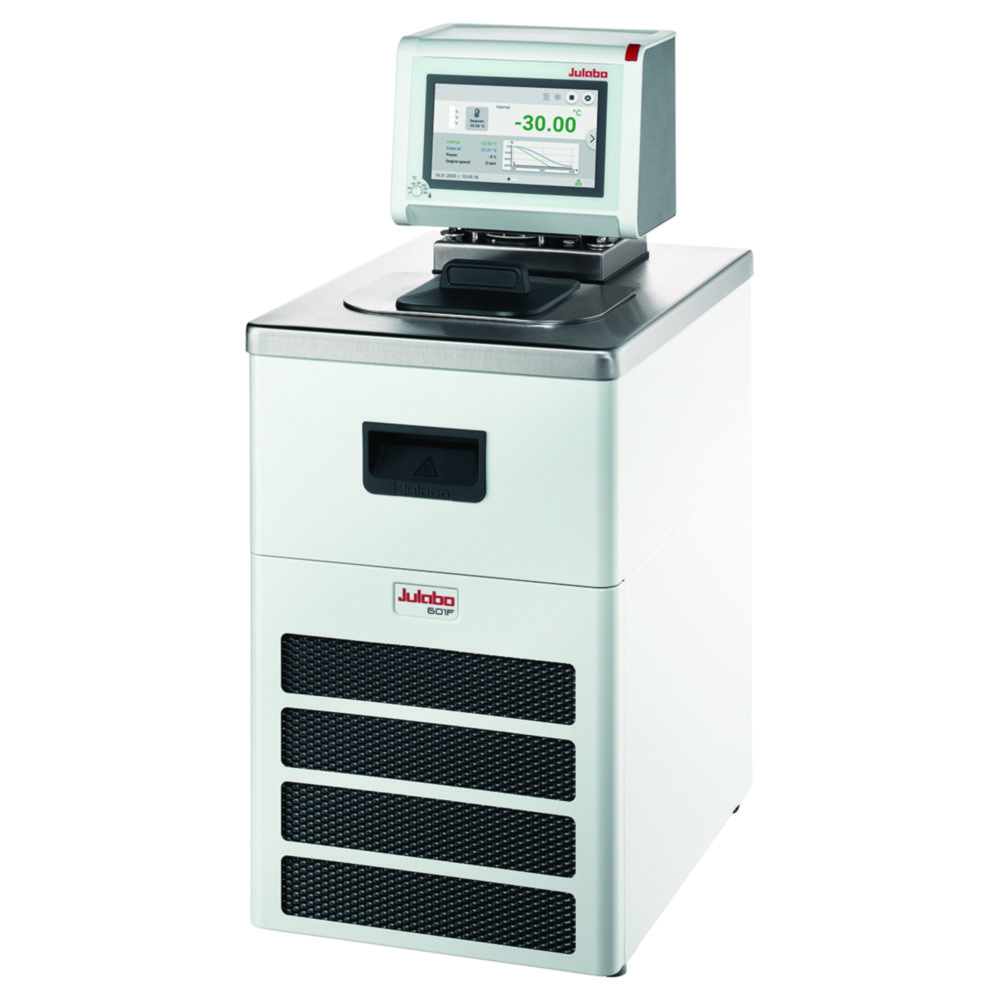

Refrigerated circulators MAGIO™ MS/MX
Content:
1
Product number:
4678306
Product information "Refrigerated circulators MAGIO™ MS/MX"
Refrigerated circulators for precise, reliable temperature control of demanding external applications, e.g. in basic research, material testing and technical installations.
- High-resolution 7" TFT touch display with multilingual user interface
- External pump connections (M16x1)
- Integrated programmer for 8 x 60 program steps
- Infinitely adjustable, extremely powerful pressure and suction pump
- External Pt100 connection
- USB interface
- RS232/RS485 interface
- Ethernet interface
- Modbus
- Connections for solenoid valve
- Medium-contacting parts made of stainless steel
- 2 hose olives each suitable for hose inner diameter 8 and 12 mm included
- Class III (FL) acc. to DIN 12876-1
| Temperature stability: | ± 0.01 °C |
| Flow rate: | 16 ... 31 l/min |
| Pump pressure: | 0.24 ... 0.92 bar |
| Suction pressure: | 0.03 ... 0.4 bar |
| Heating capacity: | 2000 W |
| Permissible ambient temperature: | 5 ... 40 °C |
| Power supply: | 200 ... 230 V / 50 ... 60 Hz |
| Timer: | 0 ... 99 h 59 min |
| Bath depth: | 200 mm |
|---|---|
| Bath opening mm: | 220 x 150 |
| Bath tank depth mm: | 200 |
| Cooling capacity at 20 °C: | 0,6 kW |
| Cooling capacity kW at 20/0/-20°C: | 0.6 / 0.44 / 0.16 |
| Depth opening: | 150 mm |
| Description: | Refrigerant R449A |
| Dimensions (W x D x H) mm: | 330 x 470 x 740 |
| Ext. depth: | 470 mm |
| Ext. height: | 740 mm |
| Ext. width: | 330 mm |
| External dimensions (WxDxH): | 330 x 470 x 740 mm |
| Filling volume L: | 8 ... 10 |
| Heating capacity: | 2 kW |
| IP code: | IP 20 |
| Manufacturer Article Number: | 9032705 |
| Material bath: | Stainless steel |
| Max. delivery pressure: | 0.92 bar |
| Max. flow rate: | 31 l/min |
| Max. suction pressure: | 0.4 bar |
| Max. temperature: | 200 °C |
| Max. voltage: | 230 V |
| Max. volume bath: | 10 l |
| Min. temperature: | -35 °C |
| Min. voltage: | 200 V |
| Min. volume bath: | 8 l |
| Opening (WxD): | 220 x 150 mm |
| Power supply: | 200 ... 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Refrigerant: | R449A |
| Temp. range °C: | -35 ... 200 |
| Temperature: | -35 ... 200 °C |
| Temperature stability: | ±0,01 °C |
| Type: | MS-601F |
| Type: | MS-601F |
| Type of auxiliary energy: | Mains connection |
| Volume bath: | 8 ... 10 l |
| Weight: | 41.5 kg |
| Weight kg: | 41.5 |
| Width opening: | 220 mm |
| With lid: | Yes |
| With timer: | Yes |
