Refrigerated circulators CORIO™ CD
Content:
1
Product number:
4658008
Product information "Refrigerated circulators CORIO™ CD"
Refrigerated circulators are suitable for internal and external standard temperature applications as well as routine work in laboratories and industry.
Refrigerated circulators are suitable for internal and external standard temperature applications as well as routine work in laboratories and industry.
- Bright, white, easy-to-read display
- Easy pump switching between internal and external circulation
- External pump connections (M16x1)
- USB connection
- Space-saving cooling coil design yields more usable space in the bath tank
- Stainless steel bath tank including bath lid and drain tap
- Removable ventilation grid
- Refrigeration unit without lateral ventilation openings
- 2 hose olives each suitable for hose inner diameter 8 and 12 mm included
- Class III (FL) acc. to DIN 12876-1
- Bright, white, easy-to-read display
- Easy pump switching between internal and external circulation
- External pump connections (M16x1)
- USB connection
- Space-saving cooling coil design yields more usable space in the bath tank
- Stainless steel bath tank including bath lid and drain tap
- Removable ventilation grid
- Refrigeration unit without lateral ventilation openings
- 2 hose olives each suitable for hose inner diameter 8 and 12 mm included
- Class III (FL) acc. to DIN 12876-1
| Bath depth: | 150 mm |
|---|---|
| Cooling capacity at 20 °C: | 0,22 kW |
| Depth opening: | 150 mm |
| Ext. depth: | 390 mm |
| Ext. height: | 650 mm |
| Ext. width: | 230 mm |
| External dimensions (WxDxH): | 230 x 390 x 650 mm |
| Heating capacity: | 2 kW |
| IP code: | IP 21 |
| Manufacturer Article Number: | 9012701 |
| Material bath: | Stainless steel |
| Max. delivery pressure: | 0.35 bar |
| Max. flow rate: | 15 l/min |
| Max. temperature: | 150 °C |
| Max. volume bath: | 4 l |
| Min. temperature: | -20 °C |
| Min. volume bath: | 3 l |
| Opening (WxD): | 130 x 150 mm |
| Refrigerant: | R134a |
| Temperature: | -20 ... 150 °C |
| Temperature stability: | ±0,03 °C |
| Type: | CD-200F |
| Type of auxiliary energy: | Mains connection |
| Volume bath: | 3 ... 4 l |
| Weight: | 26 kg |
| Width opening: | 130 mm |
| With lid: | Yes |
| With timer: | Yes |
Skip product gallery
Accessories
Telescopic bridges for heating and refrigerated circulators
Telescopic bridges are extendable from 330 to 680 mm.

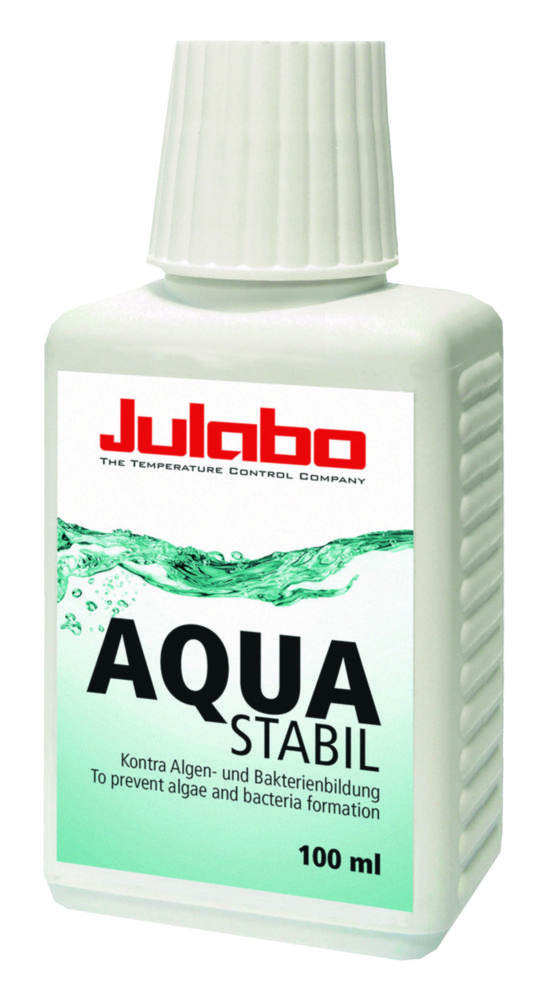

Water bath preservative liquid Aqua Stabil
Prevents build-up of algae and bacteria in bath tanks providing hygienic operationNo contamination of the tank or immersion thermostat componentsEconomical - only 2 ml of Aqua Stabil is required for every 1 litres of waterRemains effective for weeks, as shown by colour indicator.Use biocides safely. Always read the labelling and the product information before use.

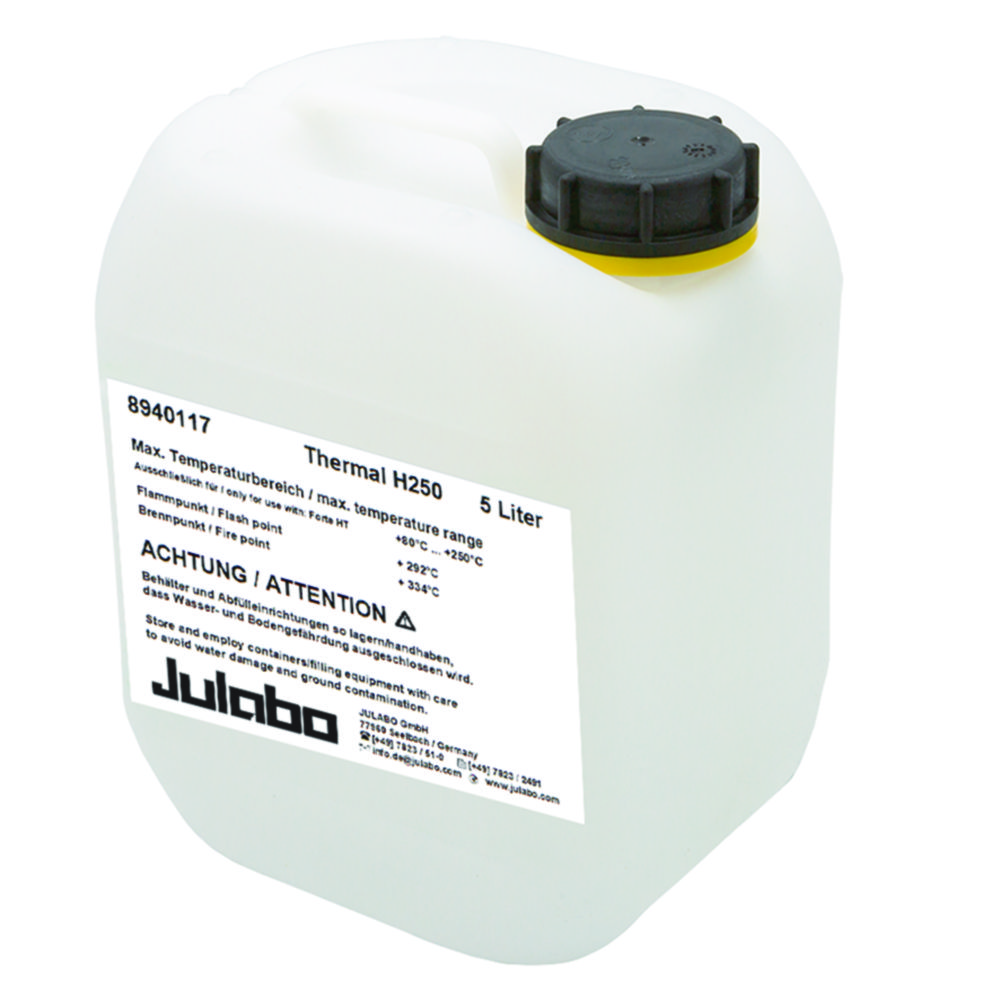

Tempering liquids
Long-term tested for safe and reliable operation.Low toxicityLow viscosityHigh stabilityAlmost odor-freeGood thermal conductivityLow corrosion susceptibilityWide temperature ranges
Temperature hoses, stainless steel 1.4404, single insulation
Temperature hoses with special single insulation and two M16 x 1 connections. The ends are covered with silicone caps for protection.

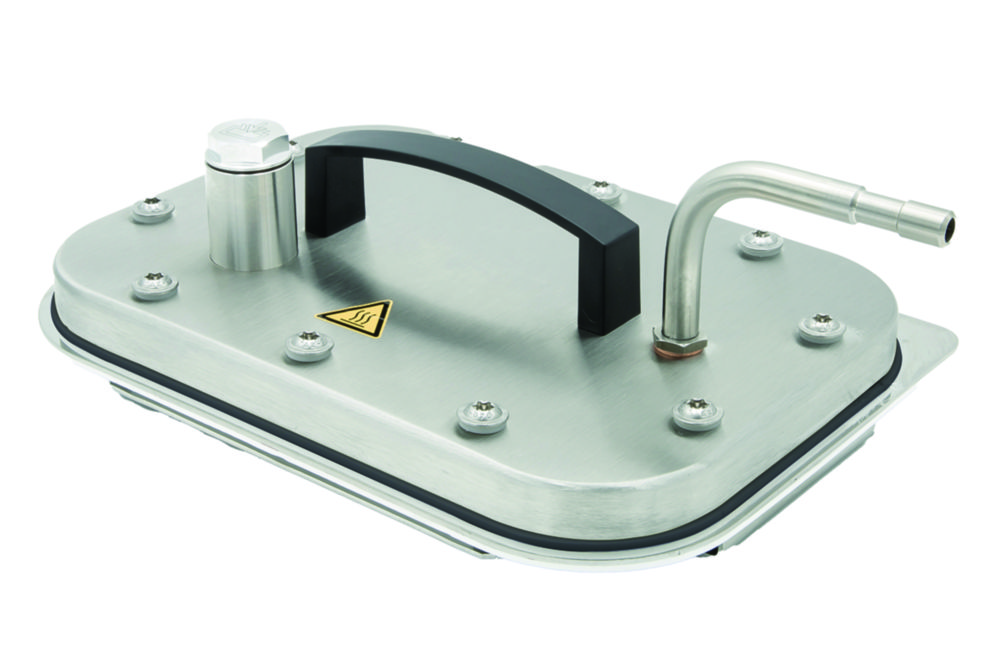

Lockable bath cover for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™
Minimizes oil vapors and odors at high bath temperatures.Suitable for heating circulators with the bath type BC12 and refrigerated circulators with the bath types 600F, 601F, 1000F.

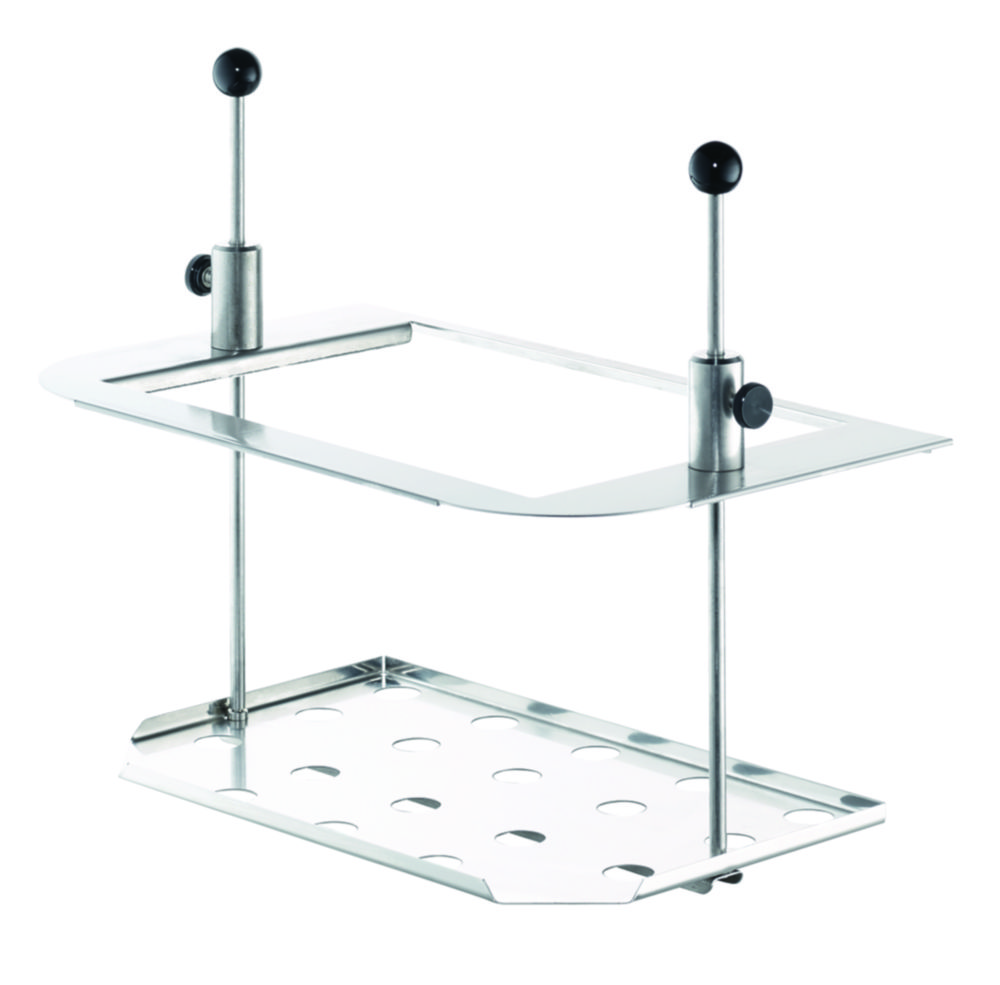

Variable platform for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™
Height adjustable.Suitable for heating circulators with the bath type BC26 and refrigerated circulators with the bath type 900F.
Test tube racks for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™
Test tube racks made of stainless steel.Suitable for heating circulators with the bath types BC4, BC6, B5, BT5 and refrigerated circulators with the bath types 200F, 201F, 300F, 310F, 450F.
