Refrigerated circulator CORIO™ CP-449F
Content:
1
Product number:
4687383
Product information "Refrigerated circulator CORIO™ CP-449F"
Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.
Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mm
- Bright, white, easy-to-read display
- Easy pump switching between internal and external circulation
- External pump connections (M16x1)
- Infinitely adjustable pressure pump
- USB connection
- RS232 interface
- Timer adjustable up to 999 minutes
- Space-saving cooling coil design yields more usable space in the bath tank
- Stainless steel bath tank including bath lid and drain tap
- Removable ventilation grid
- Refrigeration unit without lateral ventilation openings
- Unique early warning system for low liquid level
- Class III (FL) acc. to DIN 12876-1
Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mm
- With natural refrigerant R290
| Bath depth: | 200 mm |
|---|---|
| Cooling capacity at 20 °C: | 0,44 kW |
| Depth opening: | 350 mm |
| Ext. depth: | 590 mm |
| Ext. height: | 690 mm |
| Ext. width: | 370 mm |
| External dimensions (WxDxH): | 370 x 590 x 690 mm |
| Heating capacity: | 2 kW |
| IP code: | IP 21 |
| Manufacturer Article Number: | 9013716.N1 |
| Material bath: | Stainless steel |
| Max. delivery pressure: | 0.7 bar |
| Max. flow rate: | 27 l/min |
| Max. temperature: | 200 °C |
| Max. voltage: | 230 V |
| Max. volume bath: | 26 l |
| Min. temperature: | -32 °C |
| Min. voltage: | 200 V |
| Min. volume bath: | 20 l |
| Opening (WxD): | 280 x 350 mm |
| Plug type: | EU |
| Power supply: | 200 ... 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Refrigerant: | R290 |
| Temperature: | -32 ... 200 °C |
| Temperature stability: | ±0,03 °C |
| Type: | CP-449F |
| Type of auxiliary energy: | Mains connection |
| Type of display: | LED |
| Volume bath: | 20 ... 26 l |
| Weight: | 39.5 kg |
| Width opening: | 280 mm |
| With lid: | Yes |
| With timer: | Yes |
Skip product gallery
Other customers also bought
Refrigerated circulator CORIO™ CP-310F
Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mmRefrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mm
Refrigerated circulator CORIO™ CP-1200F
Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mmWith natural refrigerant R1270
Refrigerated circulator CORIO™ CP-201F
Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mmWith refrigerant R134a
Refrigerated circulator CORIO™ CP-601F
Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mmWith refrigerant R449A
Refrigerated circulator CORIO™ CP-450F
Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mmRefrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mm
Refrigerated circulator CORIO™ CP-200F
Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mmRefrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mm
Refrigerated circulator CORIO™ CP-300F
Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mmWith refrigerant R134a
Refrigerated circulator CORIO™ CP-800F
Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mmWith natural refrigerant R1270
Refrigerated circulator CORIO™ CP-600F
Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mmWith refrigerant R449A
Skip product gallery
Accessories
Water bath preservative liquid Aqua Stabil
Prevents build-up of algae and bacteria in bath tanks providing hygienic operationNo contamination of the tank or immersion thermostat componentsEconomical - only 2 ml of Aqua Stabil is required for every 1 litres of waterRemains effective for weeks, as shown by colour indicator.Use biocides safely. Always read the labelling and the product information before use.
Telescopic bridges for heating and refrigerated circulators
Telescopic bridges are extendable from 330 to 680 mm.
Tempering liquids
Long-term tested for safe and reliable operation.Low toxicityLow viscosityHigh stabilityAlmost odor-freeGood thermal conductivityLow corrosion susceptibilityWide temperature ranges
Temperature hoses, stainless steel 1.4404, single insulation
Temperature hoses with special single insulation and two M16 x 1 connections. The ends are covered with silicone caps for protection.
Temperature hoses, stainless steel 1.4404, triple insulation
Temperature hoses with special triple insulation and two M16 x 1 connections. The ends are covered with silicone caps for protection.
ProfiNet Interface
The ProfiNet interface is a protocol converter from ProfiNet to RS232. Application interfaces RS232, 422, and 485. Bus interface ProfiNet 2Port. Mounting on DIN top-hat rail.

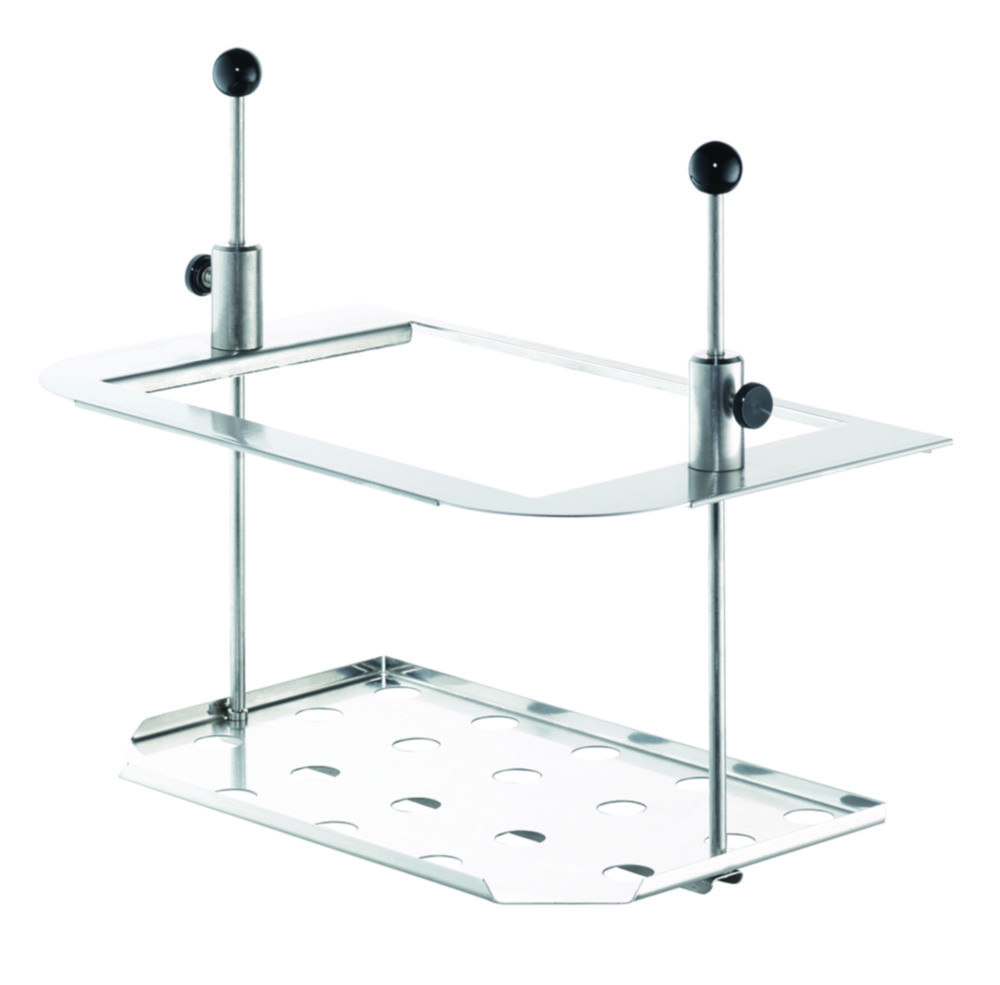

Variable platform for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™
