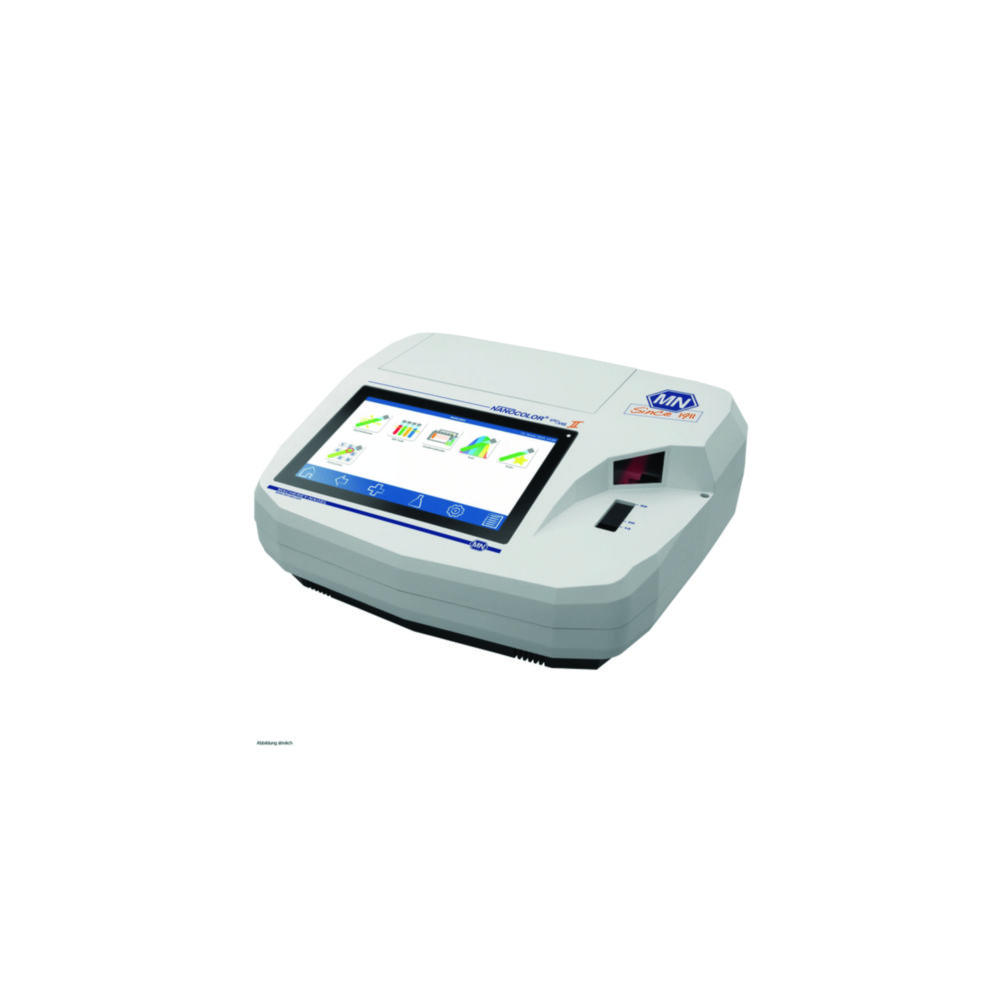

Photometer NANOCOLOR® VIS II / NANOCOLOR® UV/VIS II
Content:
1
Product number:
6267081
Product information "Photometer NANOCOLOR® VIS II / NANOCOLOR® UV/VIS II"
As complete spectrophotometers, the NANOCOLOR® VIS II and NANOCOLOR® UV/VIS II meet all requirements of your daily laboratory work. They come with the well-known barcode technology for NANOCOLOR® tube tests for fast measurements. Besides, they offer the possibility of extensive CIE-conform color measurements and scan-performance in real time. In addition to turbidity measurements, the devices offer comprehensive and free of charge brewery analysis according to MEBAK.
NANOCOLOR® VIS II and NANOCOLOR® UV/VIS II reduce the complexity of your daily laboratory work with easy menu guidance and icon-based procedures of the cuvette tests stored in the instrument. The clear result window enables an easy assignment of sample information to the measurement result. The step-by-step menu guidance for the calibration of special methods creates a simple entry level into user specific analytics even for inexperienced users.
Scope of delivery: Spectrophotometers, the NANOCOLOR® VIS II or NANOCOLOR® UV/VIS IIincl. manual (Quickstart guide), protective covering, power cable, USB cable, USB stick, calibration cuvette, touchpen, cleaning cloth and certificate
NANOCOLOR® VIS II and NANOCOLOR® UV/VIS II reduce the complexity of your daily laboratory work with easy menu guidance and icon-based procedures of the cuvette tests stored in the instrument. The clear result window enables an easy assignment of sample information to the measurement result. The step-by-step menu guidance for the calibration of special methods creates a simple entry level into user specific analytics even for inexperienced users.
Scope of delivery: Spectrophotometers, the NANOCOLOR® VIS II or NANOCOLOR® UV/VIS IIincl. manual (Quickstart guide), protective covering, power cable, USB cable, USB stick, calibration cuvette, touchpen, cleaning cloth and certificate
| Specifications | |
| Optical System: | Monochromator |
| Display: | 10.1" HD display, anti-reflective cover glass with projective-capacitive touch screen (PCAP) and background LED lighting |
| Photometric accuracy: | 0.005 E at 0.0 - 0.5 E; 1 % at 0.5 - 2.0 E |
| Wavelength range NANOCOLOR® VIS II: NANOCOLOR® UV/VIS II: | 320 - 1100 nm 190 - 1100 nm |
| Wellenlängengenauigkeit: | ±1 nm |
| Lichtquelle: | Halogen lamp |
| Speicher: | 16 GB Micro SDHC card, 5000 measured data sets / spectra, GLP conform |
| Schnittstellen: | LAN, 2 x USB (Host), 1 x USB (Function) and RS 232 |
| Netzanschluss NANOCOLOR® VIS II NANOCOLOR® UV/VIS II | 12 V DC 3A 110 13240 V, ~50/60 Hz |
| Dimensions mm: | 400 x 440 x 170 mm |
|---|---|
| Manufacturer Article Number: | 919600.1 |
| Type: | NANOCOLOR® UV/VIS II |
| Weight kg: | 6.5 |
