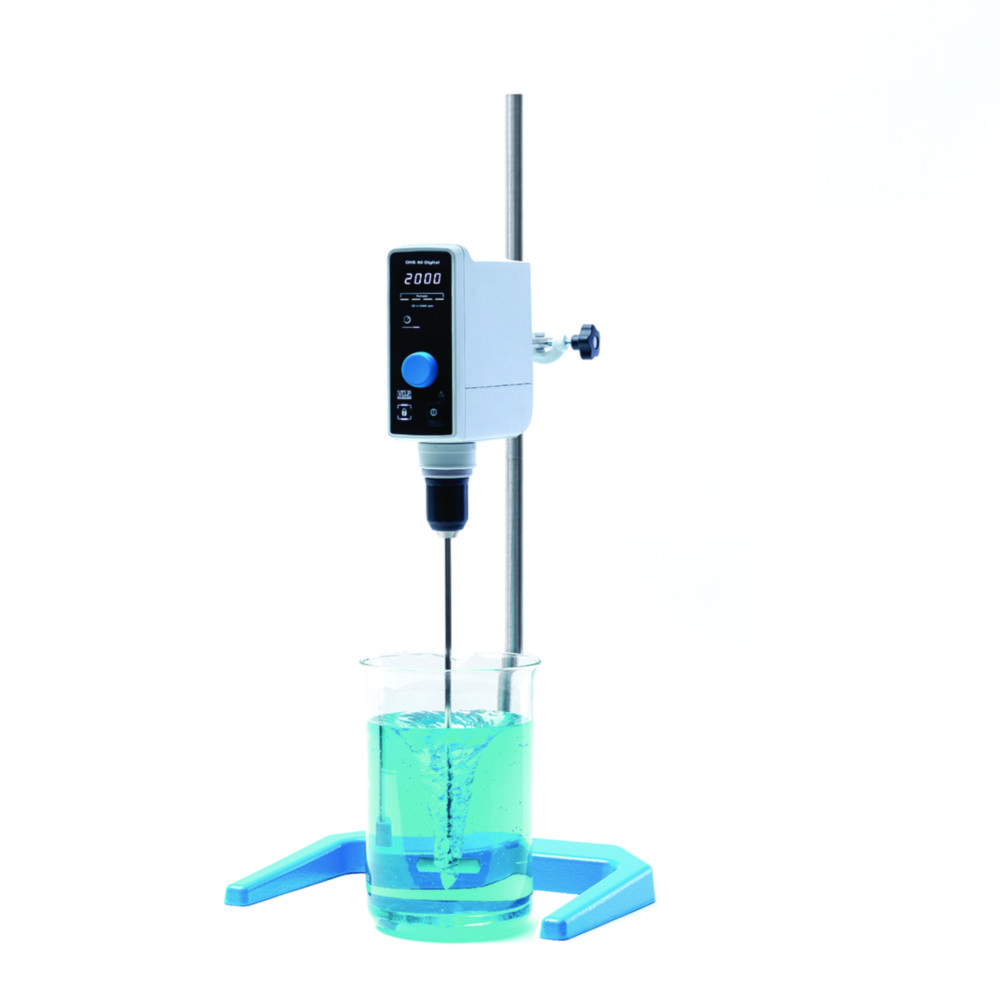

Overhead stirrers OHS Digital
Content:
1
Product number:
4666667
Product information "Overhead stirrers OHS Digital"
Powerful, robust overhead stirrers with display and electronic speed control. With integrated timer and overload, overtemperature and overcurrent protection.
- Stable torque over the entire speed range with automatic compensation
- Torque indication in the display
- LED display
- Timer
- Key lock
- Brushless, quiet motor
- Rotor change without tools
- USB interface for installing software updates
| Clamping range: | 1 ... 13 mm |
|---|---|
| Depth: | 235 mm |
| Dimensions (WxDxH): | 90 x 235 x 285 mm |
| Display: | Digital |
| Height: | 285 mm |
| IP code: | IP 54 |
| Manufacturer Article Number: | F20110493 |
| Max. Viscosity: | 25000 mPa·s |
| Max. clamping width: | 13 mm |
| Max. speed: | 2000 1/min |
| Max. stirring capacity: | 25 l |
| Max. torque: | 40 Ncm |
| Max. voltage: | 115 V |
| Min. clamping width: | 1 mm |
| Min. speed: | 30 1/min |
| Power supply: | 115 V, 60 Hz |
| Power supply frequency: | 60 Hz |
| Speed: | 30 ... 2,000 1/min |
| Type: | OHS 40 Digital |
| Type of auxiliary energy: | Mains connection |
| Warranty: | 3 years |
| Weight: | 4.1 kg |
| Width: | 90 mm |
| With connection ext. temperature sensor: | No |
| With timer: | Yes |
