Overhead stirrer set DLS System
Content:
1
Product number:
4666712
Product information "Overhead stirrer set DLS System"
Powerful overhead stirrer with display for stirring of low to medium viscosity media up to 25000 mPas.
Scope of supply: Overhead stirrer, stand, double clamp, stirring shaft with propeller
- Stable torque over the entire speed range with automatic compensation on viscosity changes
- Electronic speed control
- Gentle start-up to avoid splashing and blistering
- Chemical resistant and corrosion protected housing
- Blocking detection with switch-off function
- No tool required for assembly of the stirring tool
- Display shows all important parameters
- Timer with automatic power-off (up to 999 min 59 sec)
| Clamping range: | 1 ... 10 mm |
|---|---|
| Depth: | 196 mm |
| Dimensions (WxDxH): | 80 x 196 x 215 mm |
| Display: | Digital |
| Height: | 215 mm |
| IP code: | IP 40 |
| Manufacturer Article Number: | SA201A0155 |
| Max. Viscosity: | 25000 mPa·s |
| Max. clamping width: | 10 mm |
| Max. speed: | 2000 1/min |
| Max. stirring capacity: | 25 l |
| Max. torque: | 40 Ncm |
| Max. voltage: | 230 V |
| Min. clamping width: | 1 mm |
| Min. speed: | 50 1/min |
| Min. voltage: | 110 V |
| Plug type: | EU |
| Power supply: | 110 ... 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 120 W |
| Speed: | 50 ... 2,000 1/min |
| Type: | DLS System |
| Type of auxiliary energy: | Mains connection |
| Warranty: | 3 years |
| Weight: | 2.5 kg |
| Width: | 80 mm |
| With connection ext. temperature sensor: | No |
| With timer: | Yes |
Skip product gallery
Other customers also bought
Overhead stirrer DLS
Powerful overhead stirrer with display for stirring of low to medium viscosity media up to 25000 mPas.Stable torque over the entire speed range with automatic compensation on viscosity changesElectronic speed controlGentle start-up to avoid splashing and blisteringChemical resistant and corrosion protected housingBlocking detection with switch-off functionNo tool required for assembly of the stirring toolDisplay shows all important parametersTimer with automatic power-off (up to 999 min 59 sec)Scope of supply: Overhead stirrer
Skip product gallery
Accessories

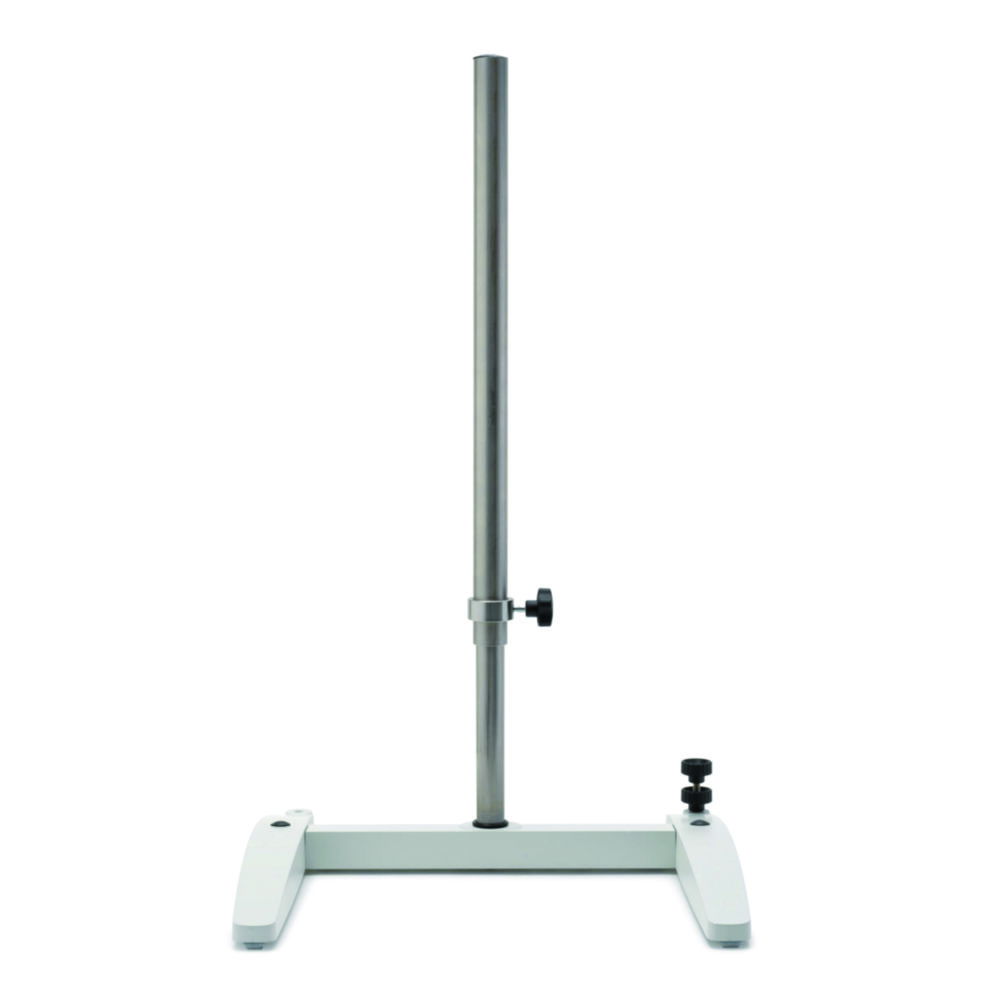

Stands for VELP overhead stirrers and homogenisers
