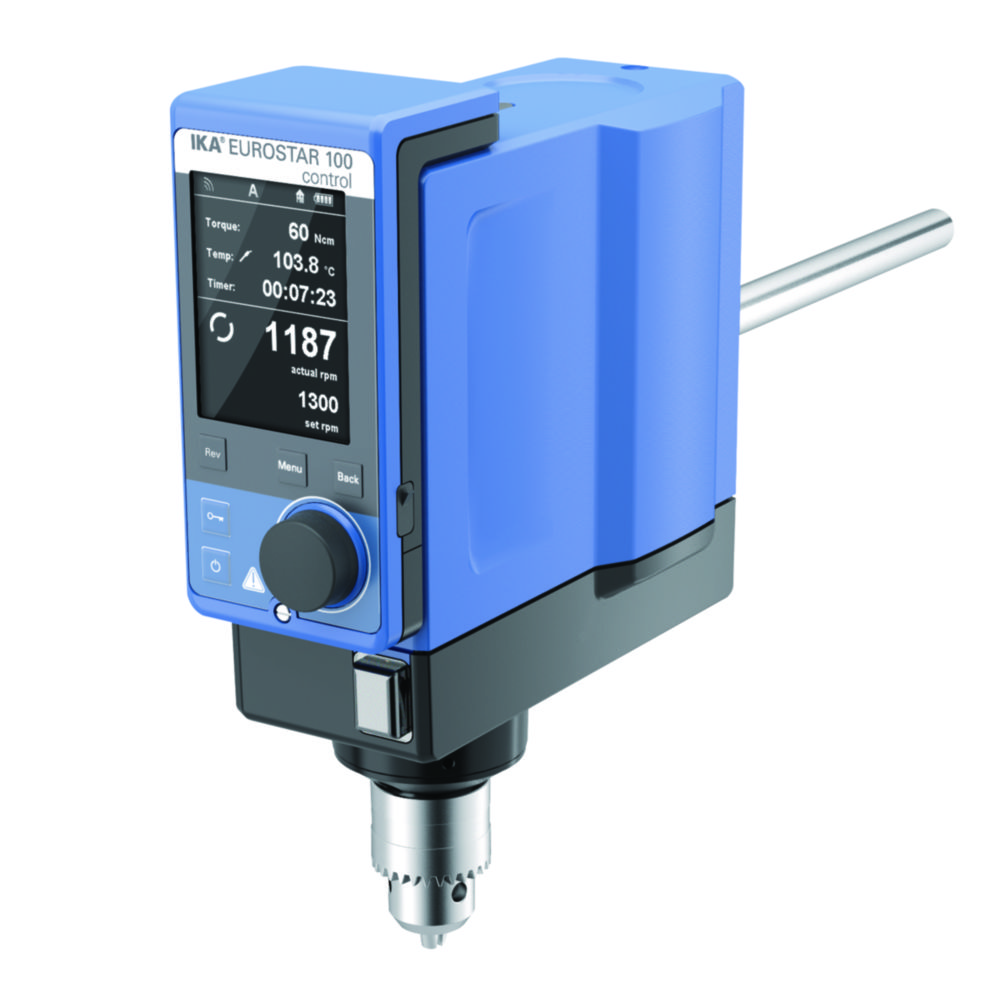

Overhead stirrer EUROSTAR 100 control 100 control P4

Product information "Overhead stirrer EUROSTAR 100 control / 100 control P4"

Powerful laboratory stirrer for highly viscous applications and intensive mixing for quantities up to 100 l (H₂O). It automatically adjusts the speed through microprocessor controlled technology. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.

Digital speed display
Infinitely adjustable speed
Push-through agitator shafts
Overload protection
Short-term overload operation
Slim casing
Quiet operation
Error code display
Multilingual TFT display
Detachable remote control
Programmable functions
Integrated temperature measurement
Interval operation
Reverse function
Timer function
Adjustable safety circuit
Locked function
Connection for external temperature sensor

Scope of supply: Overhead stirrer, temperature sensor H 67.60, WiCo holder WH 11

Clamping range:	0.5 ... 10 mm
Depth:	230 mm
Dimensions (WxDxH):	86 x 230 x 267 mm
Display:	Digital
Height:	267 mm
IP code:	IP 40
Manufacturer Article Number:	0004028502
Max. Viscosity:	70000 mPa·s
Max. clamping width:	10 mm
Max. speed:	1300 1/min
Max. stirring capacity:	100 l
Max. temperature:	350 °C
Max. torque:	100 Ncm
Max. voltage:	230 V
Min. clamping width:	0.5 mm
Min. speed:	0 1/min
Min. temperature:	-10 °C
Plug type:	UK
Power supply:	230 V, 50/60 Hz
Power supply frequency:	50/60 Hz
Rated capacity:	186 W
Speed:	0 ... 1,300 1/min
Temperature:	-10 ... 350 °C
Type:	EUROSTAR 100 control S 2
Type of auxiliary energy:	Mains connection
Weight:	4.7 kg
Width:	86 mm
With connection ext. temperature sensor:	Yes
With timer:	Yes
