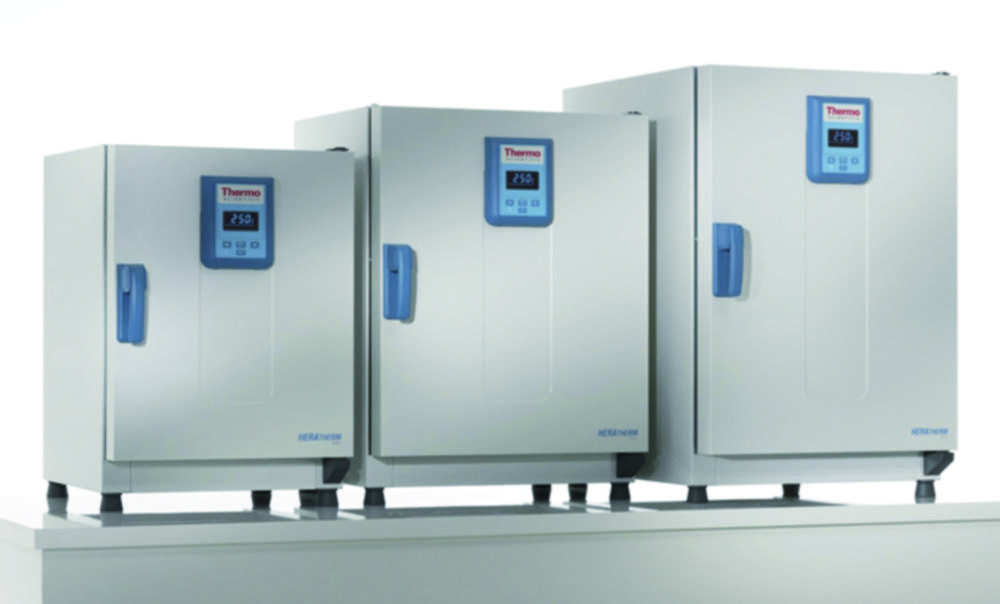

Ovens Heratherm™ General Protocol, with mechanical convection
Content:
1
Product number:
4009209
Product information "Ovens Heratherm™ General Protocol, with mechanical convection"
Thermo Scientific™ Heratherm™ General Protocol ovens are perfect for routine daily work, providing the ideal heating and drying solution for your applications.
Models with mechanical convection provide a temperature uniformity of ±3.3 °C with temperature stability of ±0.3 °C at 150 °C.
- Low energy consumption
- Built-in timer
- Excellent footprint/volume ratio
- Inner chambers made from corrosion-resistant stainless steel with rounded corners for easy cleaning
- Large, easy to view vacuum fluorescent display
- Simple, microprocessor-based touch button controls
- Doors can be opened over 180° making these units easy to access
- Automatic overtemperature alarm system to protect samples
- The exhaust vent can be used as an access port for an external temperature sensor
- Ovens come standard with a RS232 data interface
| Depth int.: | 368 mm |
|---|---|
| Ext. depth: | 565 mm |
| Ext. height: | 720 mm |
| Ext. width: | 530 mm |
| External dimensions (WxDxH): | 530 x 565 x 720 mm |
| Height int.: | 508 mm |
| IP code: | IP 20 |
| Int. width: | 354 mm |
| Internal dimensions (WxDxH): | 354 x 368 x 508 mm |
| Manufacturer Article Number: | 51028148 |
| Material interior: | Stainless steel |
| Max. no. of inserts: | 13 |
| Max. temperature: | 250 °C |
| Max. voltage: | 230 V |
| Min. temperature: | +10 °C |
| Nominal capacity: | 66 l |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1400 W |
| Temperature: | RT+10 ... 250 °C |
| Temperature addition: | RT |
| Temperature stability: | ±0,3 °C |
| Type: | OMS60 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104510 |
| Weight: | 42 kg |
| With timer: | Yes |
