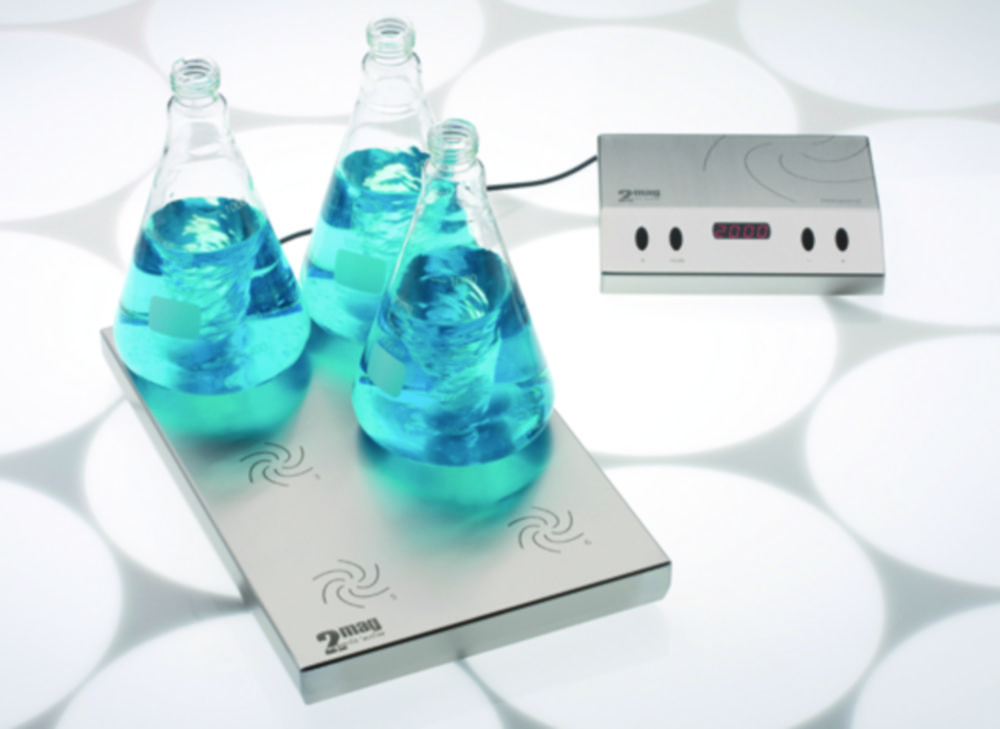

Multi-position stirring drive MIXdrive
Content:
1
Product number:
9645963
Product information "Multi-position stirring drive MIXdrive"
Without heating. 100 % wear-free and maintenance-free stirring position with 2mag induction drive, waterproof and dustproof. Ideal for batch series stirring and for use in water baths. Choice of 6-place stirring position models which can stir up to 6 x 1 l erlenmeyer flasks, 15-place models for up to 15 x 250 ml beakers (high form) and 60-place models for small sample containers and using appropriate test tube stands, up to 60 test tubes or centrifuge tubes. 3 years warranty.
Please order control unit separately.
Please order control unit separately.
- Permissible ambient temperature in air and water from -10 to 50 °C
| Depth: | 375 mm |
|---|---|
| Dimensions (WxDxH): | 245 x 375 x 38 mm |
| Hazard statements (H-Phrases) according to GHS: | H301 + H311 + H331, H370 |
| Height: | 38 mm |
| IP code: | IP 68 |
| Manufacturer Article Number: | 40006 |
| Material housing: | Stainless steel |
| Max. voltage: | 48 V·DC |
| No. of stirring positions: | 6 |
| Power supply: | 48 V·DC |
| Rated capacity: | 40 W |
| Safety instructions (P-Phrases) according to GHS: | P260, P280, P301+P310, P311 |
| Stirring capacity per position: | 1000 ml |
| Stirring centre distances: | 130 mm |
| Type: | MIXdrive 6 |
| UNSPSC: | 41103806 |
| Warranty: | 3 years |
| Weight: | 8500 g |
| Width: | 245 mm |
| With timer: | No |
Skip product gallery
Accessories
Control unit MIXcontrol 40, with RS232 interface
Universal control unit for the connection of two stirring drives. Ideal for demanding stirring tasks and suitable for continuous operation. With 10-step power setting for high performance with large and viscous stirring amounts.Jerk-free stirring even at low speedsSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-cleanUniversal control unit for the connection of two stirring drives. Ideal for demanding stirring tasks and suitable for continuous operation. With 10-step power setting for high performance with large and viscous stirring amounts.Jerk-free stirring even at low speedsSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-clean
Control unit MIXcontrol 20, with RS232 interface
Universal control unit for the connection of one stirring drive.Jerk-free stirring even at low speeds4-step power settingSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-cleanUniversal control unit for the connection of one stirring drive.Jerk-free stirring even at low speeds4-step power settingSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-clean
Control unit MIXcontrol eco
Prize-optimized control unit for small to medium volumes.Speed setting and ON/OFF via rotary knobSoftStart
Control unit MIXcontrol 20
Universal control unit for the connection of one stirring drive.Jerk-free stirring even at low speeds4-step power settingSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-cleanUniversal control unit for the connection of one stirring drive.Jerk-free stirring even at low speeds4-step power settingSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-clean
Control unit MIXcontrol 40
Universal control unit for the connection of two stirring drives. Ideal for demanding stirring tasks and suitable for continuous operation. With 10-step power setting for high performance with large and viscous stirring amounts.Jerk-free stirring even at low speedsSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-cleanUniversal control unit for the connection of two stirring drives. Ideal for demanding stirring tasks and suitable for continuous operation. With 10-step power setting for high performance with large and viscous stirring amounts.Jerk-free stirring even at low speedsSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-clean
