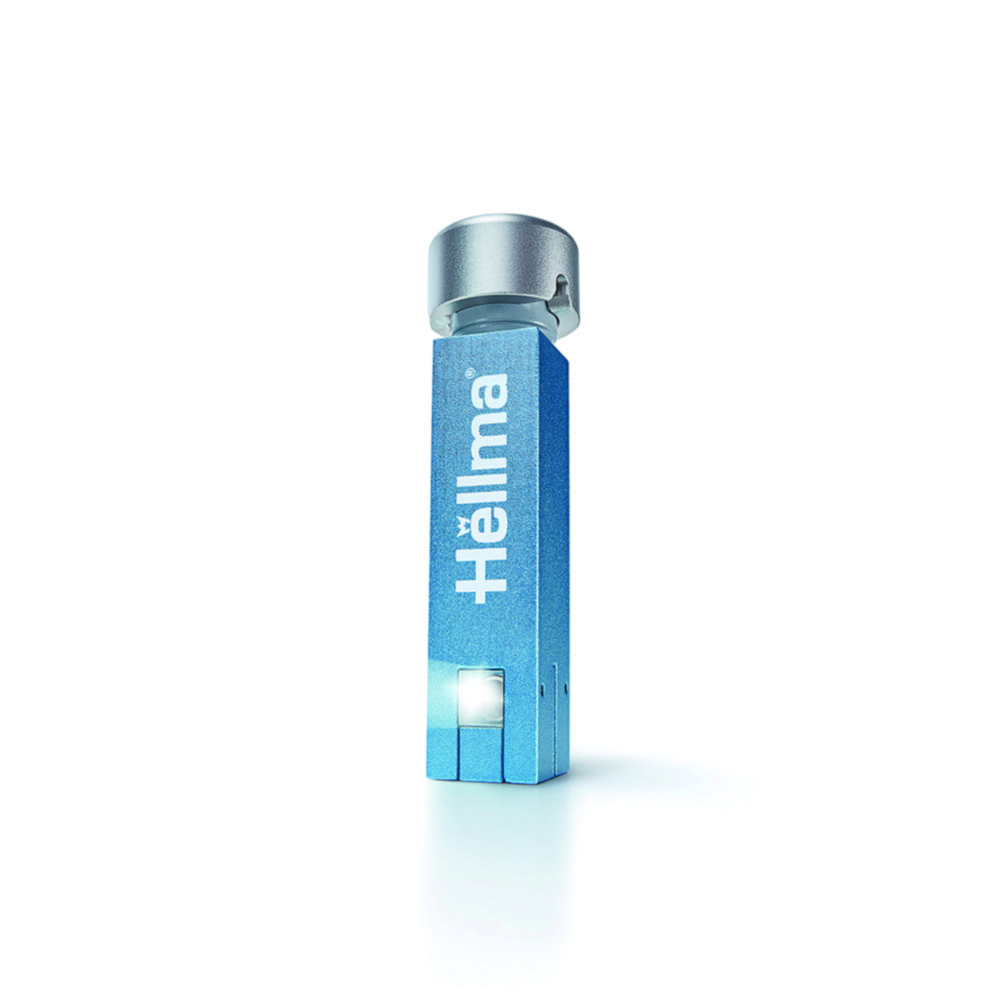

Micro volume measuring cell TrayCell 2.0
Product information "Micro volume measuring cell TrayCell 2.0"
Fibre-optic micro volume measuring cell for UV/VIS-based microvolume analysis. Suitable for all current spectrophotometers with standard cuvette holder.
Purity and concentration determination of DNA/RNA and proteins
Determination of labelling efficiency for microarray experiments
Precisely defined path lengths prevent misadjustment
Recovery of samples by simple pipetting off
Samples with low surface tension can be measured
Quick and easy cleaning
Please indicate the centre height when placing your order!
Scope of supply: Cuvette, lid for the indicated layer thicknesses
Purity and concentration determination of DNA/RNA and proteins
Determination of labelling efficiency for microarray experiments
Precisely defined path lengths prevent misadjustment
Recovery of samples by simple pipetting off
Samples with low surface tension can be measured
Quick and easy cleaning
Please indicate the centre height when placing your order!
Scope of supply: Cuvette, lid for the indicated layer thicknesses
| Specifications | |
| Volume: | 0.7 ... 10 µl |
| Measuring range: | 210 ... 1100 nm |
| Window material: | High performance quarz glass |
| Dimensions (W x D) |
| Capacity µl: | 0.7 ... 10 |
|---|---|
| Centre height mm: | 8.5 / 15 / 20 |
| Height mm: | 61.5 / 68 / 73 |
| Manufacturer Article Number: | 105830-A3-V1-40 |
| Path length mm: | 0.2 / 1 |
| Type: | TrayCell 2.0 |
Skip product gallery
Accessories

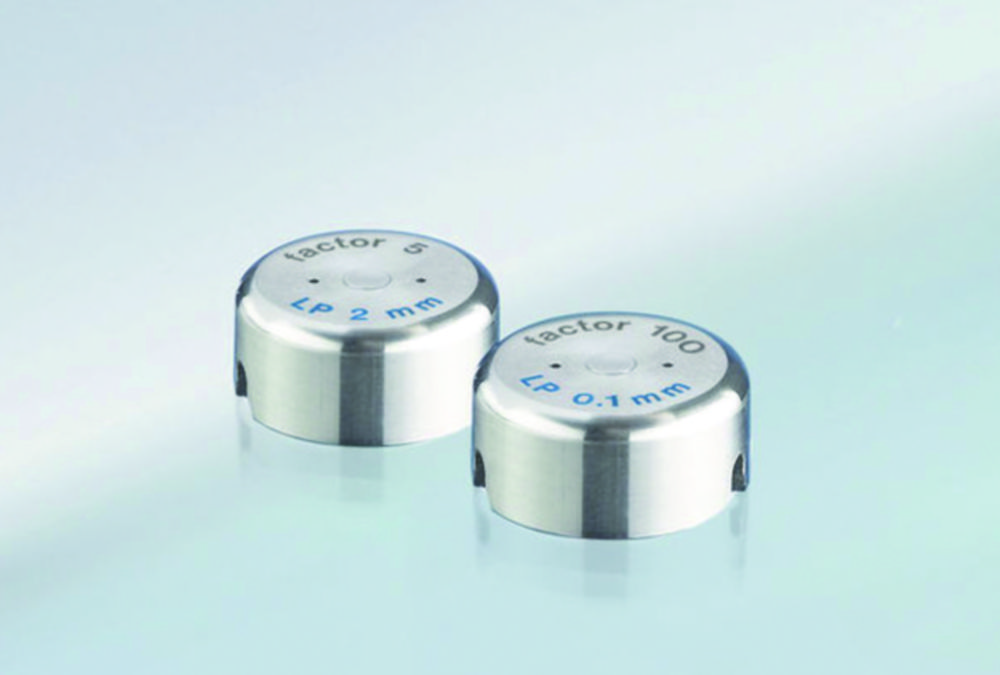

Caps for TrayCell
€0.00*
Traditional spectrophotometrical analysis of nucleic acids is carried out in 10mm cuvettes. Modern drop analysis uses light paths of 1mm and 0.2mm and it is thus not necessary to dilute the sample. In applications with very high or very low DNA concentrations these light paths are often no longer sufficient. When using the TrayCell from Hellma Analytics simply adjust the light path by exchanging the cap. Cap with integrated mirror to change the light path.
