Magnetic stirrer Hei-PLATE Reflux Package Core+
Content:
1
Product number:
4684893
Product information "Magnetic stirrer Hei-PLATE Reflux Package Core+"
The Hei-PLATE Mix'n'Heat Core series with heating consists of models Hei-PLATE Mix'n'Heat Core, Hei-PLATE Mix'n'Heat Core+ and Hei-PLATE Mix'n'Heat Core+.
Scope of supply: Hei-PLATE Mix'n'Heat Core+, PT 1000 (V4A), Heat-On 1 l Block, Finser 29/24, Findenser™ attachment kit
- With patented Kera-Disk® top plate made of anodized aluminum and fireproof aluminum die cast housing
- Fastest heating times thanks to 800 W (at 230 V), the built in PID controller guarantees precise control without overshooting the temperature
- Simple operating concept
- Larger distances between the heating plate and knobs for additional protection against burns
- Liquids are safely dissipated from the device
- A carrying support on the underside ensures safe transport
- Connections on the back are protected by a flap
- With connection for optional temperature sensor Pt 1000
- Compatible with EKT Hei-Con contact thermometers for external controlling and display of actual temperature values
| Colour housing: | White |
|---|---|
| Depth: | 299 mm |
| Dimensions (WxDxH): | 168 x 299 x 101 mm |
| Display: | Digital |
| Heating capacity: | 800 W |
| Heating temperature: | 20 ... 300 °C |
| Height: | 101 mm |
| IP code: | IP 42 |
| Manufacturer Article Number: | 506-21156-00 |
| Max. heating temperature: | 300 °C |
| Max. permitted ambient temperature: | 31 °C |
| Max. relative humidity rate: | 80 % |
| Max. speed: | 1400 1/min |
| Max. stirring capacity: | 20 l |
| Max. voltage: | 230 V |
| Min. heating temperature: | 20 °C |
| Min. permitted ambient temperature: | 5 °C |
| Min. speed: | 100 1/min |
| No. of stirring positions: | 1 |
| Permitted ambient temperature: | 5 ... 31 °C |
| Plug type: | EU |
| Power supply: | 230 V |
| Rated capacity: | 825 W |
| Speed: | 100 ... 1,400 1/min |
| Type: | Hei-PLATE Reflux Core+ |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41103806 |
| Weight: | 3 kg |
| Width: | 168 mm |
| With connection ext. temperature sensor: | Yes |
| With timer: | No |
| Working area Ø: | 145 mm |
Skip product gallery
Accessories

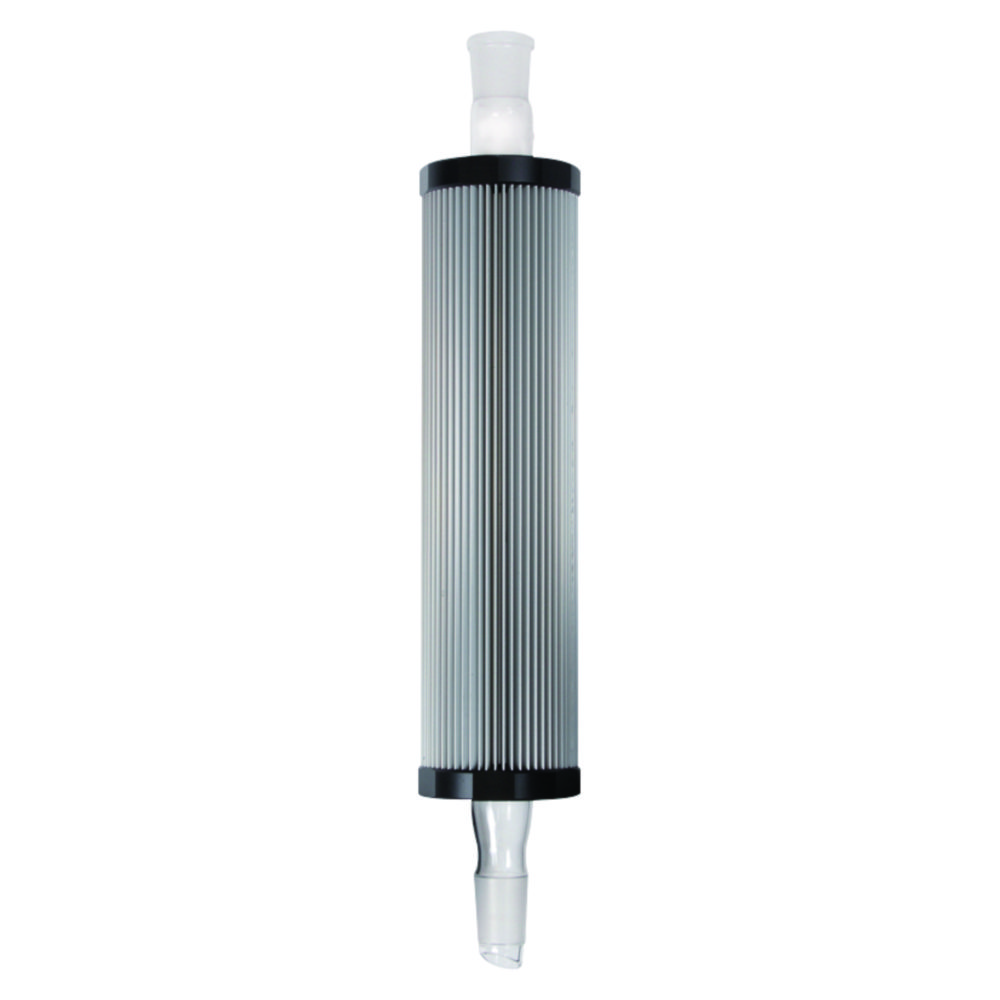

High Performance condensers Findenser™
For simple and safe reflux reactions without water cooling. Consists of a glass column and a finned aluminium jacket with excellent heat transfer.Encapsulated thermal fluid is located between the glass column and the jacket to transfer the heat from glass to jacket.Ready for immediate useSuitable for unattended continuous operationIndependent from water connectionsLarge cooling surfaceChemical resistant anodised surfaceCan be used with standard laboratory clamps or the Findenser™ attachment kit
