High-temperature circulators Forte HT
Product information "High-temperature circulators Forte HT"
High-temperature circulators have a compact, closed construction to prevent the formation of oil fumes even at high temperatures. A powerful heating capacity ensures short heat-up times. Automatic heat-up and cracking protection ensure a long service life of the bath fluid. The entire system can be filled bubble-free thanks to a filling system with automatic venting.
High-temperature circulators have a compact, closed construction to prevent the formation of oil fumes even at high temperatures. A powerful heating capacity ensures short heat-up times. Automatic heat-up and cracking protection ensure a long service life of the bath fluid. The entire system can be filled bubble-free thanks to a filling system with automatic venting.
- Self-optimising ICC cascade temperature control
- Pump capacity from 14 to 18 l/min
- Illuminated LCD display
- Electronic level indicator
- Integrated programmer with memory for 6 profiles with 60 programme steps each
- ATC function for simple temperature correction
- Small filling volume
- RS232 and RS485 interface, standby-input
- Integratable e.g. in miniplant systems
- Classification III (FL) according to DIN 12876-1
- Self-optimising ICC cascade temperature control
- Pump capacity from 14 to 18 l/min
- Illuminated LCD display
- Electronic level indicator
- Integrated programmer with memory for 6 profiles with 60 programme steps each
- ATC function for simple temperature correction
- Small filling volume
- RS232 and RS485 interface, standby-input
- Integratable e.g. in miniplant systems
- Classification III (FL) according to DIN 12876-1
| Ext. depth: | 230 mm |
|---|---|
| Ext. height: | 580 mm |
| Ext. width: | 230 mm |
| External dimensions (WxDxH): | 230 x 230 x 580 mm |
| Heating capacity: | 6 kW |
| IP code: | IP 21 |
| Manufacturer Article Number: | 9800063 |
| Max. delivery pressure: | 1.2 bar |
| Max. flow rate: | 18 l/min |
| Max. temperature: | 400 °C |
| Max. voltage: | 208 V |
| Max. volume bath: | 2 l |
| Min. temperature: | 70 °C |
| Power supply: | 208 V, 60 Hz |
| Power supply frequency: | 60 Hz |
| Programmable: | Yes |
| Temperature: | 70 ... 400 °C |
| Type: | Forte HT60-M3 |
| Volume bath: | 2 l |
| Weight: | 29 kg |
Skip product gallery
Accessories

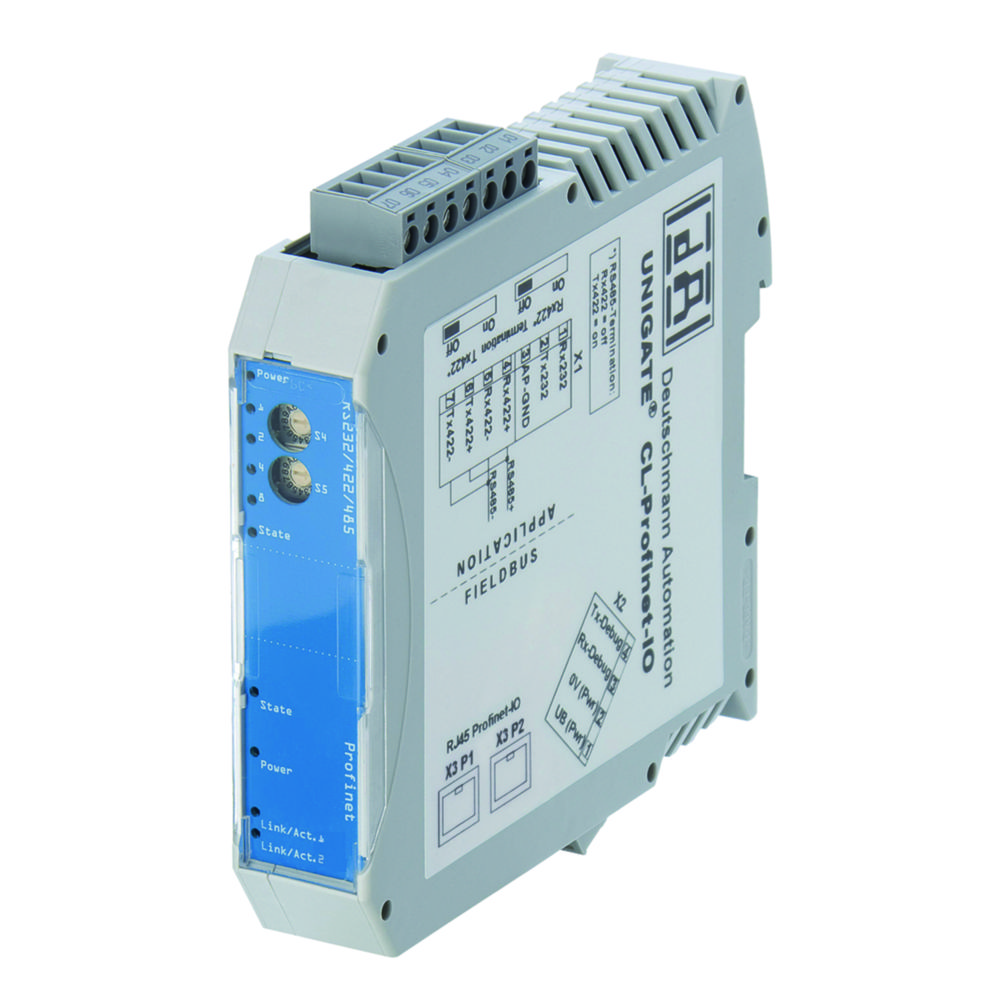

ProfiNet Interface
€0.00*
The ProfiNet interface is a protocol converter from ProfiNet to RS232. Application interfaces RS232, 422, and 485. Bus interface ProfiNet 2Port. Mounting on DIN top-hat rail.

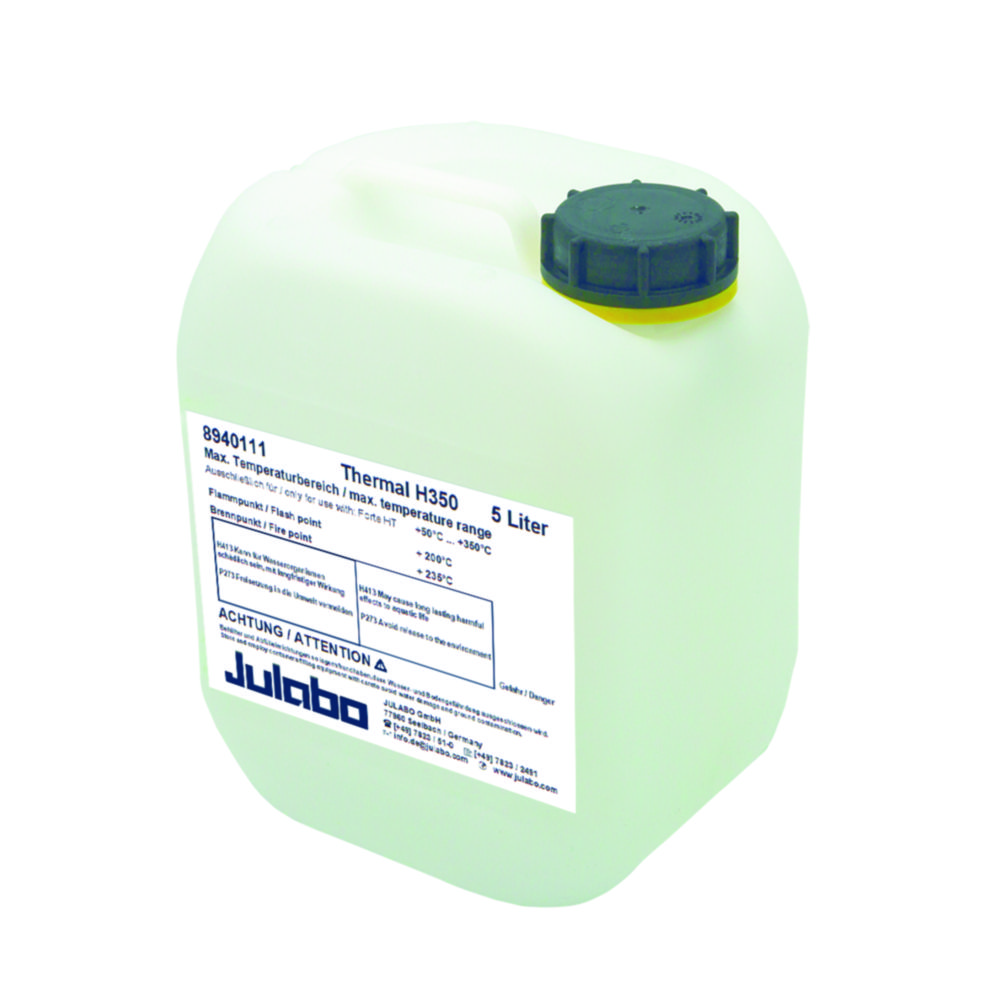

Tempering liquids for high temperature circulators Forte HT
€0.00*
Long-term tested for safe and reliable operation.Low toxicityLow viscosityHigh stabilityAlmost odor-freeGood thermal conductivityLow corrosion susceptibilityWide temperature ranges

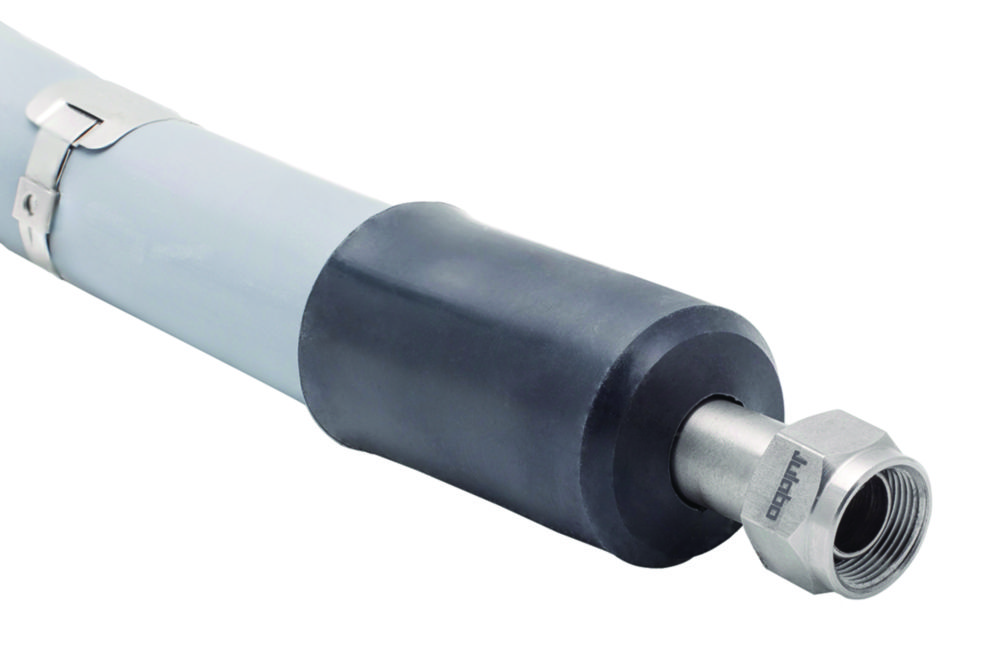

Temperature hoses, stainless steel 1.4404, triple insulation
€0.00*
Temperature hoses with special triple insulation and two M16 x 1 connections. The ends are covered with silicone caps for protection.

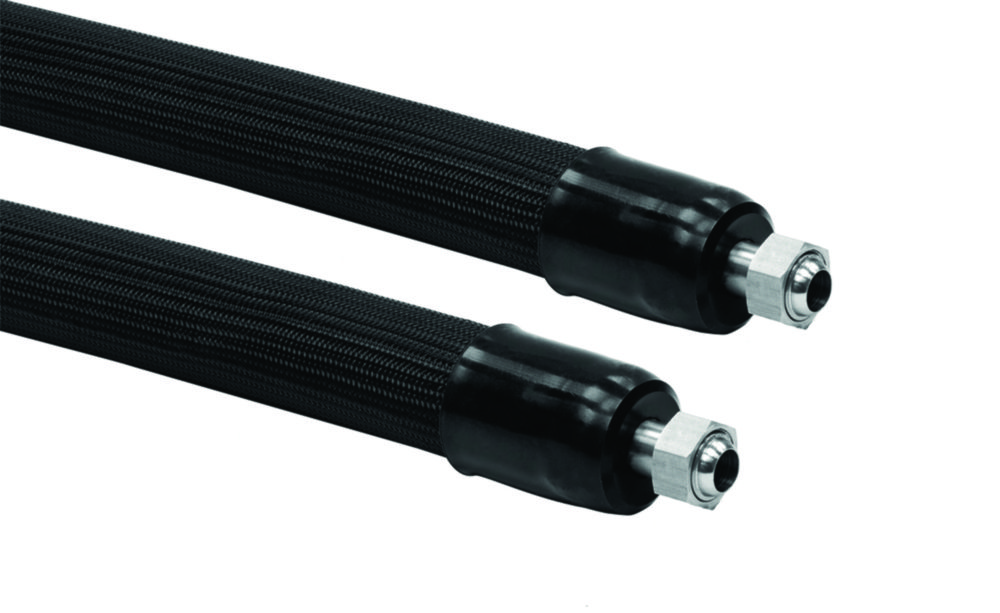

Temperature hoses, stainless steel 1.4404, single insulation
€0.00*
Temperature hoses with special single insulation and two M16 x 1 connections. The ends are covered with silicone caps for protection.
