Grinding mill, A11 basic
Content:
1
Product number:
4008002
Product information "Grinding mill, A11 basic"
Batch mill for 2 different grinding procedures:
Impact grinding of hard, brittle or non-elastic grinding materials with high-grade stainless steel beater. This beater can be used for a Mohs hardness up to 6 (incl. with delivery). Cutting grinding for pulverizing soft, fibrous materials with a cutting blade (not incl. with delivery).
Accessories please order separately.
Impact grinding of hard, brittle or non-elastic grinding materials with high-grade stainless steel beater. This beater can be used for a Mohs hardness up to 6 (incl. with delivery). Cutting grinding for pulverizing soft, fibrous materials with a cutting blade (not incl. with delivery).
- Moist and gluey materials can be pulverized by adding water
- Grinding chamber made of Tefcel (PTFE, glass fibre-reinforced) with stainless steel inlet (1.4571), useful volume 80ml (incl. with delivery). For embrittlement of grinding materials with liquid nitrogen in the grinding chamber
- Optionally, a 250ml grinding chamber is available
Accessories please order separately.
| Depth: | 85 mm |
|---|---|
| Dimensions (WxDxH): | 85 x 85 x 240 mm |
| Feed particle size: | 10 mm |
| Feed quantity: | 80 ml |
| Height: | 240 mm |
| IP code: | IP 43 |
| Manufacturer Article Number: | 0002900003 |
| Max. feed particle size: | 10 mm |
| Max. feed quantity: | 80 ml |
| Max. speed: | 28000 1/min |
| Max. voltage: | 230 V·AC |
| Plug type: | CH |
| Power supply: | 230 V·AC, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Speed: | 28,000 1/min |
| Type: | A 11 basic |
| Type of auxiliary energy: | Mains connection |
| Weight: | 1.5 kg |
| Width: | 85 mm |
Skip product gallery
Accessories
Accessories for Grinding mill, A11 basic

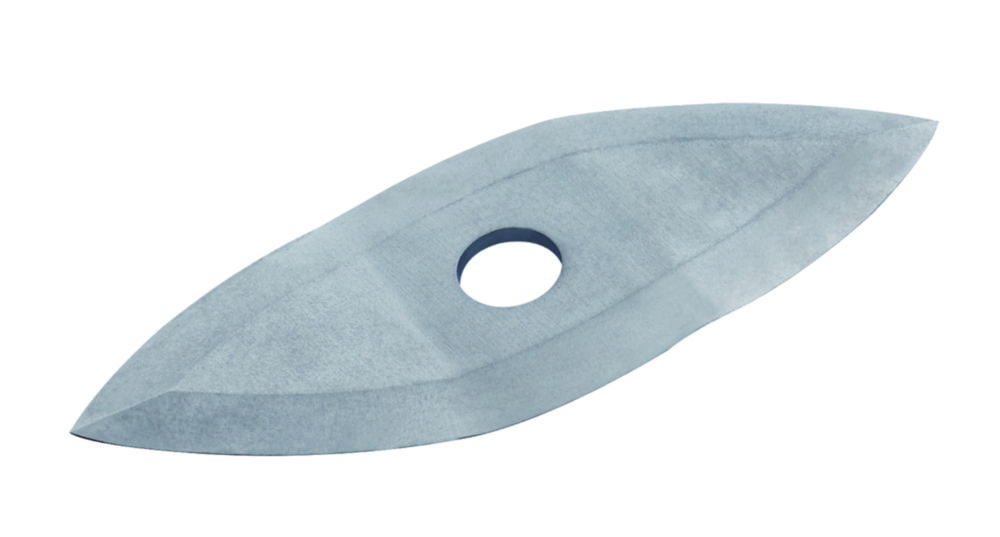

A 11.1 Spare beater: For pulverising substances with a Mohs hardness up to 6.A 11.2 Cutter: For pulverising soft, fibrous grinding materials.A 11.3 Beater, hard metal: For pulverising substances with a Mohs hardness up to 9, chrome-carbide coatedA 11.4 Grinding container, 250 ml: Made of polycarbonate with stainless steel inlet. Not suitable for cooling with N2, only applicable with double beater A 11.6.A 11.5 Spare grinding container, 80 ml: Made of Tefcel (PTFE, glass faser-reinforced) with stainless steel inlet. Excellent resistance to chemicals and low temperatures (-200 °C).A 11.6 Dubbel beater: For use up to Mohs hardness 3. Only applicable with grinding chamber A 11.4.A 11.7 Funnel: Prevents splashing by pouring in liquid nitrogen in the grinding chamber A 11.5.
