Eye-/face wash unit PremiumLine
Content:
1
Product number:
7655333
Product information "Eye-/face wash unit PremiumLine"

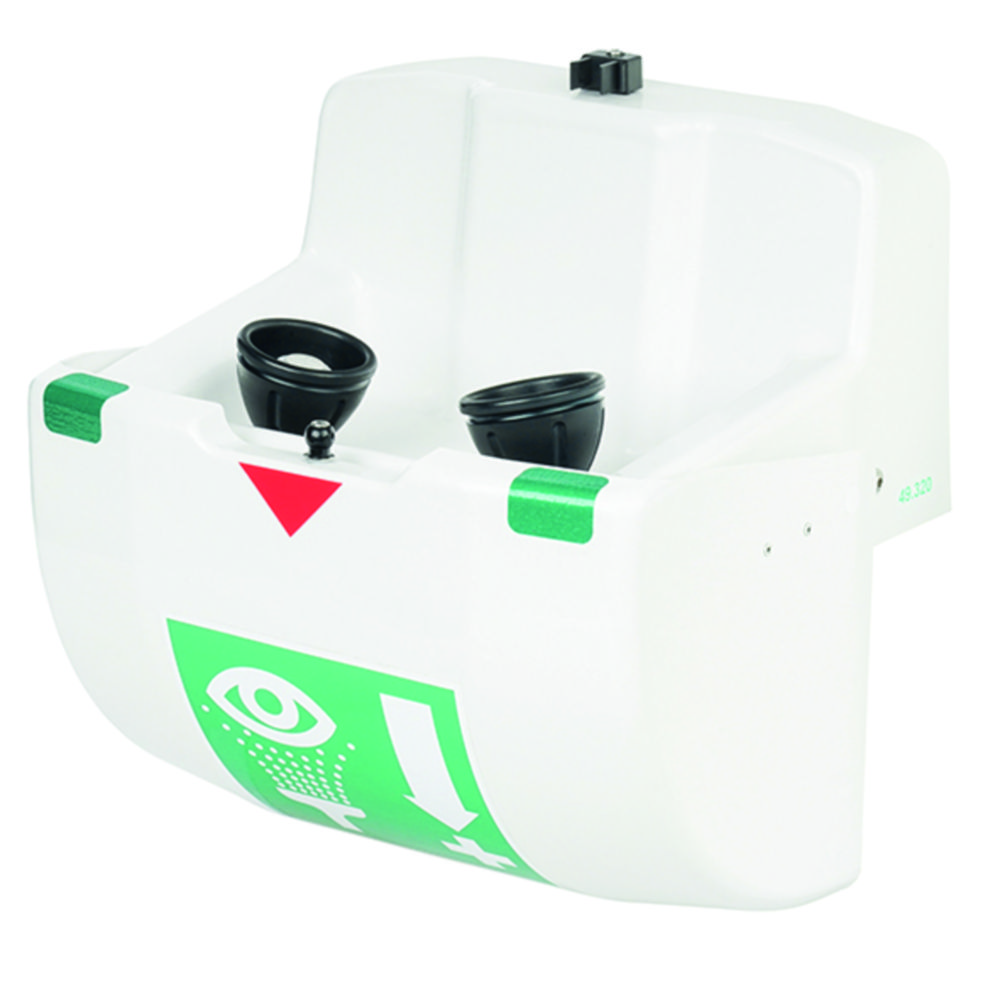

PremiumLine eye-/face wash unit with bowl and lid, wall mounted
- Housing, lid and bowl made of UV and impact resistant ABS plastics
- Integrated protective cover against dust
- Actuation by pulling down the lid
- Ball valve 3/8“ of stainless steel, with lever actuation by lid, DIN-DVGW tested and certificated
- Aerators made of brass with a very limited spray pattern, chrome-plated
- With integrated flow regulation valve 3/8” for setting the desired spray height and flow rate
- Inclusive sign for eye shower according to DIN EN ISO 7010 und ASR A1.3 on the lid, dimensions 170 x 170 mm, viewing distance 17 metres
- Mounting height (lower edge) 910 mm (± 200 mm)
- According to BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717
- According to ANSI Z358.1-2014 and DIN EN 15154-2:2006
- DIN-DVGW tested and certificated
| Colour: | White |
|---|---|
| Connection size: | 3/8“ |
| Height: | 245 mm |
| Manufacturer Article Number: | BR 850 005 |
| Material: | ABS |
| Max. operating pressure: | 5 bar |
| Min. operating pressure bar: | 2.5 bar |
| Mounting: | Wall |
| No. of spray heads: | 2 |
| Operating press bar: | 2.5 ... 5 bar |
| Volume flow rate: | 14 ... 20 l/min |
| Width: | 355 mm |
| With bowl: | Yes |
