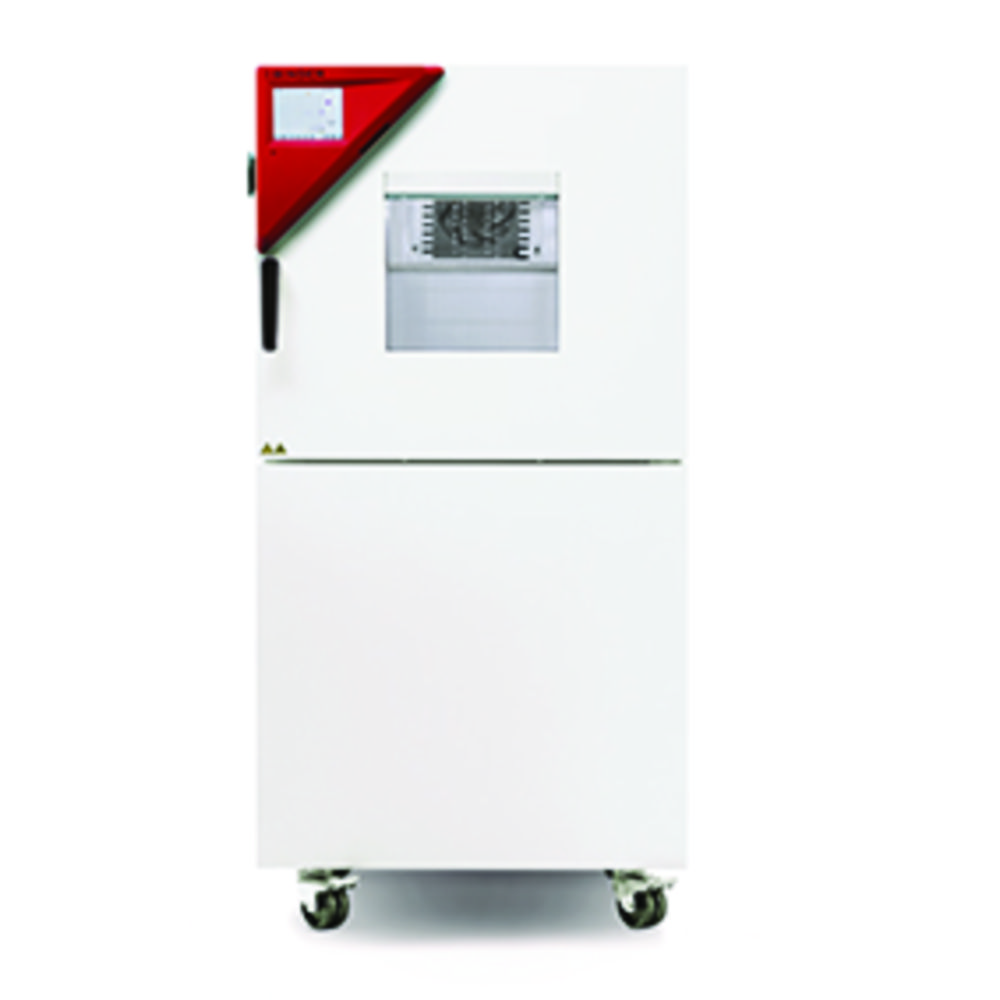

Dynamic climate chambers MK
Content:
1
Product number:
4664440
Product information "Dynamic climate chambers MK"
Environmental chambers are ideal for material testing under dynamic conditions. The standard rapid alternation speeds of approx. 5 K/min enable standard-compliant testing.
Models with 480 V nominal voltage are equipped with a voltage and frequency converter.
- Homogeneous climate conditions thanks to APT.line™ preheating chamber technology
- Touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out via USB
- Programmable condensation protection
- Troubleshooting system with visual and acoustic alarms
- Heated viewing window with LED interior lighting
- BINDER Multi Management Software APT-COM™ Basic Edition
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ethernet interface
- Adjustable ramp function
- Integrated chart recorder
- Door heating
- Inner chamber made of stainless steel
- 1 stainless steel rack
- CFC-free refrigerant R-452A
Models with 480 V nominal voltage are equipped with a voltage and frequency converter.
| Depth int.: | 350 mm |
|---|---|
| Ext. depth: | 778 mm |
| Ext. height: | 1445 mm |
| Ext. width: | 720 mm |
| External dimensions (WxDxH): | 720 x 778 x 1,445 mm |
| Height int.: | 420 mm |
| Int. width: | 400 mm |
| Internal dimensions (WxDxH): | 400 x 350 x 420 mm |
| Manufacturer Article Number: | 9020-0374 |
| Material inserts: | Stainless steel |
| Material interior: | Stainless steel |
| Max. no. of inserts: | 4 |
| Max. temperature: | 180 °C |
| Max. voltage: | 230 V |
| Min. temperature: | -40 °C |
| Nominal capacity: | 60 l |
| Plug type: | EU |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Rated capacity: | 2.8 kW |
| Temperature: | -40 ... 180 °C |
| Temperature stability: | 0,1 ... 0,5 K |
| Type: | MK 56 |
| Type of auxiliary energy: | Mains connection |
| Weight: | 165 kg |
| With CO₂ control: | No |
Skip product gallery
Accessories
Shelves for BINDER chambers and incubators, stainless steel
Shelves made of stainless steel, perforated.If you are ordering replacement shelves, please provide the serial number prior to ordering, since it might be necessary to order other shelves with different dimensions.
