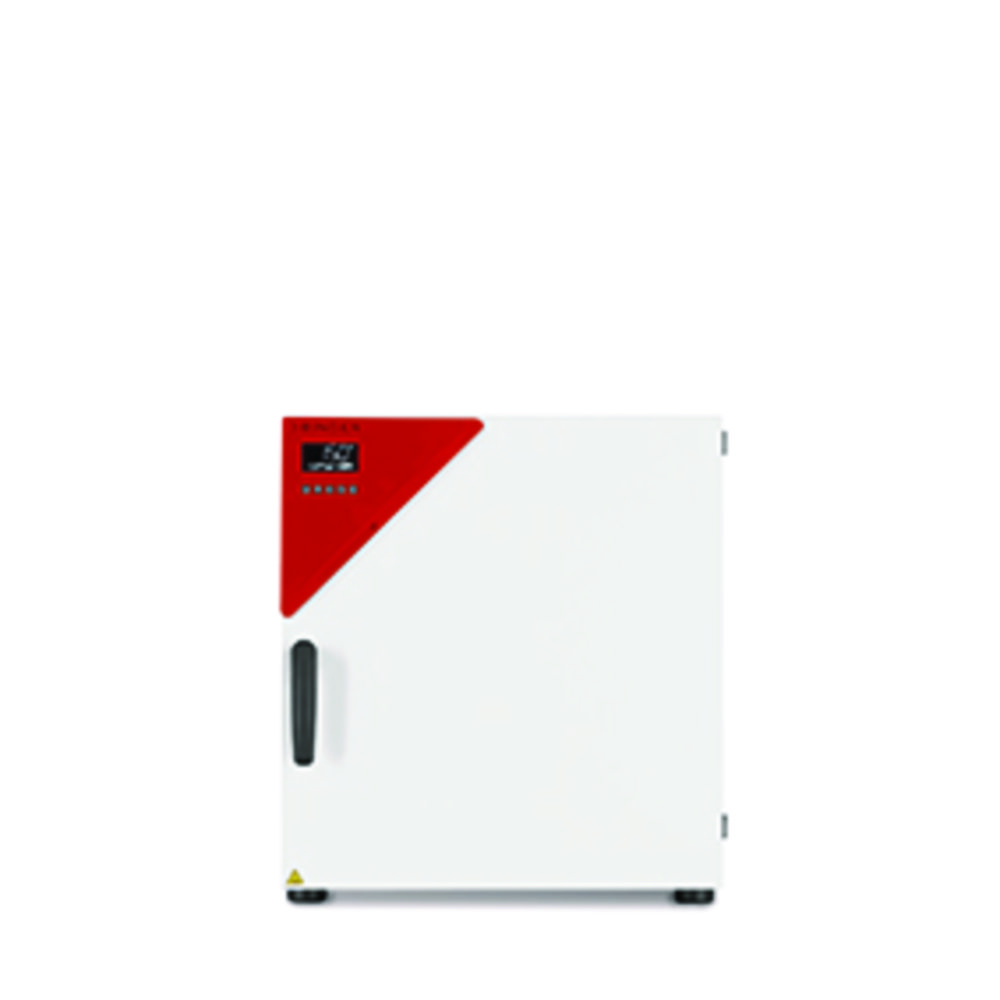

Drying and heating chambers ED Avantgarde.Line
Product information "Drying and heating chambers ED Avantgarde.Line"
Drying and heating chambers are suitable for routine drying and sterilisation tasks with homogeneous temperature distribution.
- High temperature accuracy thanks to APT.line™ technology
- Electromechanical control of the exhaust air flap
- Chambers up to 115 l are stackable
- Ergonomic handle design
- USB connection for data recording
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- With natural convection
- Controller with LCD display
| Depth int.: | 380 mm |
|---|---|
| Ext. depth: | 565 mm |
| Ext. height: | 625 mm |
| Ext. width: | 560 mm |
| External dimensions (WxDxH): | 560 x 565 x 625 mm |
| Height int.: | 420 mm |
| IP code: | IP 20 |
| Int. width: | 360 mm |
| Internal dimensions (WxDxH): | 360 x 380 x 420 mm |
| Manufacturer Article Number: | 9010-0333 UK |
| Material interior: | Stainless steel |
| Max. no. of inserts: | 4 |
| Max. temperature: | 300 °C |
| Max. voltage: | 230 V |
| Min. temperature: | +5 °C |
| Nominal capacity: | 57 l |
| Plug type: | UK |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1050 W |
| Temperature: | RT+5 ... 300 °C |
| Temperature addition: | RT |
| Temperature stability: | ±0,4 K (150 °C) |
| Type: | ED 56 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104510 |
| Weight: | 39 kg |
| With timer: | Yes |
