Distilling links with Liebig condenser and vacuum receiver adapter, DURAN® tubing

Variants table
Preview	Product number	Cone[s]	Connection	Length jacket	Manufacturer Article Number

Product information "Distilling links with Liebig condenser and vacuum receiver adapter, DURAN® tubing"

Made of DURAN^® tubing. DIN 12596. With Liebig condenser at 75° and vertical outlet with NS cone and vacuum connection with glass olives or thread GL14. With socket NS 14/23 for distillation thermometers of 55mm built-in length.

Cone[s]:	NS29/32
Connection:	Glass olive
Length jacket:	250 mm
Manufacturer Article Number:	05053304
Material:	DURAN® tubing
Socket[s]:	NS14/23
Thermometer usable:	Yes
With condenser:	Yes

Other customers also bought

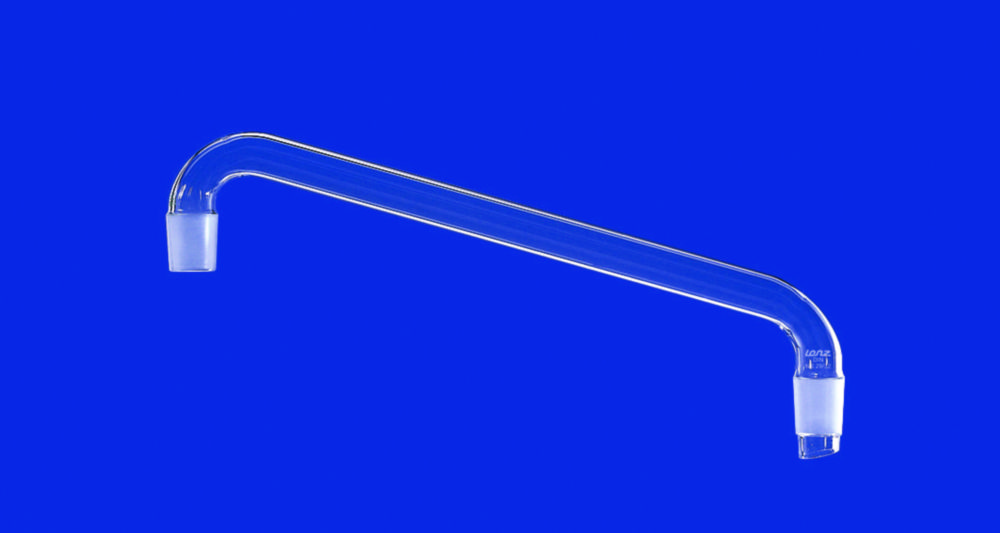

Distilling link, DURAN® tubing

Distilling link, DURAN® tubing

Made of DURAN® tubing. Distilling links without condenser, with two vertical NS-cones. With or without socket NS14/23 for distillation thermometers of 55mm built-in length.

€0.00*

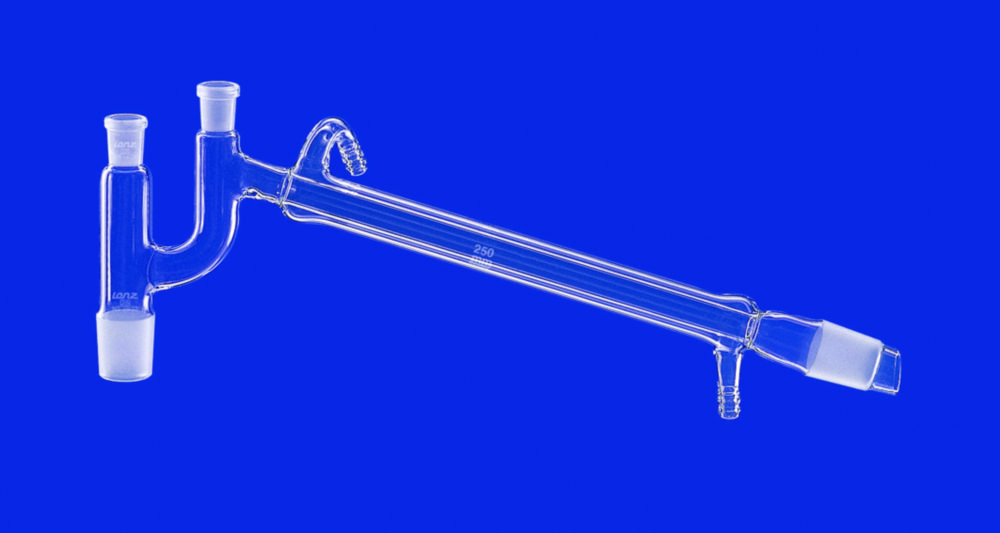

Distilling links acc. to Claisen, with olive, DURAN® tubing

Distilling links acc. to Claisen, with olive, DURAN® tubing

Made of DURAN® tubing. With Liebig condenser and Claisen head, water connection with glass olives, with two sockets NS 14/23 for distillation thermometers of 55mm built-in length.

€0.00*

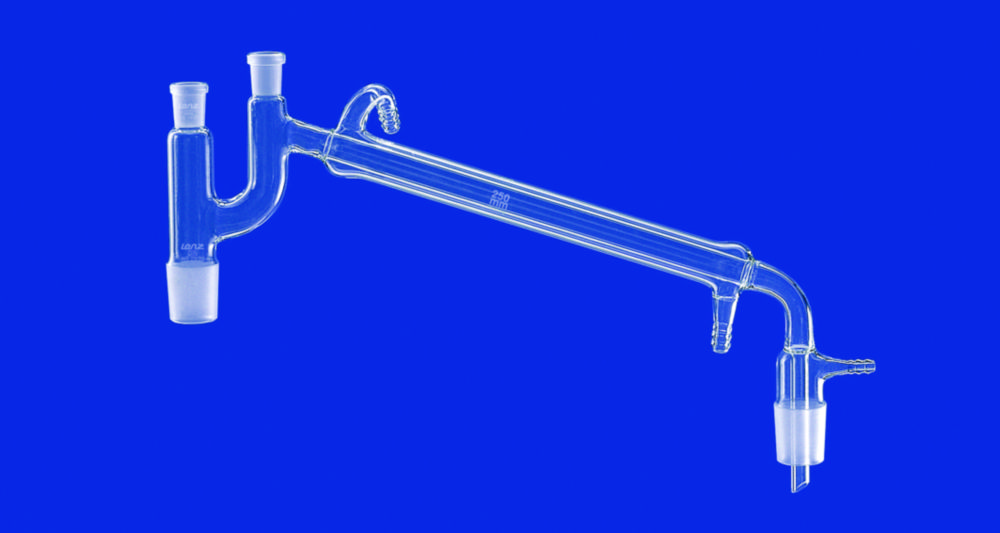

Distilling links acc. to Claisen with vacuum receiver adapter, DURAN® tubing

Distilling links acc. to Claisen with vacuum receiver adapter, DURAN® tubing

Made of DURAN® tubing. According to DIN 12594. With Liebig condenser (angled 75°) and vertical Claisen head, water and vacuum connection with olives. With two sockets NS 14/23 for distillation thermometers of 55mm built-in length.

€0.00*

Accessories

Ground joint clips for sleeve connections, wire, Chrome-nickel steel

Ground joint clips for sleeve connections, wire, Chrome-nickel steel

Chrome-nickel steel.

€0.00*

Joint clips KECK, POM, for conical ground joints

Joint clips KECK, POM, for conical ground joints

Melting point 175 °C. Excellent chemical resistance. Rigid. Heat resistant up to 150 °C, sizes colour coded.

€0.00*

PTFE sealing rings for jointed glassware

PTFE sealing rings for jointed glassware

An effective alternative to common PTFE joint sleeves and PTFE stoppers.Air leakage <10-8 to 10-6 mBar l/s (vacuum and pressure)Solvent leakage from containers < 0.1 to 0.03mg/dayTemperature range: -196 to 300°C

€0.00*

Joint clips KECK, POM, for spherical ground joints

Joint clips KECK, POM, for spherical ground joints

Melting point 175 °C. Excellent chemical resistance. Rigid. Heat resistant up to 150 °C, sizes colour coded.

€0.00*

Sleeves, PTFE, disposable

Sleeves, PTFE, disposable

Seals without grease - no grease residues are left in the analysis. Excellent chemical resistance. Can be used in temperatures from -200 to 260 °C. Wall thickness only 0.05 mm. Wide range of applications, also suitable for vacuums down to 0.1 mbar, e.g. for rotary evaporators.

€0.00*

Gas leak detection fluid, bottle

Gas leak detection fluid, bottle

DIN 30657 gas, trace and leak detection fluid. Non-allergenic, non-toxic and odourless. Suitable for all pressure ranges. Non-flammable and therefore suitable for all technical gases such as ammonia, argon and other noble gases, freon, carbon dioxide, coal gas, compressed air, propane, oxygen, nitrogen, water etc. Propellant-free. Unpressurised canister. Flash-point greater than 50°C. Unlimited shelf life. Tested and approved under DIN-DVGW-No. NG to 5170 AN 0456.Spray head not included. Please order separately.

€0.00*

Engler distilling flasks, DURAN®, ASTM, with beaded rim

Engler distilling flasks, DURAN®, ASTM, with beaded rim

Uniform wall thickness distribution makes these flasks ideal for heating applications and distillations. The flasks are manufactured from a hydrolytically resistant borosilicate glass 3.3, which is defined as "Type I, Class A" in the ASTM Specification E 438.ASTM D86DIN EN ISO 3405

€0.00*

Joint clips for conical joint sleeve connections, stainless steel, with set screw

Joint clips for conical joint sleeve connections, stainless steel, with set screw

For tapered ground joints as outlined belowWith or without set screwFor tapered ground joints as outlined below

€0.00*

Sleeves, cone joint, PTFE

Sleeves, cone joint, PTFE

With knurled gripping ring at the top of the cone for easy removal. For gas, liquid and vacuum-tight cone joint connections with sizes as outlined below. Reusable. With reinforced external ribs for a high-vacuum tight seal (leakage rate: < 1x10-4mbar x I x s-1). No joint sealant or grease required.

€0.00*

Joint grease, K.W.S

Joint grease, K.W.S

Without silicone. Designed as vacuum and high vacuum grease. No silicone derivatives, polymerisation or gumming. Excellent adhesion and viscosity. Acid/alkaline resistant. Locked joints can be loosened by brief, gentle heating. Can be used to make temporary glassware repairs. Biodegradable. Non-toxic in normal use.Working temperature range:-40 ... 200 °C, to 10-5 mbarVapour pressure:0.00001 mbar

€0.00*

Sleeves with ribs, PTFE

Sleeves with ribs, PTFE

For use with ground glass joints. Suitable for vacuums up to 0.1mbar. Reusable and long lasting. The sealing ribs grip on the inside wall of the glass socket, sealing without the need for grease and enabling the cone to be freed easily when required.

€0.00*

BUDDE - joint grease

BUDDE - joint grease

For all glass joints. Transparent, vacuum tight, water washable and water soluble. Maintains practically the consistency between -30°C and 200°C, non-solidifying. Compatible with most elastomers. Tube of 80g.

€0.00*
