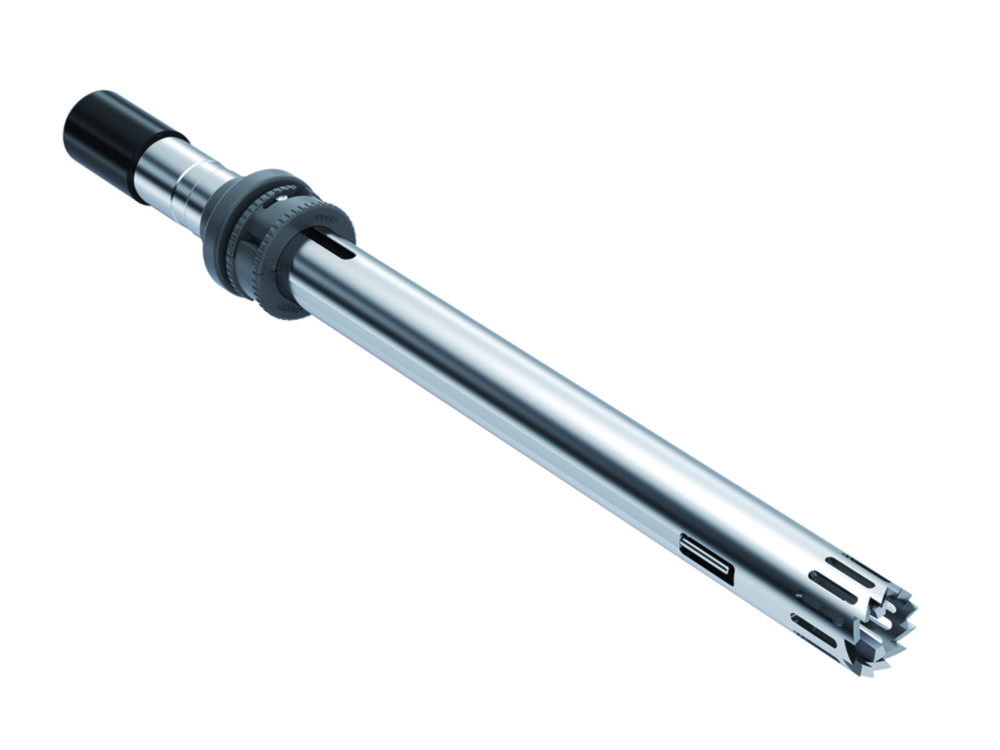

Dispersing heads for T 25 easy clean digital / T 25 easy clean control
Content:
1
Product number:
4684826
Product information "Dispersing heads for T 25 easy clean digital / T 25 easy clean control"
Easy to clean dispersing head made of stainless steel (AISI 316) and ceramic. Ultimate fineness: emulsions 1µm to 10 µm and suspensions 10 µm to 50 µm, sterilisable by all methods.
S 25 EC-T-C-25G-ST, S 25 EC-T-C-25F with integrated temperature sensor.
S 25 EC-T-C-25G-ST, S 25 EC-T-C-25F with integrated temperature sensor.
| Final fineness emulsion: | 1 ... 10 µm |
|---|---|
| Final fineness suspension: | 10 ... 50 µm |
| Immersion depth: | 45 ... 150 mm |
| Manufacturer Article Number: | 0025007398 |
| Material: | Stainless steel/Ceramic |
| Max. immersion depth: | 150 mm |
| Max. temperature: | 120 °C |
| Max. working volume: | 1500 ml |
| Min. immersion depth: | 45 mm |
| Min. working volume: | 10 ml |
| Stator Ø: | 18 mm |
| Type: | S 25 EC-T-C-18 G-ST |
| Working volume: | 10 ... 1,500 ml |
| Ø rotor: | 13.4 mm |
