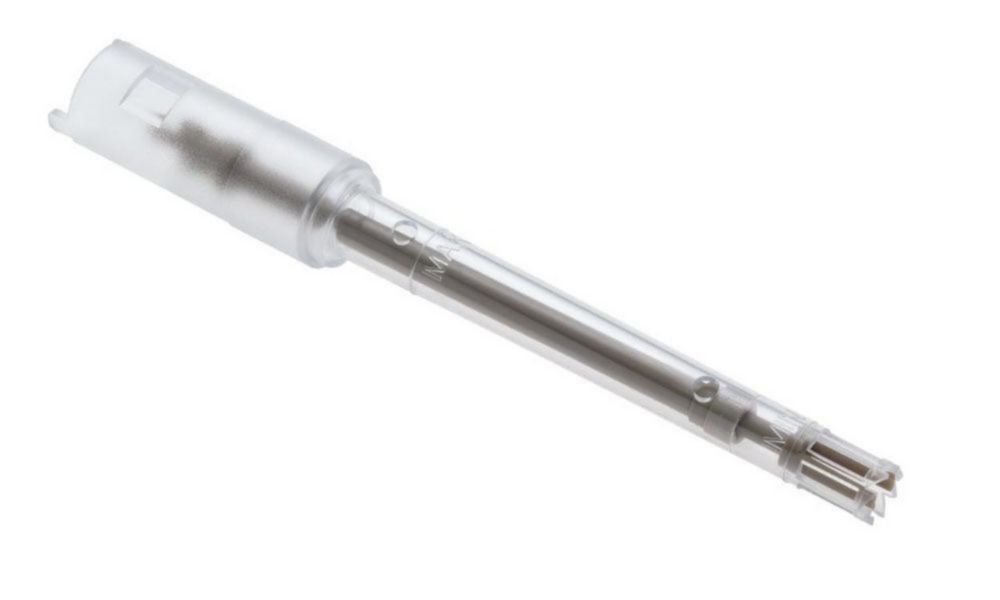

Dispersing heads for T 18 ULTRA-TURRAX® series

€0.00*

Content: 12

Prices excl. VAT plus shipping costs

Immersion depth

15 ... 85 mm

25 ... 70 mm

35 ... 170 mm

Manufacturer Article Number

0003452300

0003452400

L004639

L004640

Material

PC/PEEK

PTFE/Stainless steel

Max. immersion depth

70 mm

85 mm

170 mm

Max. temperature

100 °C

180 °C

Max. working volume

100 ml

500 ml

1500 ml

Min. immersion depth

15 mm

25 mm

35 mm

Min. working volume

1 ml

10 ml

Stator Ø

10 mm

14 mm

19 mm

Type

S 18 D-10 G-KS

S 18 D-14 G-KS

S 18 N - 10 G

S 18 N - 19 G

Working volume

1 ... 100 ml

10 ... 1,500 ml

10 ... 100 ml

10 ... 500 ml

Ø rotor

6.8 mm

7.5 mm

9.8 mm

12.7 mm

Product number: 9570855

Variants table
Preview	Product number	Immersion depth	Manufacturer Article Number	Material	Max. immersion depth	Max. temperature	Max. working volume	Min. immersion depth	Min. working volume	Stator Ø	Type	Working volume	Ø rotor

Product information "Dispersing heads for T 18 ULTRA-TURRAX® series"

Plastic dispersing heads: Autoclavable
Stainless steel dispersing heads: Ultimate fineness emulsions 1 to 10 µm and suspensions 10 to 50 µm, sterilisable by all methods.

For:	T 18 brushless digital, T 18 digital, T 18 mini digital
Immersion depth:	15 ... 85 mm
Manufacturer Article Number:	0003452400
Material:	PC/PEEK
Max. immersion depth:	85 mm
Max. temperature:	100 °C
Max. working volume:	100 ml
Min. immersion depth:	15 mm
Min. working volume:	10 ml
Stator Ø:	10 mm
Type:	S 18 D-10 G-KS
Working volume:	10 ... 100 ml
Ø rotor:	6.8 mm
