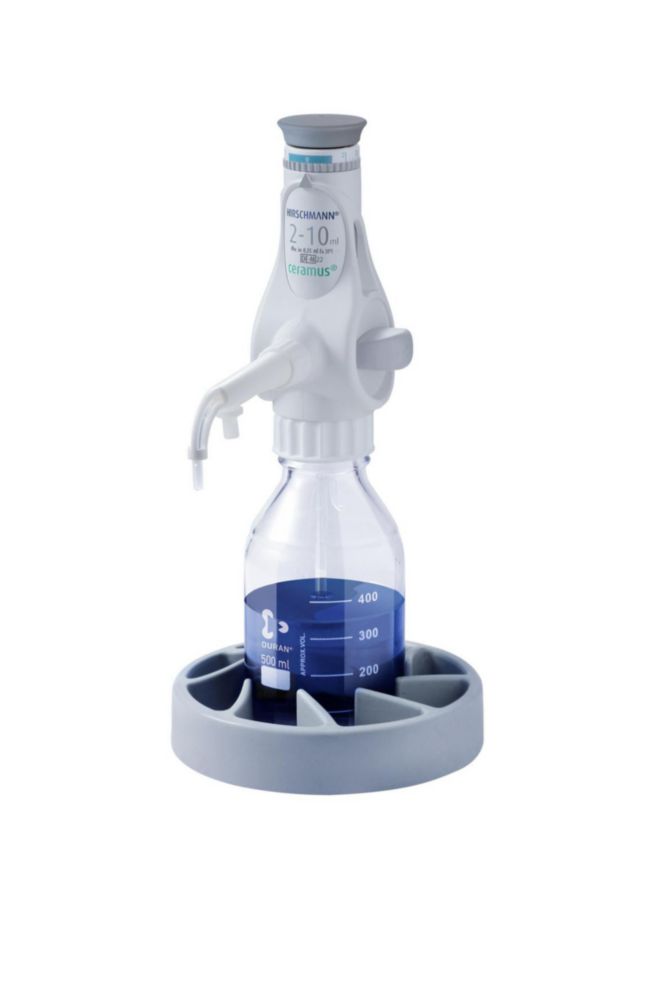

Dispensers, bottle-top, ceramus®, variable
Content:
1
Product number:
9287803
Product information "Dispensers, bottle-top, ceramus®, variable"
New dispenser technology from Hirschmann laboratory apparatus, with ceramic pistons. ceramus® are a high-precision, bottle-top dispenser range for almost all liquids.
Supplied with: ceramus® complete with thread adapters A 45mm, 3 thread adapters (A 32, S 40 Merck bottles and A 38), 1 screw-coupled suction tube, 1 discharge tube unit complete, 1 spanner for valve, with individual serial number and single calibration report.
- Environmentally-friendly, reagent-saving, recirculation valves
- Tough, ceramic pistons
- Simple, self-locking volume selection
- When not in use, pistons can be locked and delivery tubes capped to prevent loss of reagent.
- Fixed interval graduations give excellent reproducibility
- 45mm screw neck and adapters supplied allow use with a variety of reservoir bottles
- Smooth-action piston minimises operator fatigue during serial dispensing
- High-grade construction materials provide long operational life
- autoclavable at 121°C
Supplied with: ceramus® complete with thread adapters A 45mm, 3 thread adapters (A 32, S 40 Merck bottles and A 38), 1 screw-coupled suction tube, 1 discharge tube unit complete, 1 spanner for valve, with individual serial number and single calibration report.
| Accuracy: | 0,6 ± R%, 0,6 ±·R% |
|---|---|
| Division: | 0.25 ml |
| Dosing volume: | 2.0 ... 10.0 ml |
| Manufacturer Article Number: | 9342000 |
| Max. dosing volume: | 10.0 ml |
| Min. dosing volume: | 2.0 ml |
| Precision: | 0,2 ≤·VK% |
| UNSPSC: | 41121516 |
