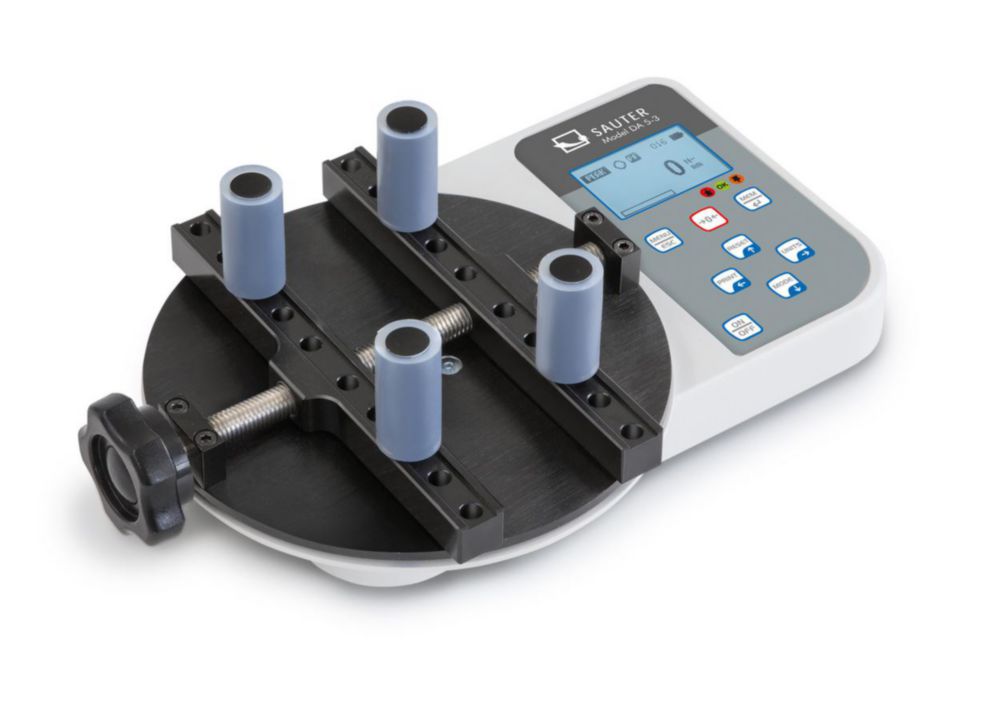

Digital torque measurement
Product information "Digital torque measurement"
For torque testing of bottles and other packaging with screw tops. Quick pin system: The four bottle mounts are pushed in, instead of being screwed in, to save time. This allows you to reconfigure quickly for other bottle sizes.
Scope of supply: Digital torque measurement, four bottle mounts with rubber coat, sturdy carry case
- Can be used in both directions of rotation
- Metal housing
- Capacity display: A bar lights up to show how much of the measuring range is still available
- Peak hold mode to capture peaks
- Function to set limits: Input of an upper/lower limit value
- Visual and acoustic signal
- AUTO-OFF function
- Back-lit LCD graphic display
- Internal data memory saves up to 500 measurements
- Memory contents can be transferred to the PC using optional software
- USB and RS 232 data interfaces
- Rubber feet with anti-slip feature
Scope of supply: Digital torque measurement, four bottle mounts with rubber coat, sturdy carry case
| Depth: | 160 mm |
|---|---|
| Dimensions (WxDxH): | 260 x 160 x 60 mm |
| Height: | 60 mm |
| Manufacturer Article Number: | DA 1-4 |
| Max. measured value: | 1 Nm |
| Measured range: | 1 Nm |
| Readability: | 0,0002 Nm |
| Type: | DA 1-4 |
| Type of auxiliary energy: | Rechargeable battery |
| Weight: | 3 kg |
| Width: | 260 mm |
