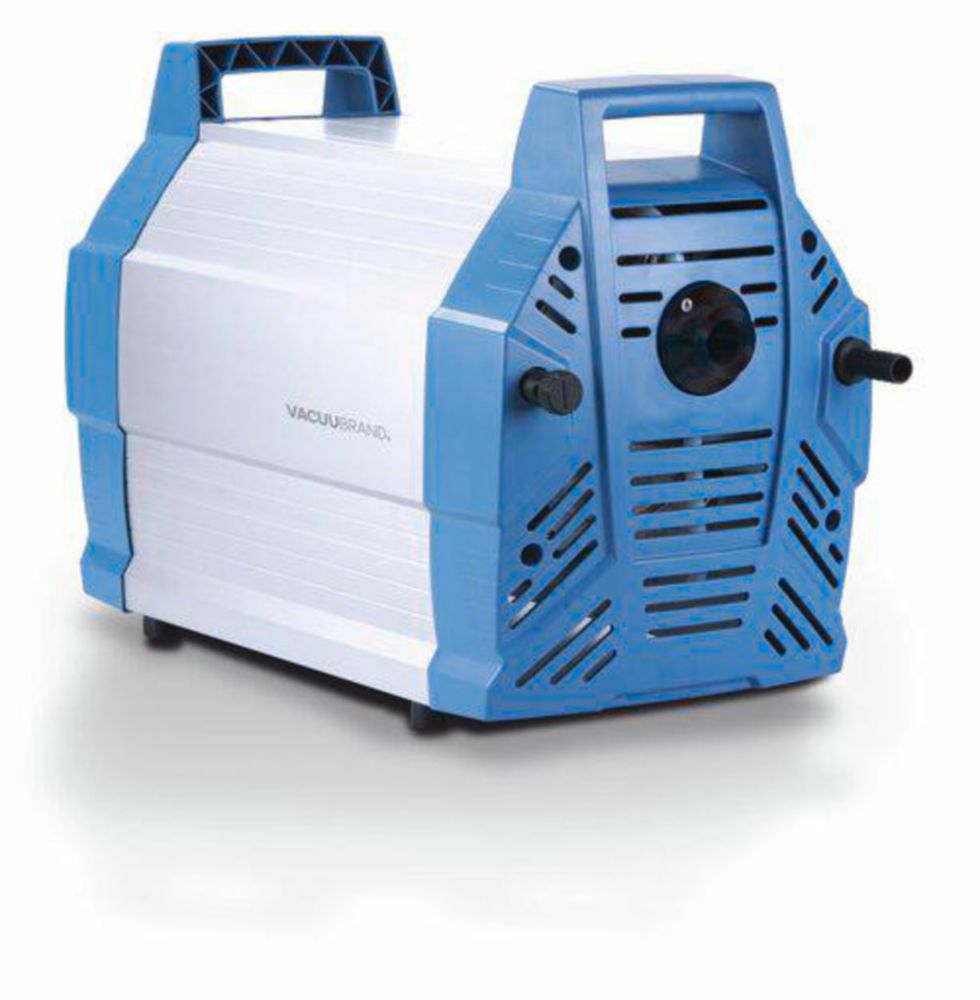

Diaphragm vacuum pumps, chemistry design, MD 12C NT
Product information "Diaphragm vacuum pumps, chemistry design, MD 12C NT"
- Improved performance, increased pumping speed and lower ultimate vacuum extends applications in both the laboratory and in industrial applications
- Long-life diaphragm with PTFE sandwich construction and unstressed diaphragm support
- Easy service/exchange of diaphragm or valves due to novel integrated valve head assembly
- Easy dismantling, cleaning and reassembly without requiring readjustment
- Very quiet and ultra low vibration due to compact drive with patented motor control system. Ideal as a built-in component for sensitive equipment in both the laboratory and in industry
- Easy to clean due to smooth exterior surfaces
- Superior vapour tolerance due to integral tubing connections and gas ballast valve for continuous purge
| Depth: | 533 mm |
|---|---|
| Dimensions (WxDxH): | 260 x 533 x 359 mm |
| Flow rate: | 12.0 m³/h |
| Height: | 359 mm |
| Manufacturer Article Number: | 20743302 |
| No. of stages: | 3 |
| Plug type: | UK |
| Type: | MD 12C NT |
| UNSPSC: | 40151502 |
| Ultimate vacuum: | 2 mbar |
| Ultimate vacuum with gas ballast: | 4 mbar |
| Width: | 260 mm |
